2SD1480
View detailed images (12)

2SD1480

SKU: 2SD1480

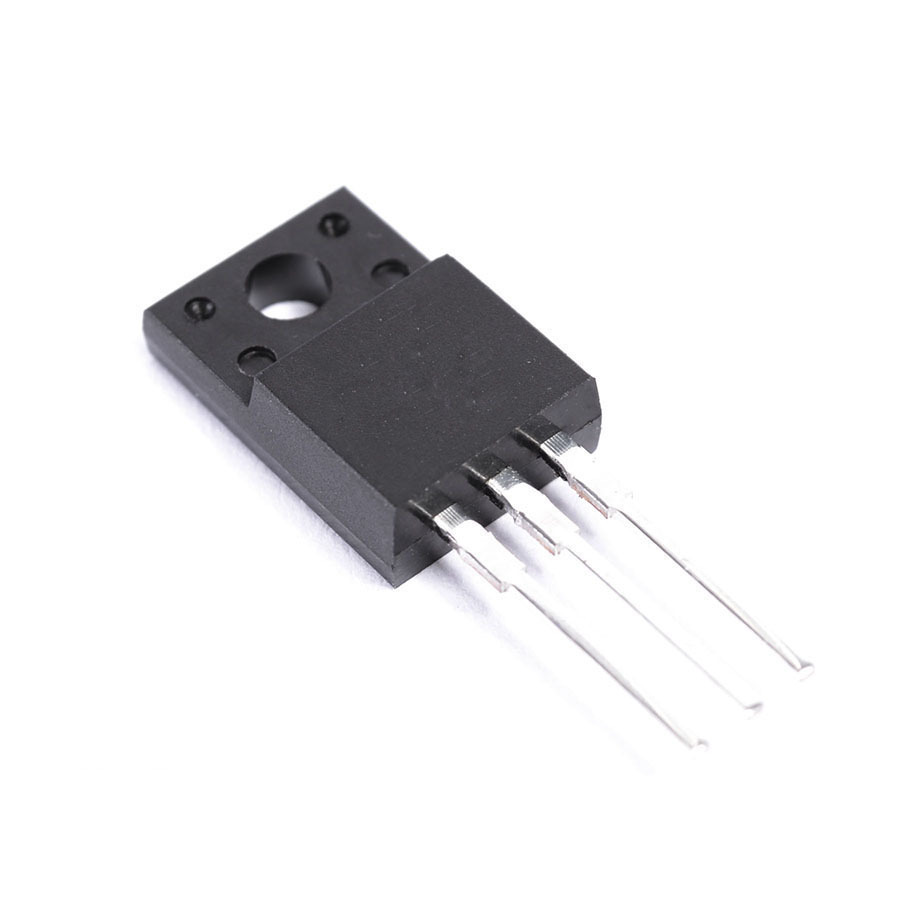

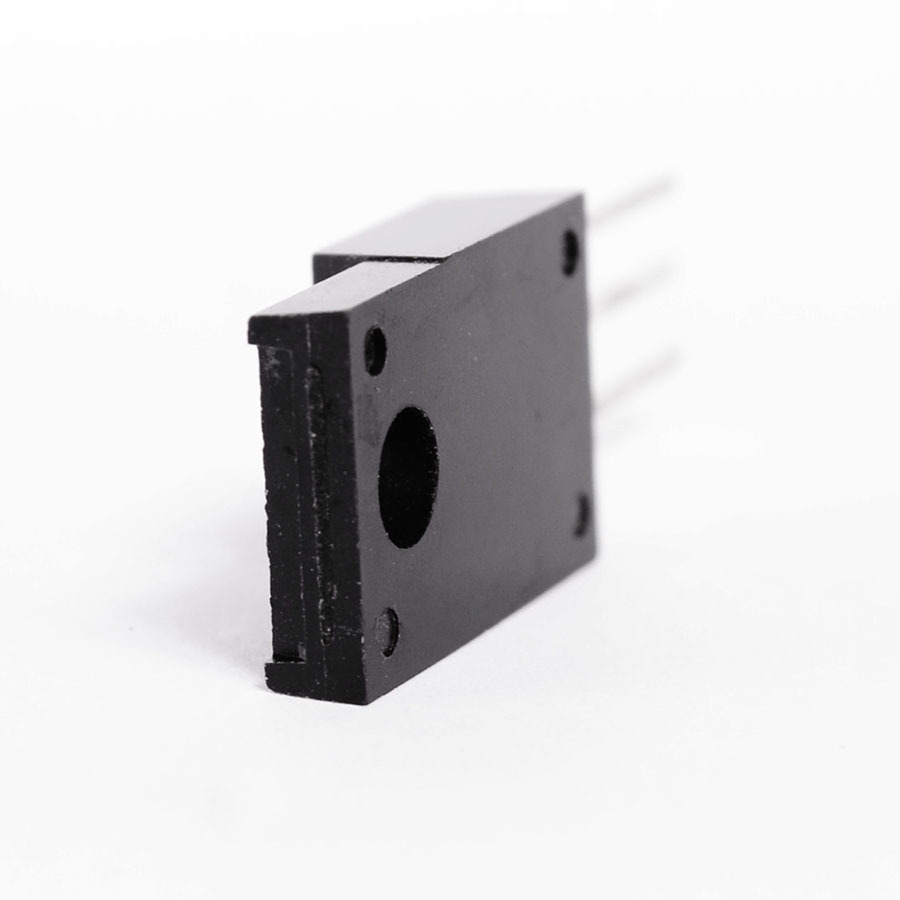

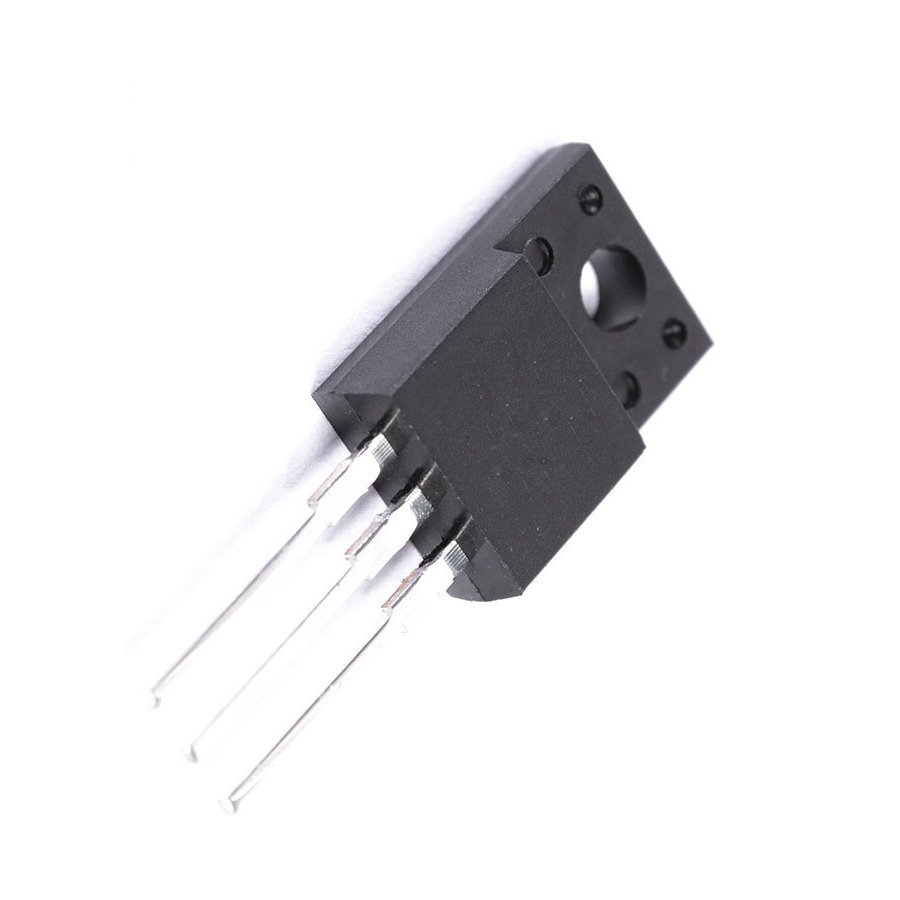

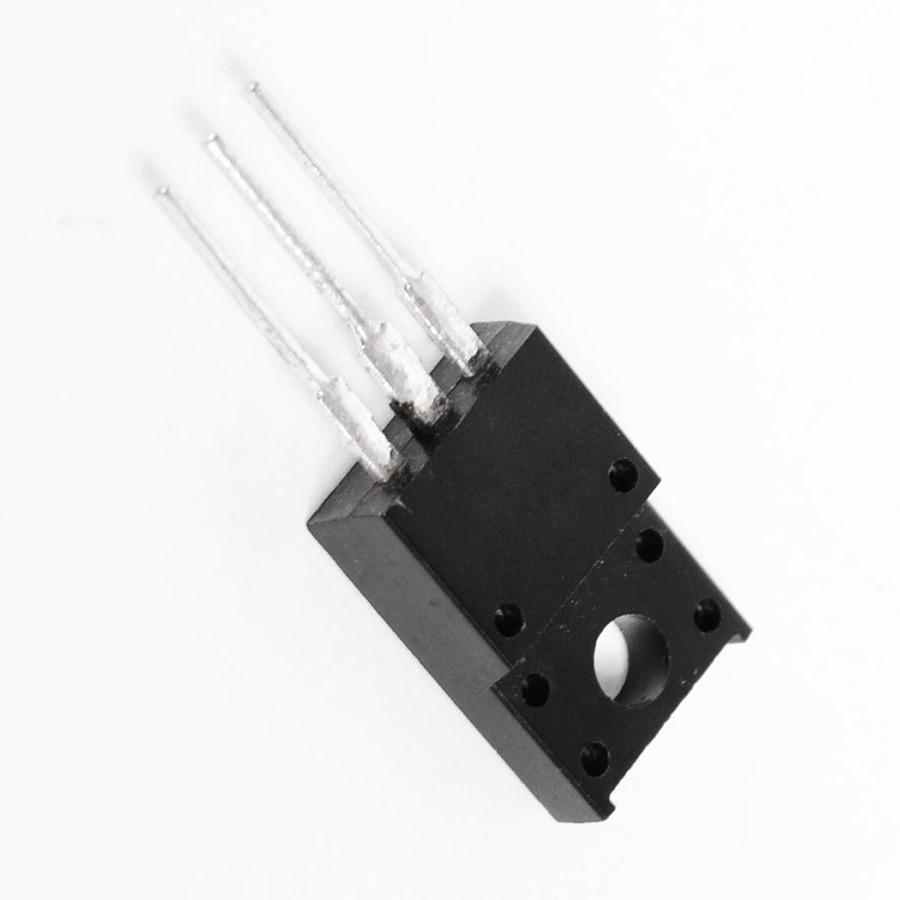

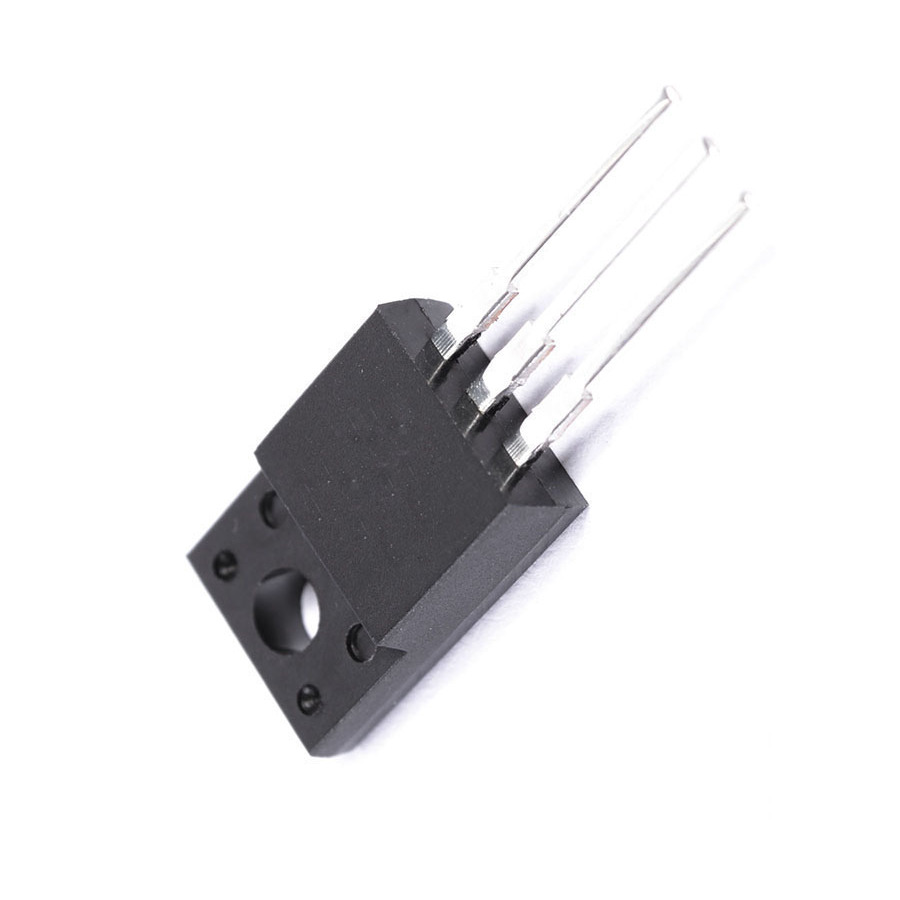

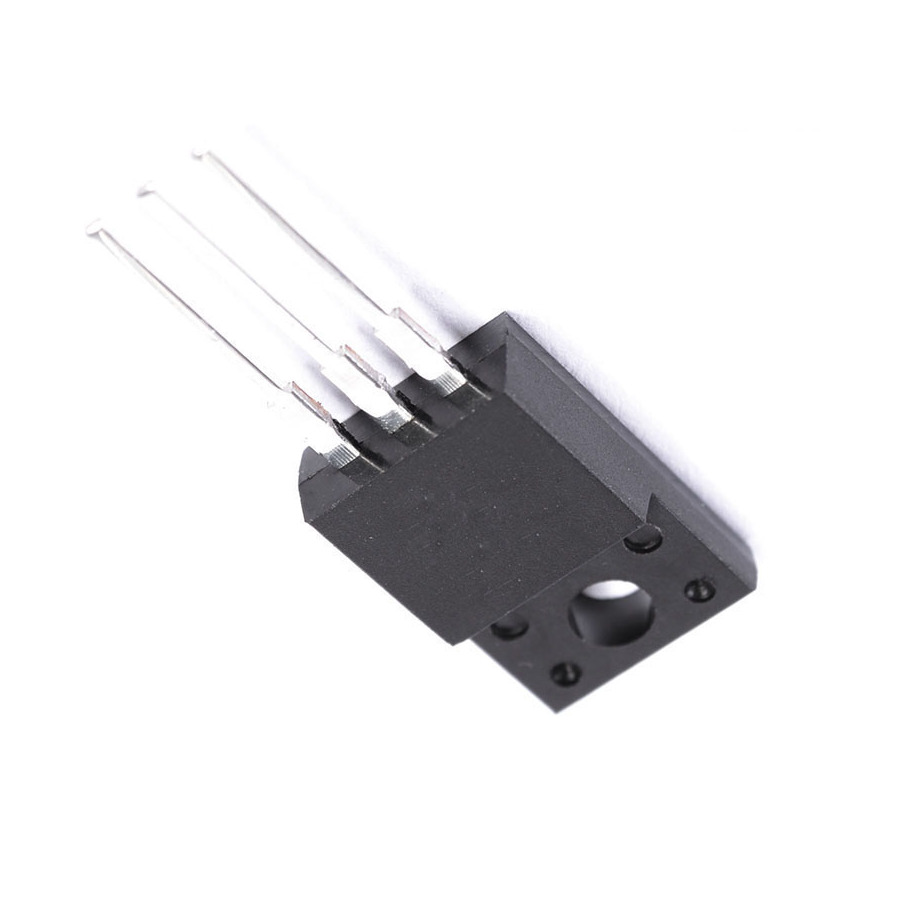

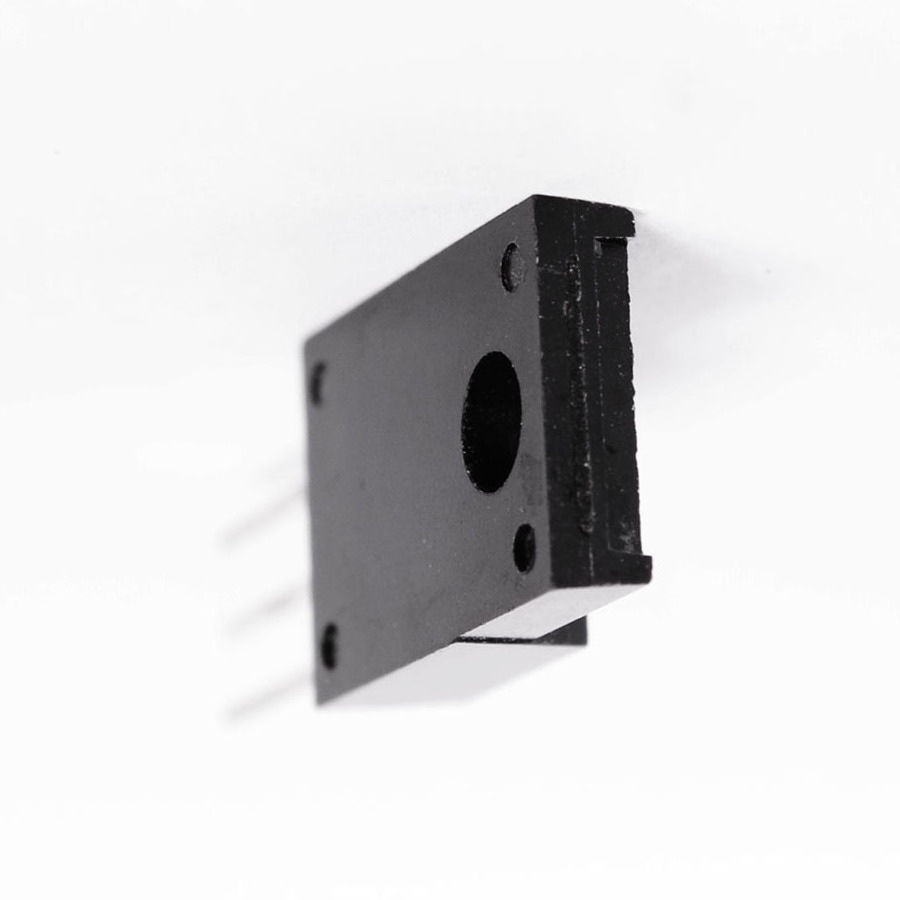

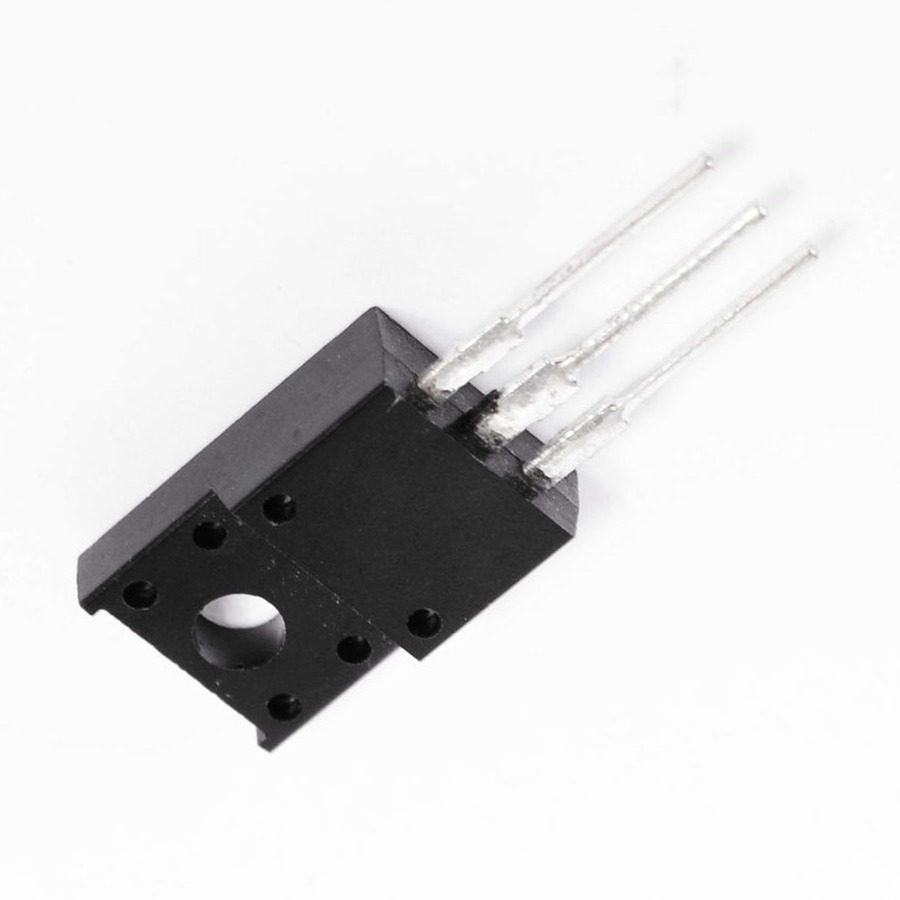

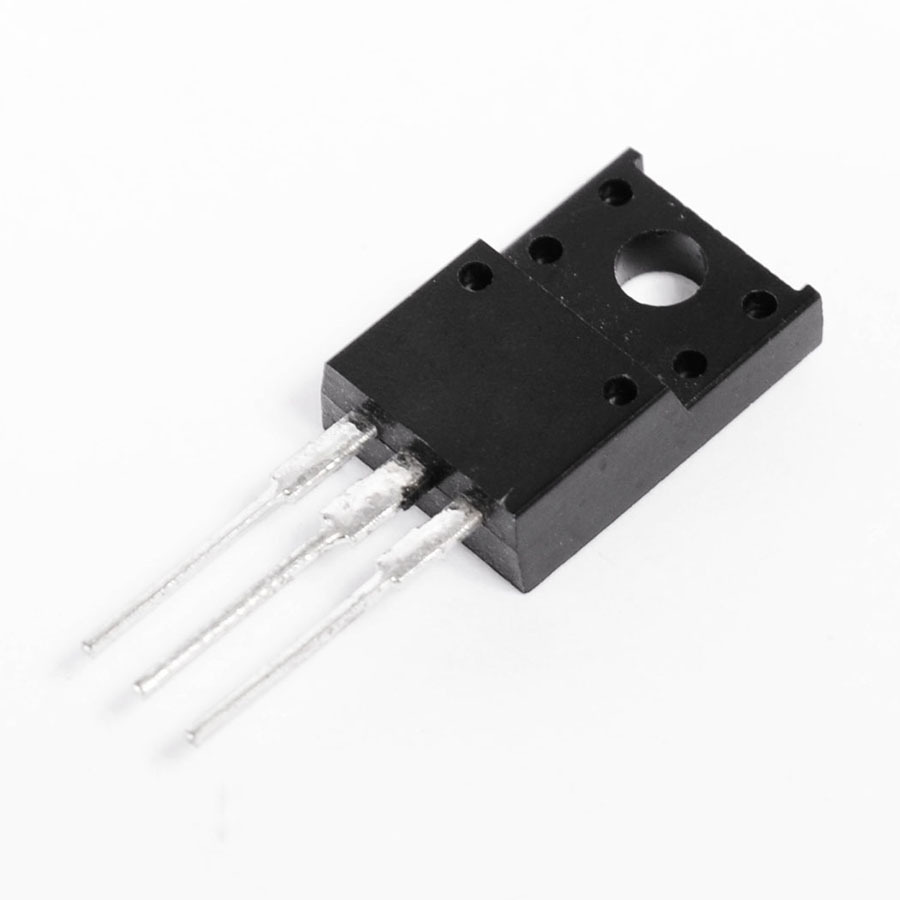

2SD1480 Transistor Silicon NPN CASE: SOT186 MAKE: Matsushita Electronics
Datasheet
2SD1480 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT186
Manufacturer Matsushita Electronics
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 25
Max. hFE 250
Min hFE 40
Ic Max. (A) 2.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 200u
Polarity NPN
Tr Max. (s) 3.5u
Derate Above 25°C 200m
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 60
SKU 345490
