2SD1508
View detailed images (5)

2SD1508

SKU: 2SD1508

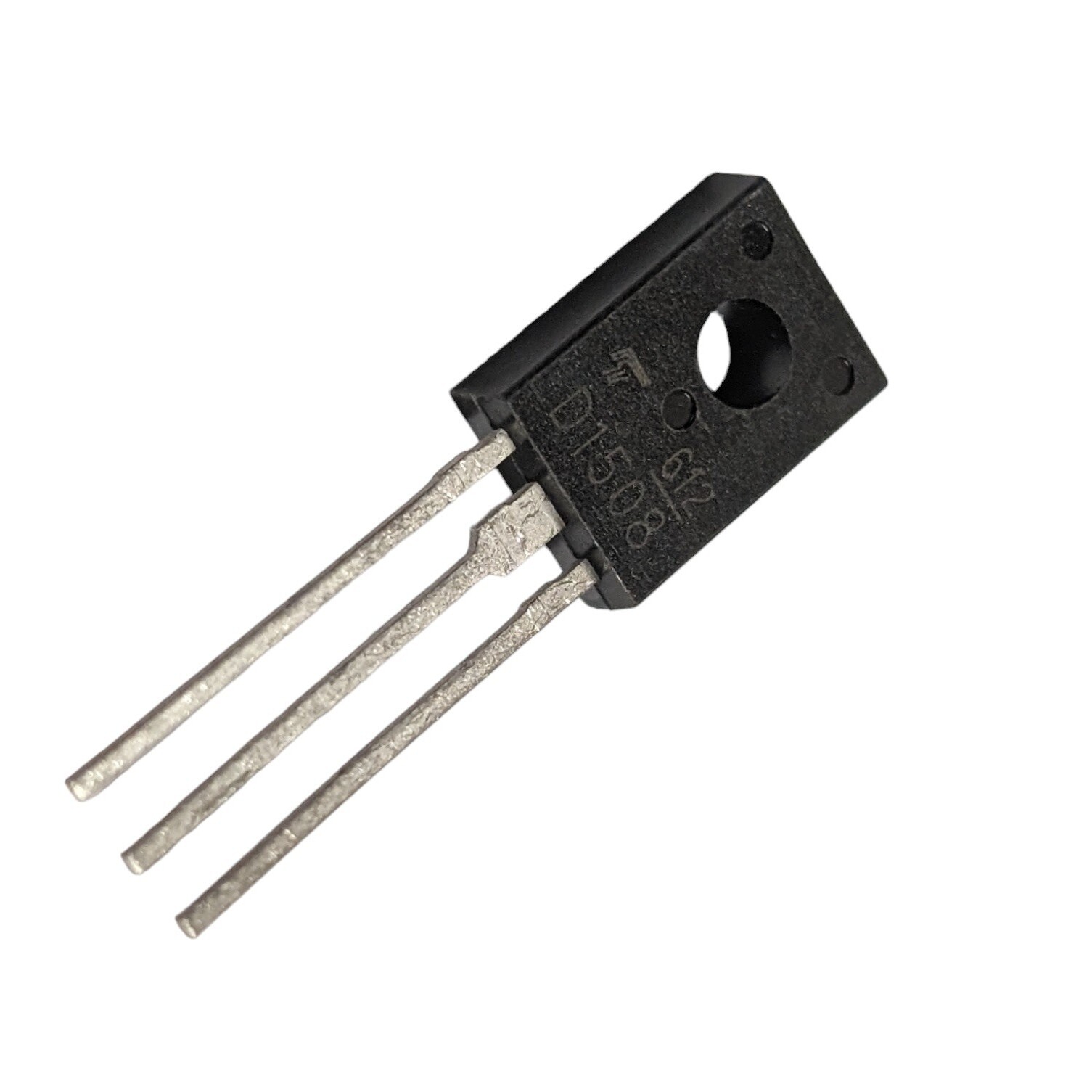

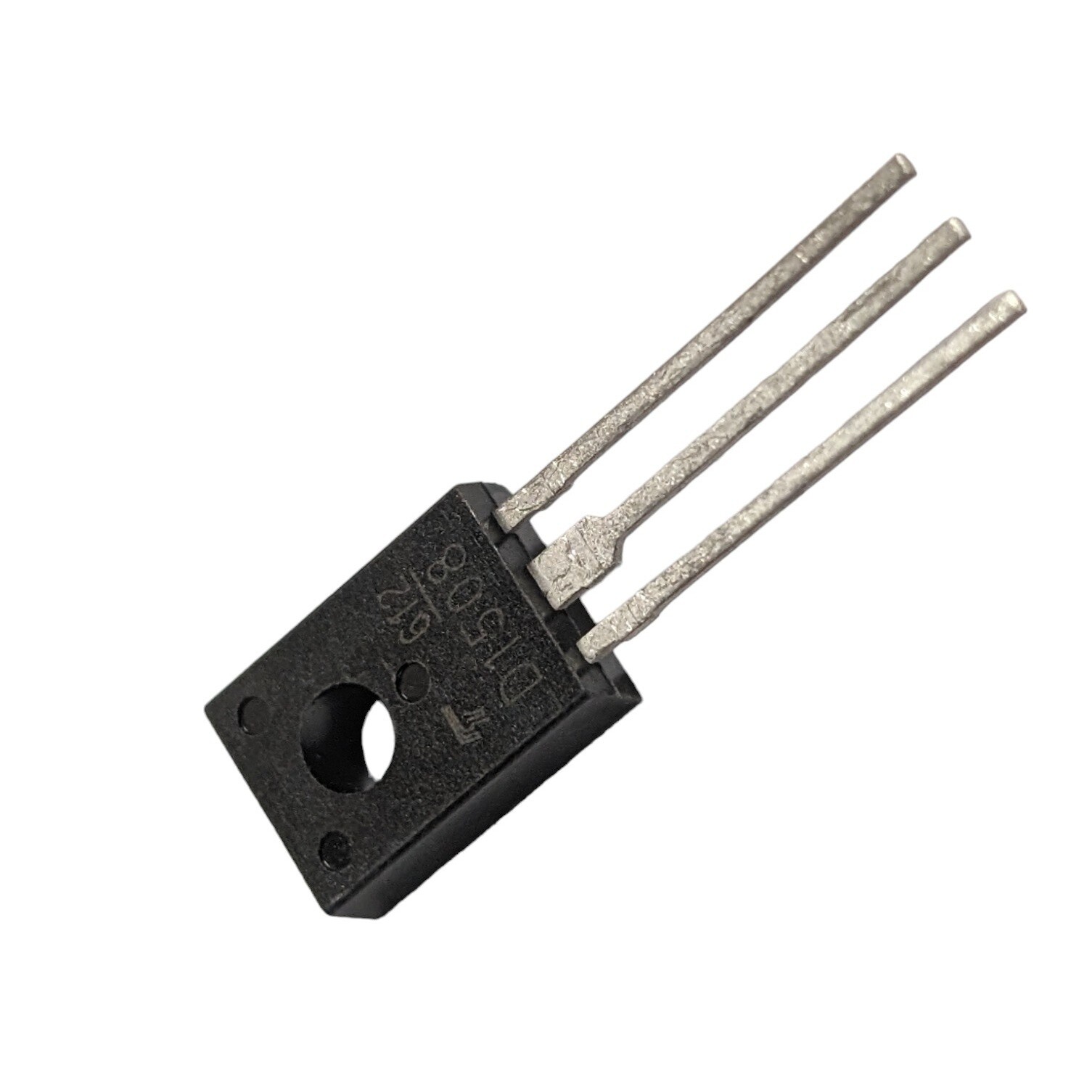

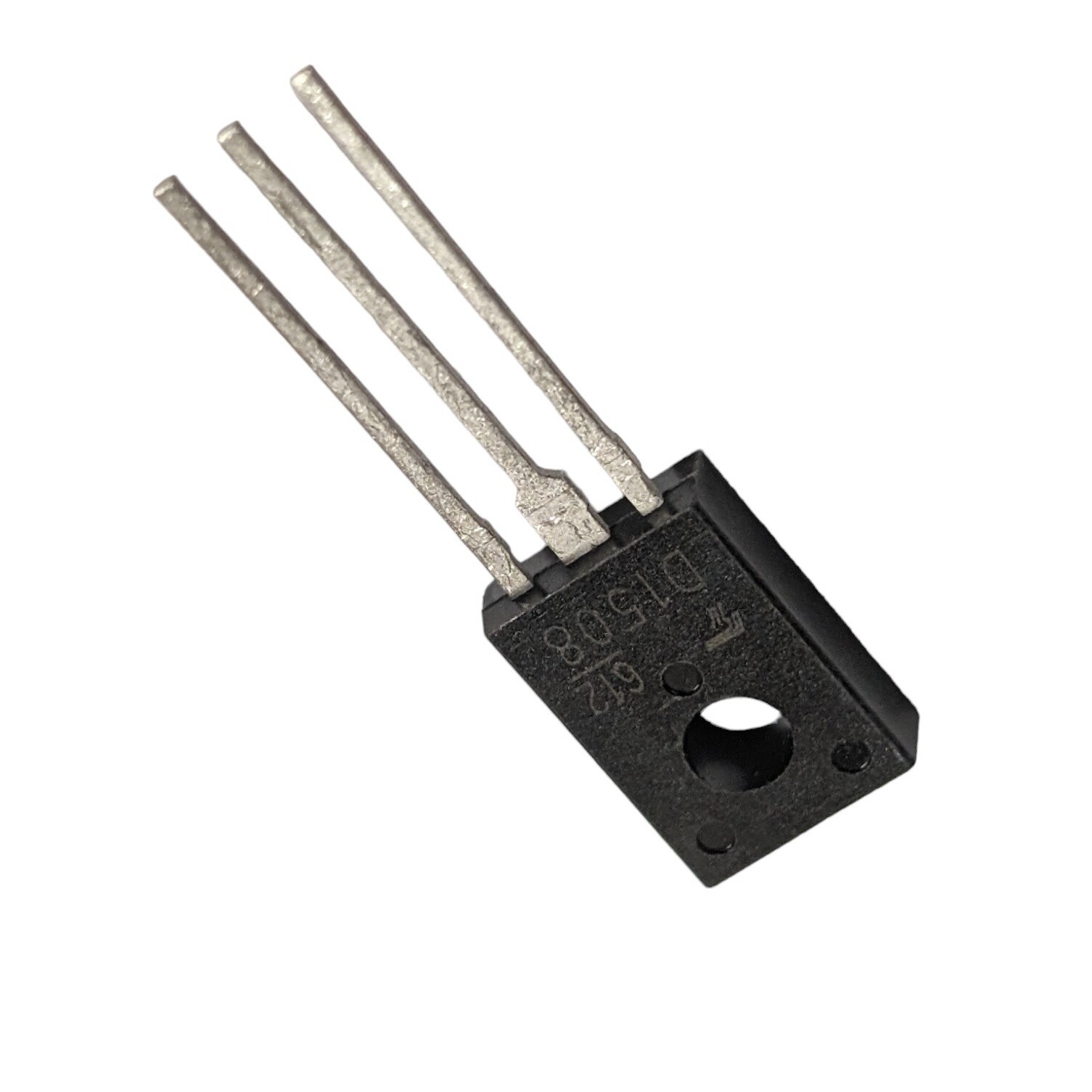

2SD1508 Transistor - CASE: TO126F MAKE: Toshiba
Price: £3.99
+ VAT 20% for UK purchases
£3.99
Qty
+ VAT 20% for UK purchases
  • 19 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD1508 Datasheet
Product specifications
Case TO126F
Type Transistor Silicon NPN
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 1.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 6000
SKU 16759
