2SD1520L
View detailed images (8)

2SD1520L

SKU: 2SD1520L

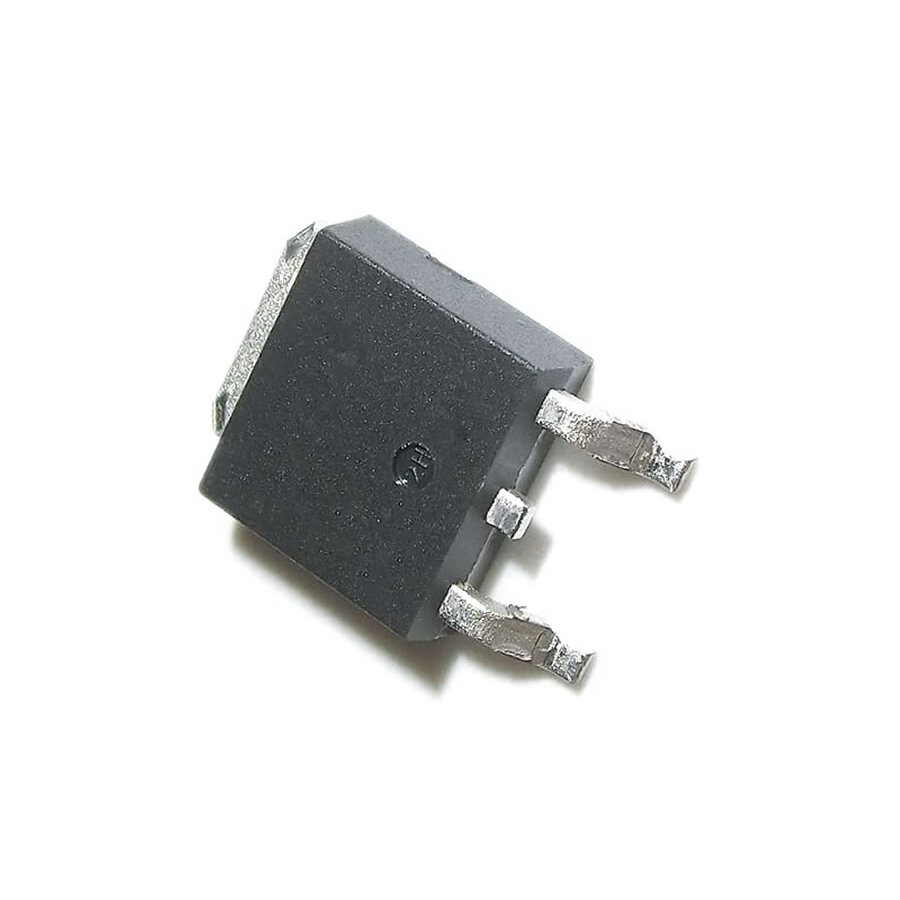

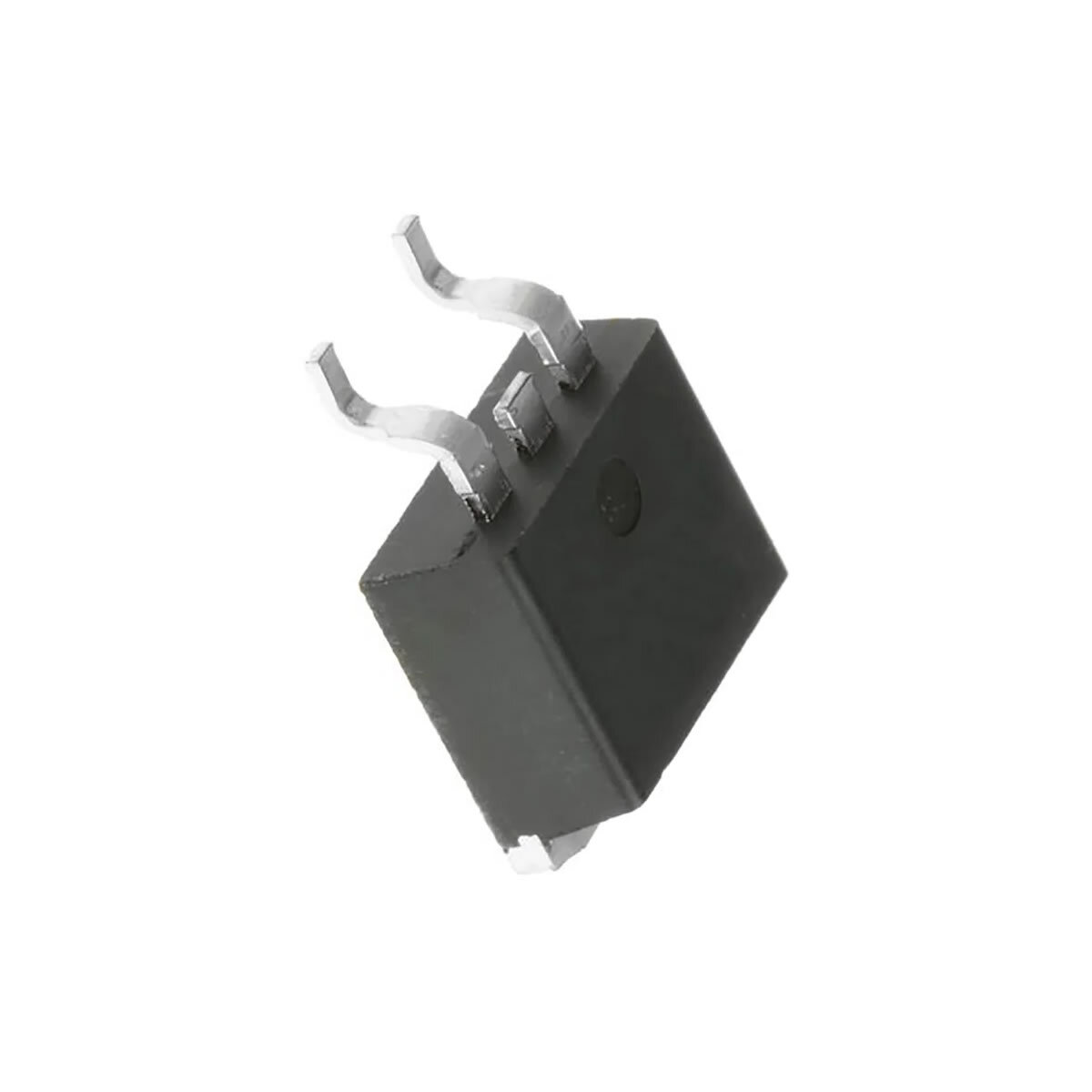

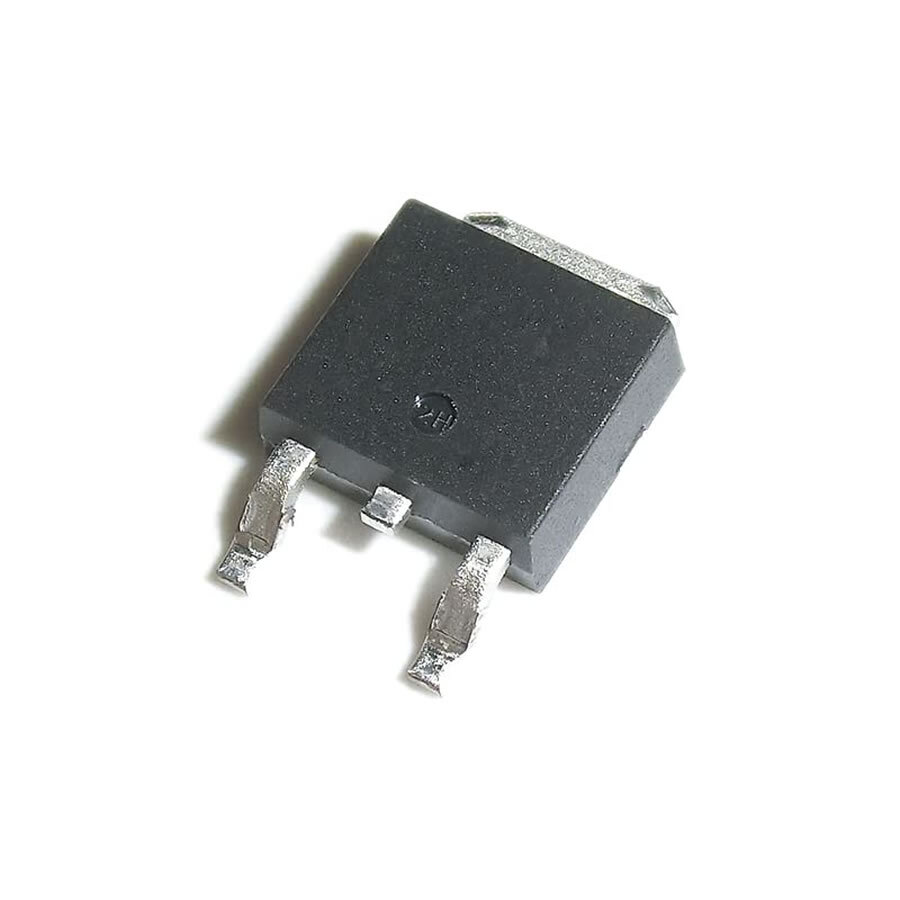

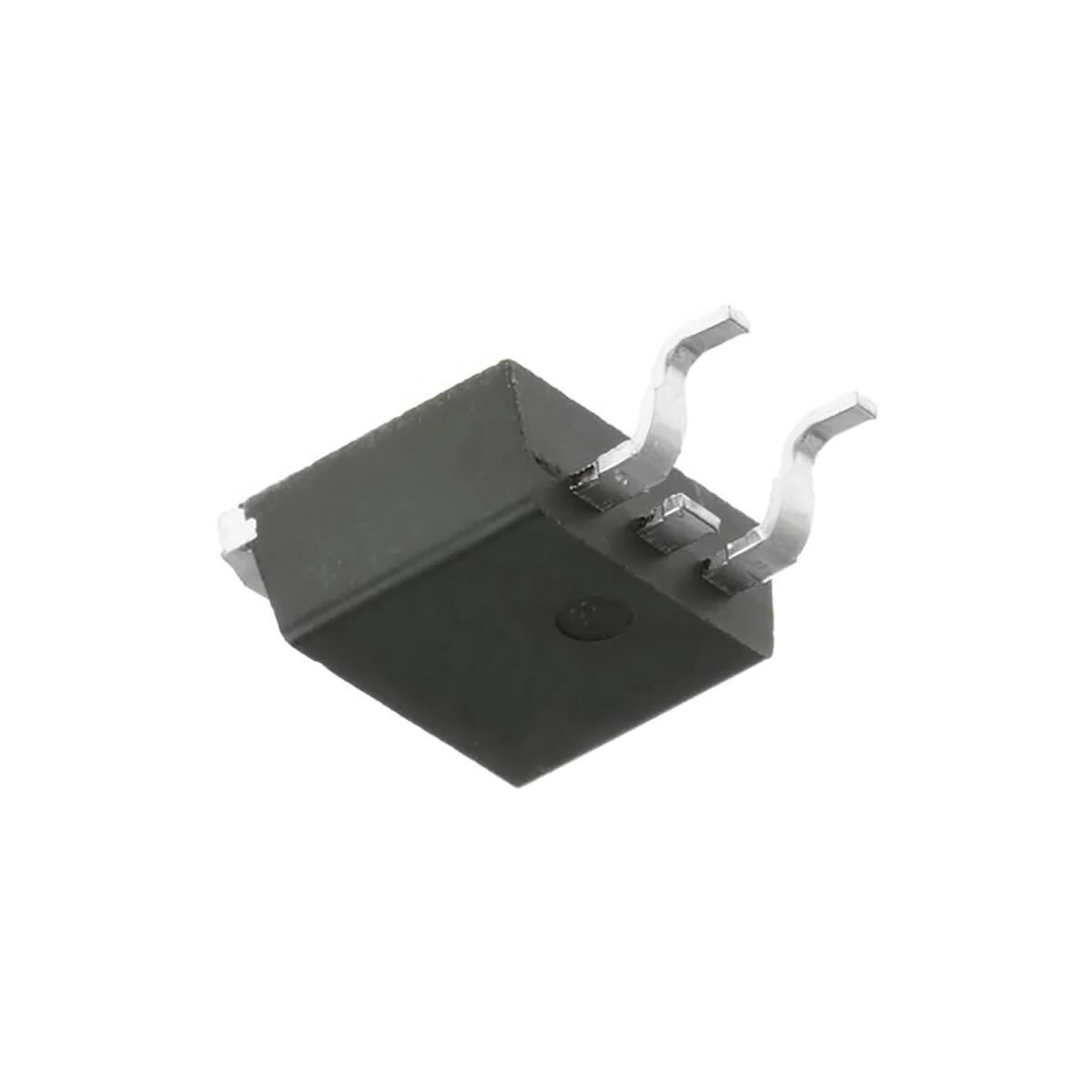

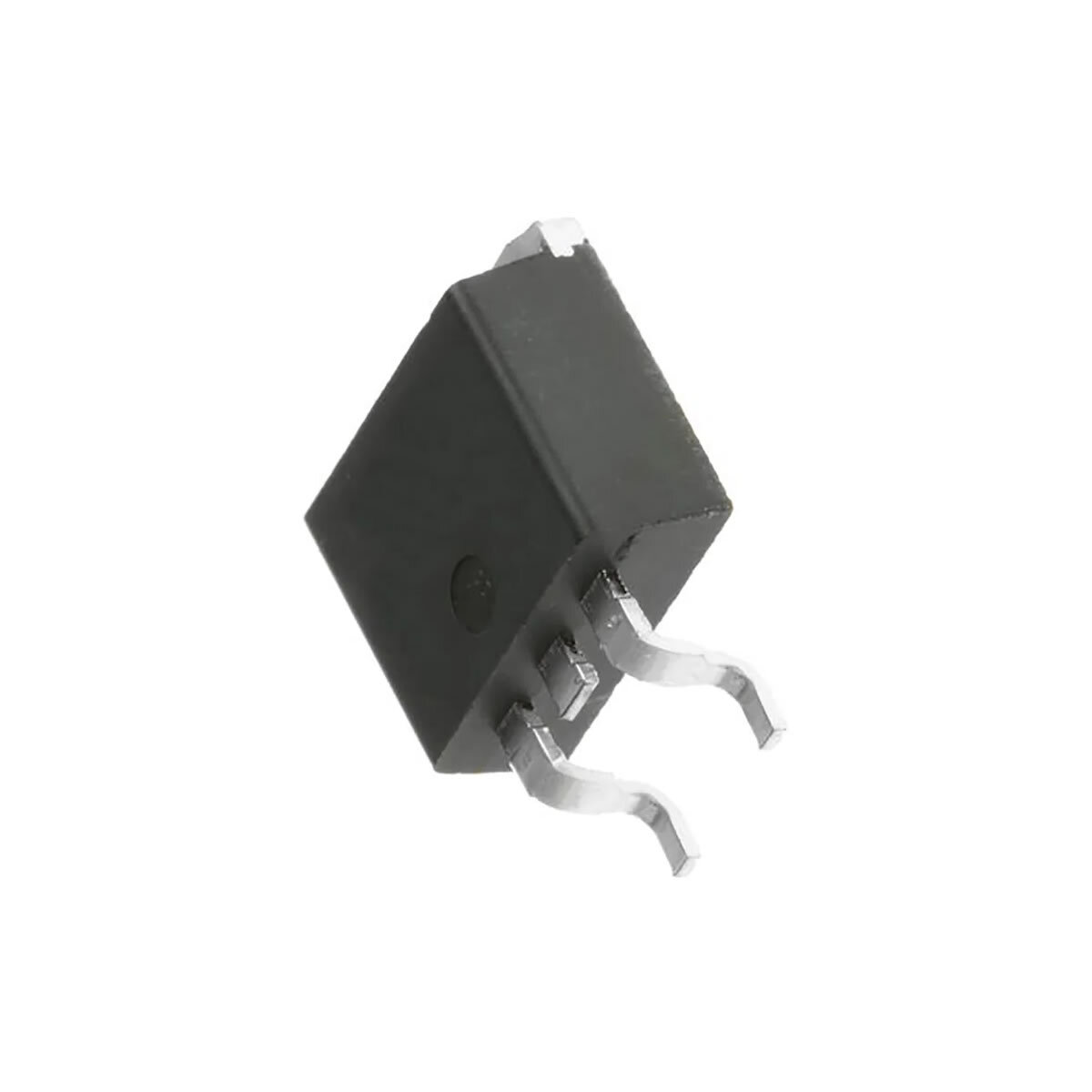

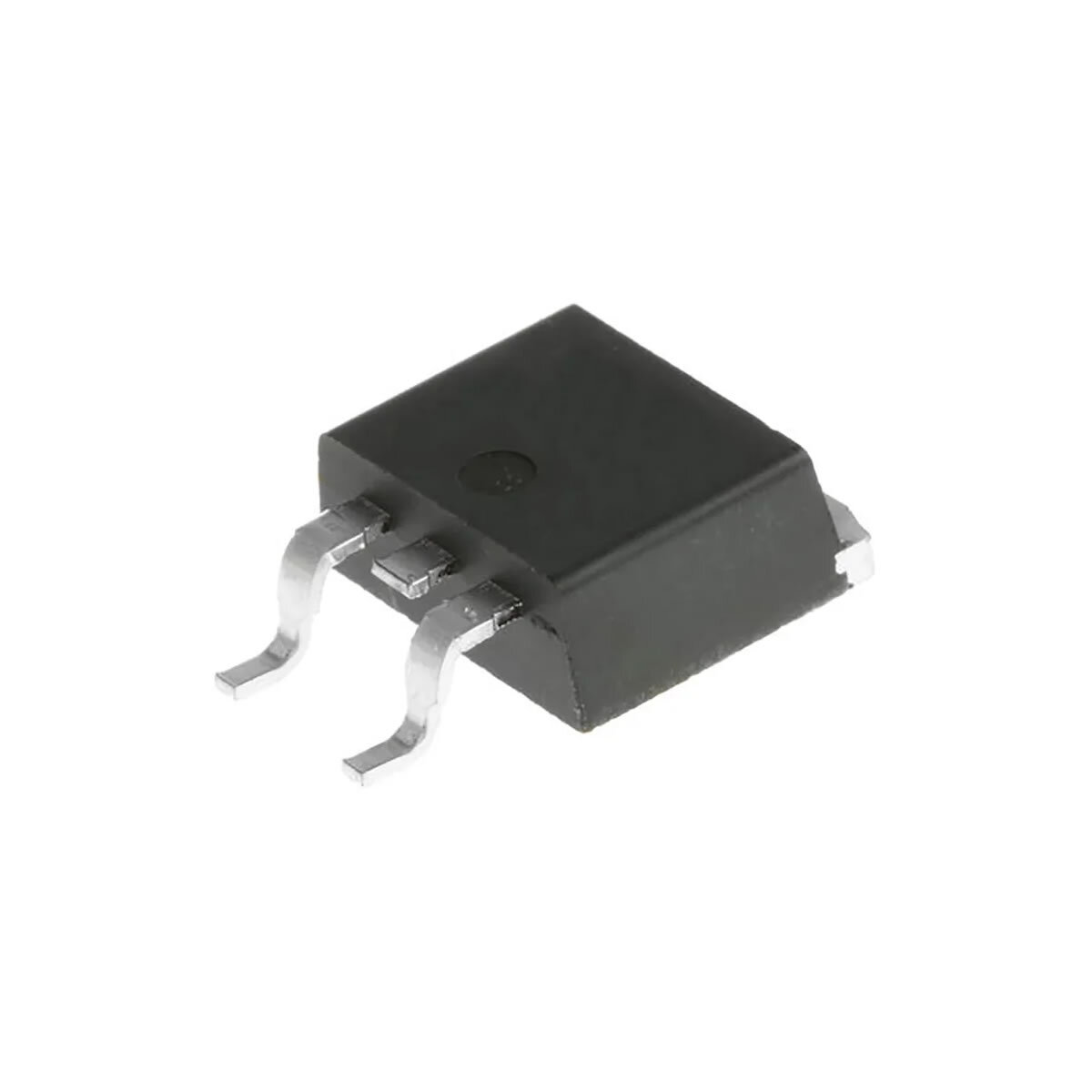

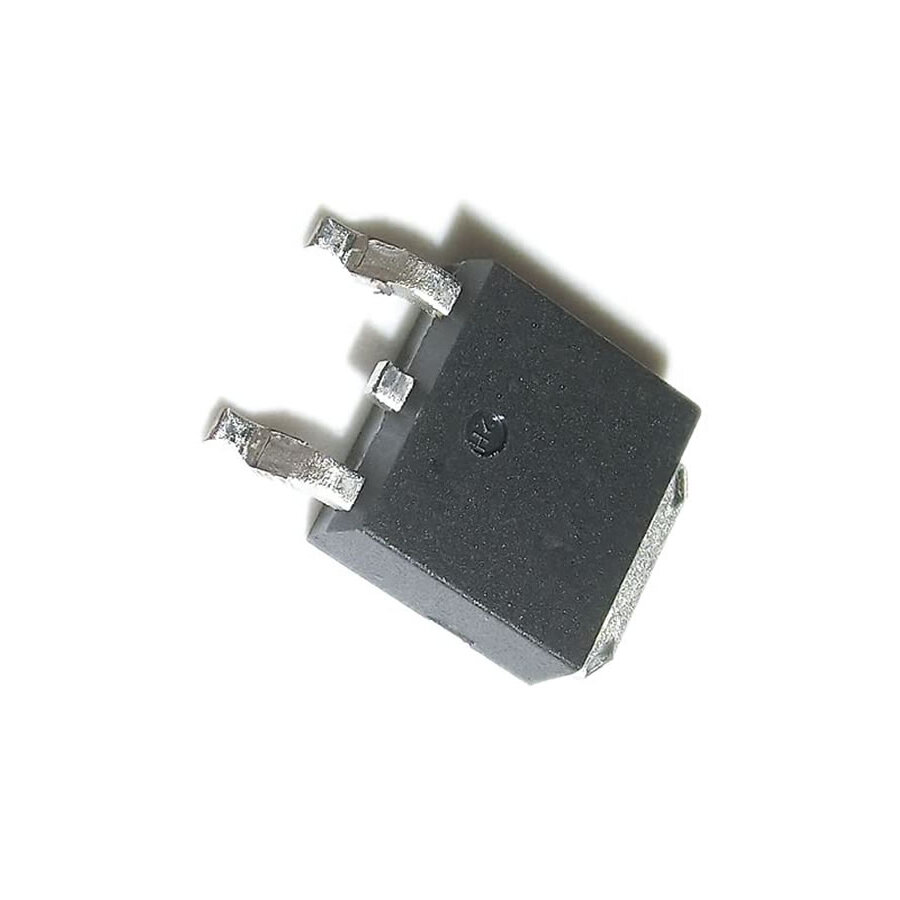

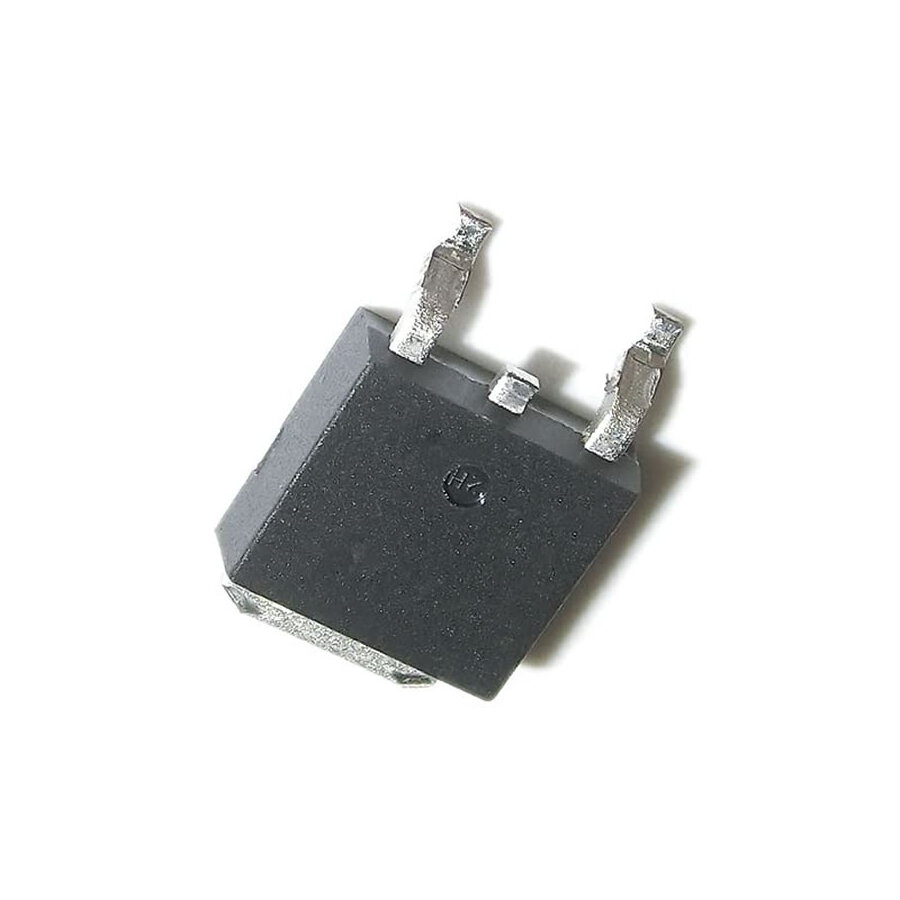

2SD1520L Transistor Silicon NPN CASE: TO252 MAKE: Hitachi
Datasheet
2SD1520L Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO252
Manufacturer Hitachi
Vbr CEO 80
Max. PD (W) 20
t(f) Max. (S) 1.0u
Max. hFE 20k
Min hFE 1.0k
Ic Max. (A) 4.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 100u
Mat. Silicon Logic
Polarity NPN
Tr Max. (s) 500n
t(stor) Max. (S) 4.5u
Derate Above 25°C .16
@VCE (test) 3.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-23
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 345507
