2SD1583Z

2SD1583Z

SKU: 2SD1583Z

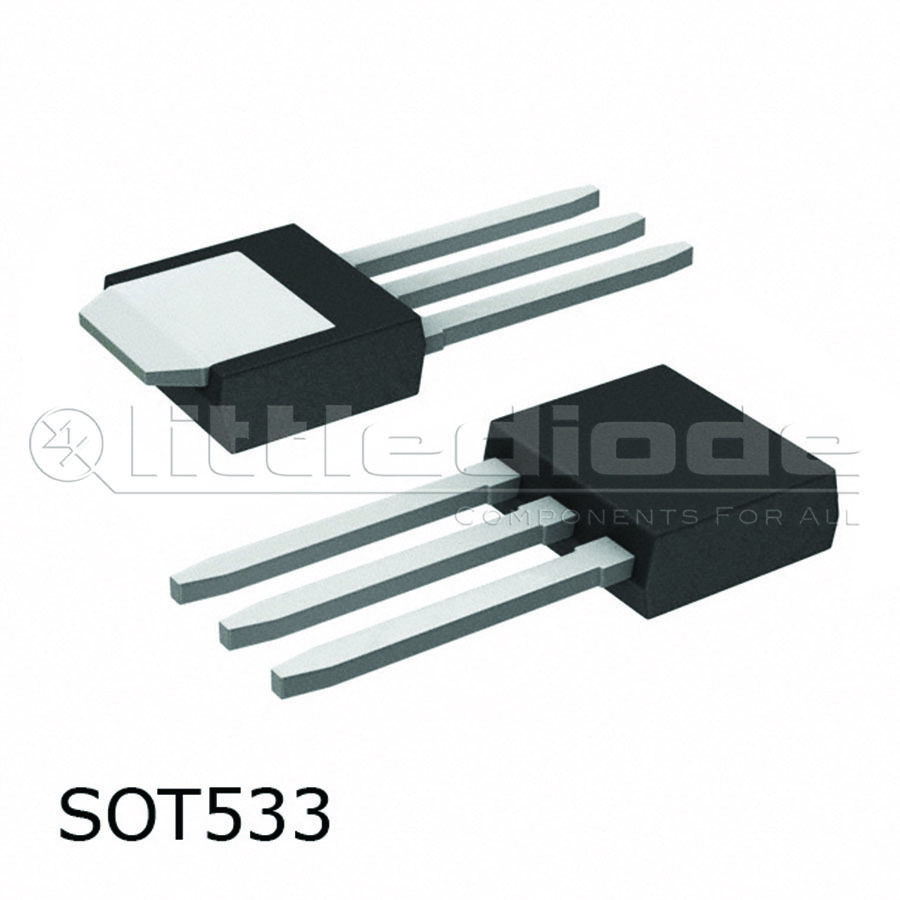

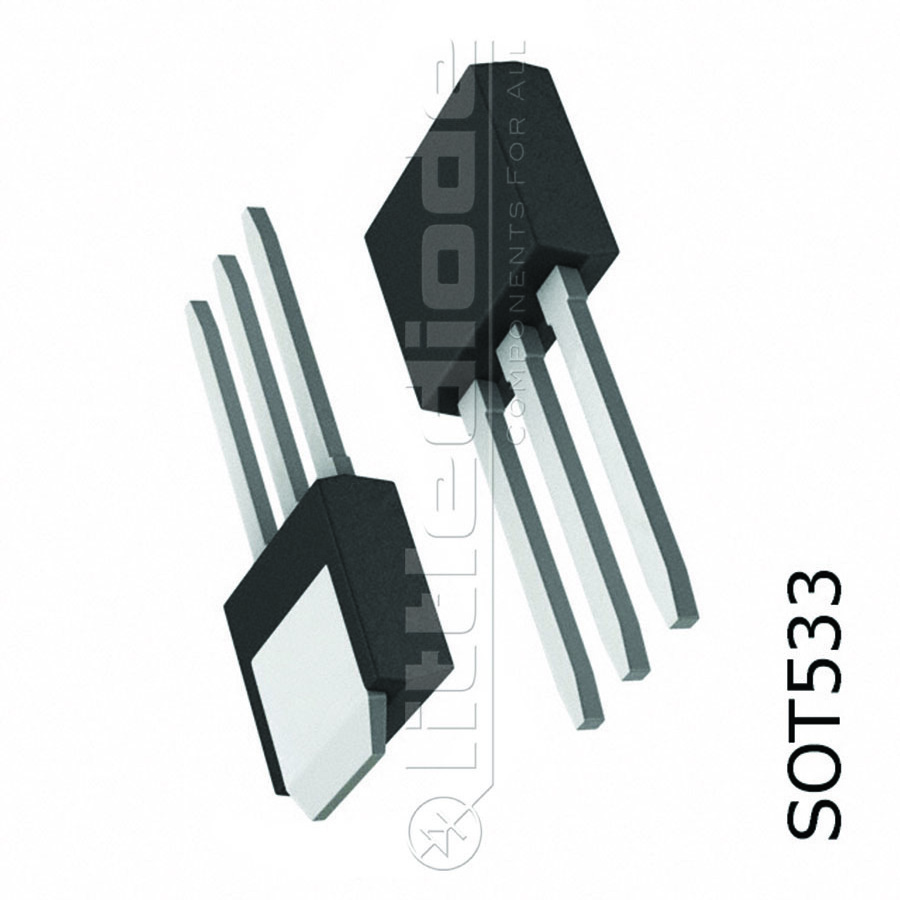

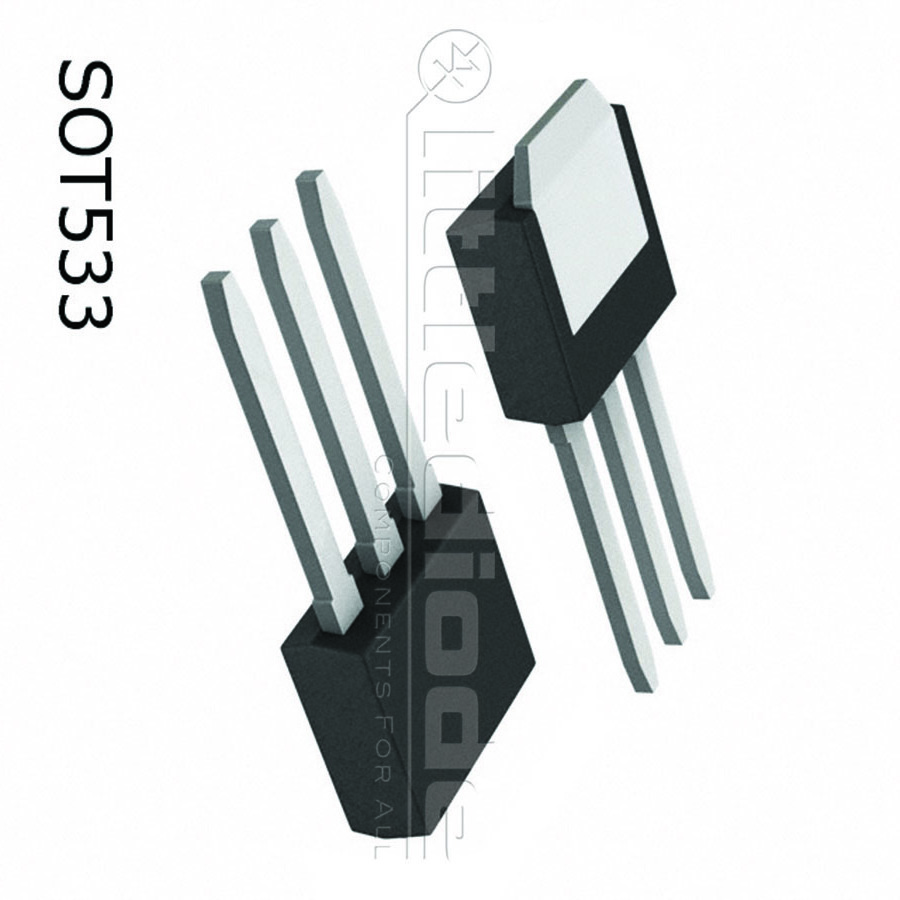

2SD1583Z Transistor CASE: SOT533 MAKE: NEC
Product specifications
Type Transistor
Case SOT533
Manufacturer NEC
Vbr CBO 30
Vbr CEO 20
Max. PD (W) 2.0
t(f) Max. (S) 300n-
Max. hFE 3.2k
Min hFE 800
Ic Max. (A) 2.0
@Ic (test) (A) 0.5
Icbo Max. @Vcb Max. (A) 10u
Tr Max. (s) 600n-
Trans. Freq (Hz) Min. 270M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 4-104
Surface Mounted Yes/No YES
SKU 558046
