2SD162
View detailed images (5)

2SD162

SKU: 2SD162

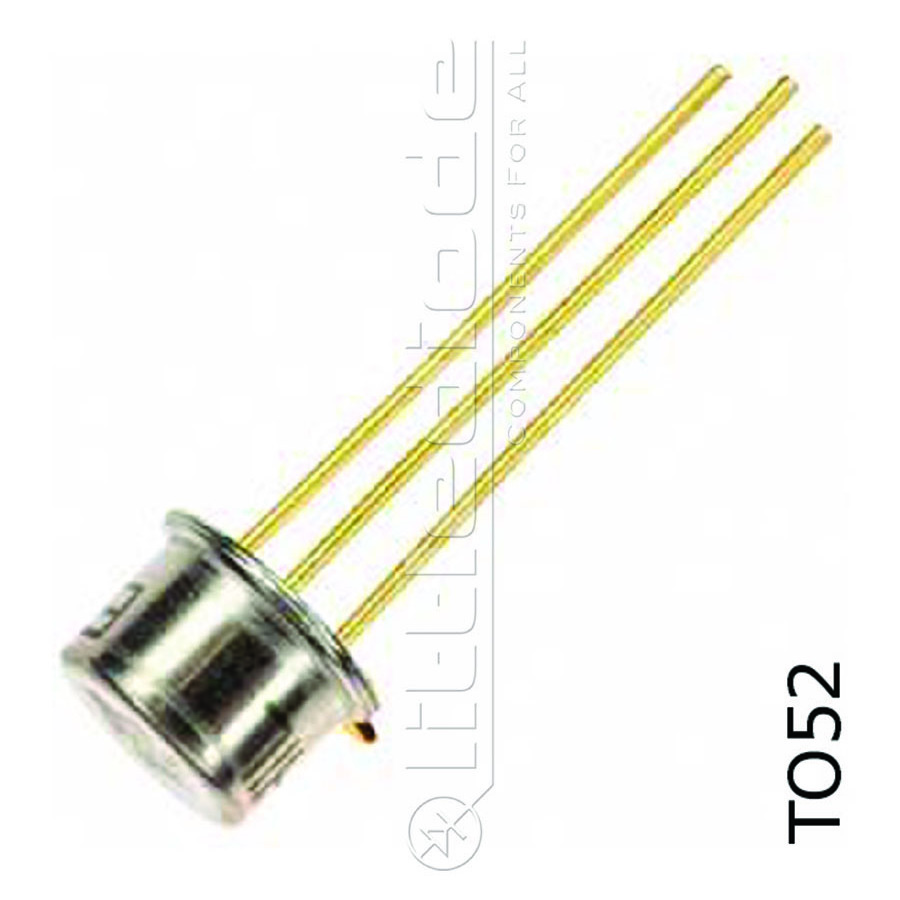

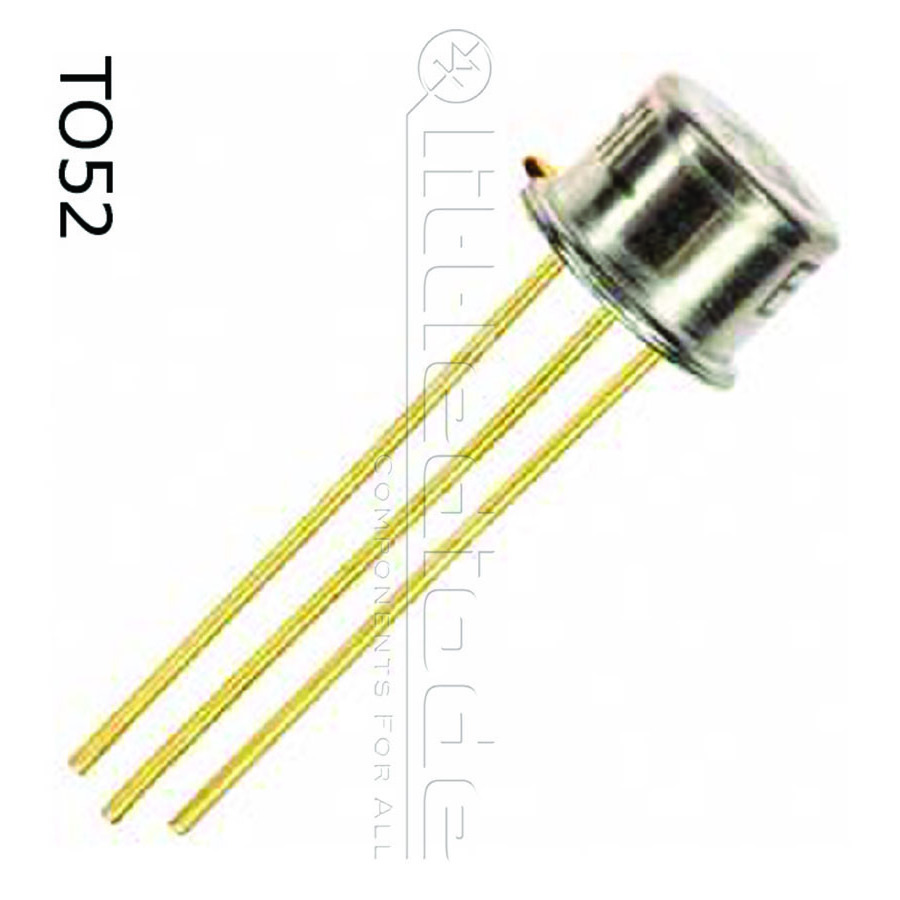

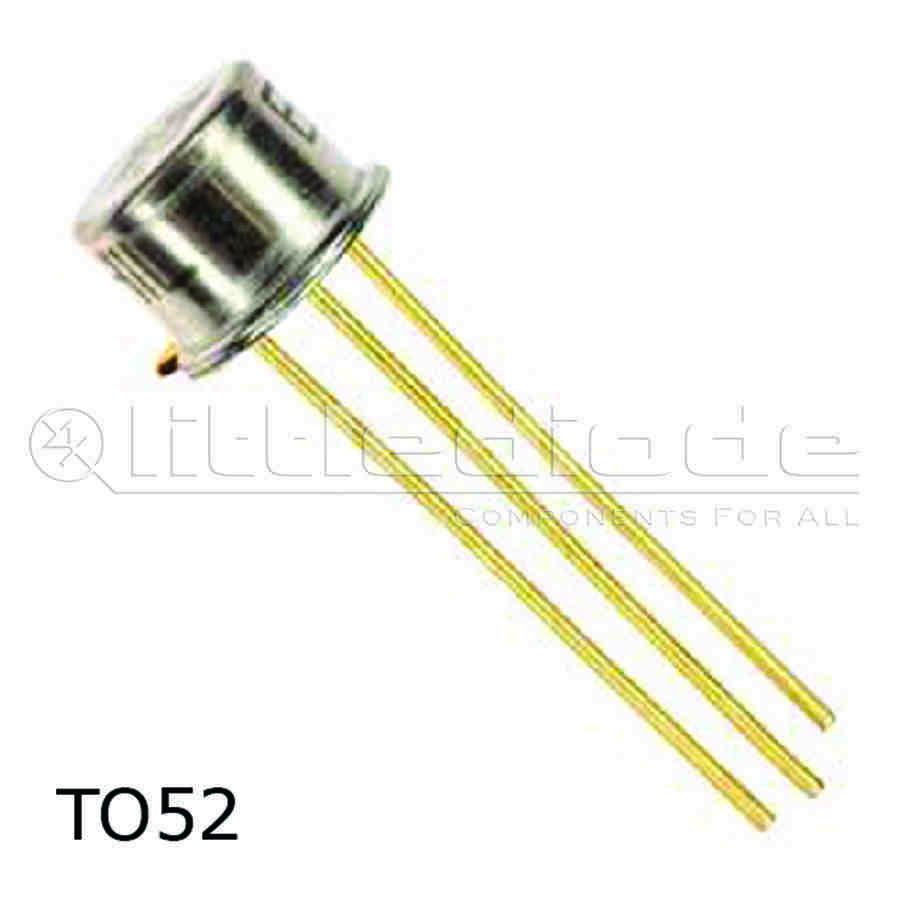

2SD162 Transistor Germanium NPN CASE: TO52 MAKE: Fujitsu
Product specifications
Type Transistor Germanium NPN
Case TO52
Manufacturer Fujitsu
Vbr CBO 20
Vbr CEO 15
Max. PD (W) 65m
Derate (Amb) (W/°C) 1.1m
hfe 60
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 12u
Polarity NPN
Trans. Freq (Hz) Min. 3.0M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 100
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.065 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 30 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SMD Transistor Code DJ
SKU 761556
