2SD1655
View detailed images (12)

2SD1655

SKU: 2SD1655

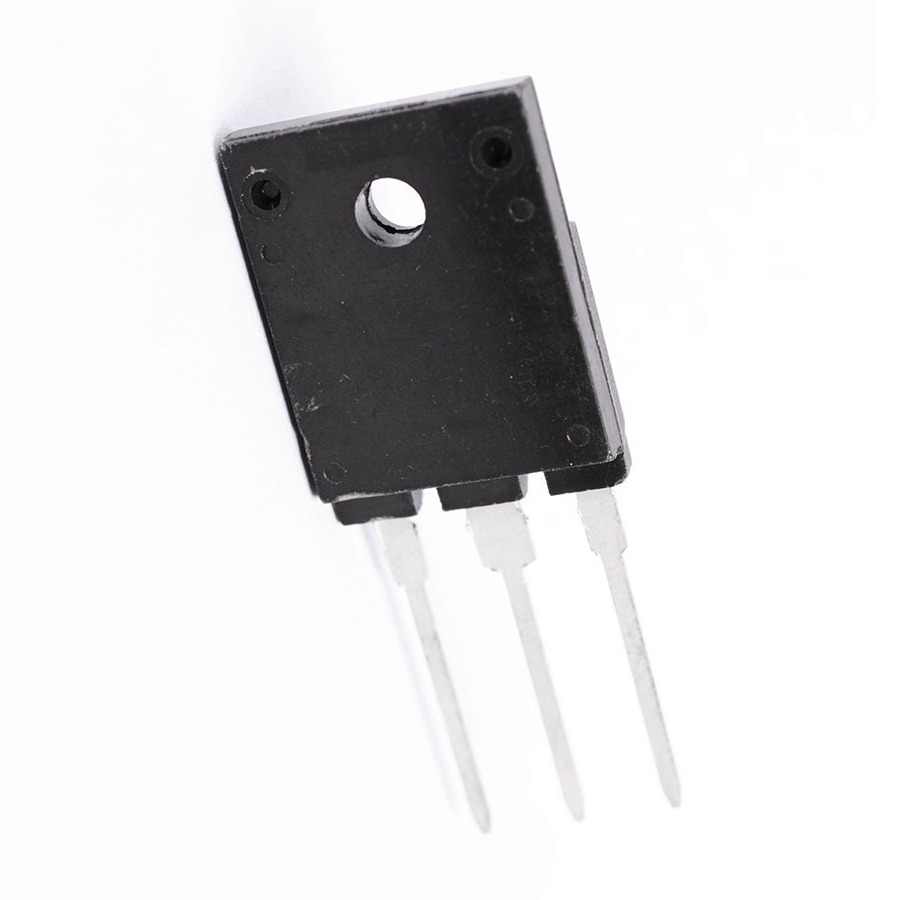

2SD1655 Transistor Silicon NPN CASE: TO218F MAKE: Sanyo Semiconductor
Datasheet
2SD1655 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO218F
Manufacturer Sanyo Semiconductor
Vbr CBO 1.5k
Vbr CEO 800
Max. PD (W) 60
t(f) Max. (S) 0.7u
Min hFE 8.0
Ic Max. (A) 5.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Trans. Freq (Hz) Min. 3.0M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 8
SKU 345574
