2SD1683R
View detailed images (4)

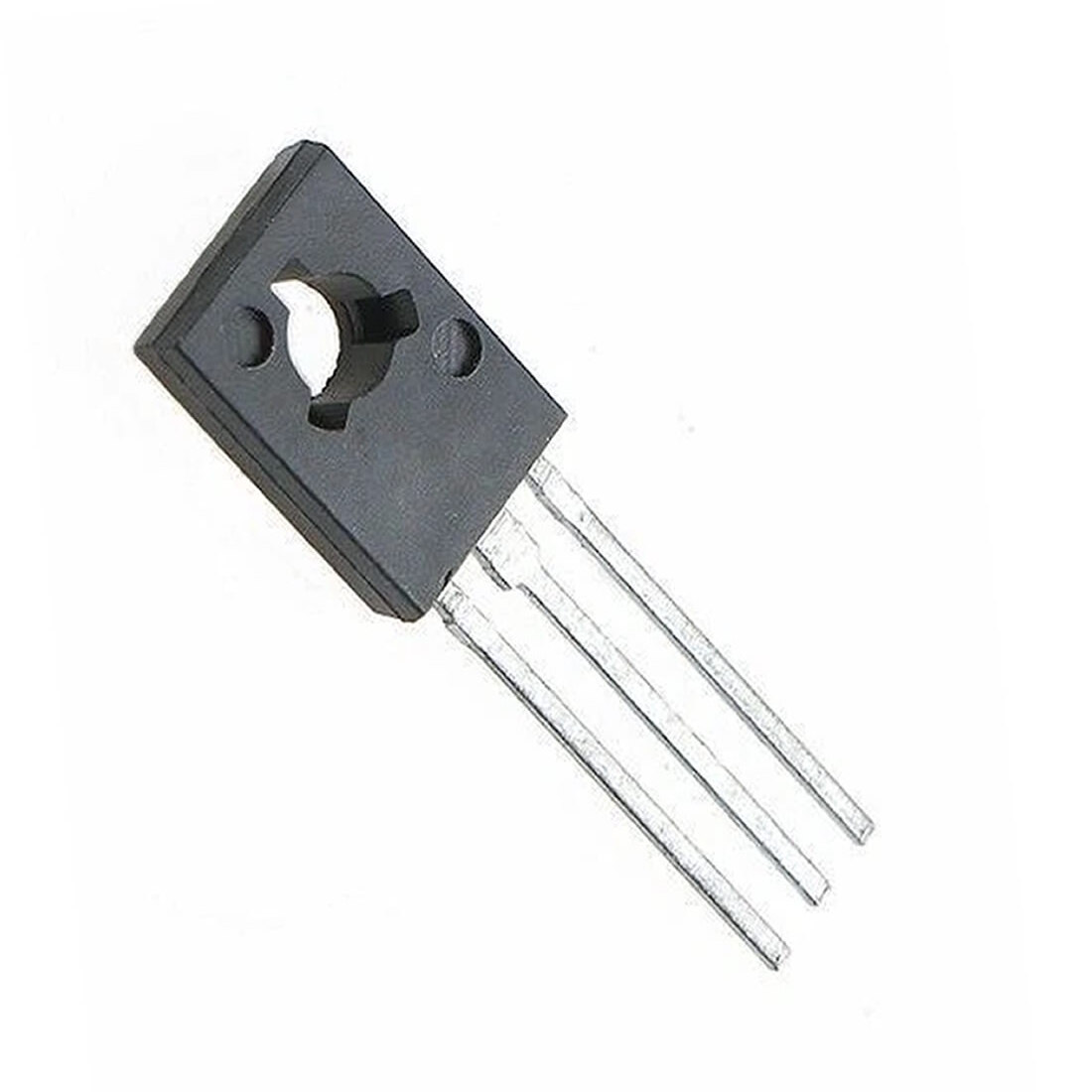

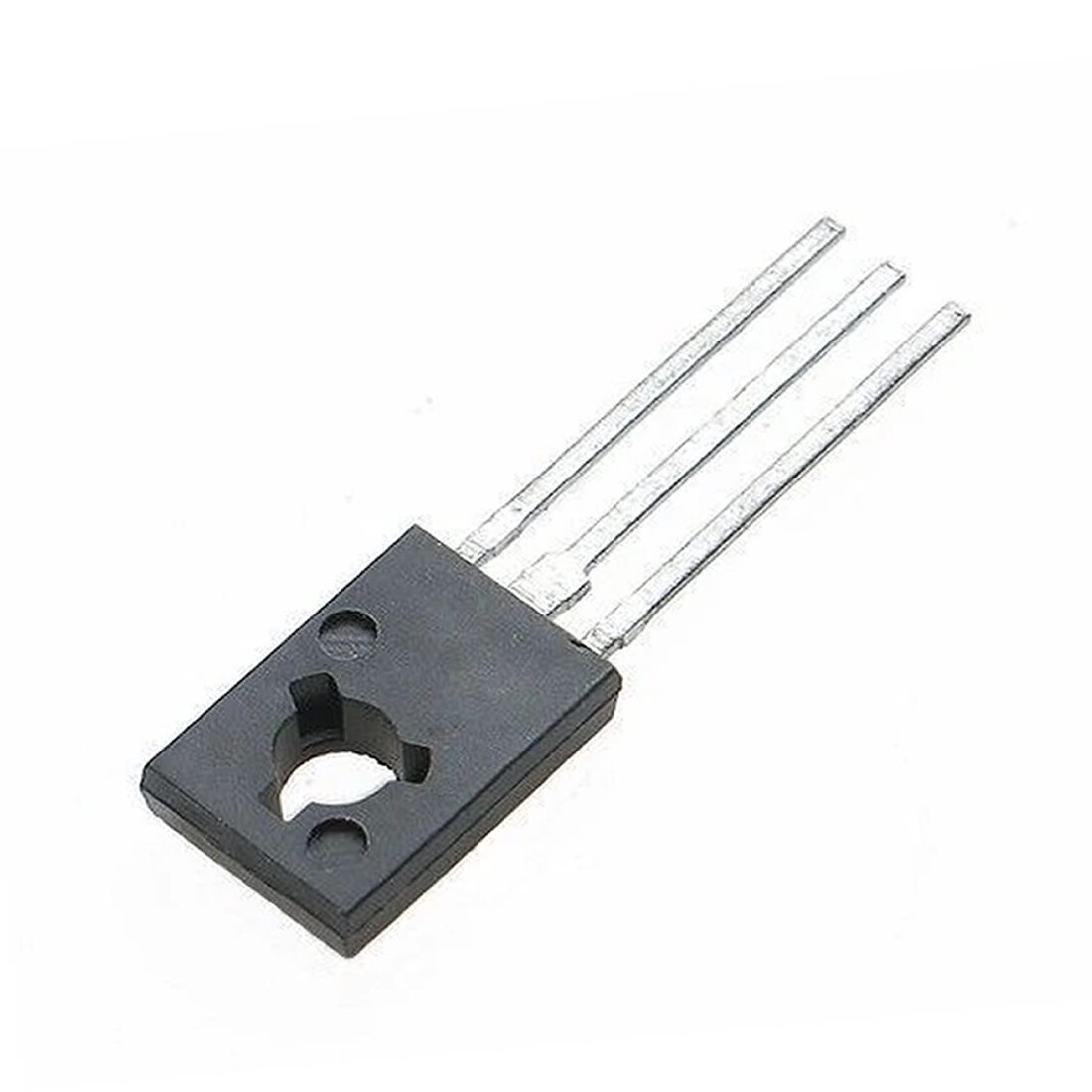

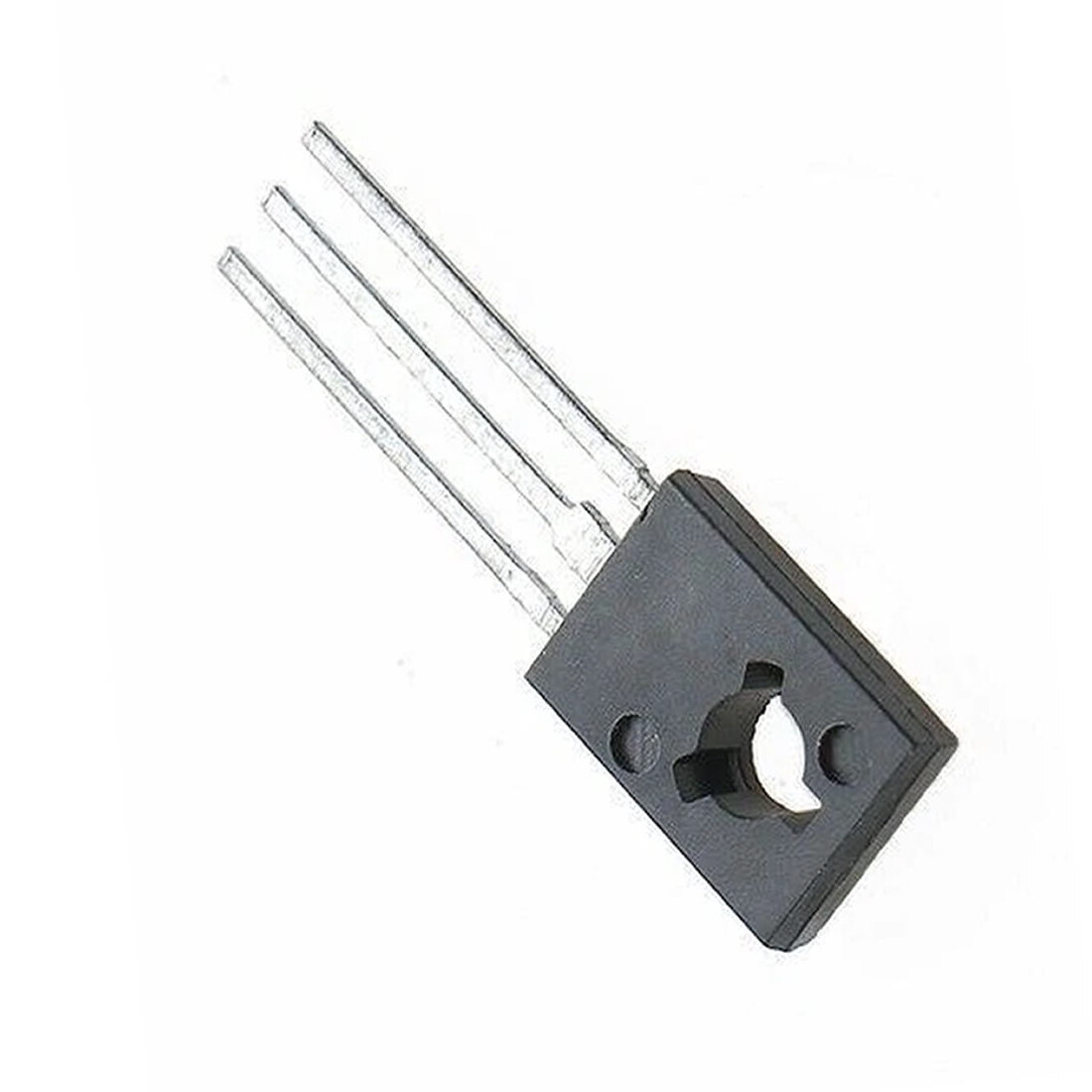

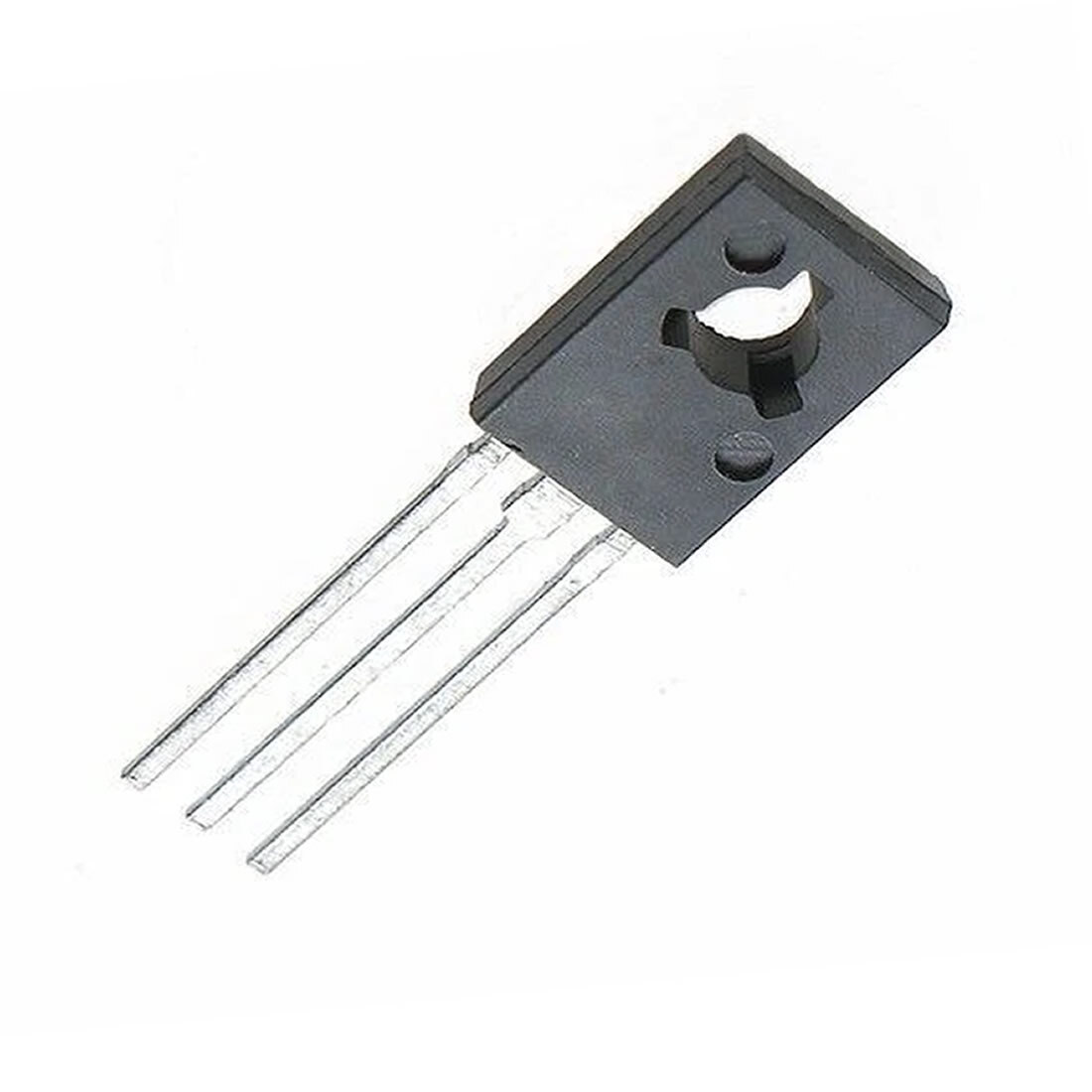

2SD1683R

SKU: 2SD1683R
2SD1683R Transistor Silicon NPN CASE: TO126F MAKE: Sanyo Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO126F
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 10
t(f) Max. (S) 35n
Max. hFE 200
Min hFE 100
Ic Max. (A) 4.0
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity NPN
Tr Max. (s) 70n
Trans. Freq (Hz) Min. 150M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SKU 761533
