2SD1684
View detailed images (1)

2SD1684

SKU: 2SD1684

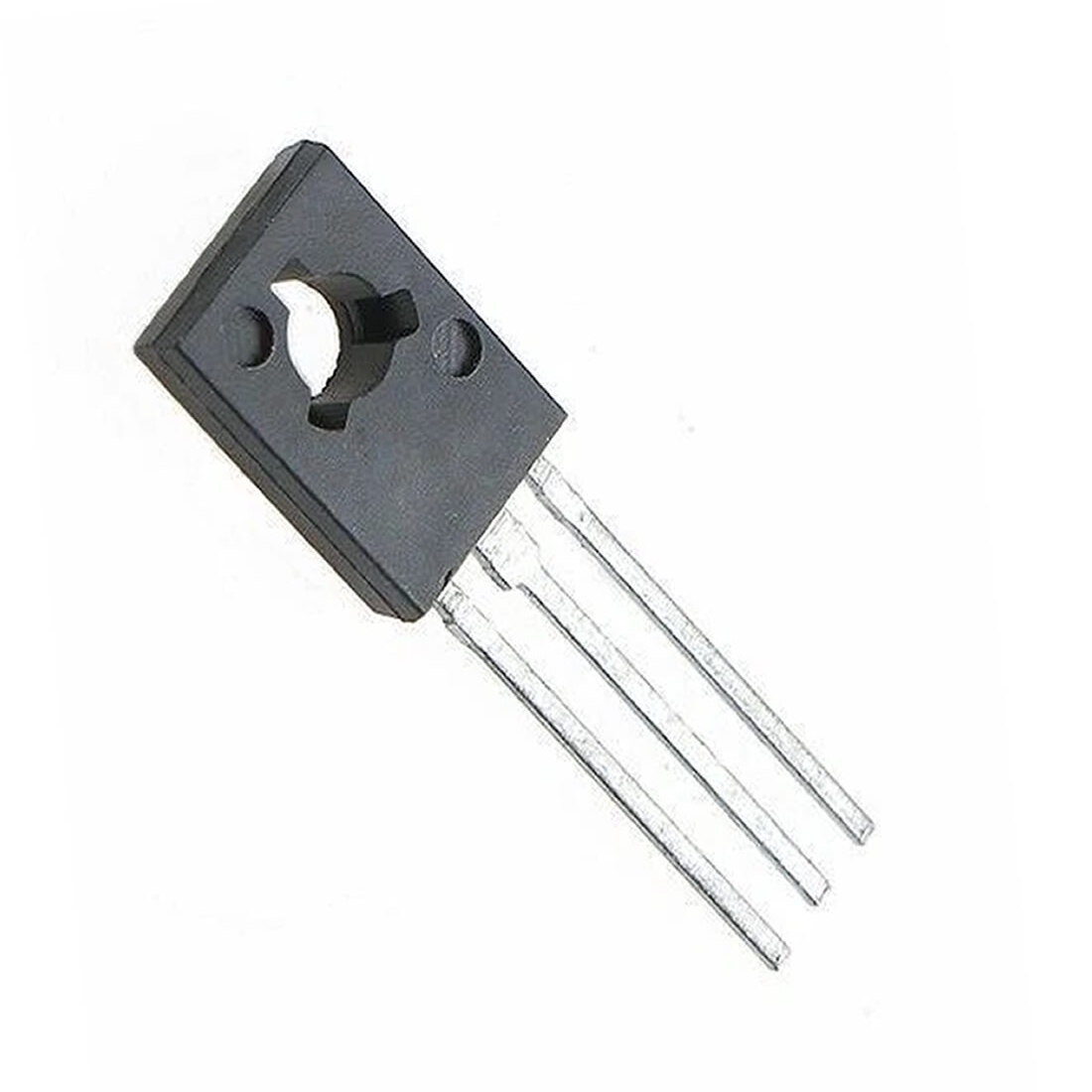

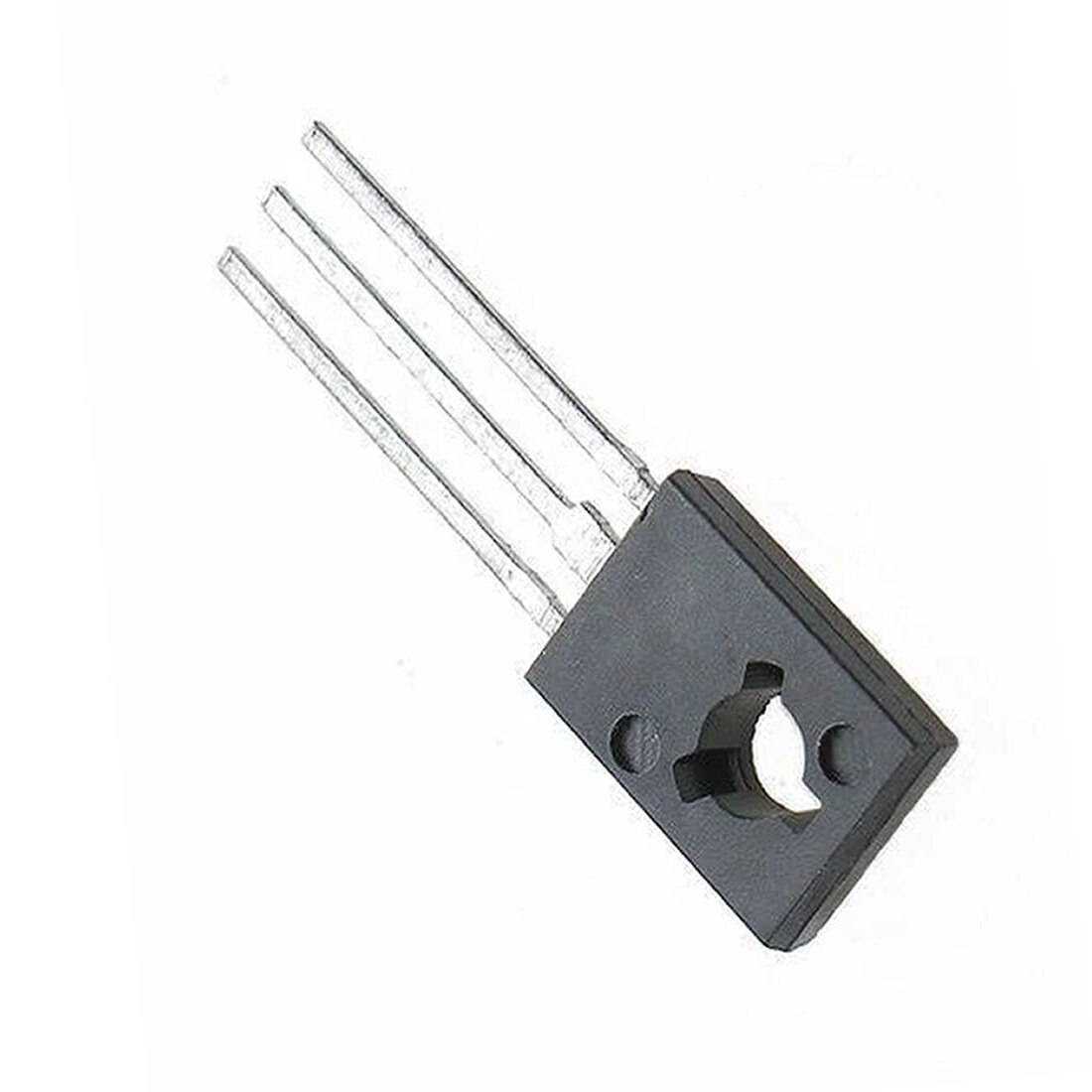

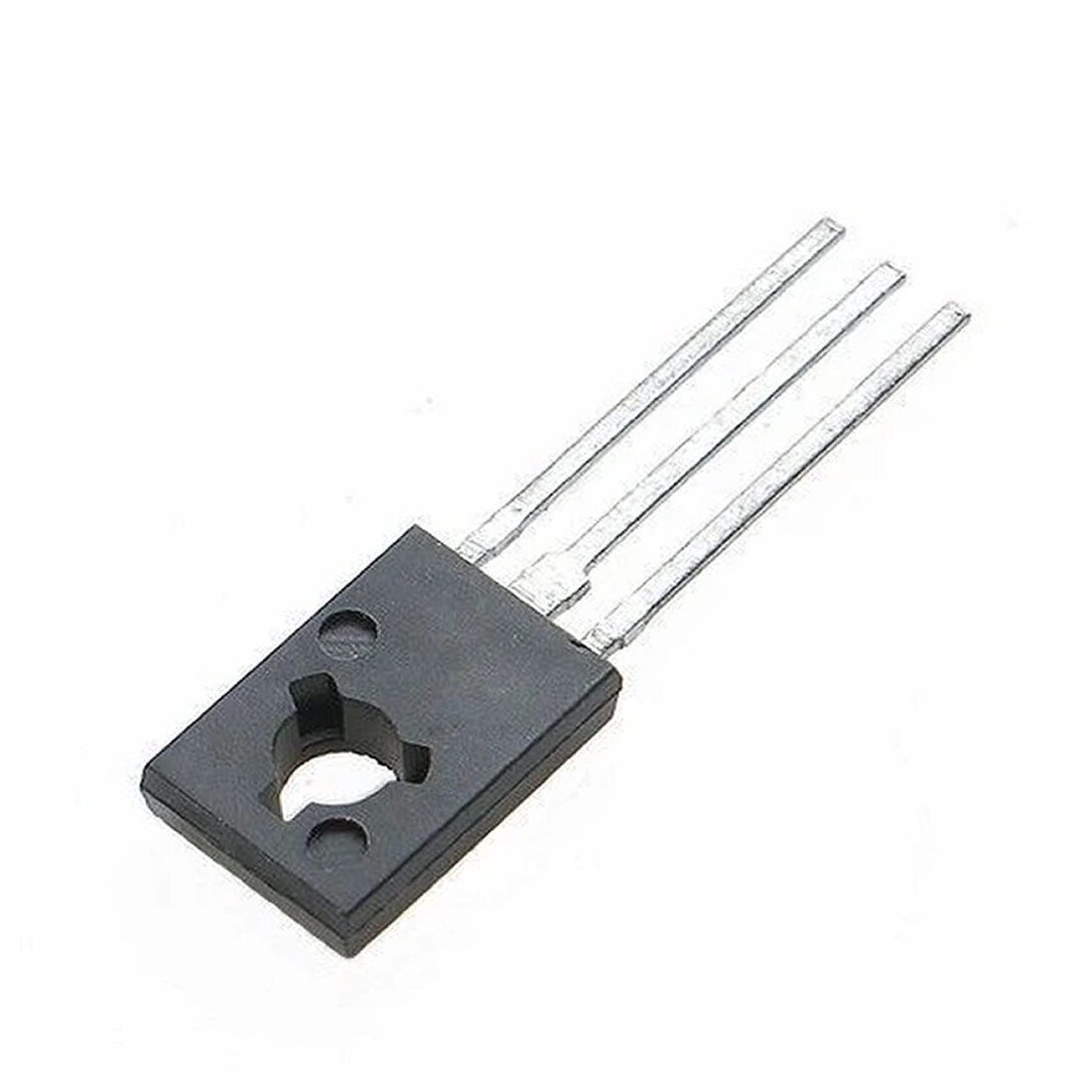

2SD1684 Transistor Silicon NPN - Case: TO126F Make: Sanyo Semiconductor
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Datasheet
2SD1684 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO126F
Manufacturer Sanyo Semiconductor
Vbr CBO 120
Vbr CEO 100
Max. PD (W) 10
t(f) Max. (S) 55n
Max. hFE 400
Min hFE 100
Ic Max. (A) 1.5
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Tr Max. (s) 80n
Trans. Freq (Hz) Min. 150M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 1.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 11 pF
Transition Frequency (ft): 120 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 84582
