2SD1697
View detailed images (4)

2SD1697

SKU: 2SD1697

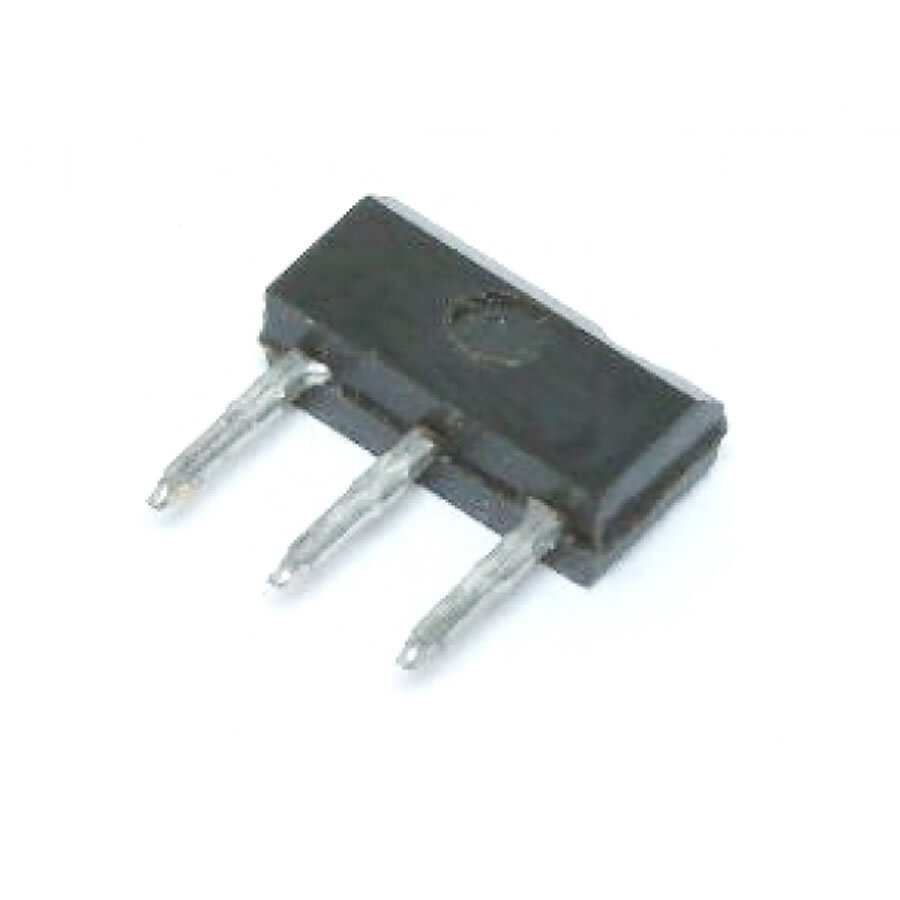

2SD1697 Transistor Silicon NPN CASE: SOT33 MAKE: NEC
Datasheet
2SD1697 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT33
Manufacturer NEC
Vbr CEO 80
Max. PD (W) 1.0
t(f) Max. (S) 1.0u
Max. hFE 50k
Min hFE 4.0k
Ic Max. (A) 800m
@Ic (test) (A) 300m
Icbo Max. @Vcb Max. (A) 1.0u
Mat. Silicon Logic
Polarity NPN
Tr Max. (s) 500n
t(stor) Max. (S) 2.5u
@VCE (test) 2.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector Current |Ic max| 0.8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 10000
SKU 345589
