2SD1722R

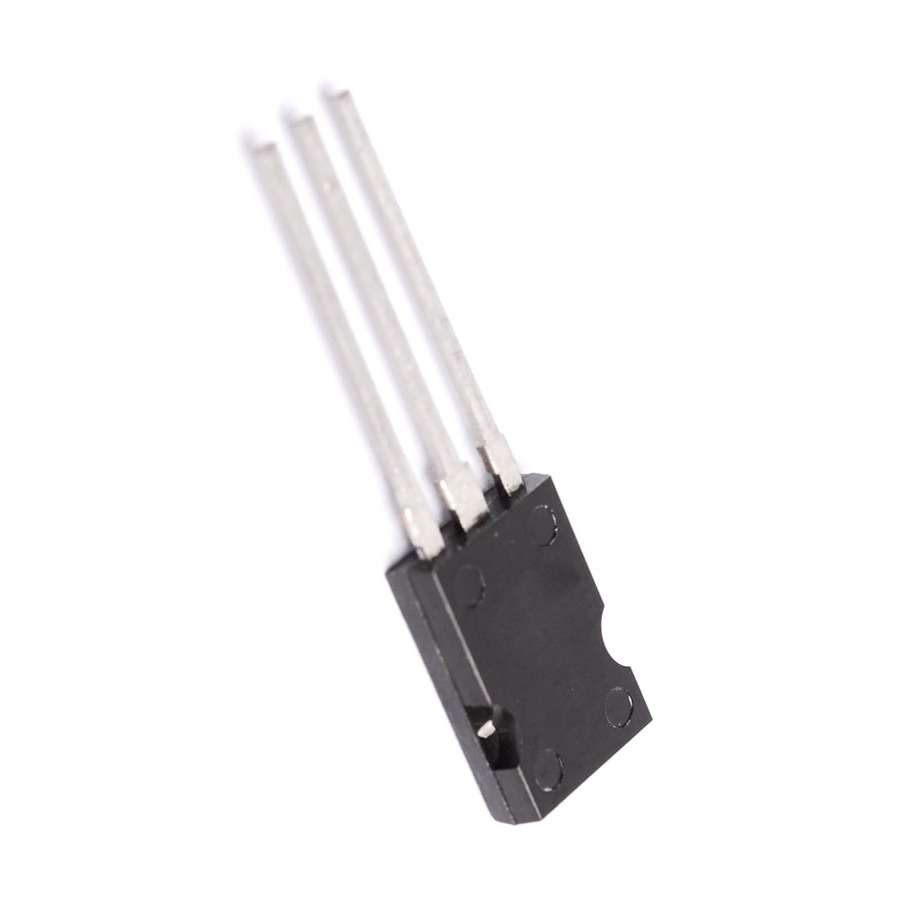

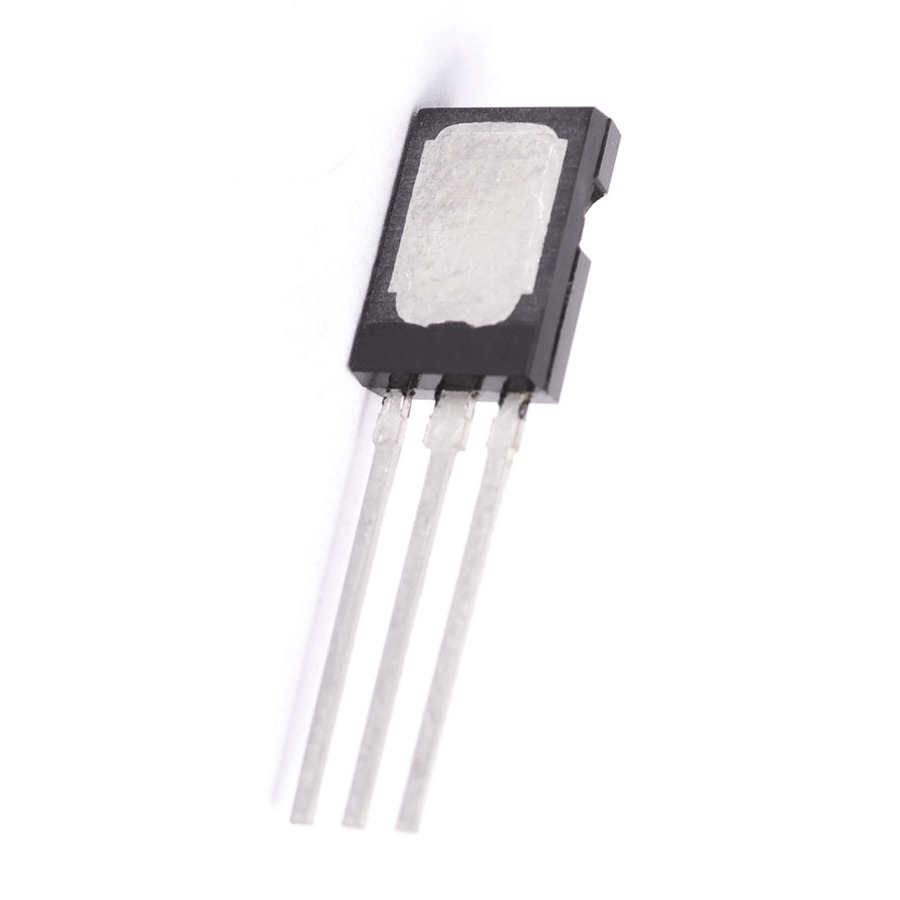

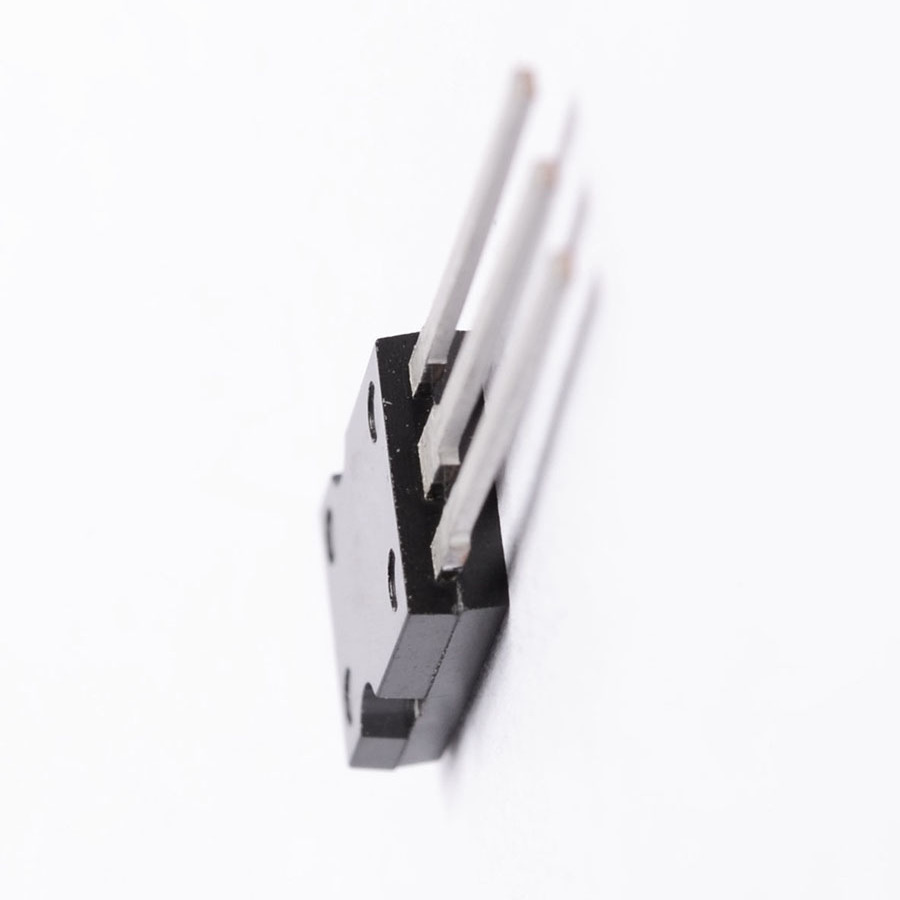

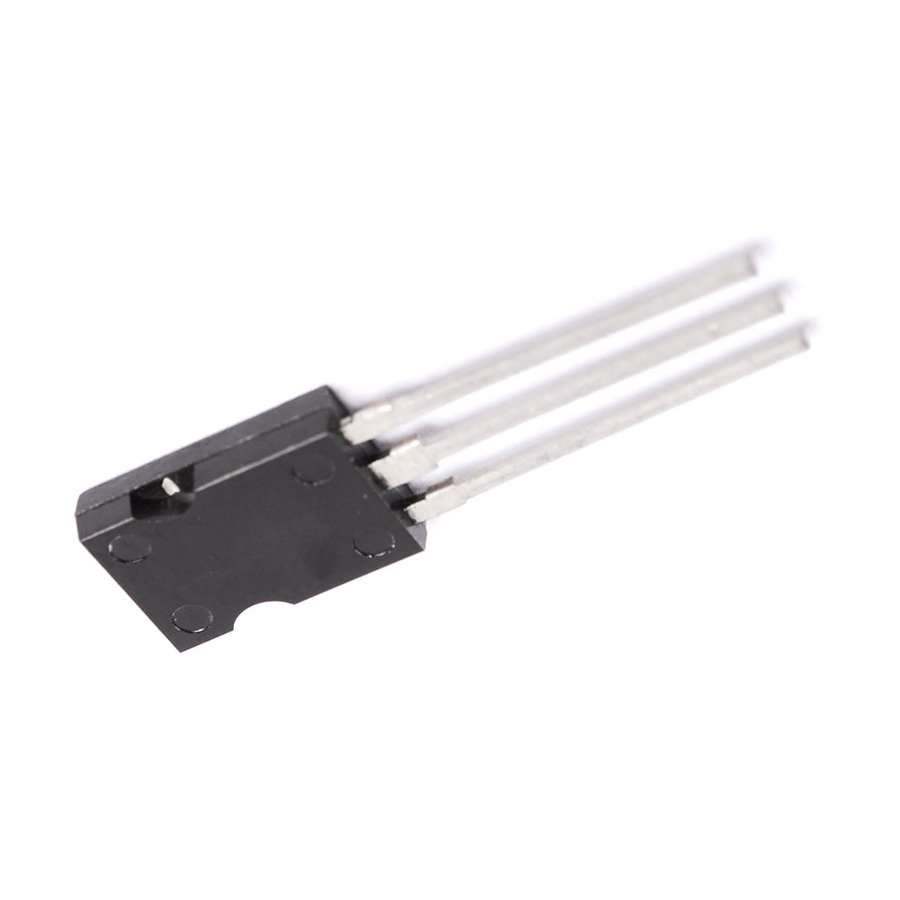

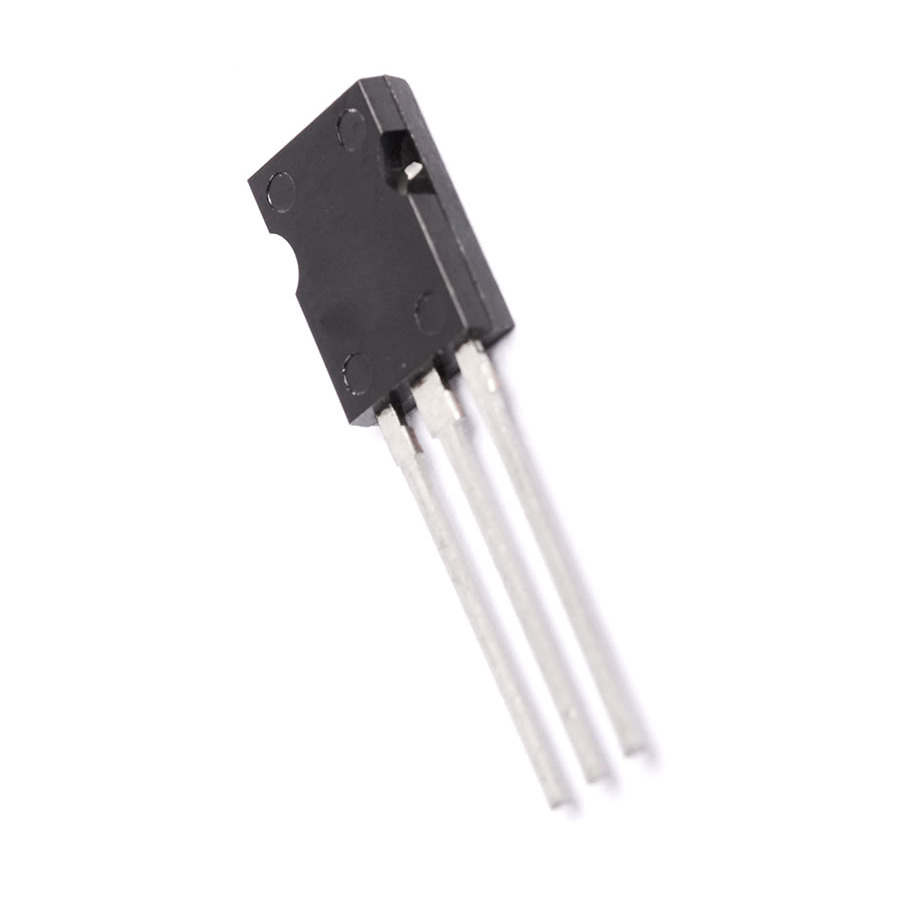

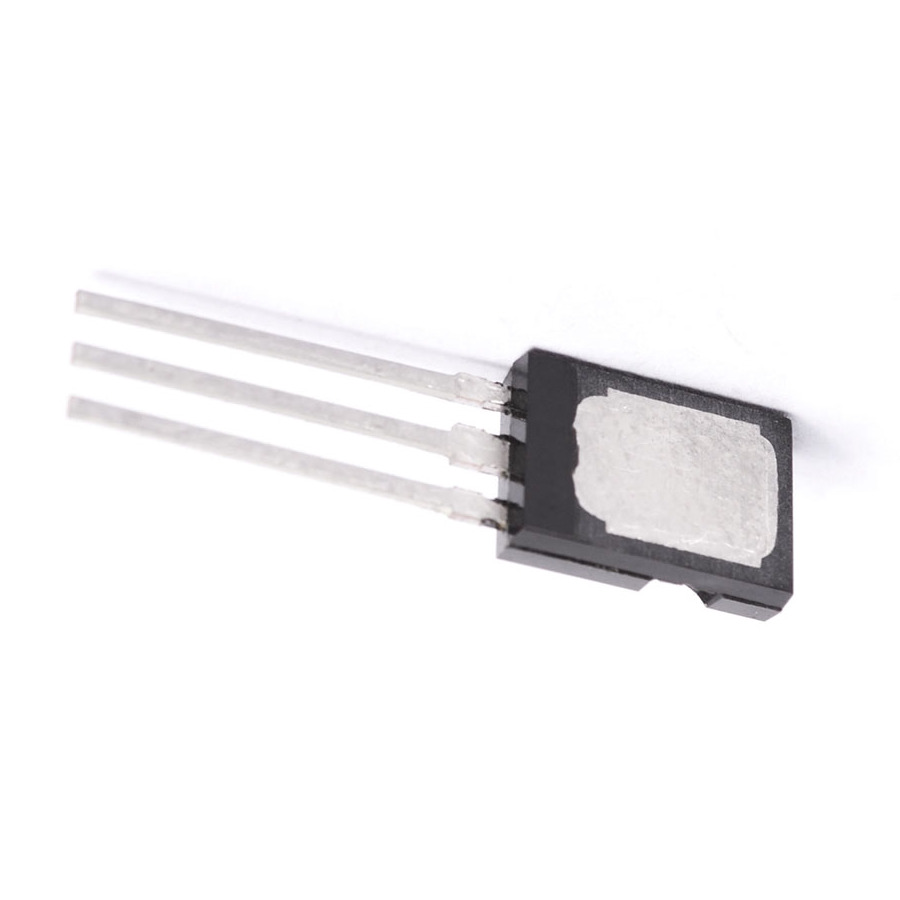

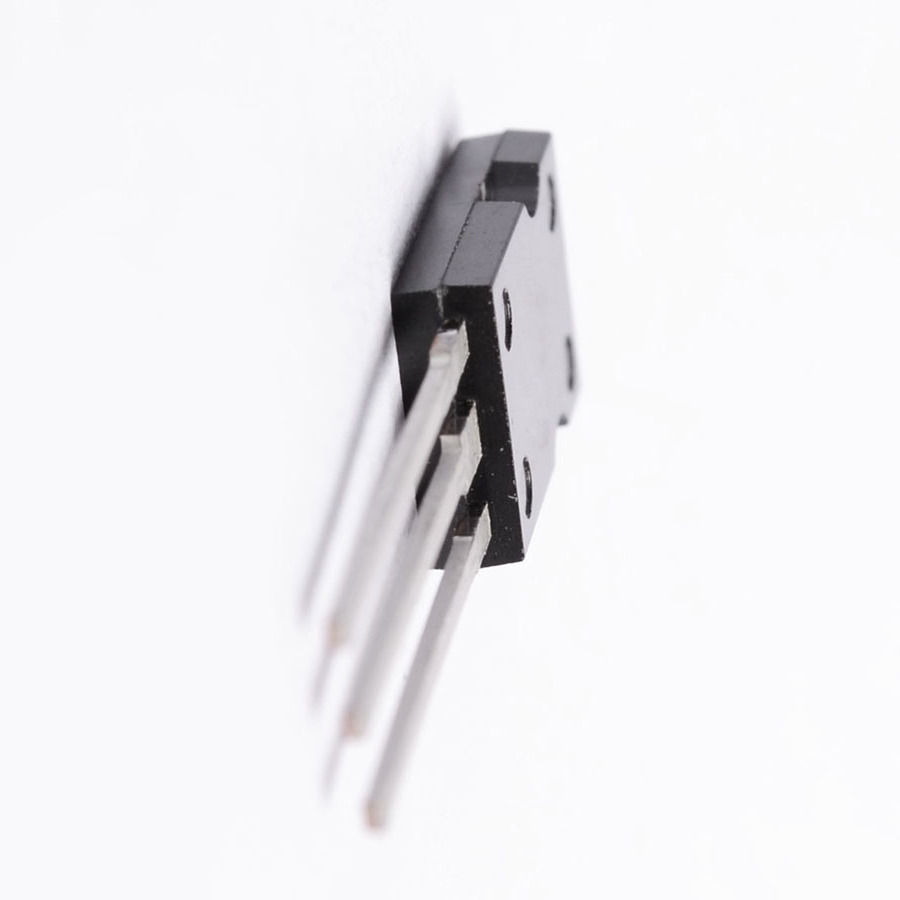

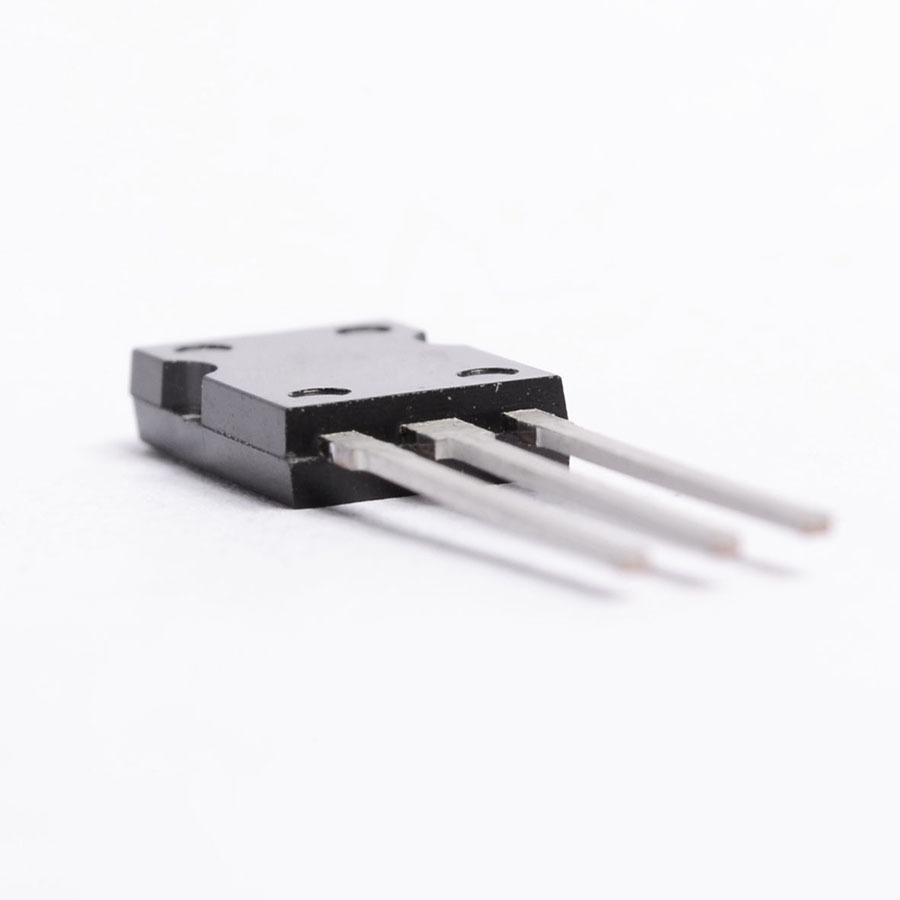

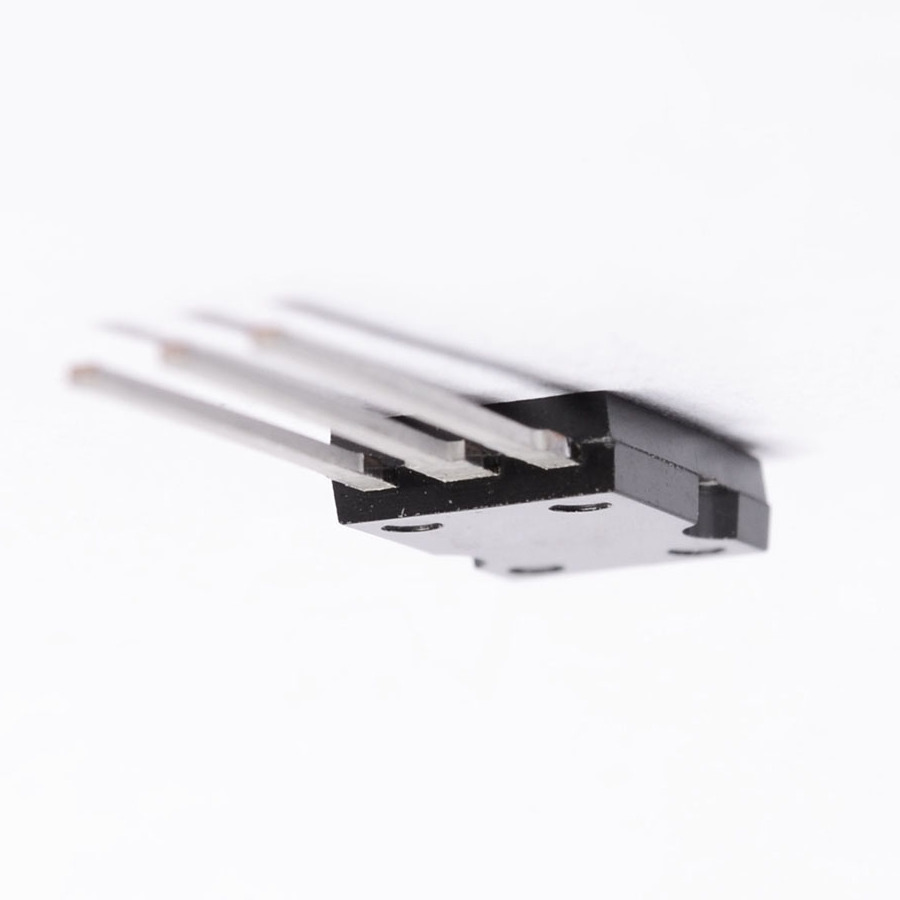

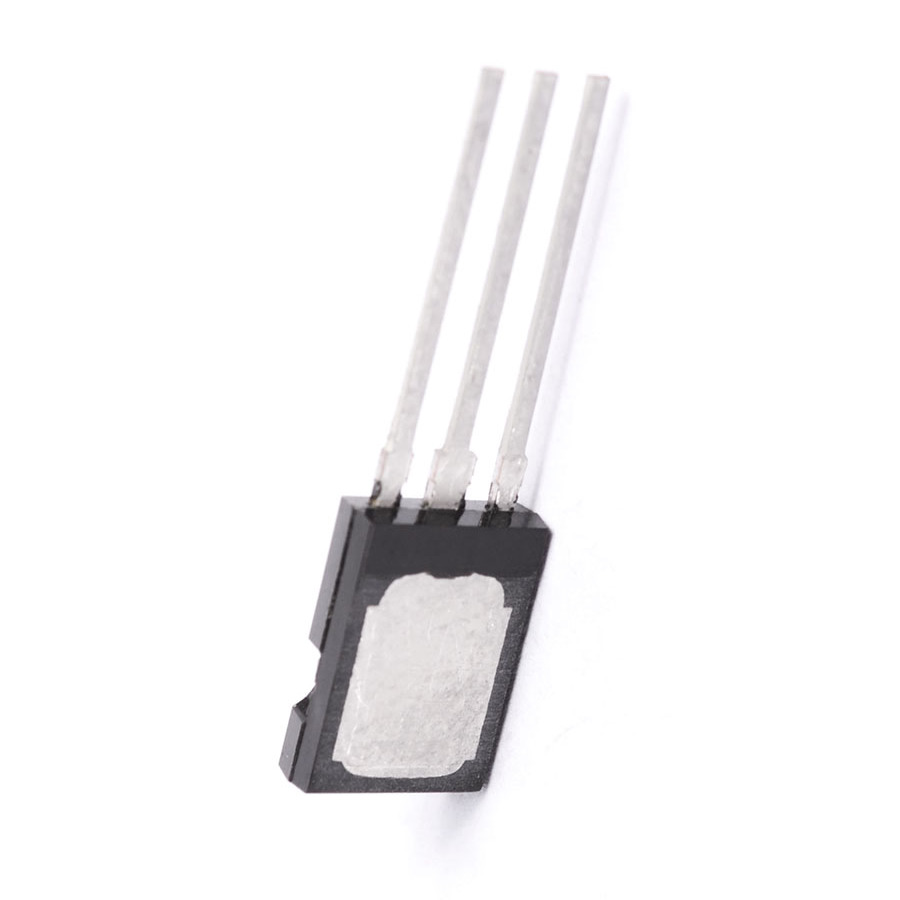

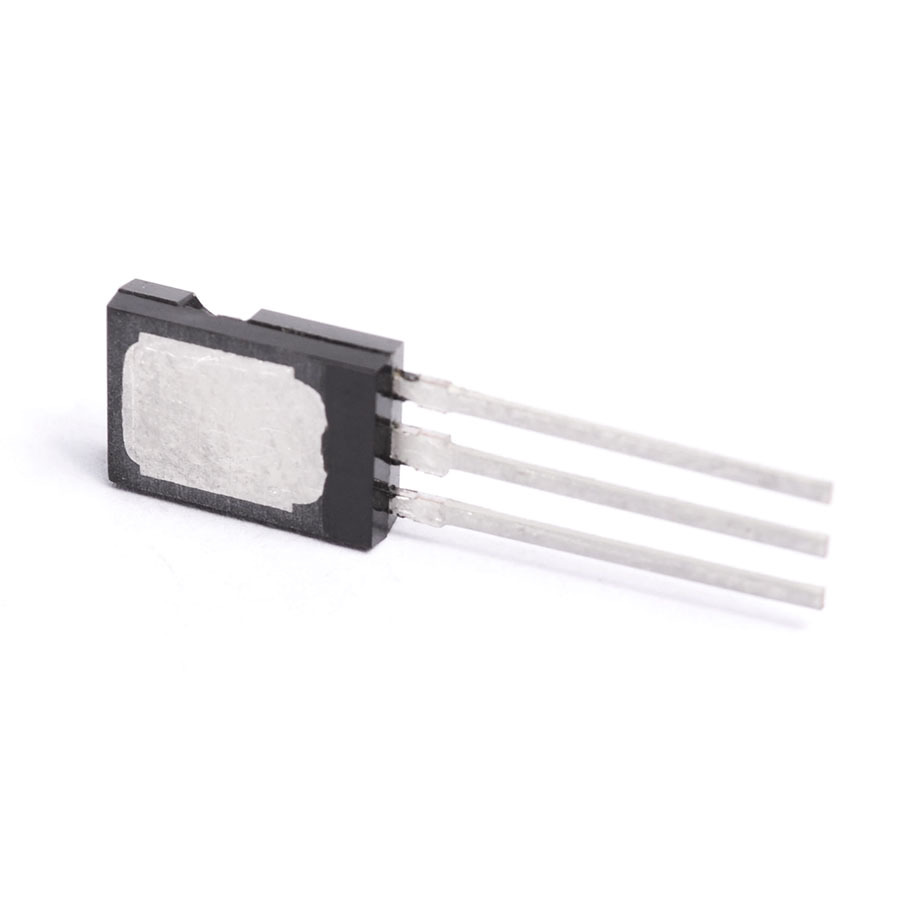

View detailed images (12)

2SD1722R

SKU: 2SD1722R

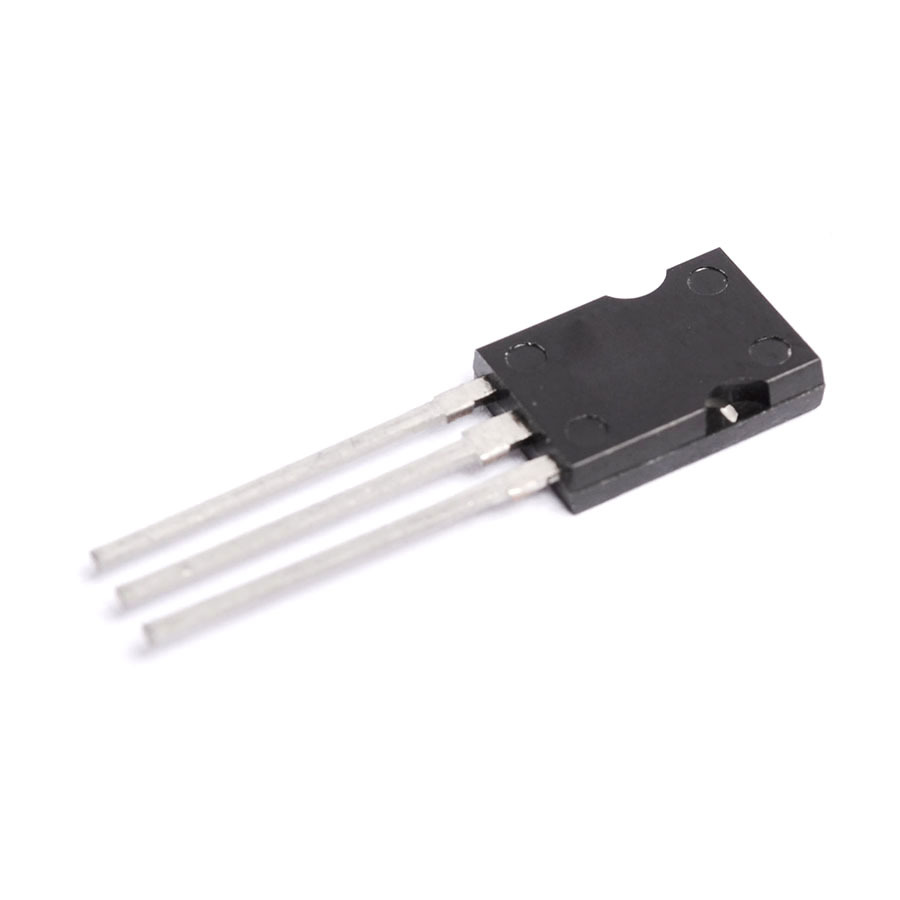

2SD1722R Transistor Silicon NPN CASE: SOT82 MAKE: Sanyo Semiconductor
Product specifications
Equivalent 2SD1722
Type Transistor Silicon NPN
Case SOT82
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 20
t(f) Max. (S) 20n-
Max. hFE 200
Min hFE 100
Ic Max. (A) 5.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity NPN
Tr Max. (s) 50n
Trans. Freq (Hz) Min. 180M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 40 pF
Transition Frequency (ft): 180 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 572799
