2SD1788
View detailed images (4)

2SD1788

SKU: 2SD1788

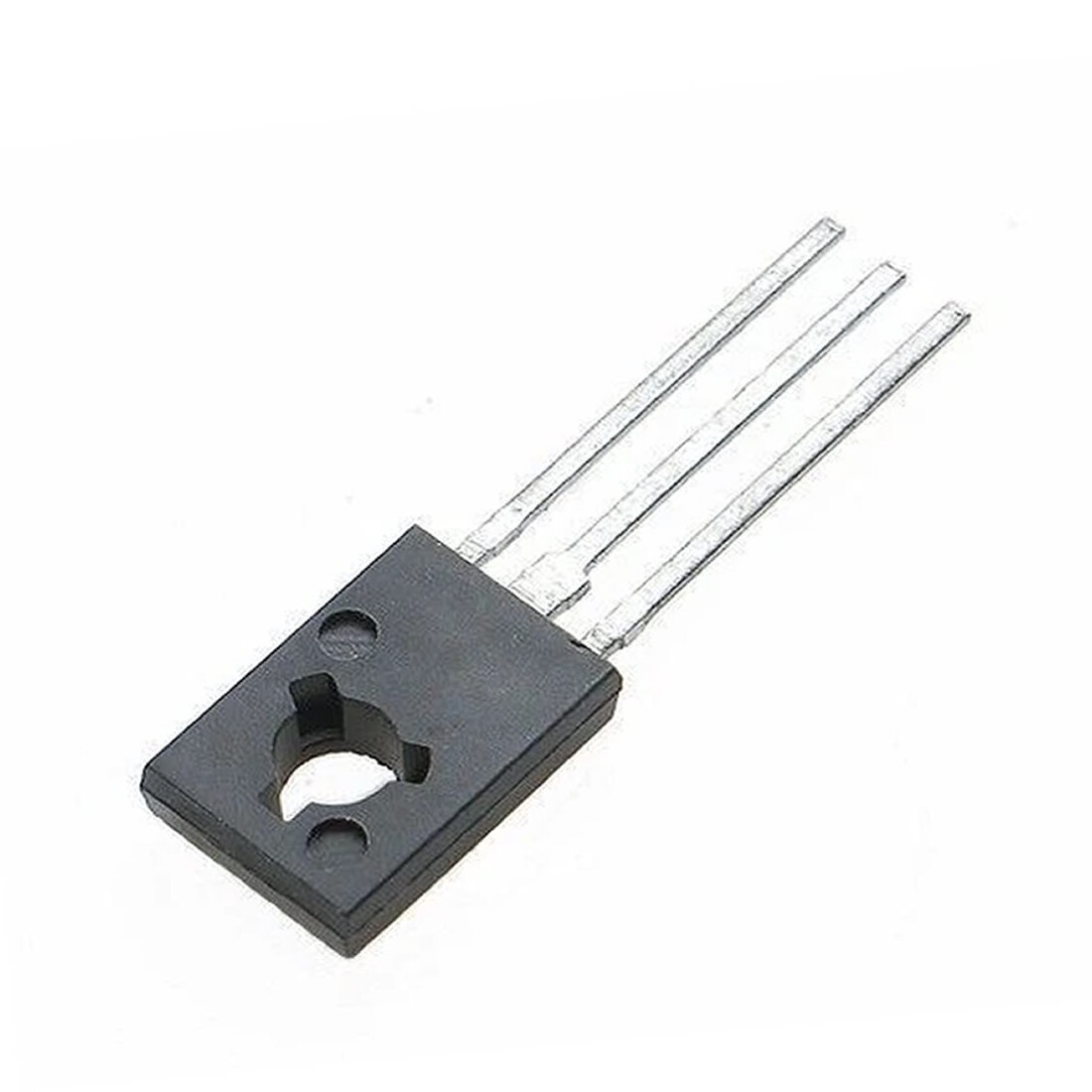

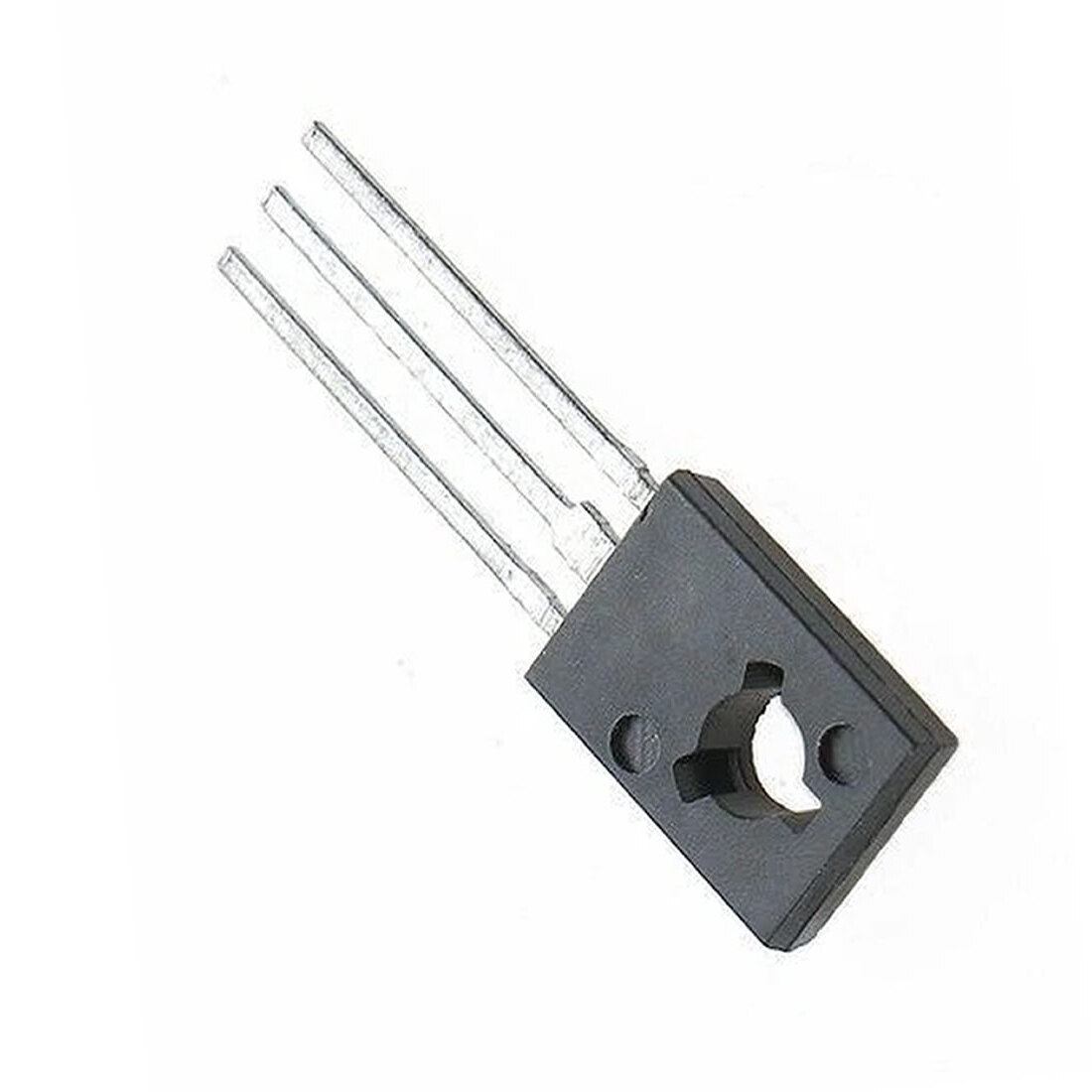

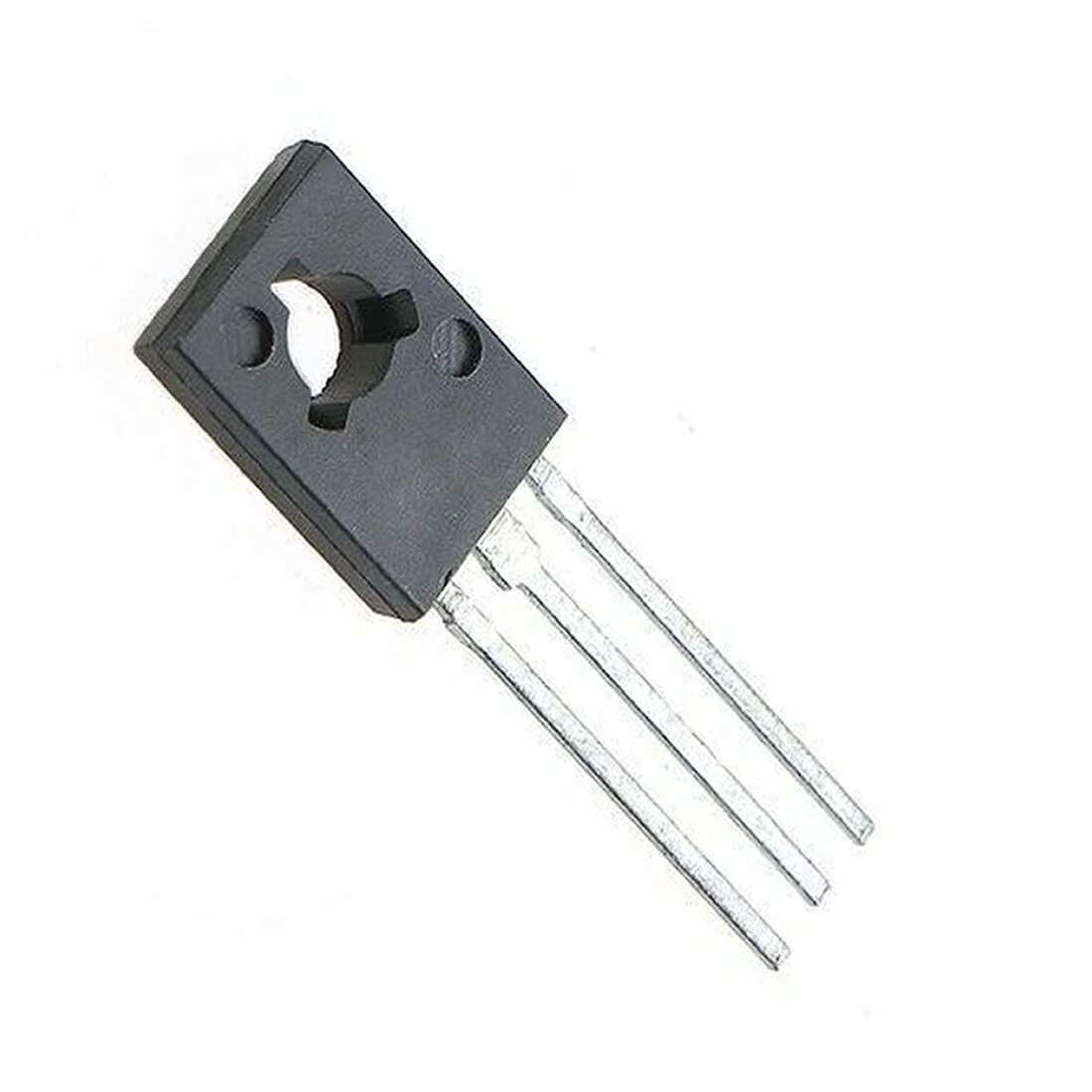

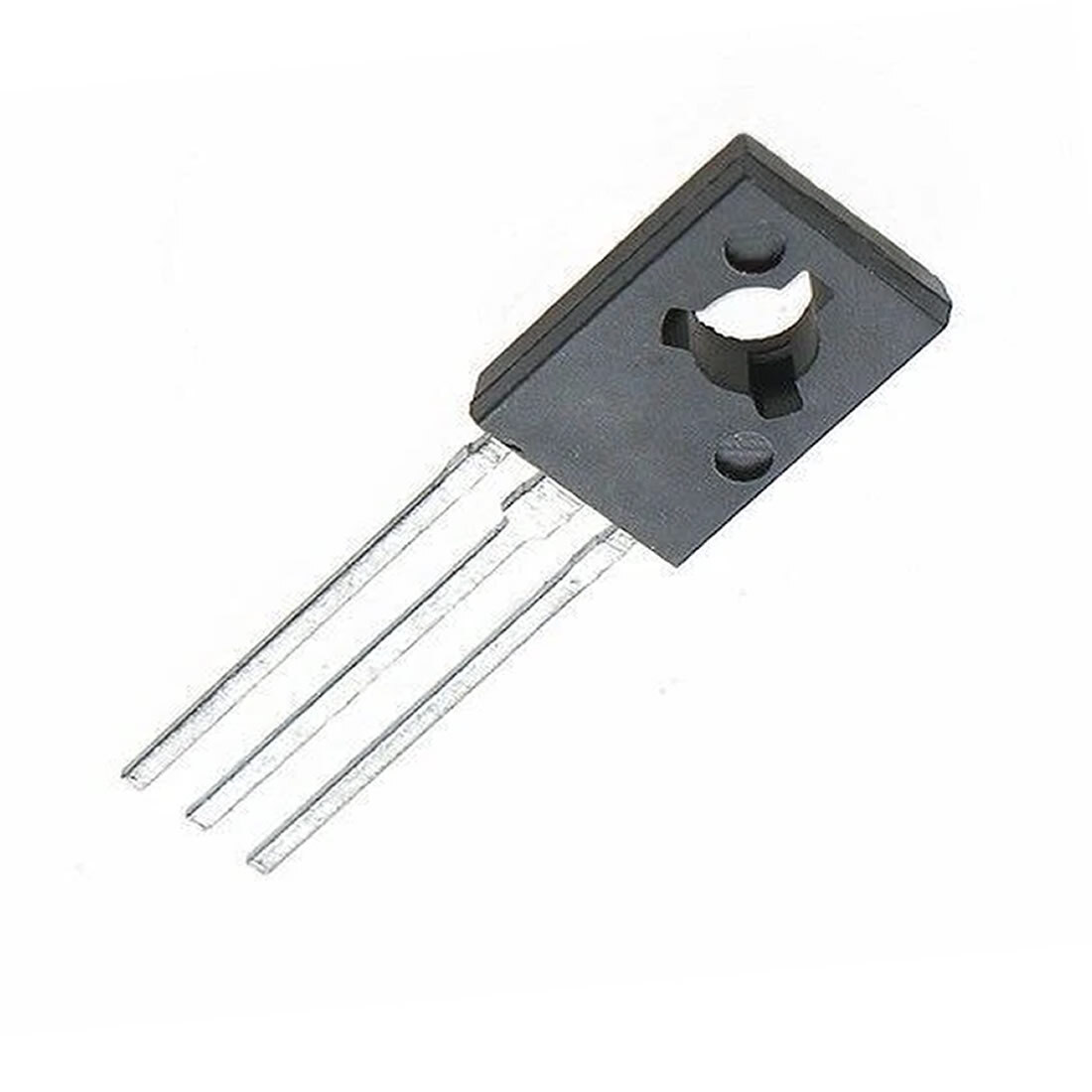

2SD1788 Transistor Silicon NPN CASE: TO126F MAKE: Shindengen
Datasheet
2SD1788 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO126F
Manufacturer Shindengen
Vbr CEO 100
Max. PD (W) 25
t(on) Delay (S) 2.0u
t(f) Max. (S) 5.0u
Min hFE 1.5k
Ic Max. (A) 4.0
Mat. Silicon Logic
Polarity NPN
t(stor) Max. (S) 12u
Derate Above 25°C 0.2
Trans. Freq (Hz) Min. 50M
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 15000
SKU 345650
