2SD179
View detailed images (5)

2SD179

SKU: 2SD179

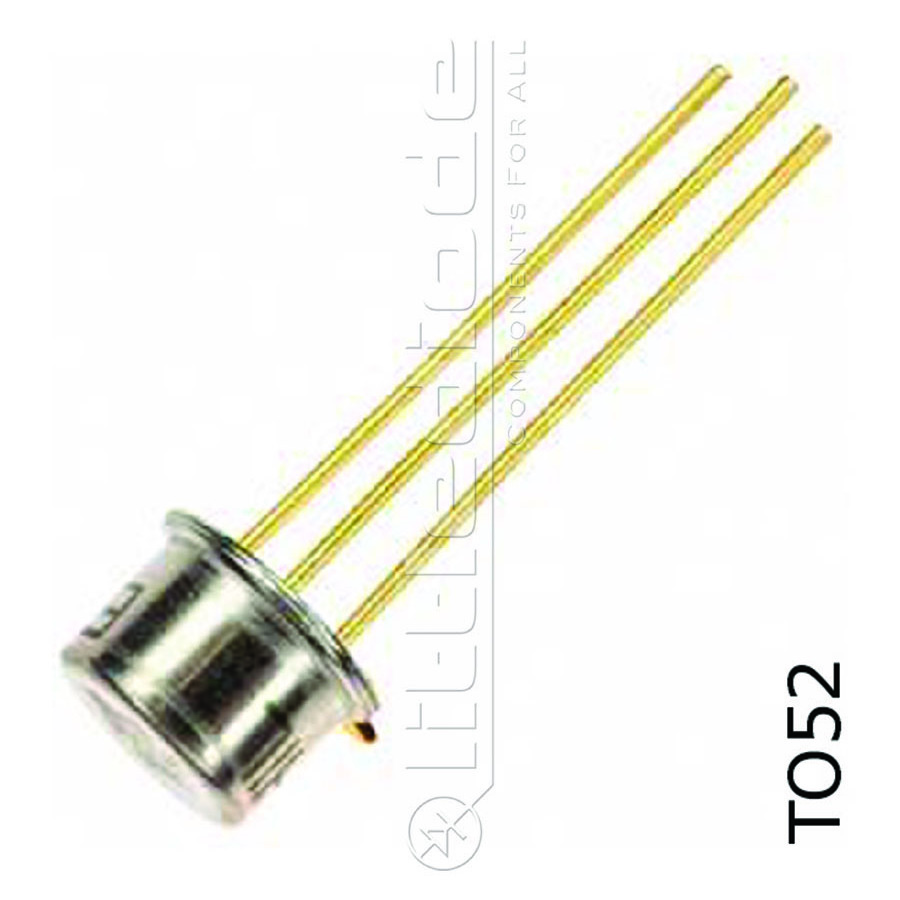

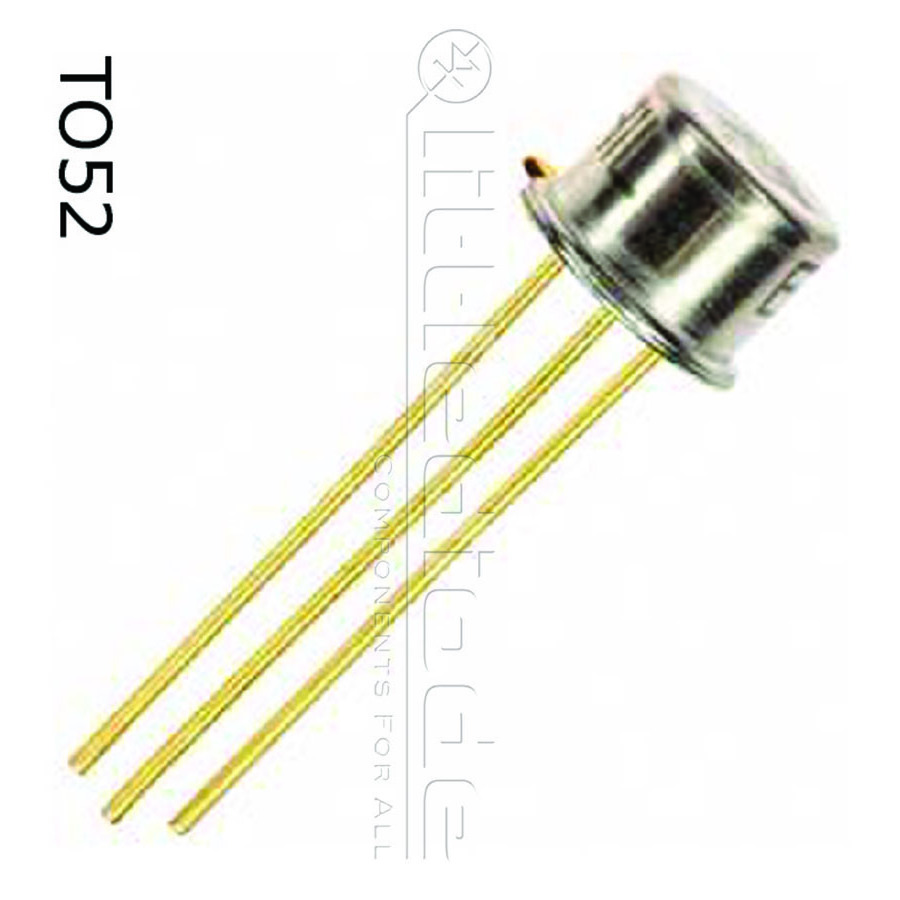

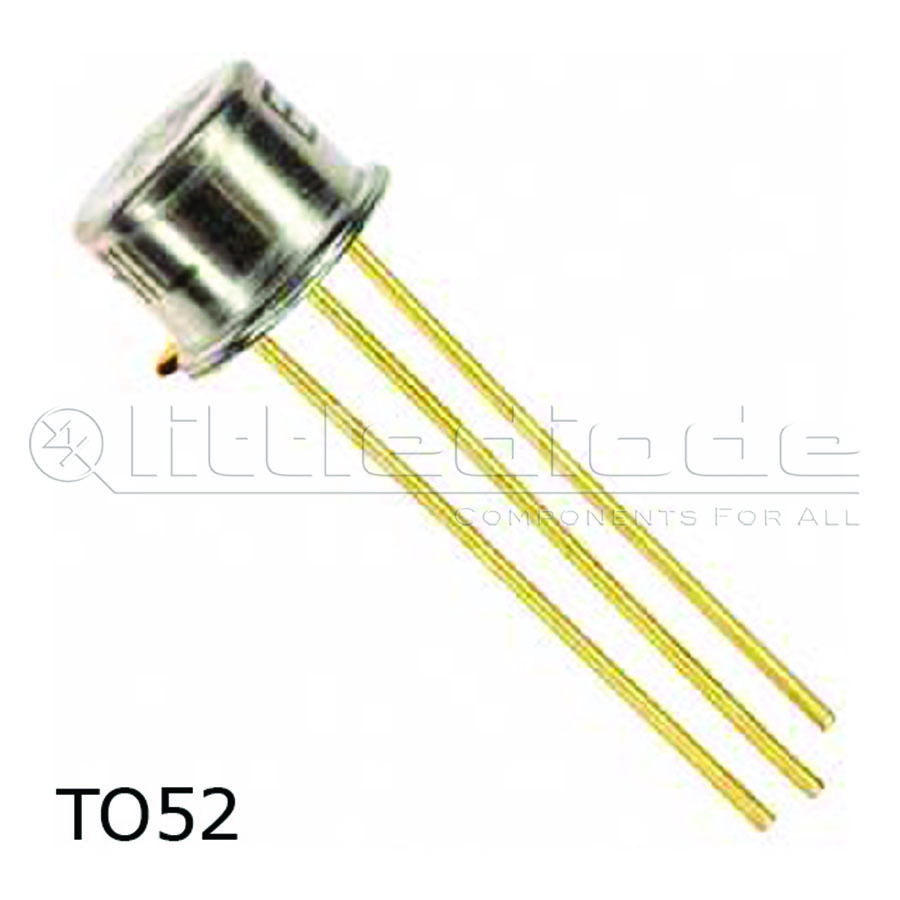

2SD179 Transistor Silicon NPN CASE: TO52 MAKE: NEC
Product specifications
Type Transistor Silicon NPN
Case TO52
Manufacturer NEC
Vbr CBO 300
Vbr CEO 300
Max. PD (W) 580
Max. hFE 100
Min hFE 10
Ic Max. (A) 40
@Ic (test) (A) 20
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
R(sat) (Û) 100m
Derate Above 25°C 3.8
Oper. Temp (°C) Max. 175
@VCE (V) 5.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 580 W
Maximum Collector-Base Voltage |Vcb| 300 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 40 A
Max. Operating Junction Temperature (Tj) 125 °C
Forward Current Transfer Ratio (hFE), MIN 10
SKU 761342
