2SD1792
View detailed images (4)

2SD1792

SKU: 2SD1792

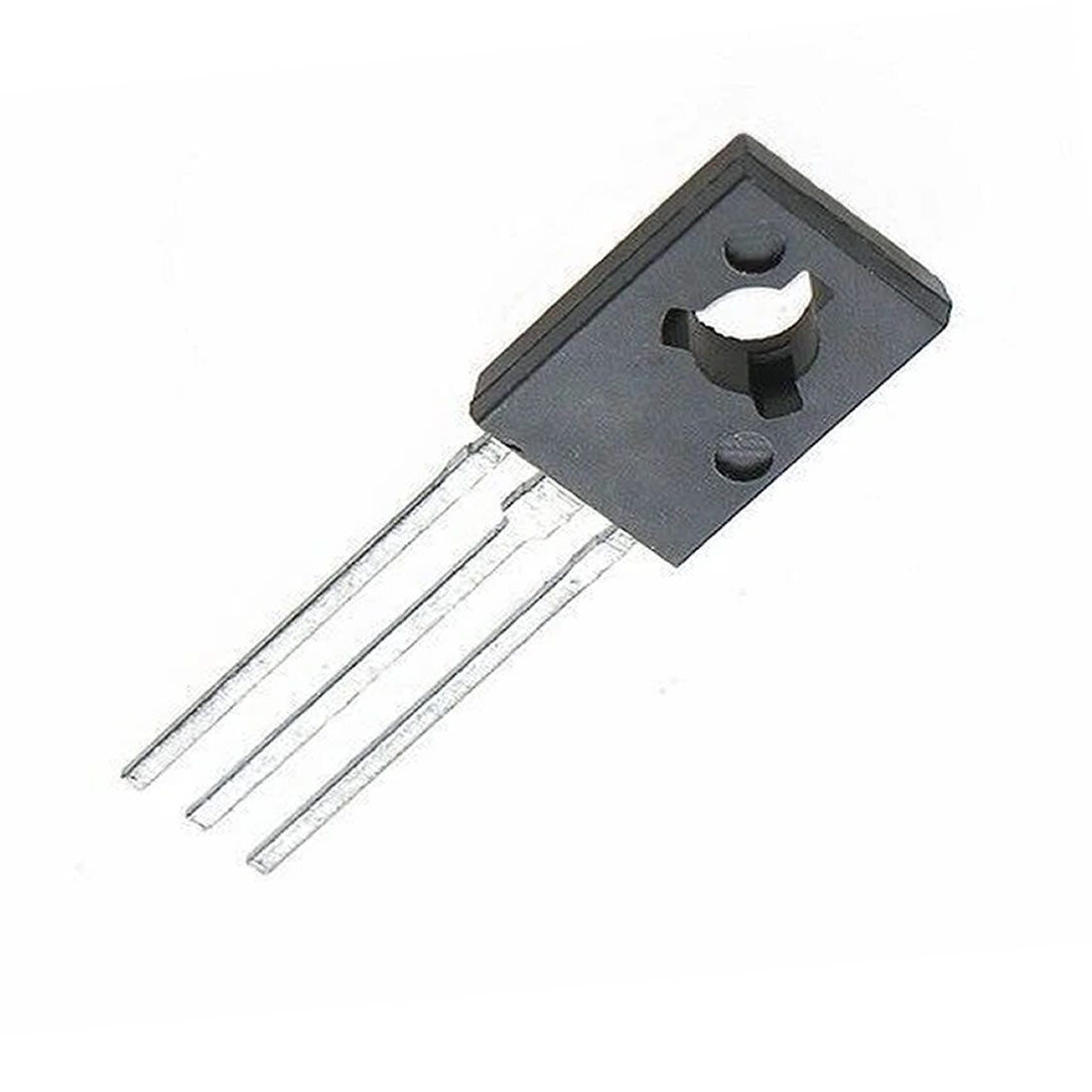

2SD1792 Transistor Silicon NPN CASE: TO126F MAKE: Shindengen
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 18 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD1792 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO126F
Manufacturer Shindengen
Vbr CEO 200
Max. PD (W) 30
t(on) Delay (S) 2.0u
t(f) Max. (S) 5.0u
Min hFE 1.5k
Ic Max. (A) 7.0
Mat. Silicon Logic
Polarity NPN
t(stor) Max. (S) 12u
Derate Above 25°C 0.24
Trans. Freq (Hz) Min. 50M
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 15000
SKU 84584
