2SD1793
View detailed images (4)

2SD1793

SKU: 2SD1793

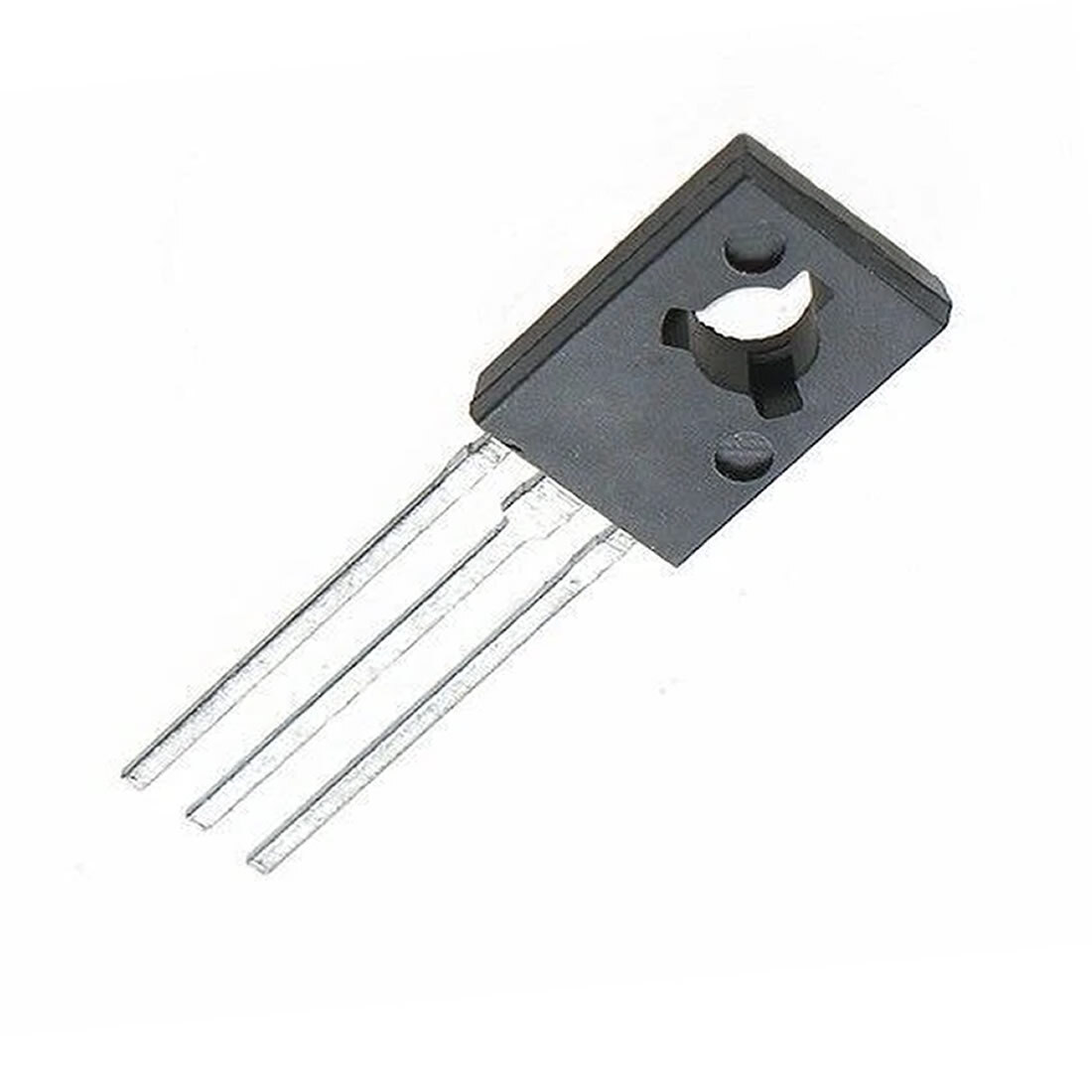

2SD1793 Transistor Silicon NPN CASE: TO126F MAKE: Shindengen
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD1793 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO126F
Manufacturer Shindengen
Vbr CEO 100
Max. PD (W) 50
t(on) Delay (S) 2.0u
t(f) Max. (S) 5.0u
Min hFE 1.5k
Ic Max. (A) 10
Mat. Silicon Logic
Polarity NPN
t(stor) Max. (S) 12u
Derate Above 25°C 0.4
Trans. Freq (Hz) Min. 50M
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 50 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 15000
SKU 84585
