2SD1876
View detailed images (4)

2SD1876

SKU: 2SD1876

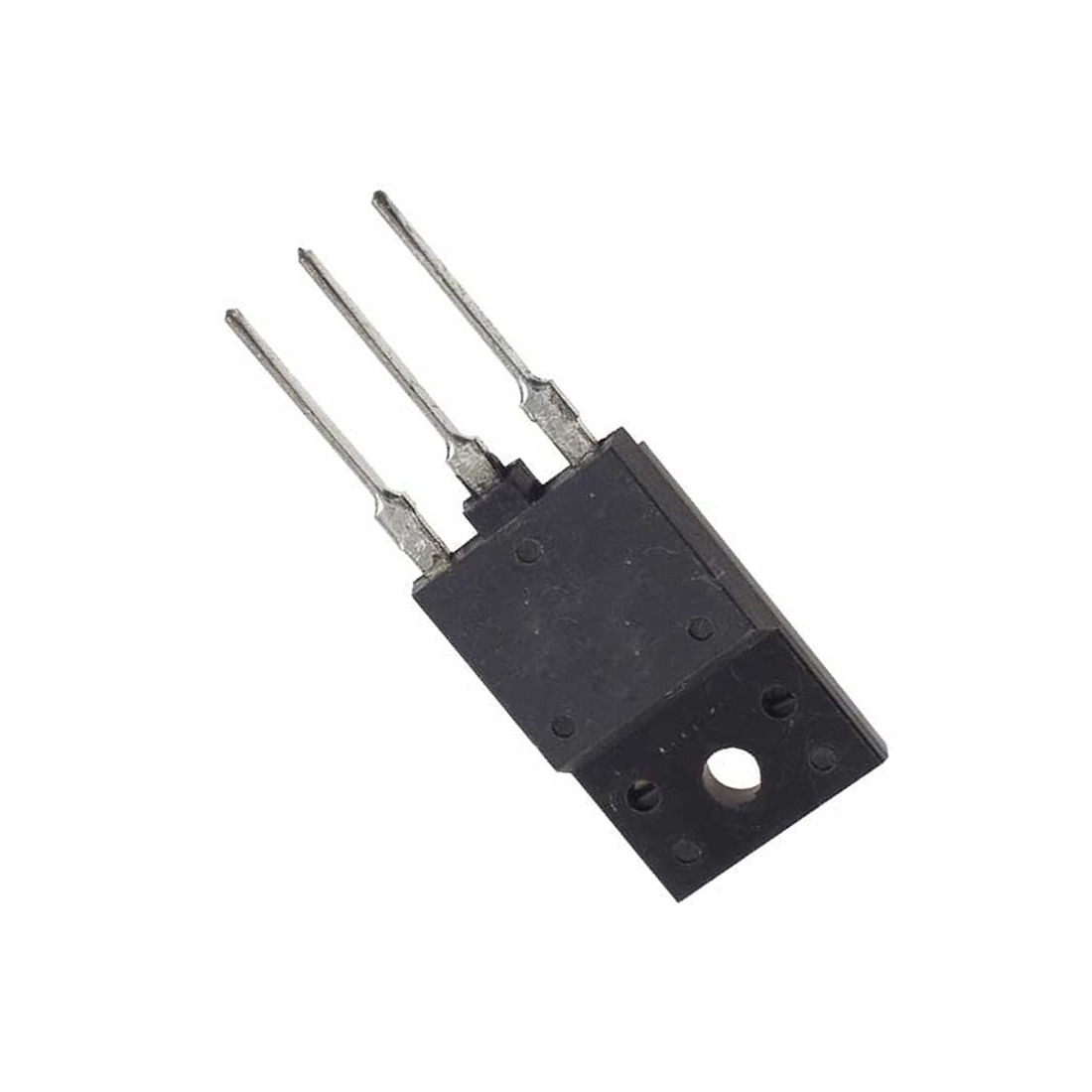

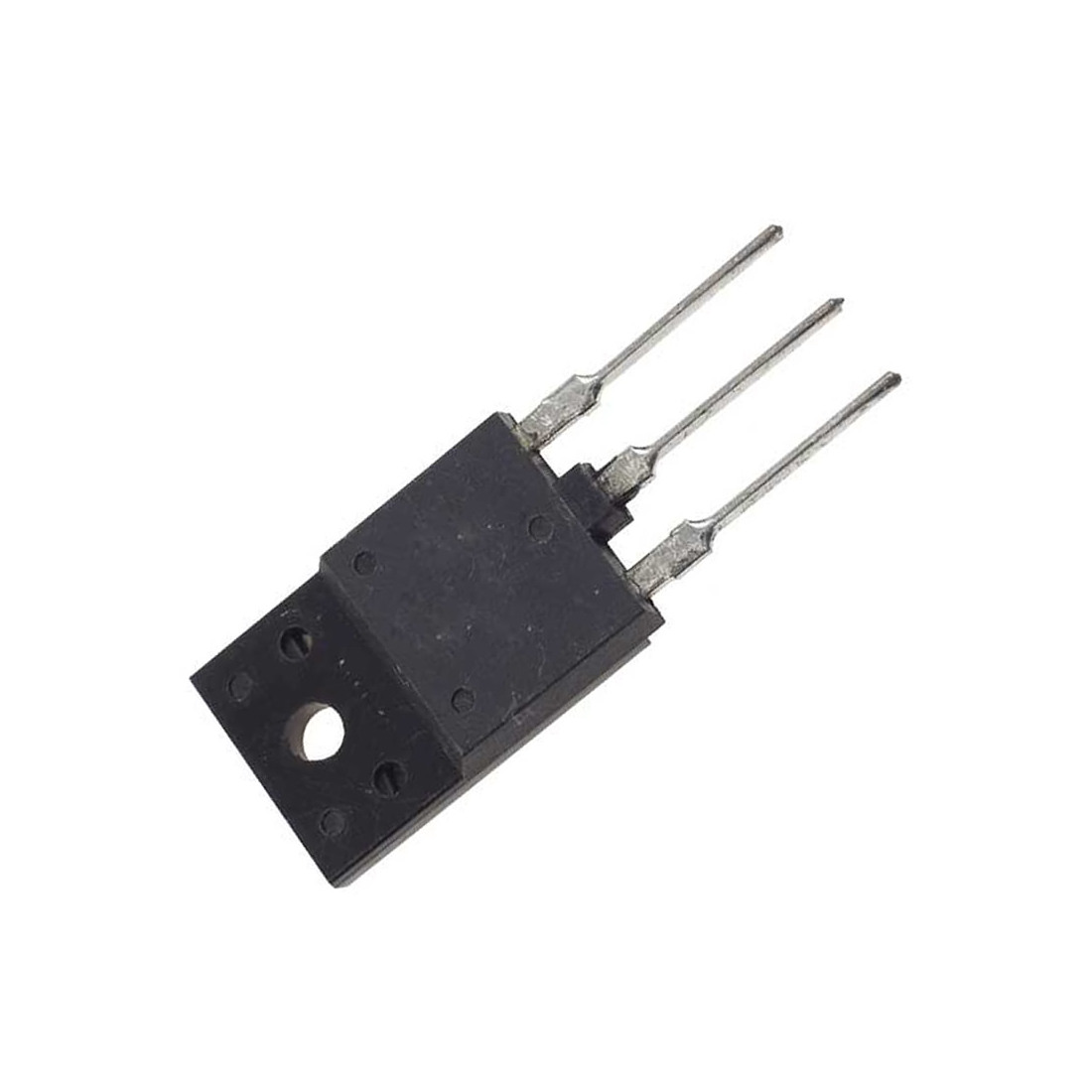

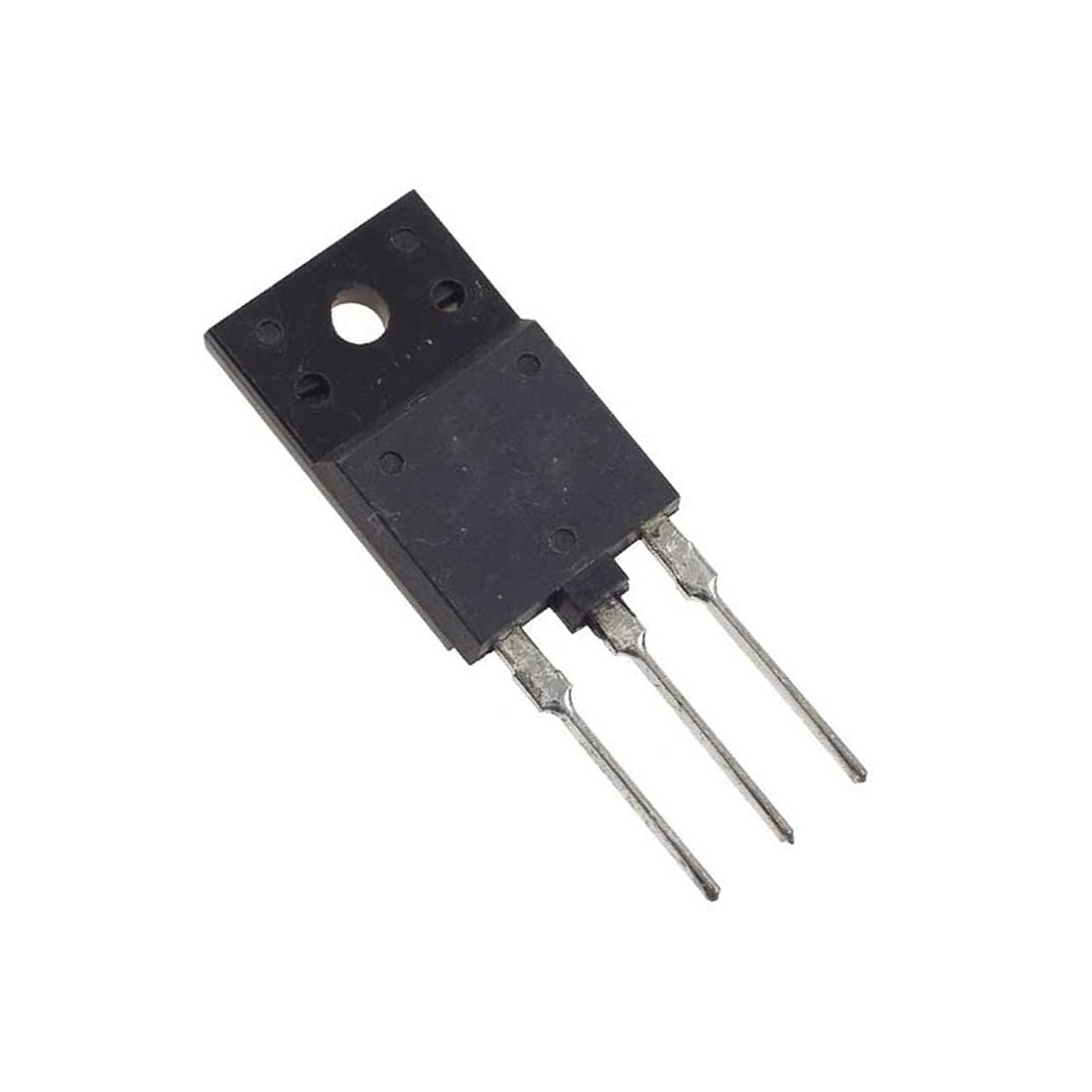

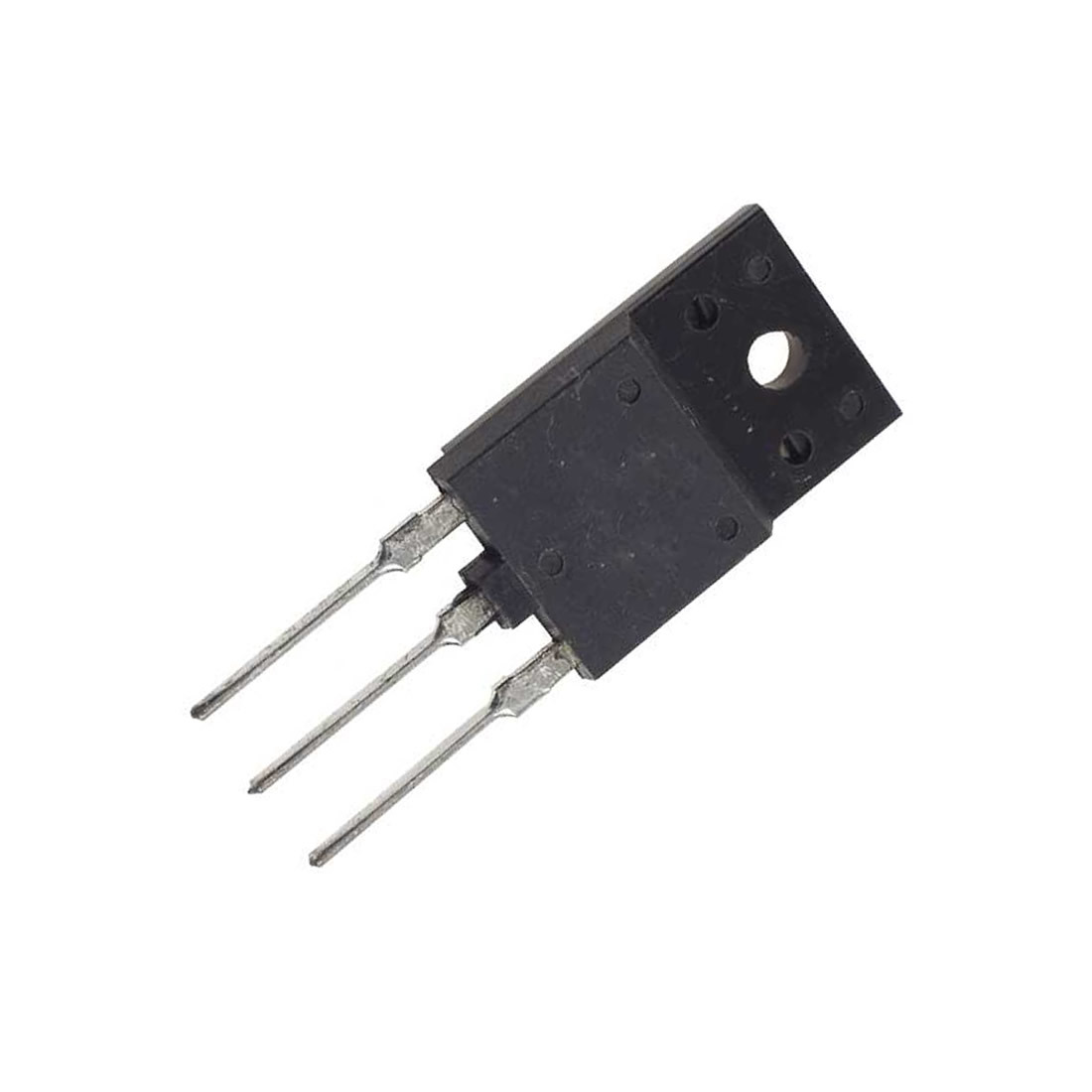

2SD1876 Transistor NPN - Case: TO247F Make: Sanyo Semiconductor
Price: £3.99
+ VAT 20% for UK purchases
£3.99
Qty
+ VAT 20% for UK purchases
  • 26 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD1876 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO247F
Manufacturer Sanyo Semiconductor
Vbr CBO 1.5k
Vbr CEO 800
Max. PD (W) 50
t(f) Max. (S) 300n
Max. hFE 6.0
Min hFE 3.0
Ic Max. (A) 3.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 50 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 8
SKU 81510
