2SD1884
View detailed images (4)

2SD1884

SKU: 2SD1884

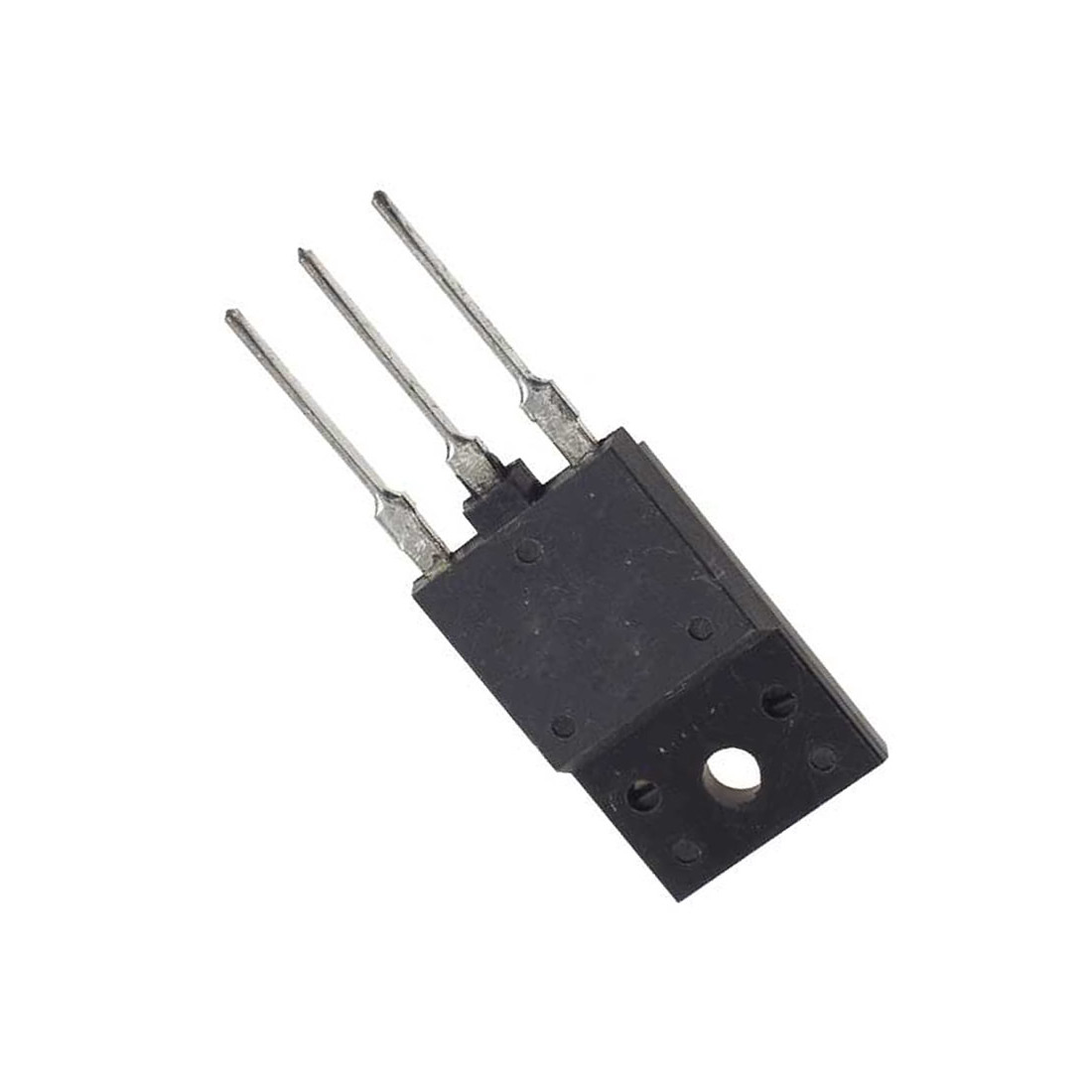

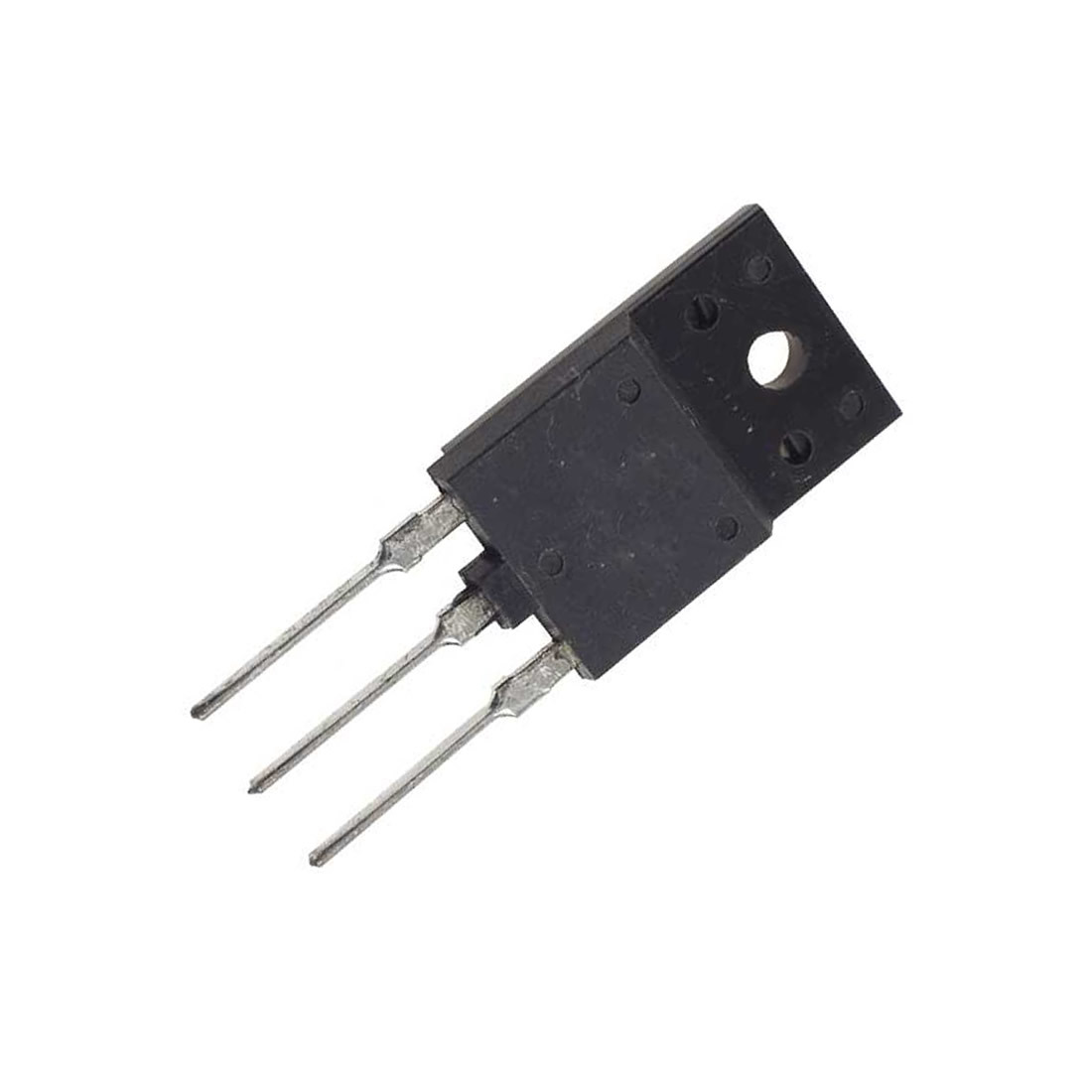

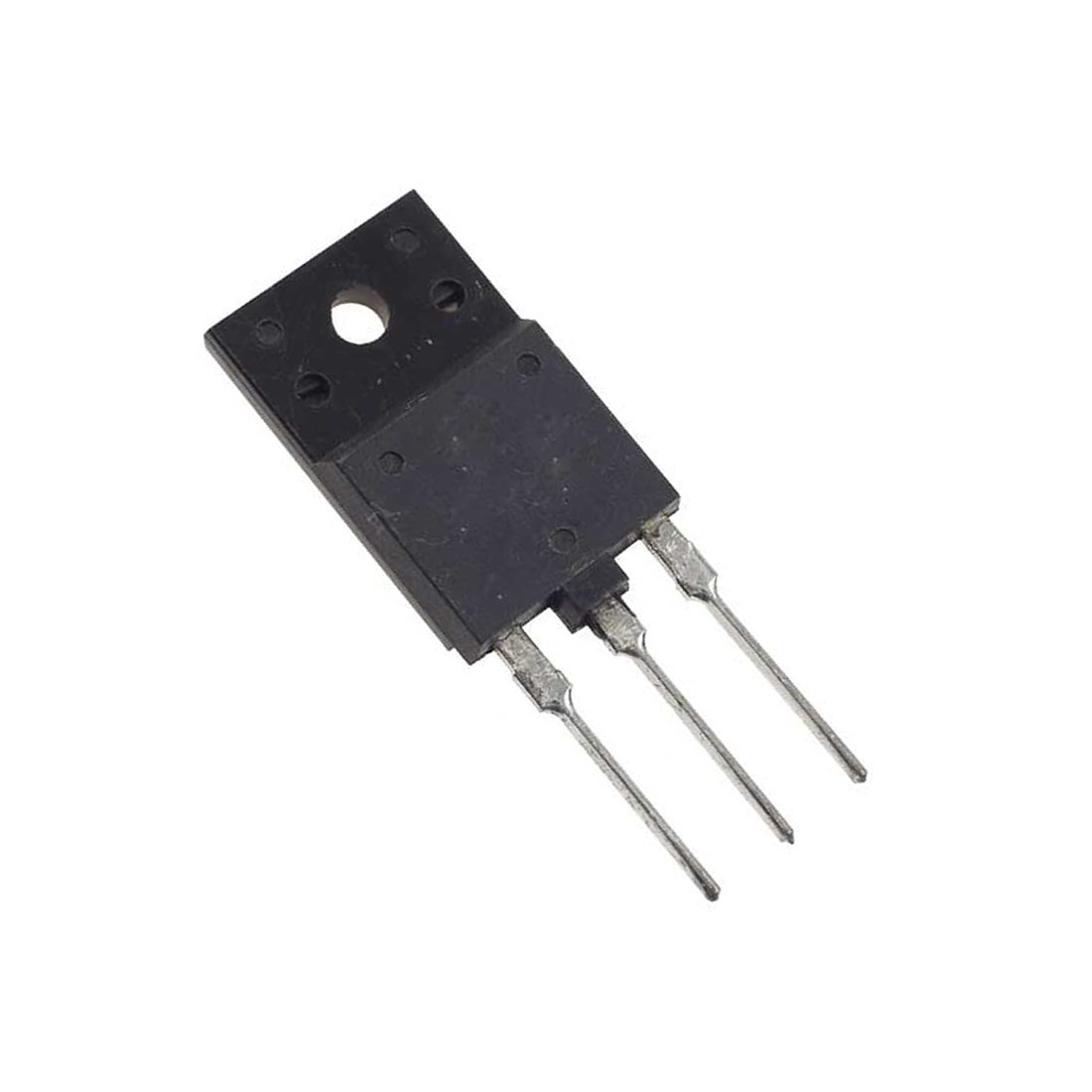

2SD1884 Transistor Silicon NPN - Case: TO247F Make: Sanyo Semiconductor
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Datasheet
2SD1884 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO247F
Manufacturer Sanyo Semiconductor
Vbr CBO 1.5k
Vbr CEO 800
Max. PD (W) 60
t(f) Max. (S) 300n
Max. hFE 10
Min hFE 5.0
Ic Max. (A) 5.0
@Ic (test) (A) 4.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 8
SKU 81515
