2SD1886

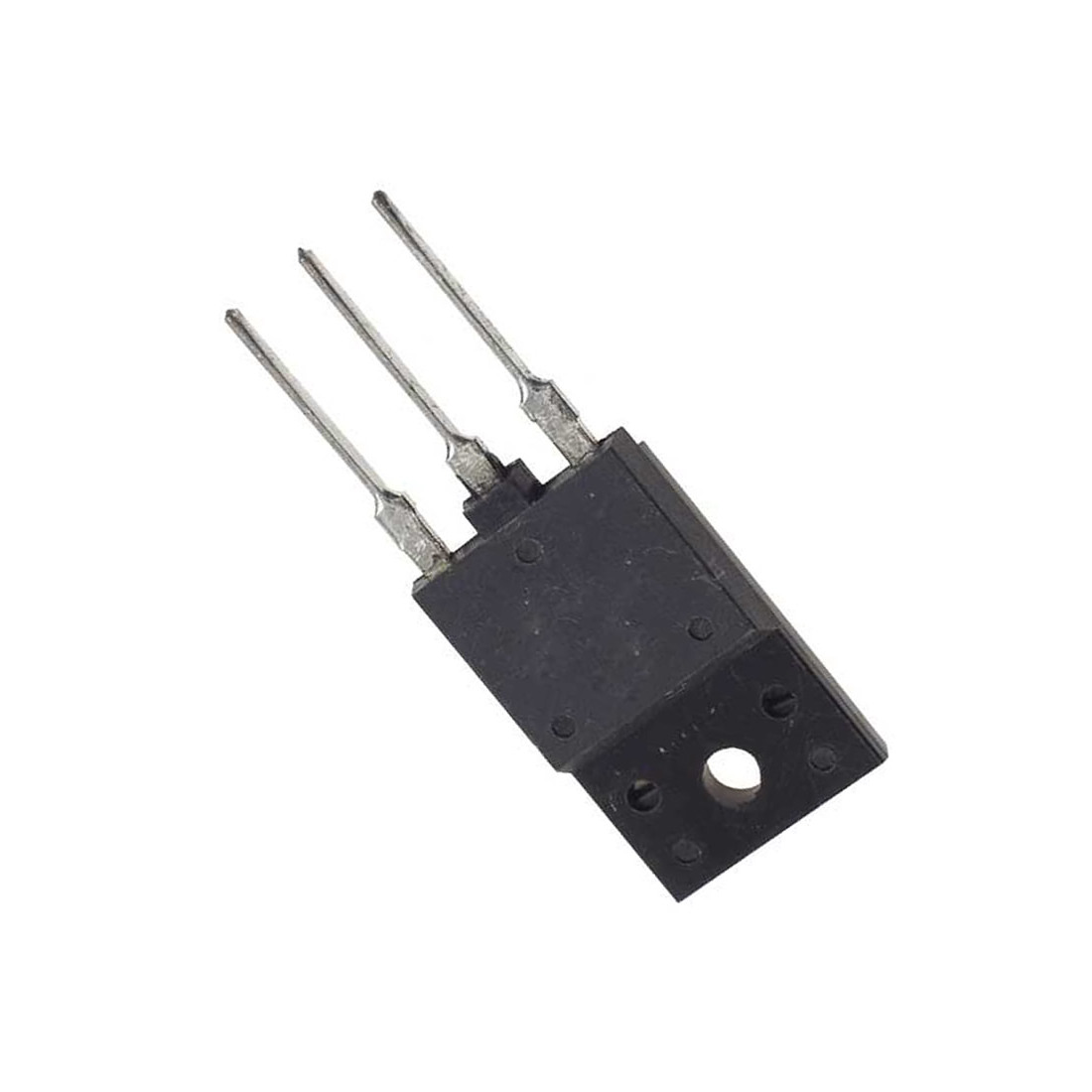

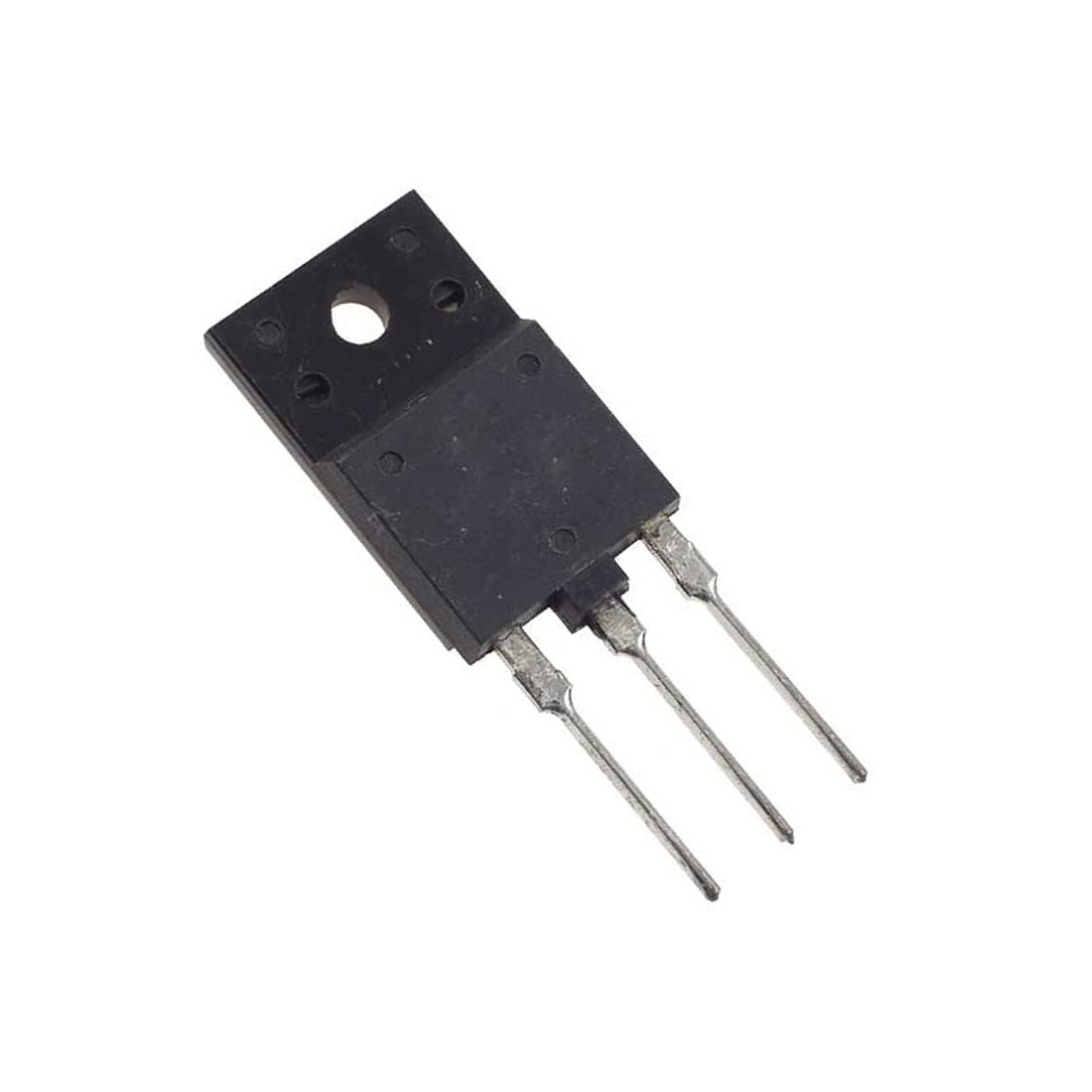

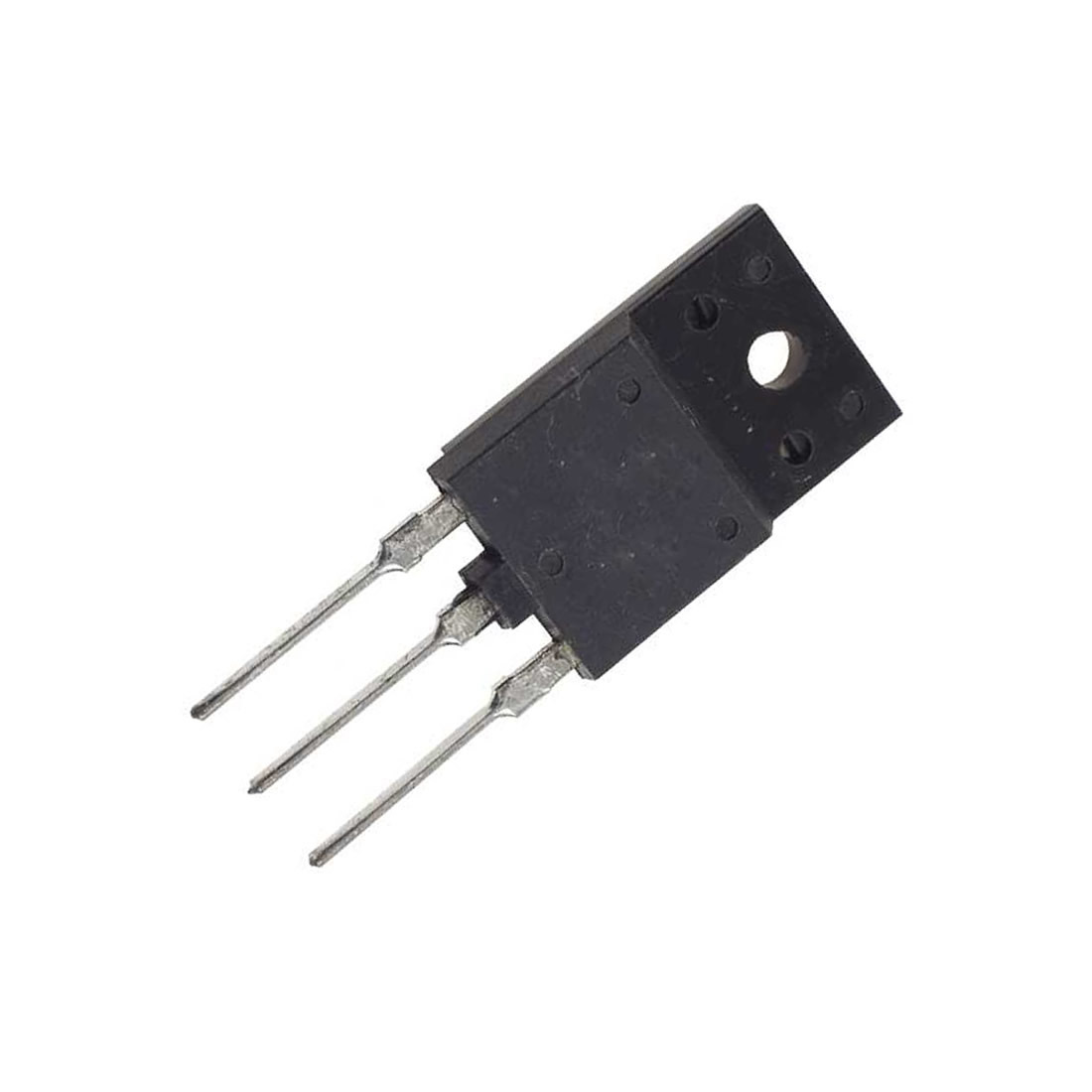

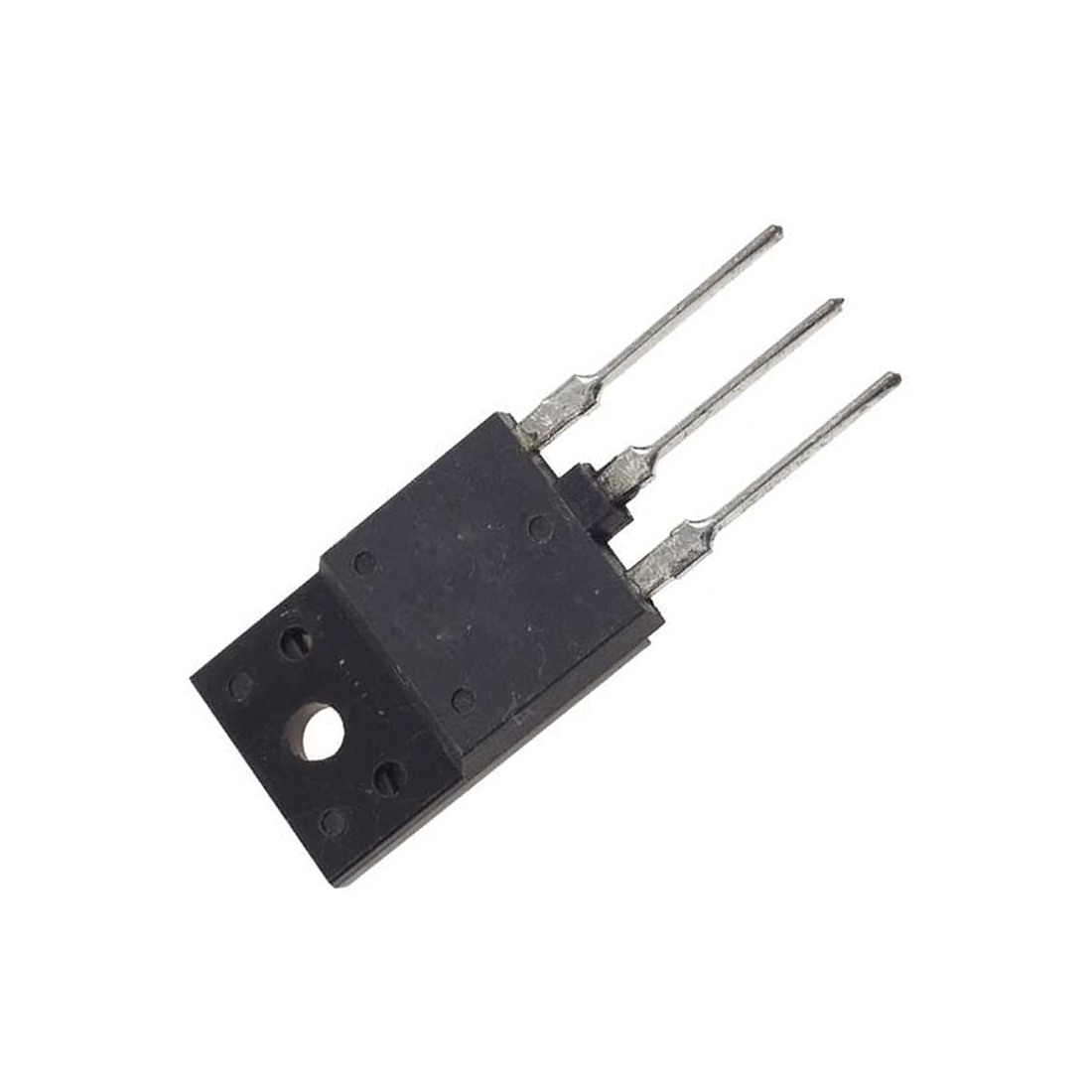

View detailed images (4)

2SD1886

SKU: 2SD1886
2SD1886 Transistor - Case: TO247F Make: Sanyo Semiconductor
+ VAT 20% for UK purchases
Datasheet
2SD1886 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO247F
Manufacturer Sanyo Semiconductor
Vbr CBO 1.5k
Vbr CEO 800
Max. PD (W) 70
t(f) Max. (S) 300n
Max. hFE 10
Min hFE 5.0
Ic Max. (A) 8.0
@Ic (test) (A) 6.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 8
SKU 115422
