2SD1903R
View detailed images (12)

2SD1903R

SKU: 2SD1903R

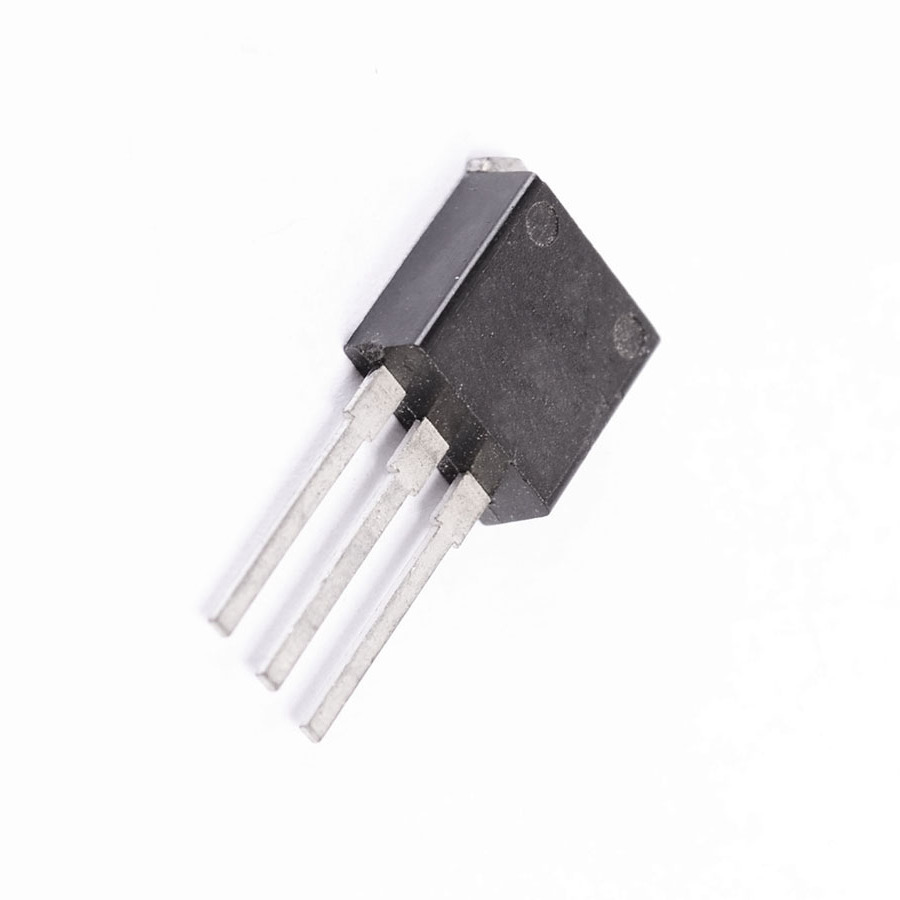

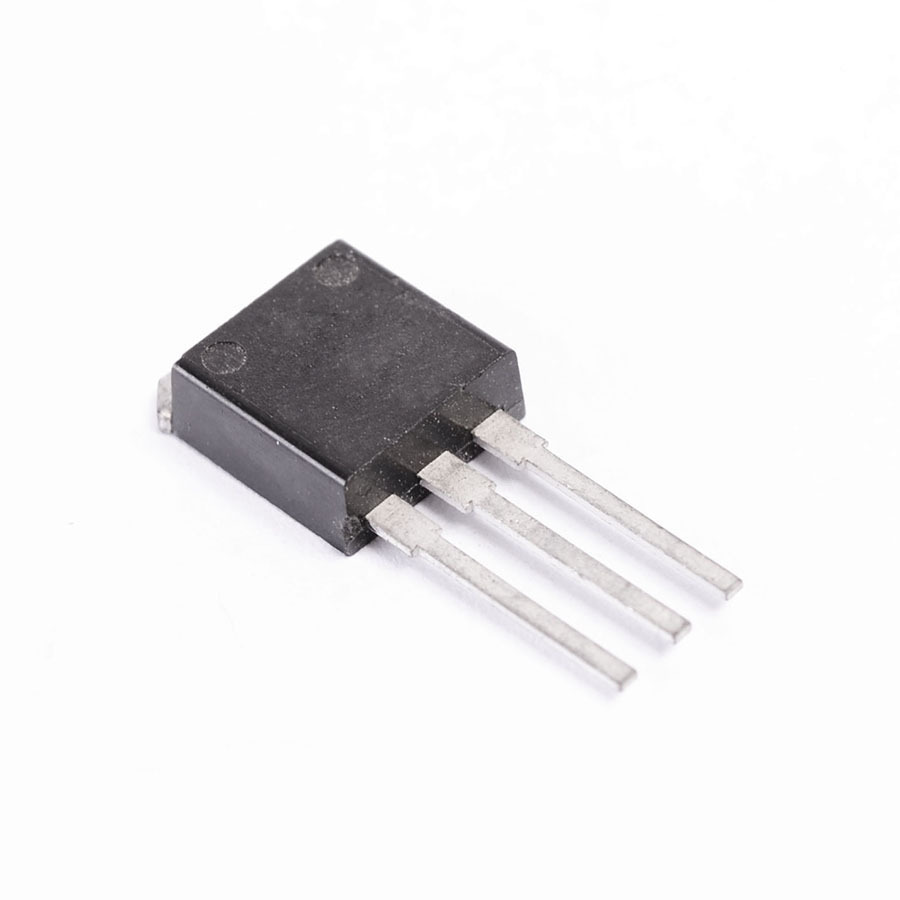

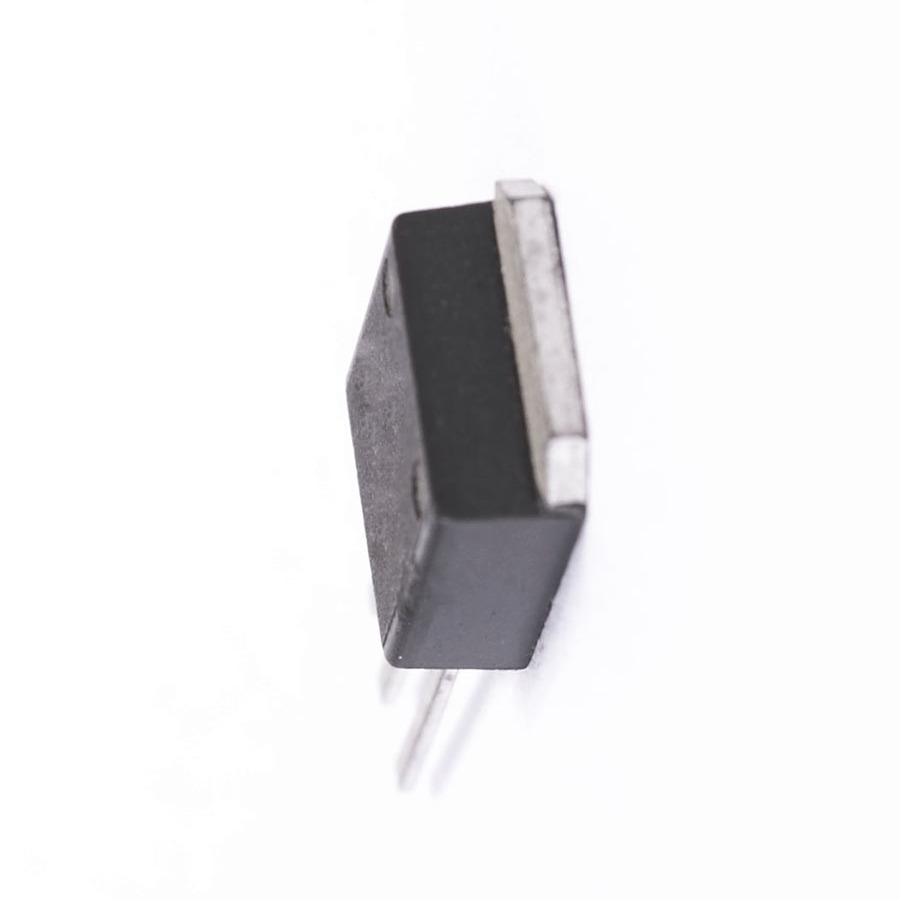

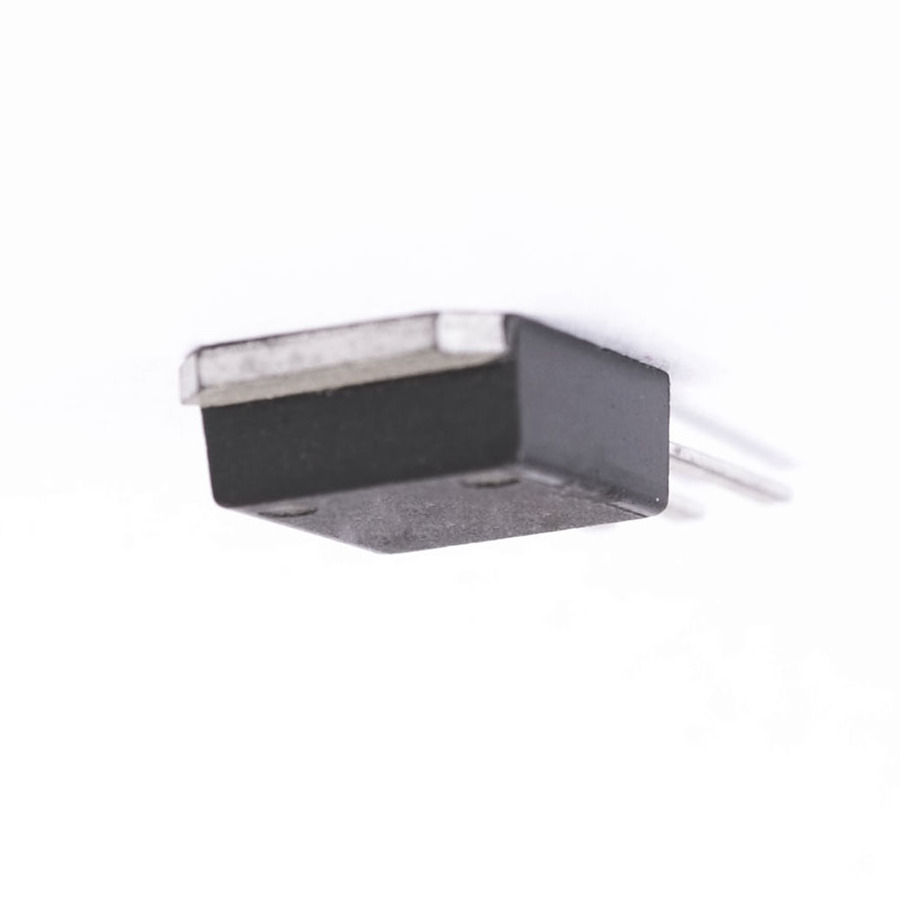

2SD1903R Transistor Silicon NPN CASE: TO262 MAKE: Sanyo Semiconductor
Product specifications
Equivalent 2SD1903
Type Transistor Silicon NPN
Case TO262
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 30
Max. PD (W) 30
t(f) Max. (S) 30n-
Max. hFE 200
Min hFE 100
Ic Max. (A) 8.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Tr Max. (s) 100n
Trans. Freq (Hz) Min. 120M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 3 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 120 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 572817
