2SD2198
View detailed images (12)

2SD2198

SKU: 2SD2198

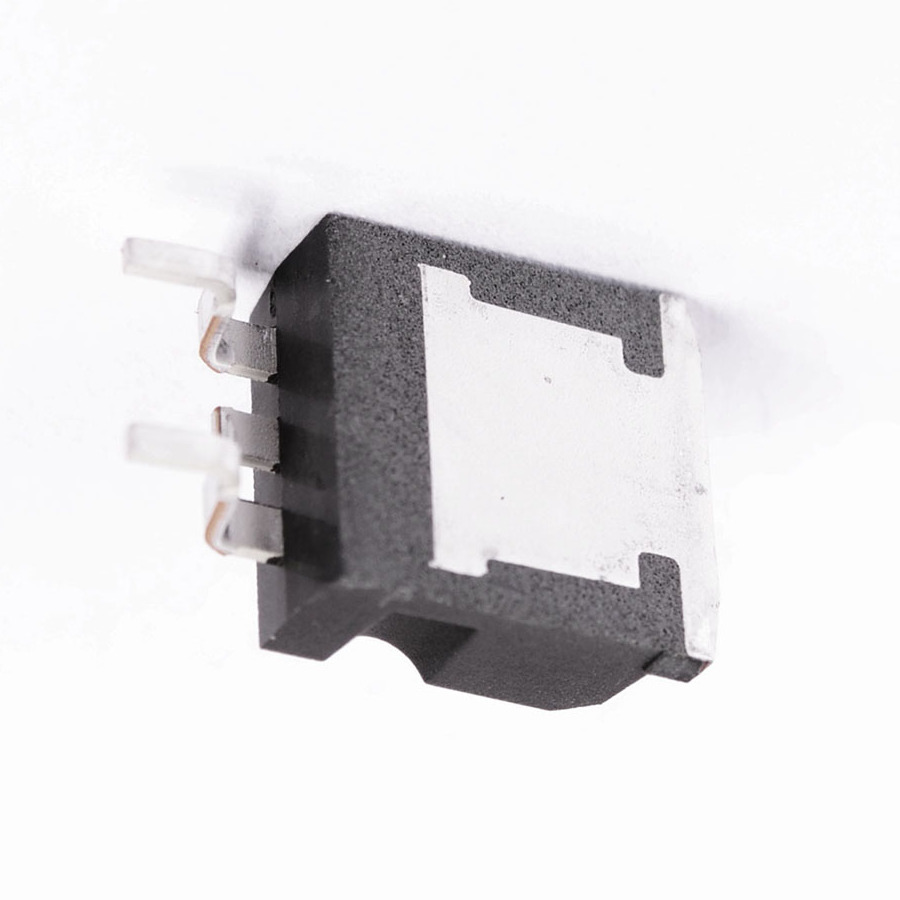

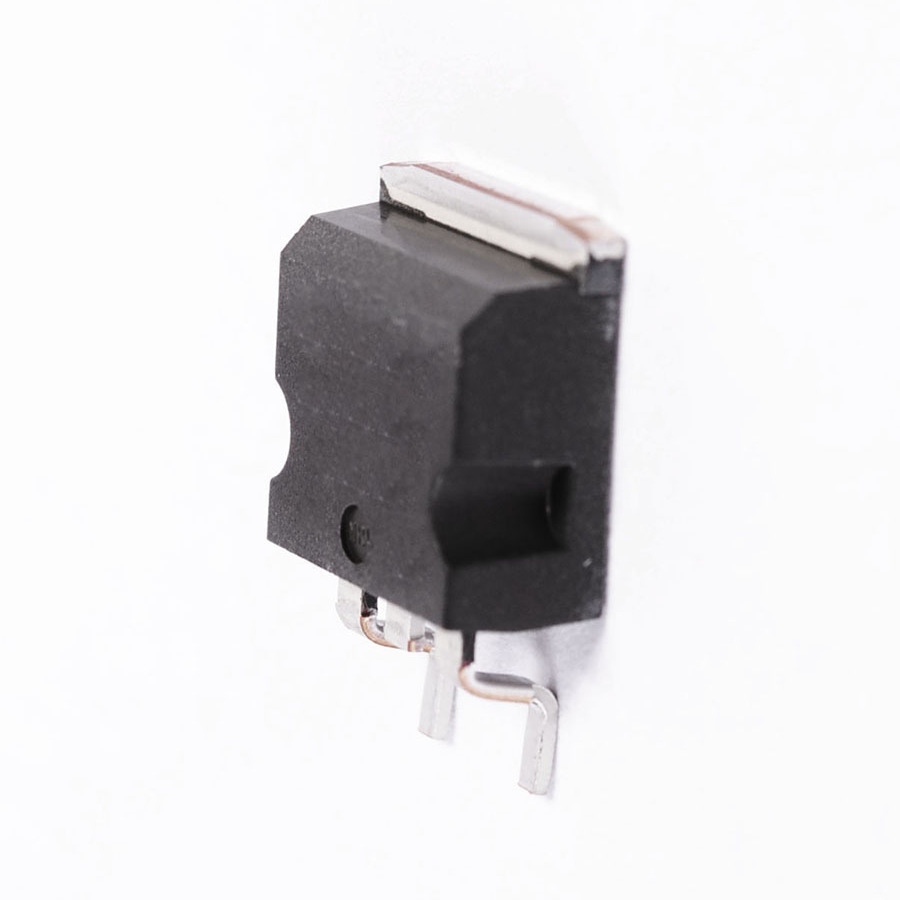

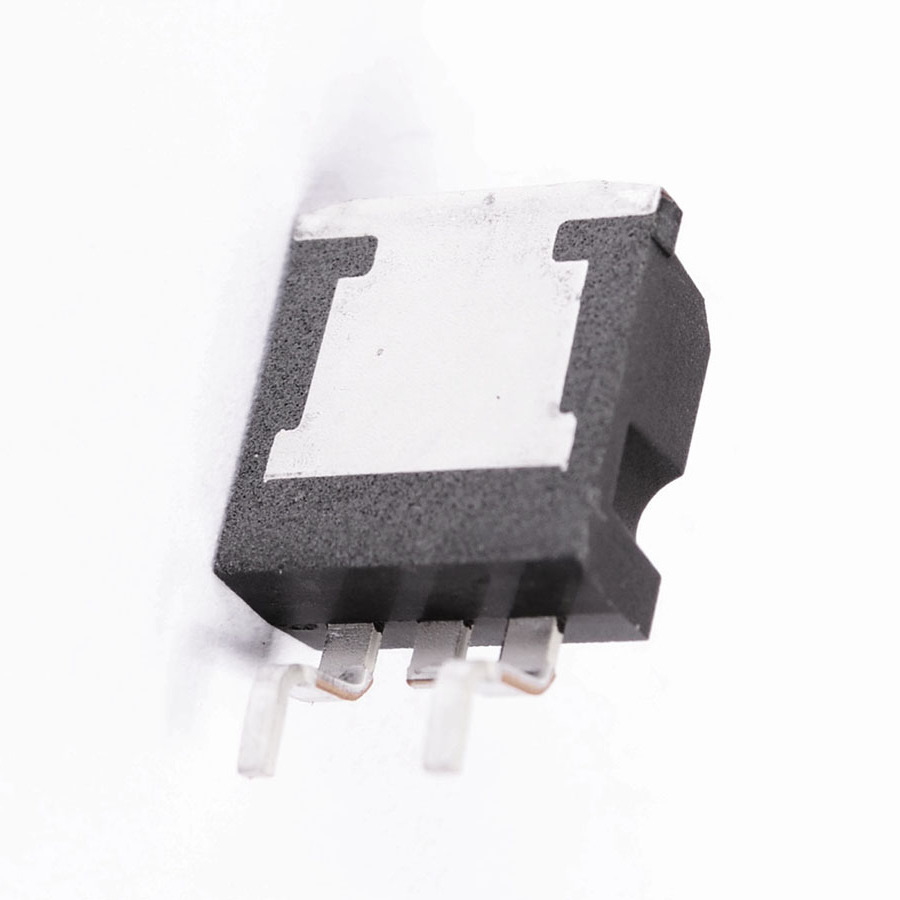

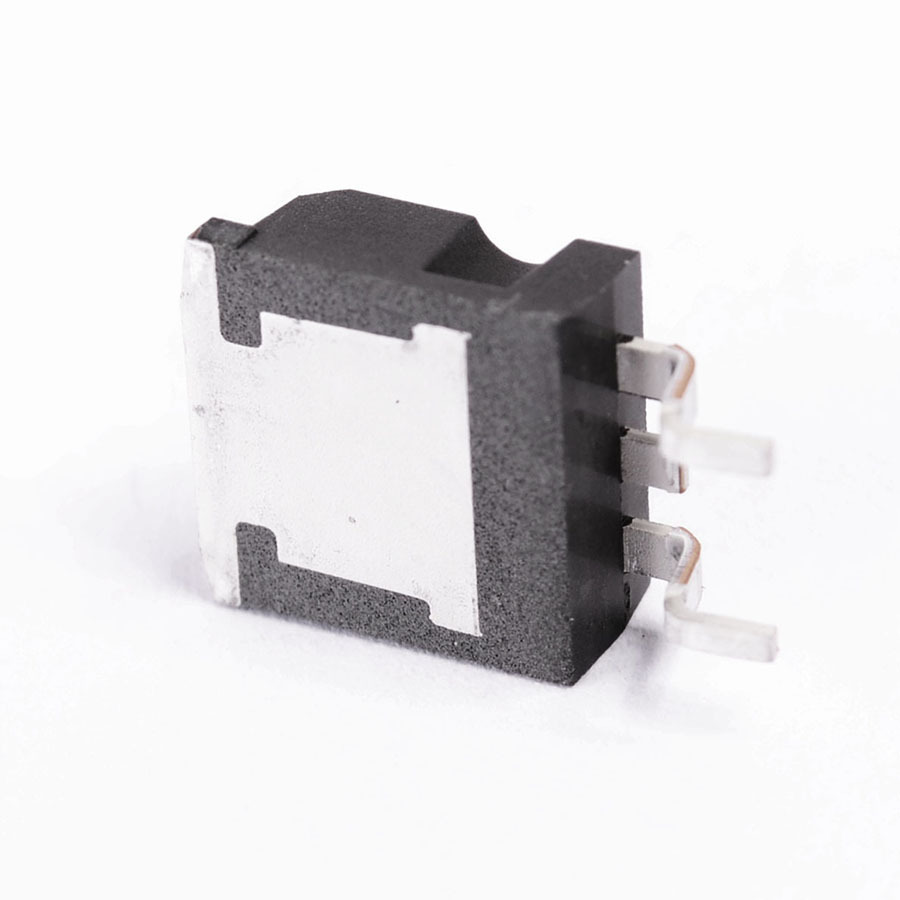

2SD2198 Transistor Silicon NPN CASE: TO263 MAKE: Sanyo Semiconductor
Datasheet
2SD2198 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO263
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 30
t(f) Max. (S) 200n-
Max. hFE 280
Min hFE 70
Ic Max. (A) 5.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Tr Max. (s) 100n-
Trans. Freq (Hz) Min. 30M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 345862
