2SD2198Q

2SD2198Q

SKU: 2SD2198Q

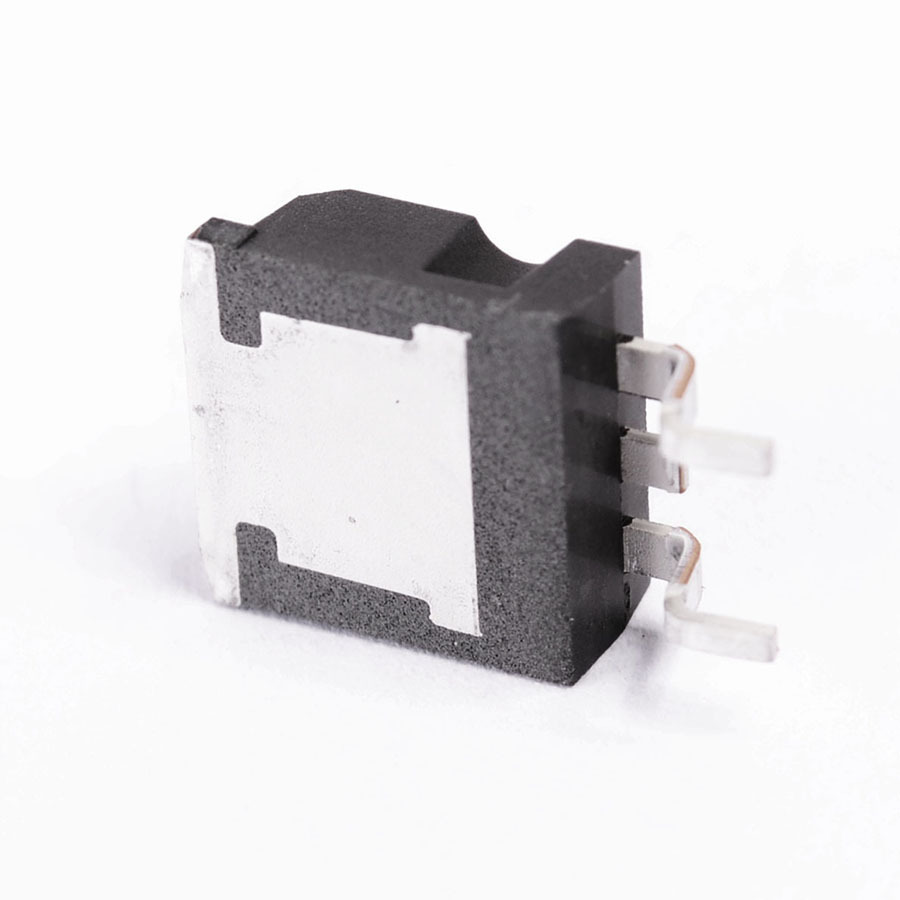

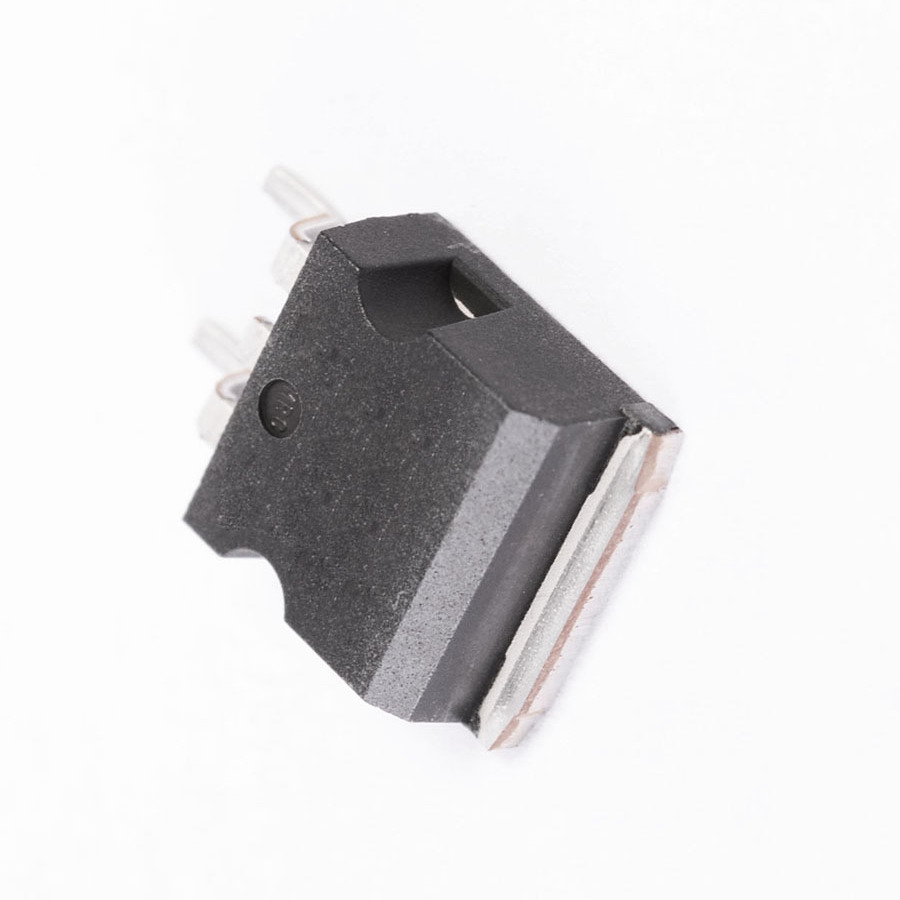

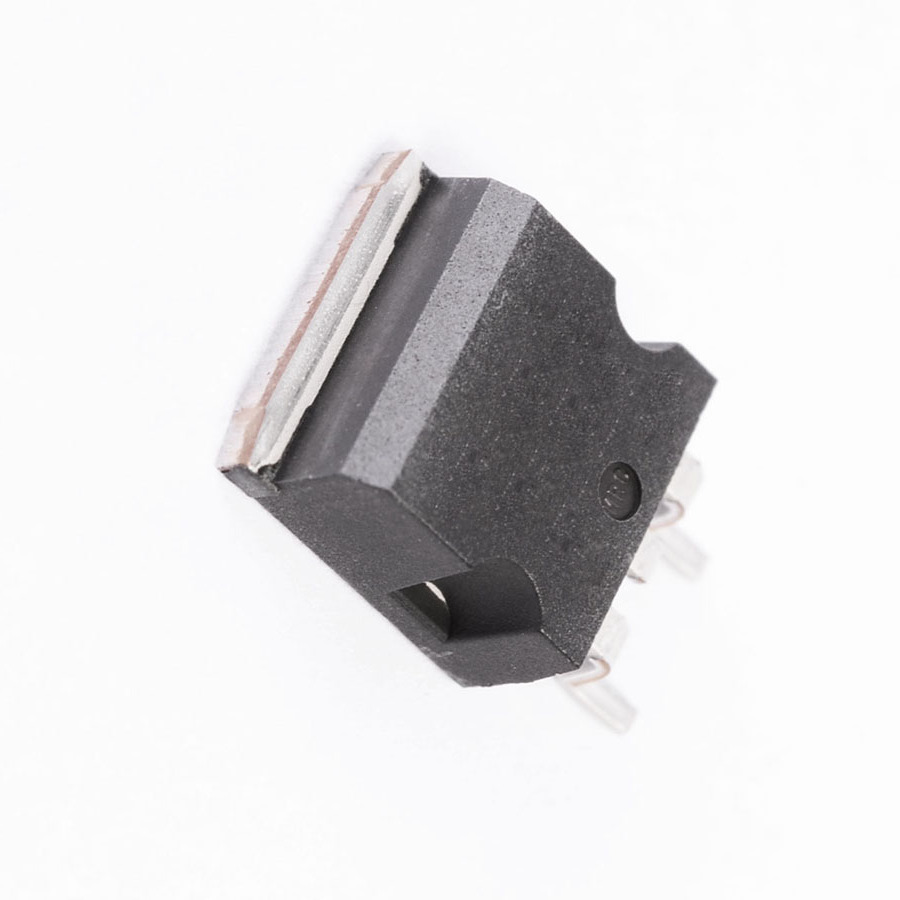

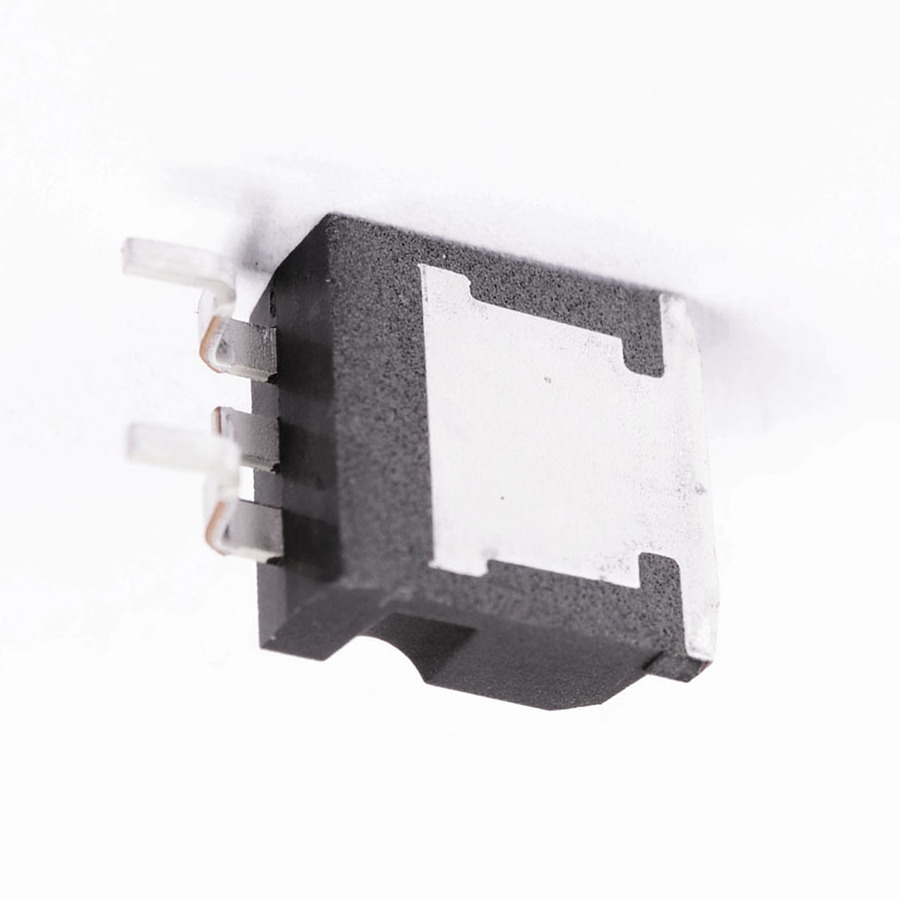

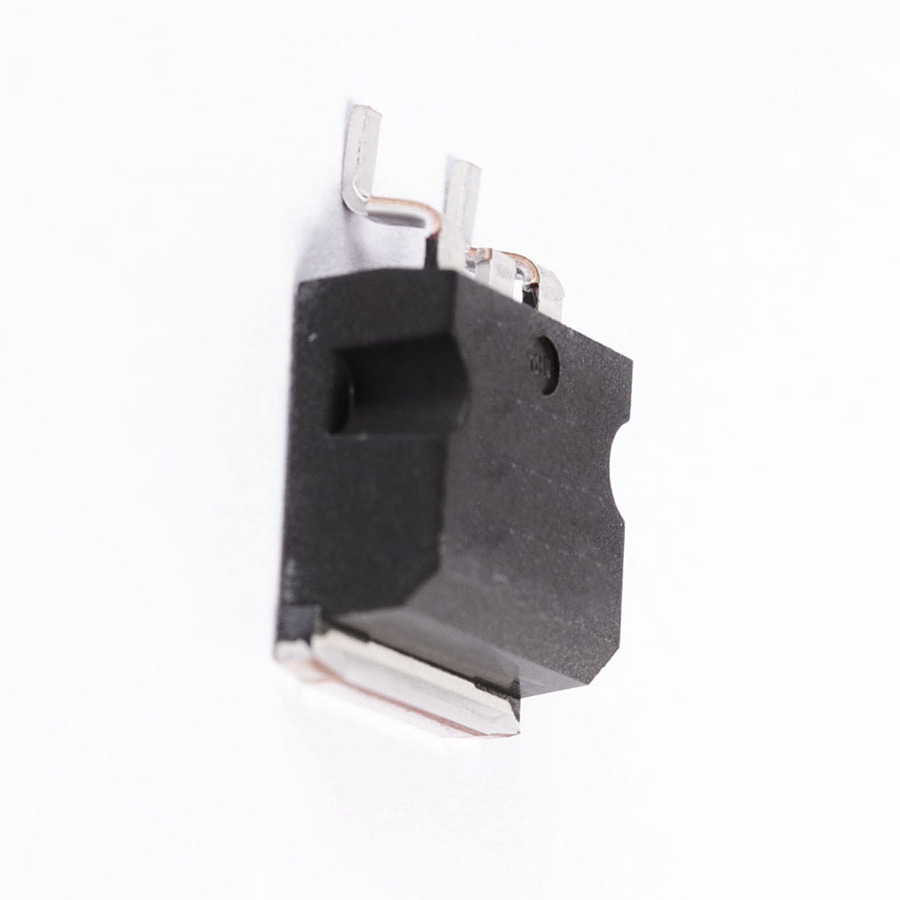

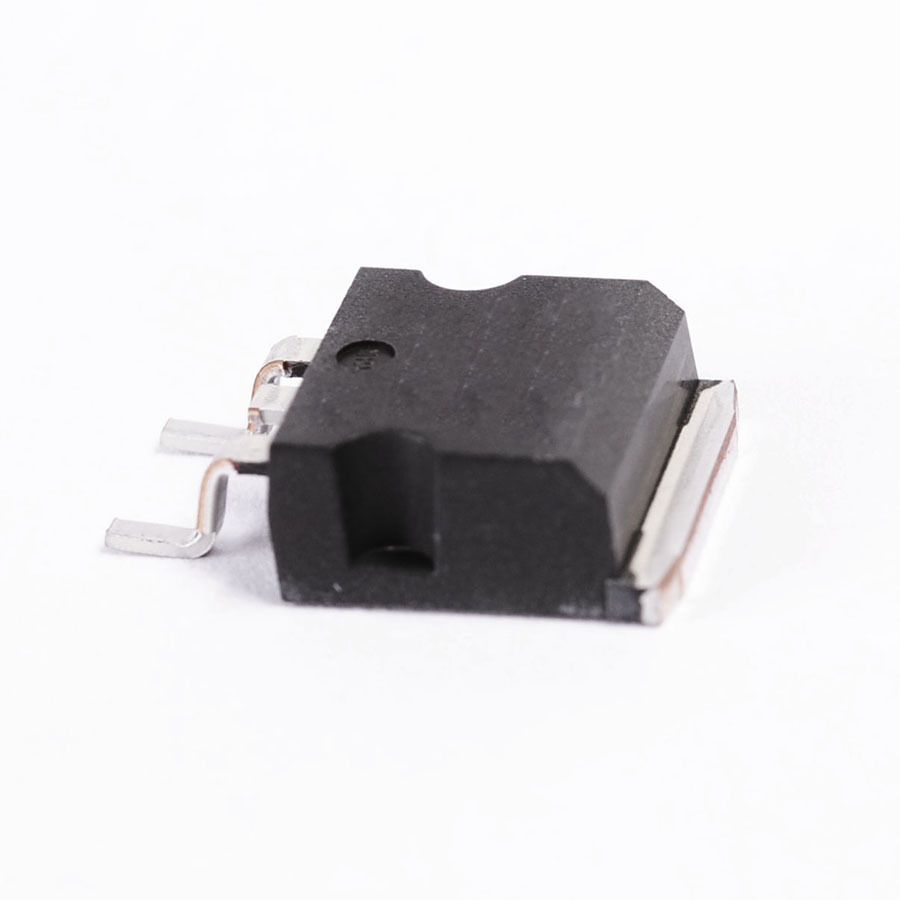

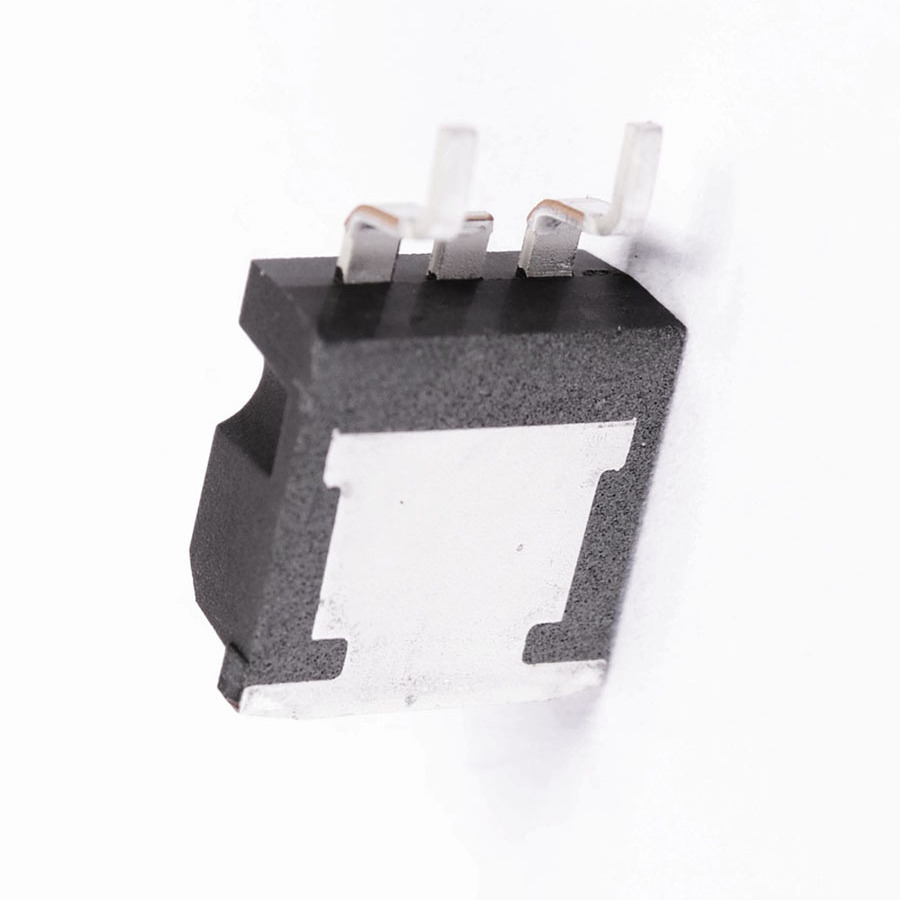

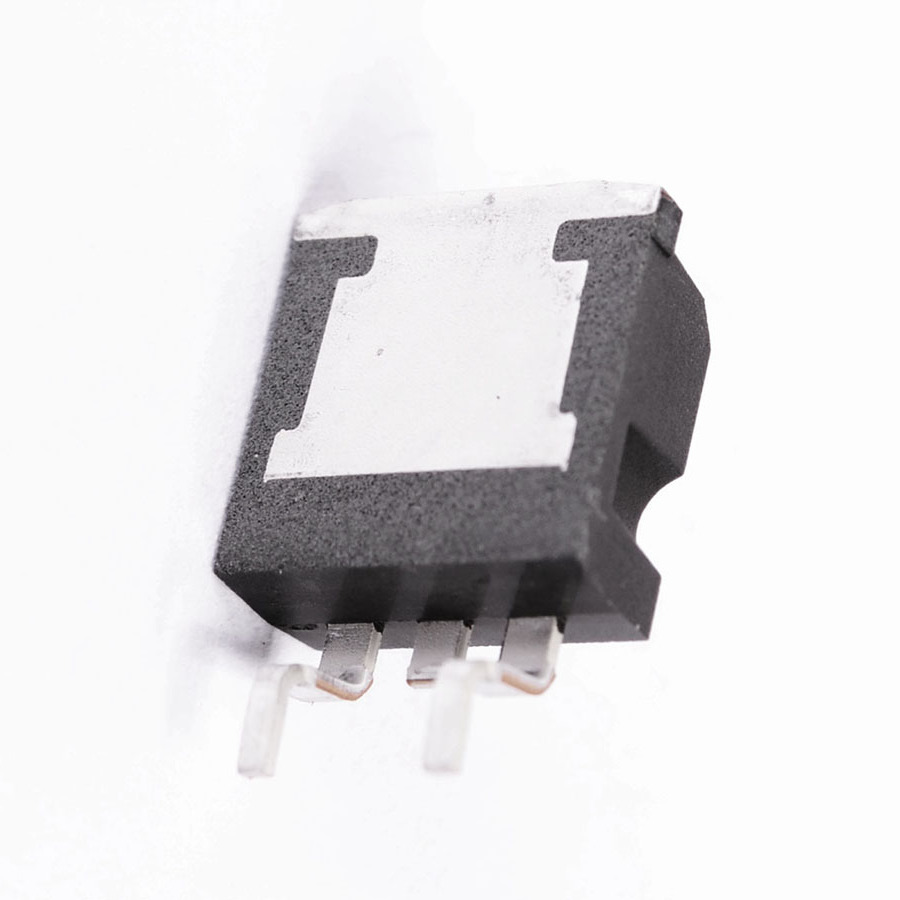

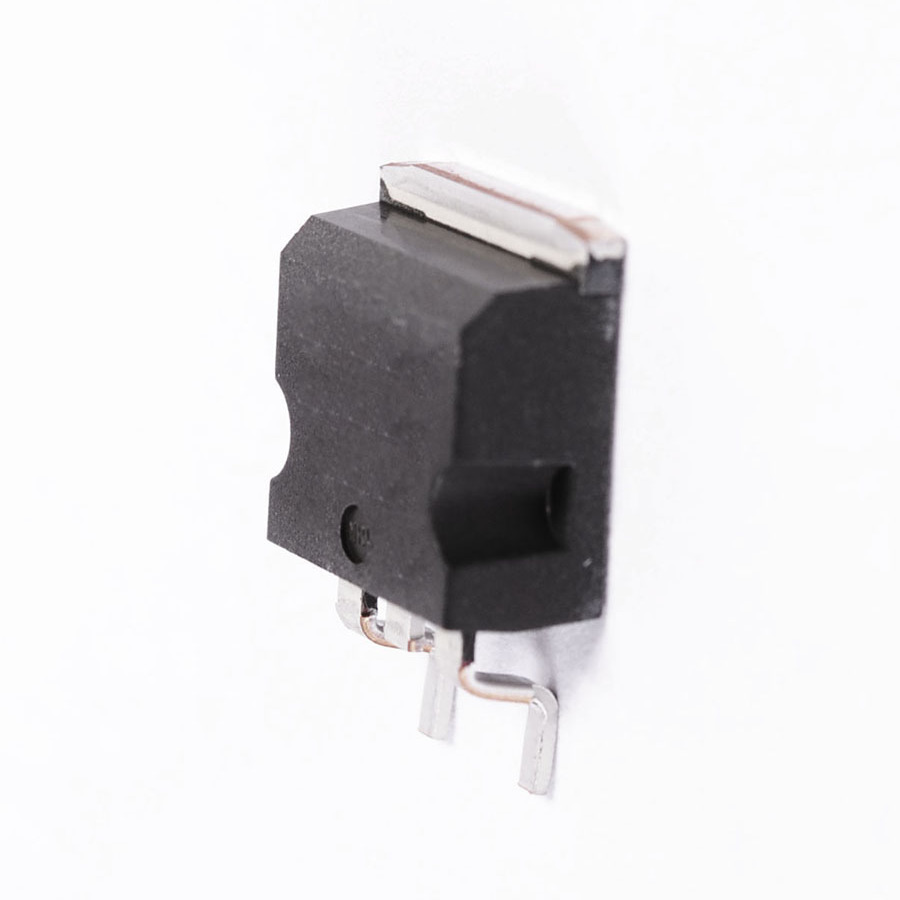

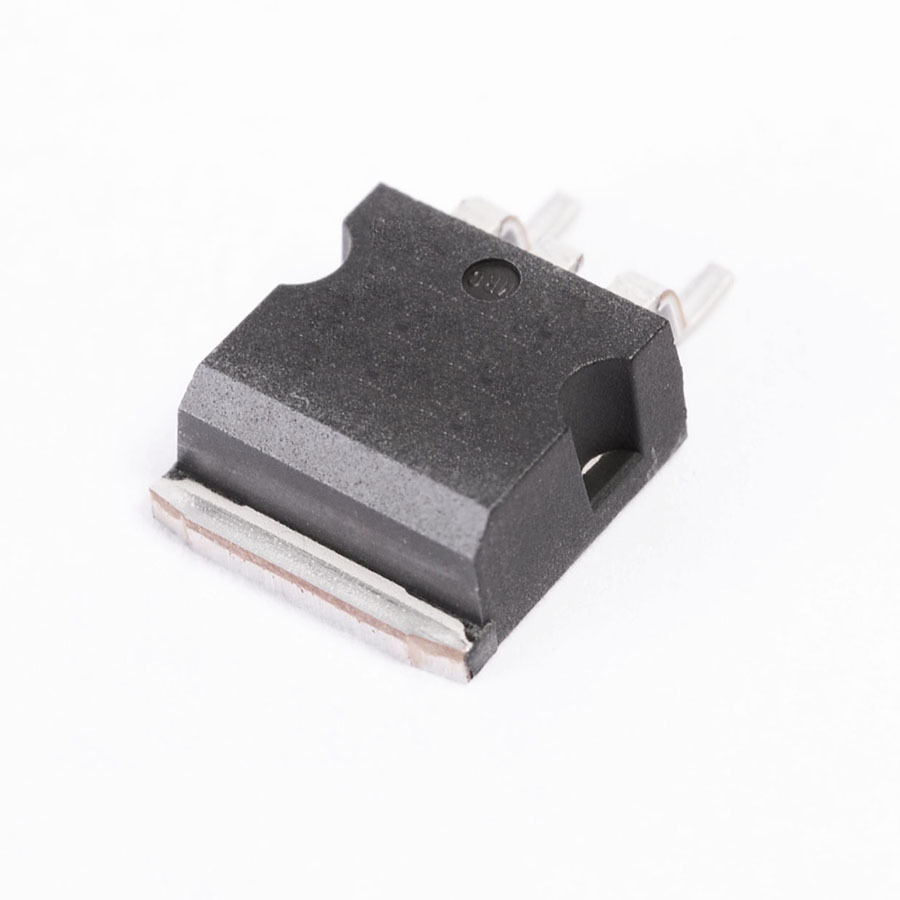

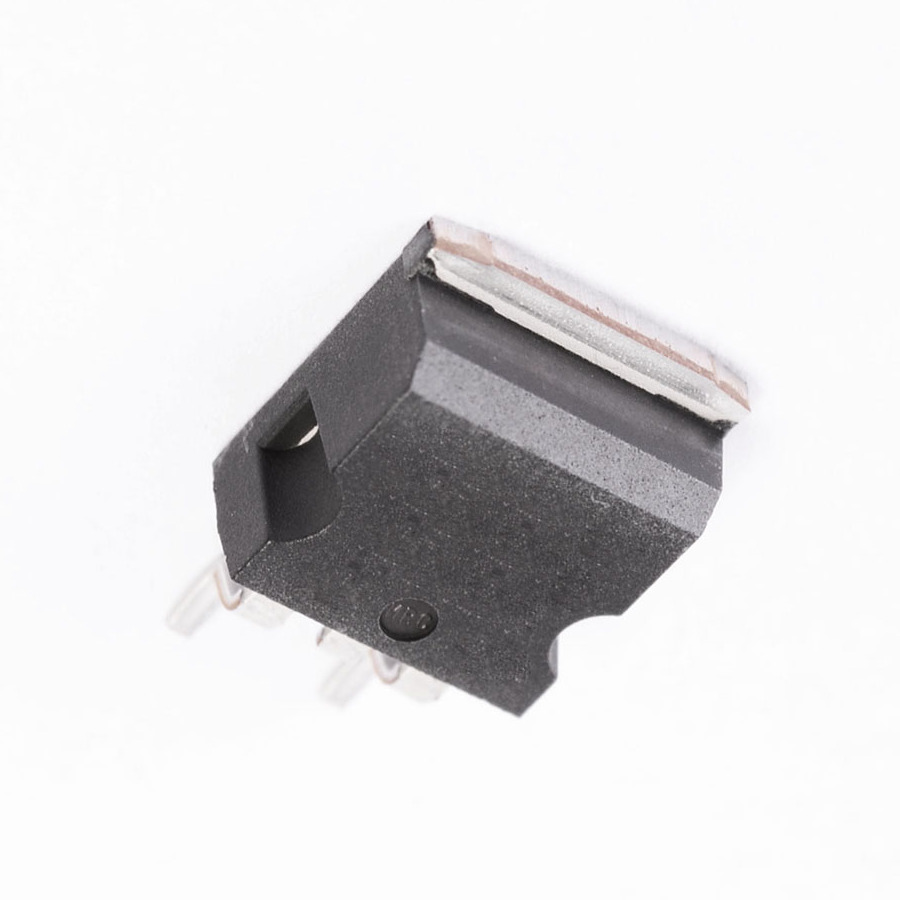

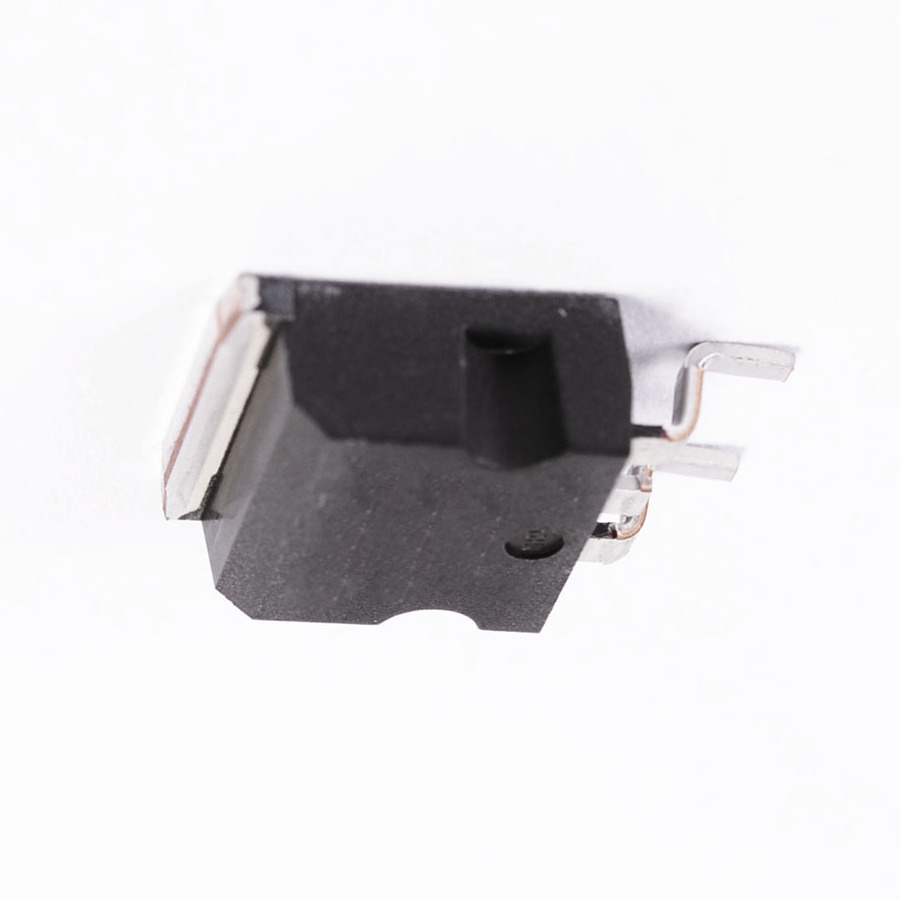

2SD2198Q Transistor Silicon NPN CASE: TO263 MAKE: Sanyo Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO263
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 30
t(f) Max. (S) 200n-
Max. hFE 140
Min hFE 70
Ic Max. (A) 5.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100u
Tr Max. (s) 100n-
Trans. Freq (Hz) Min. 30M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
SKU 572831
