2SD2222
View detailed images (4)

2SD2222

SKU: 2SD2222

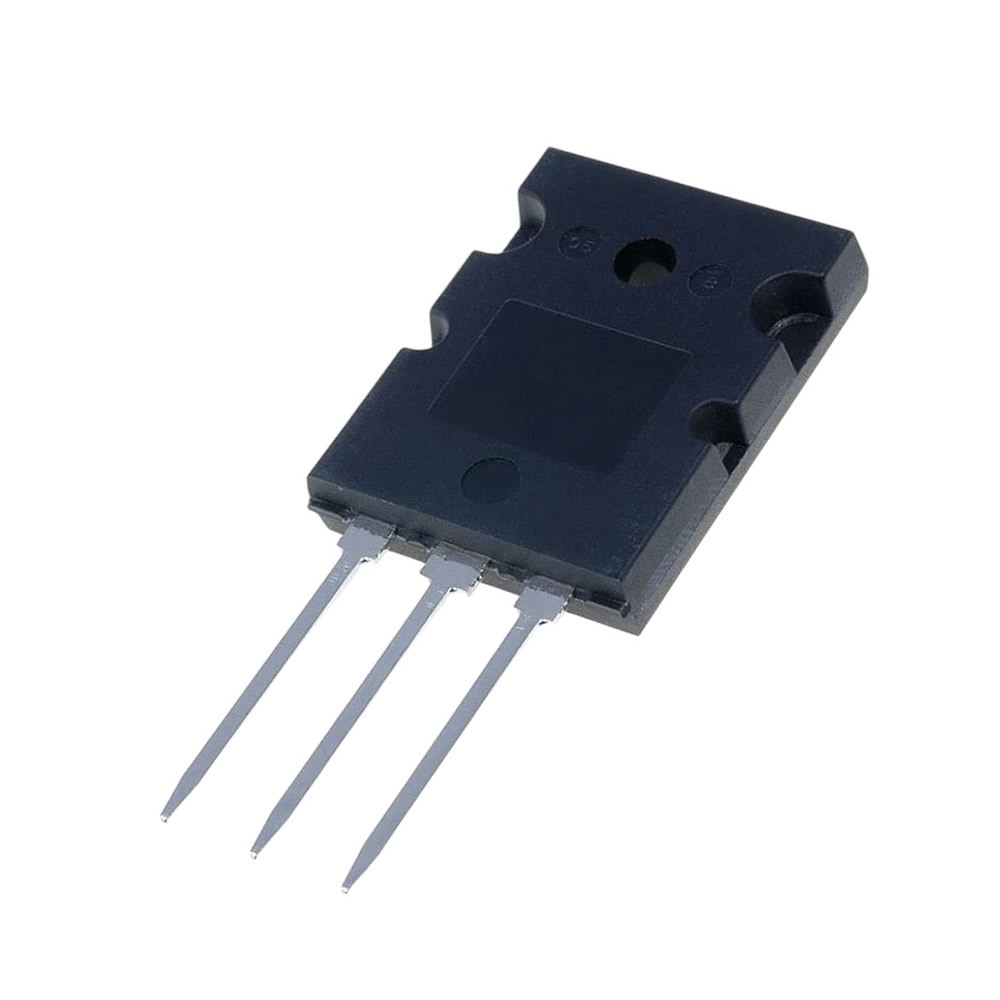

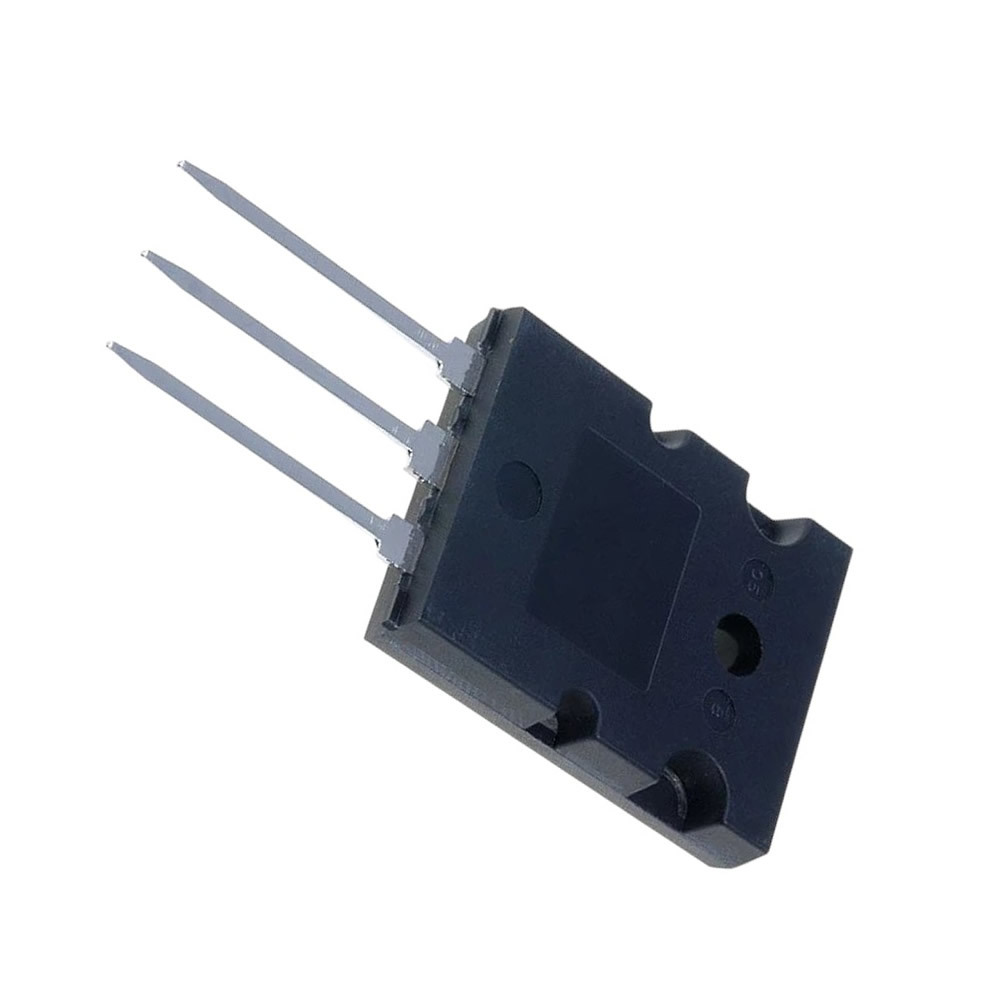

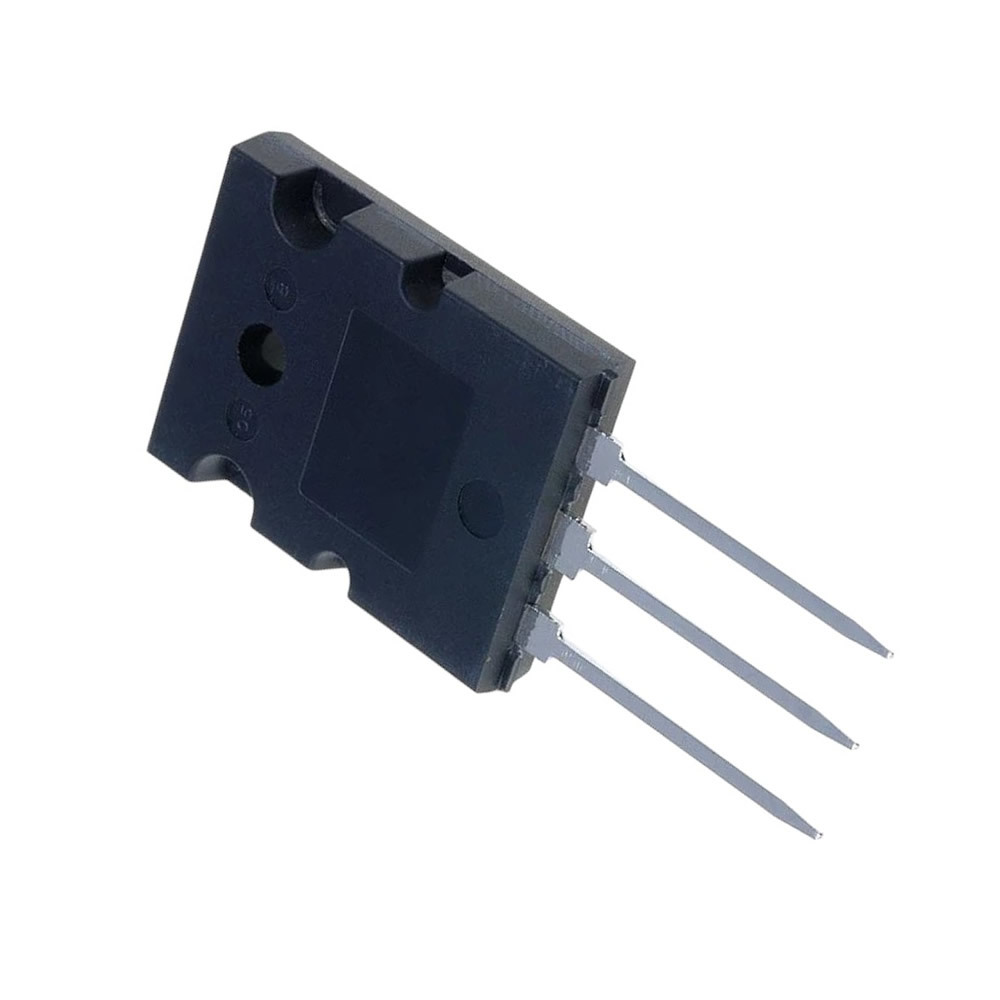

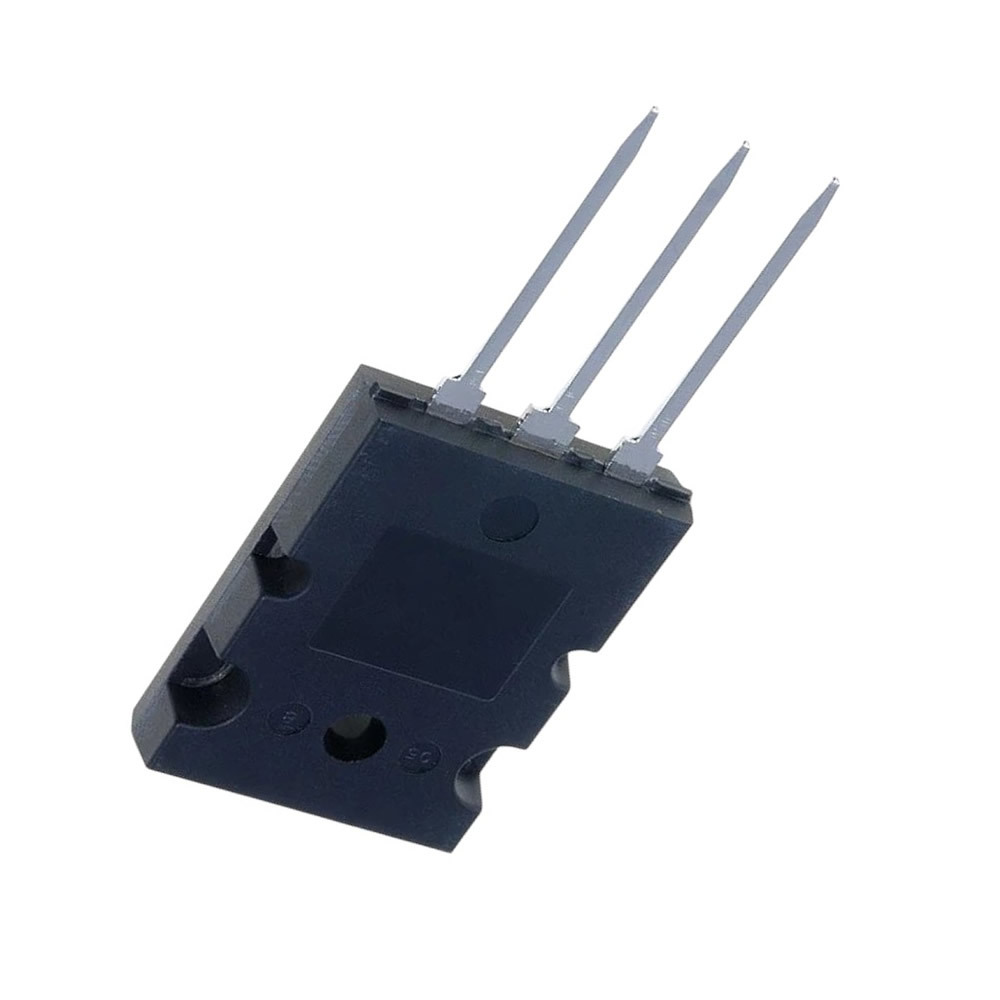

2SD2222 Transistor Silicon NPN CASE: TO264 MAKE: Matsushita Electronics
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SD2222 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO264
Manufacturer Matsushita Electronics
Polarity NPN
Maximum Collector Power Dissipation (Pc) 120 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 160 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 8 A
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN 3500
SKU 116022
