2SD2401
View detailed images (13)

2SD2401

SKU: 2SD2401

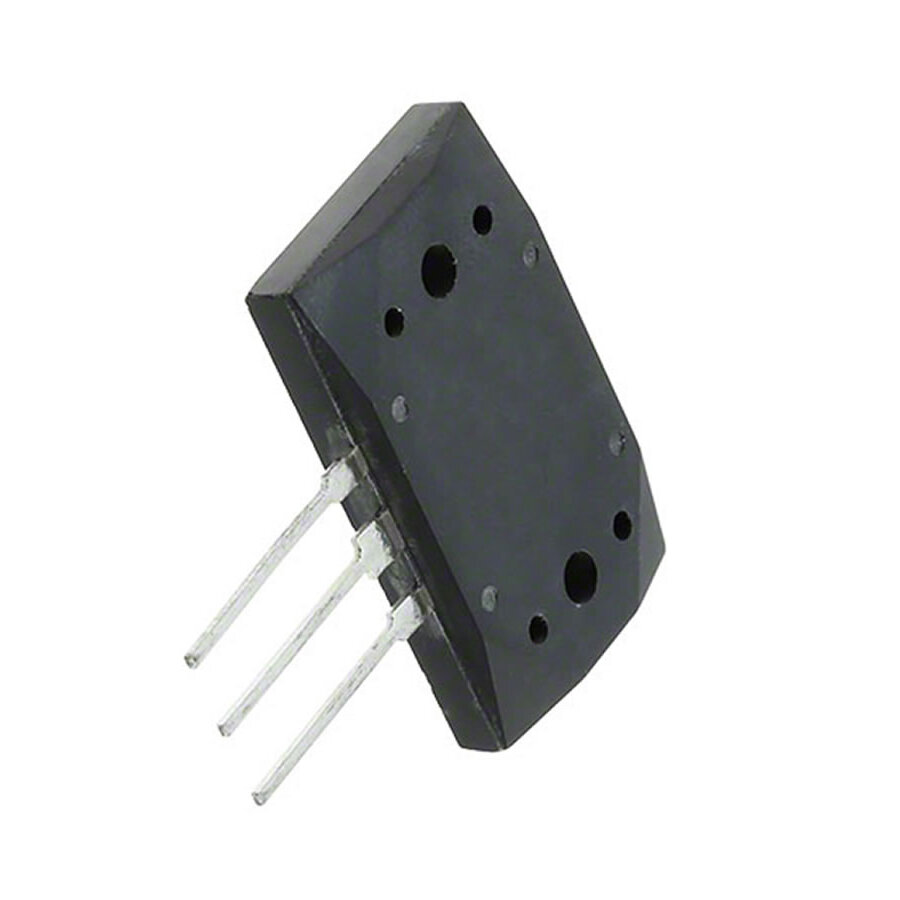

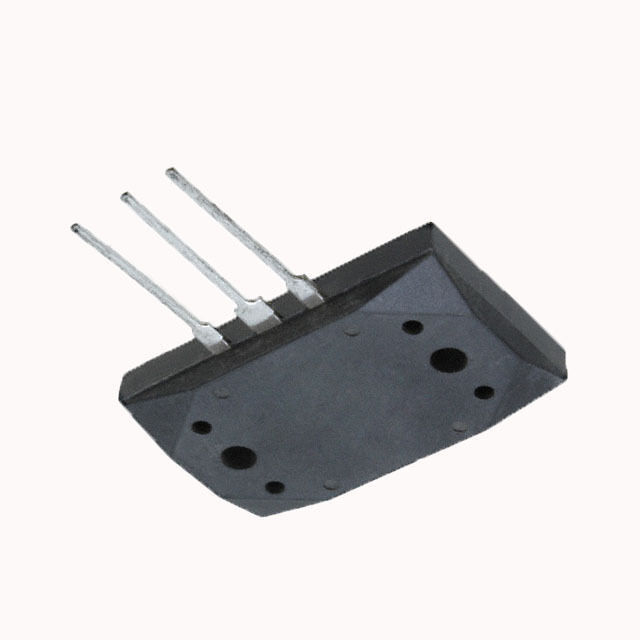

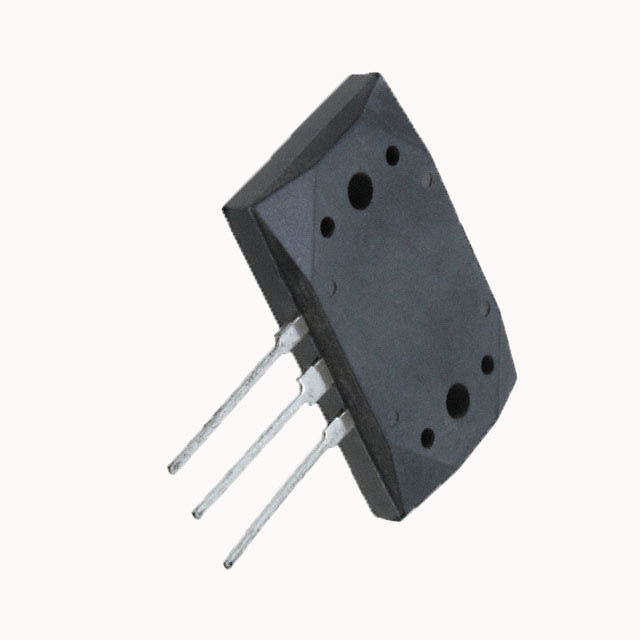

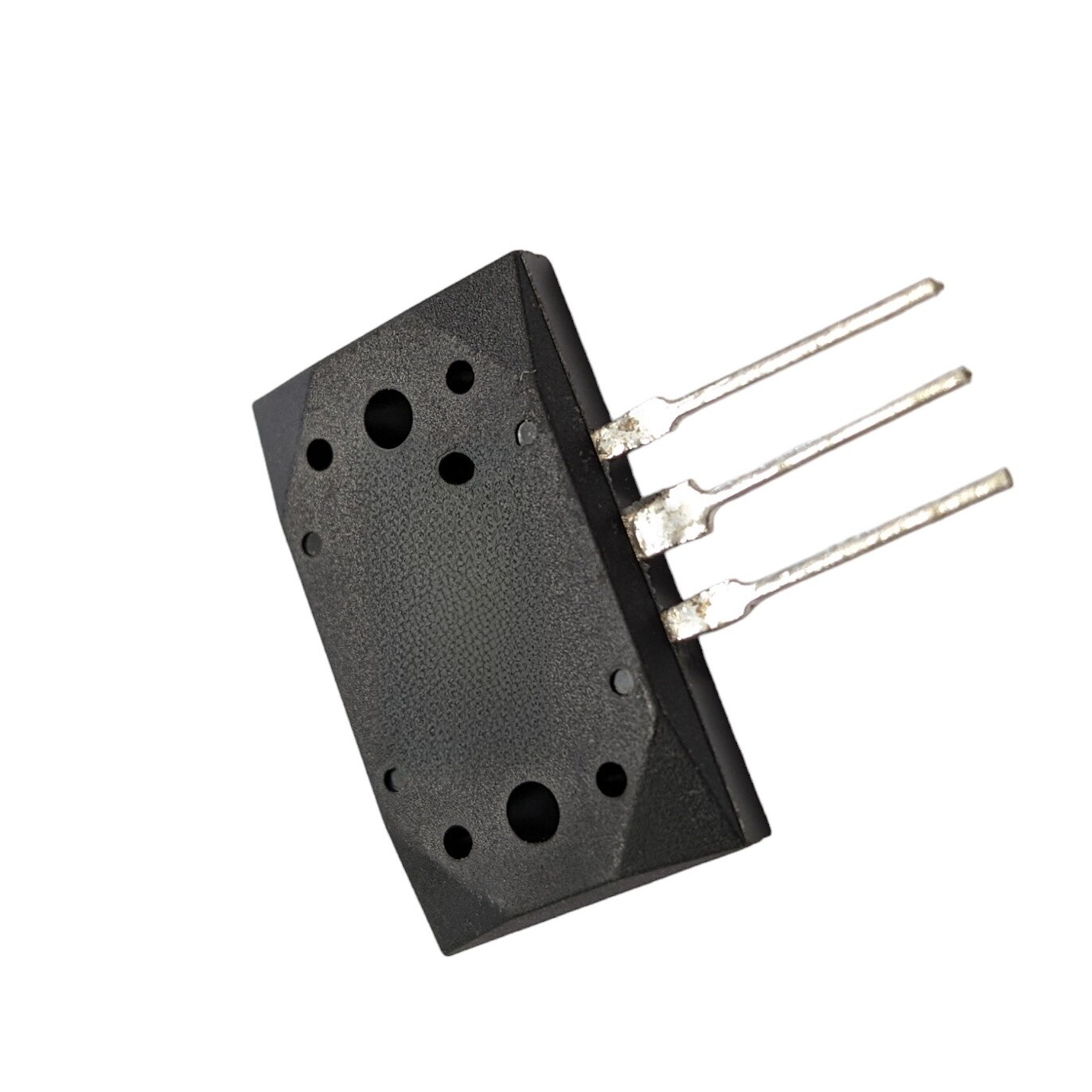

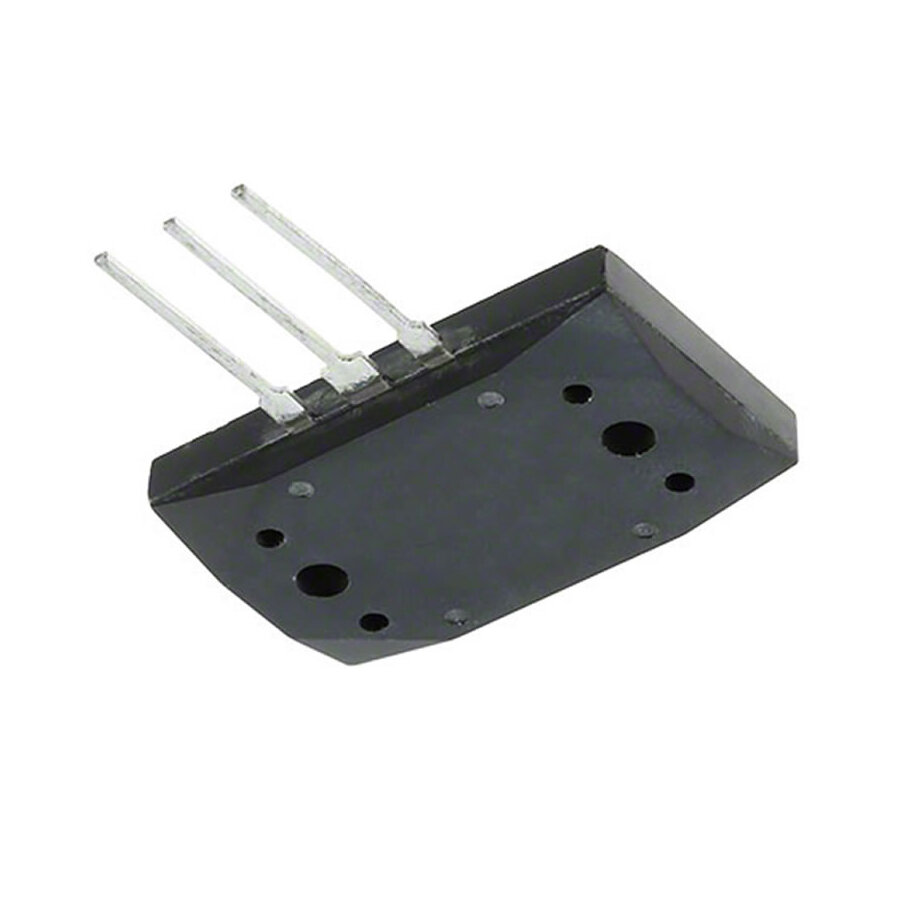

2SD2401 Transistor Silicon NPN CASE: MT200 MAKE: Sanken
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD2401 Datasheet
Product specifications
Type Transistor Silicon NPN
Case MT200
Manufacturer Sanken
Polarity NPN
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 150 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 12 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 55 MHz
Forward Current Transfer Ratio (hFE), MIN 5000
SKU 116025
