2SD2414

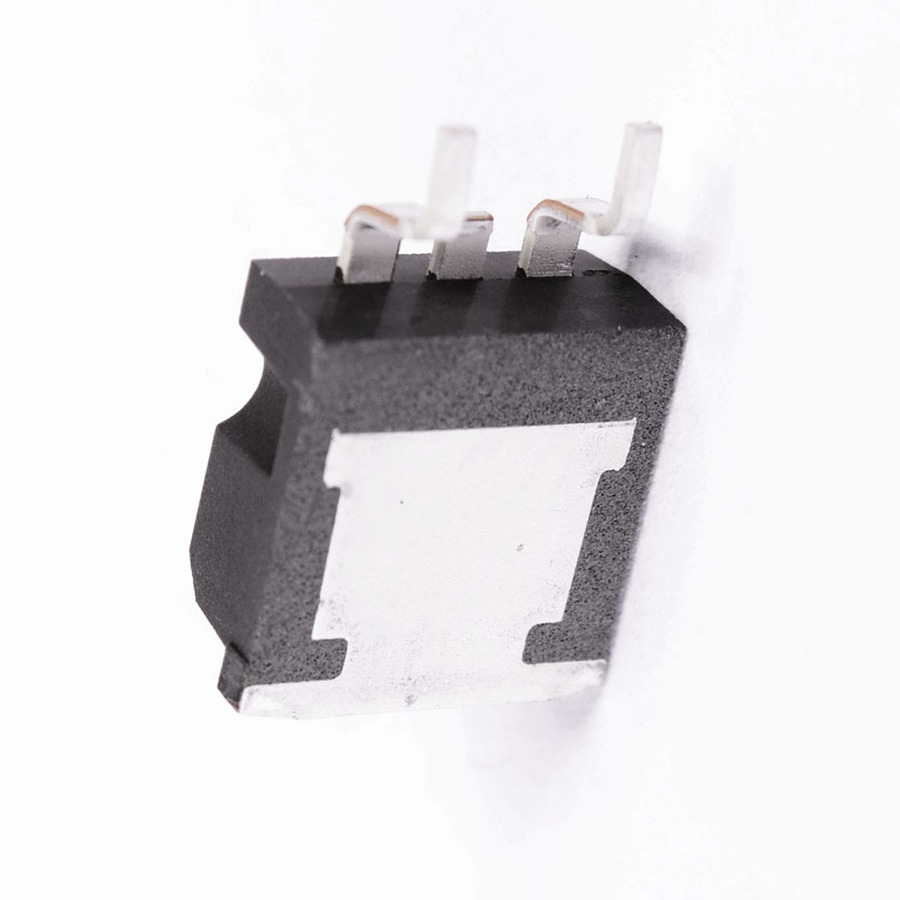

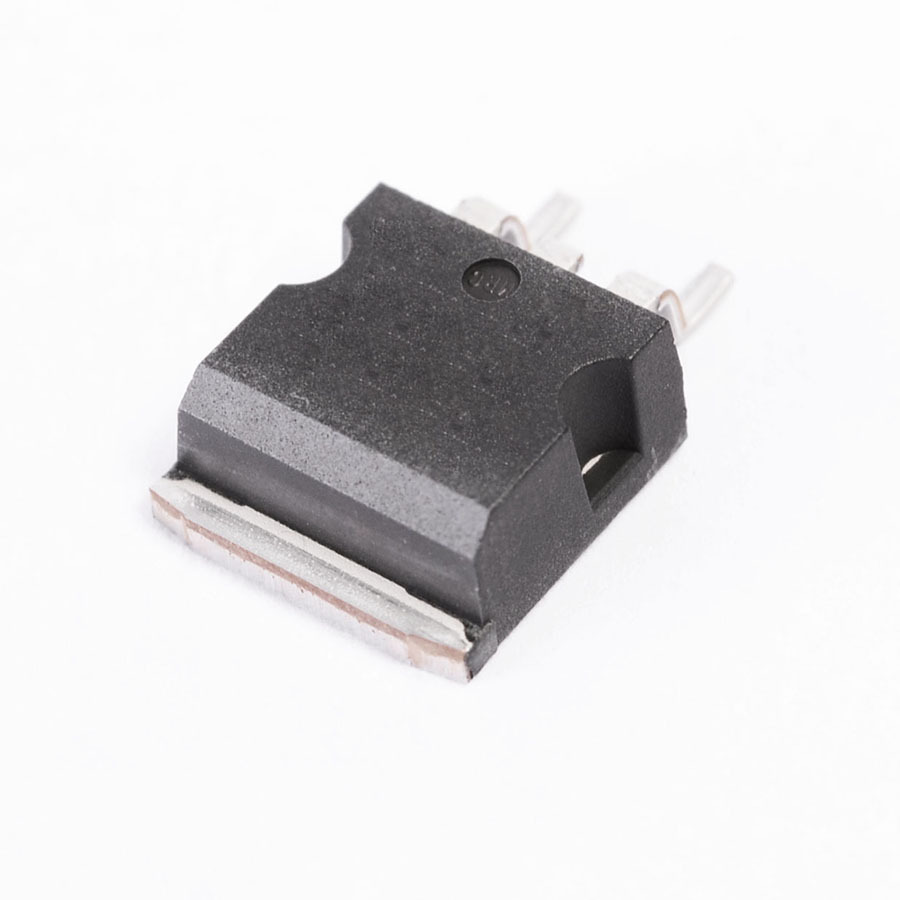

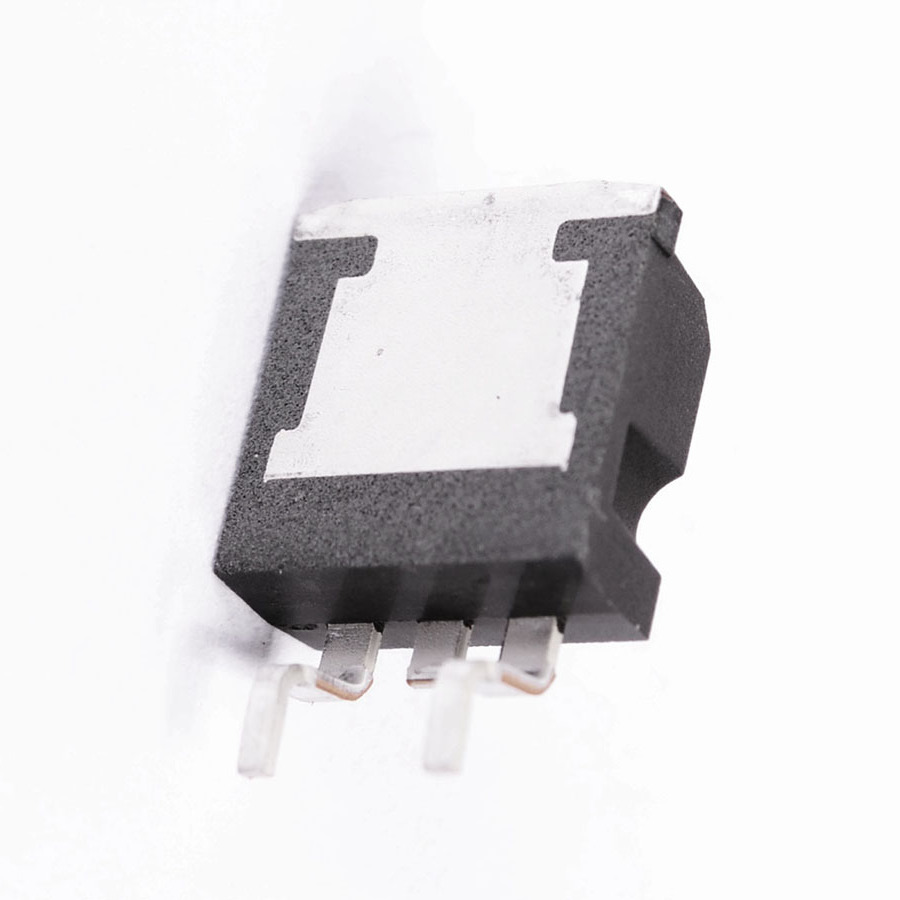

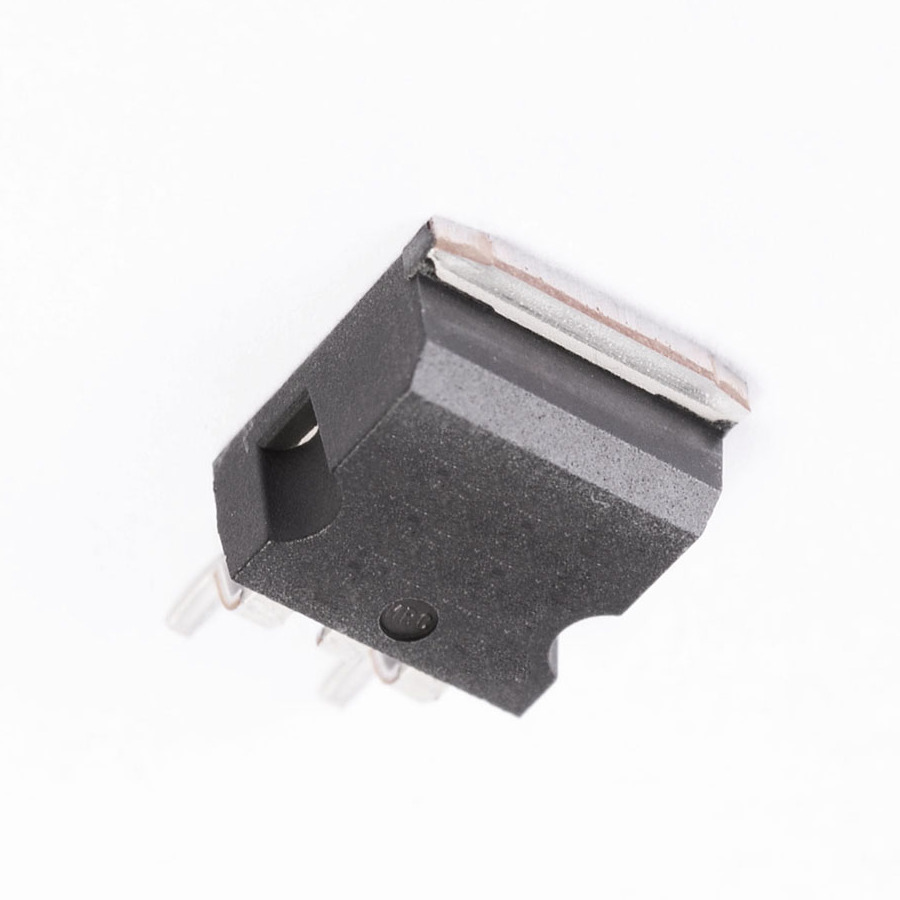

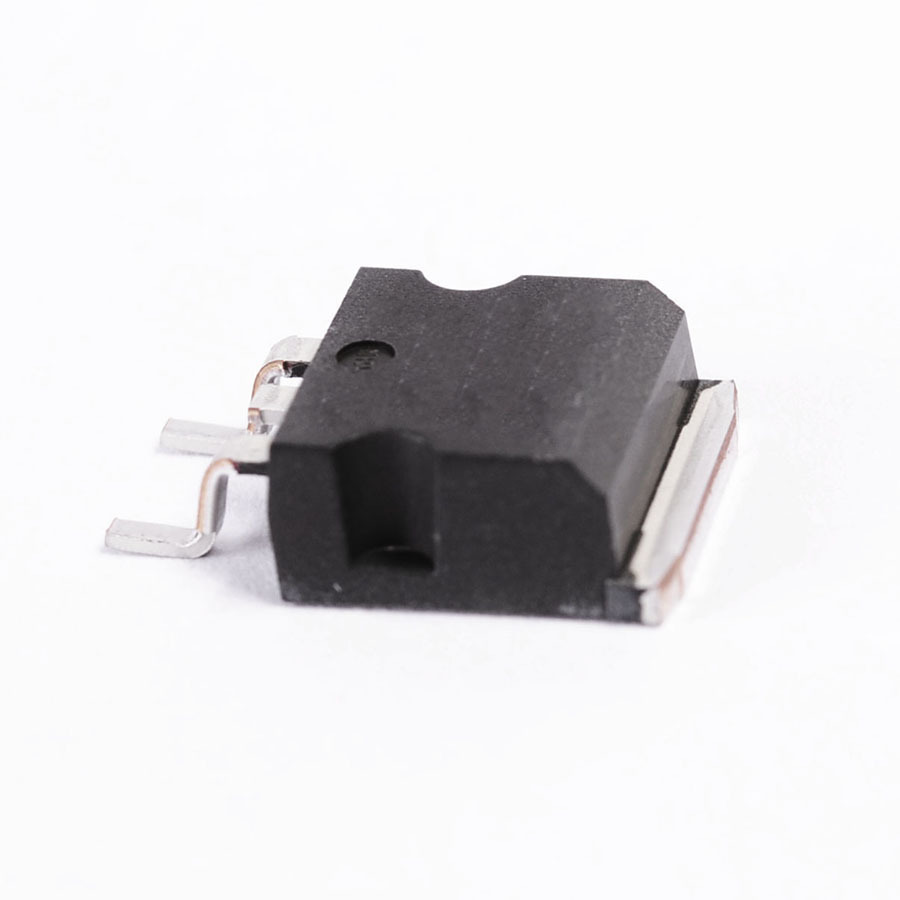

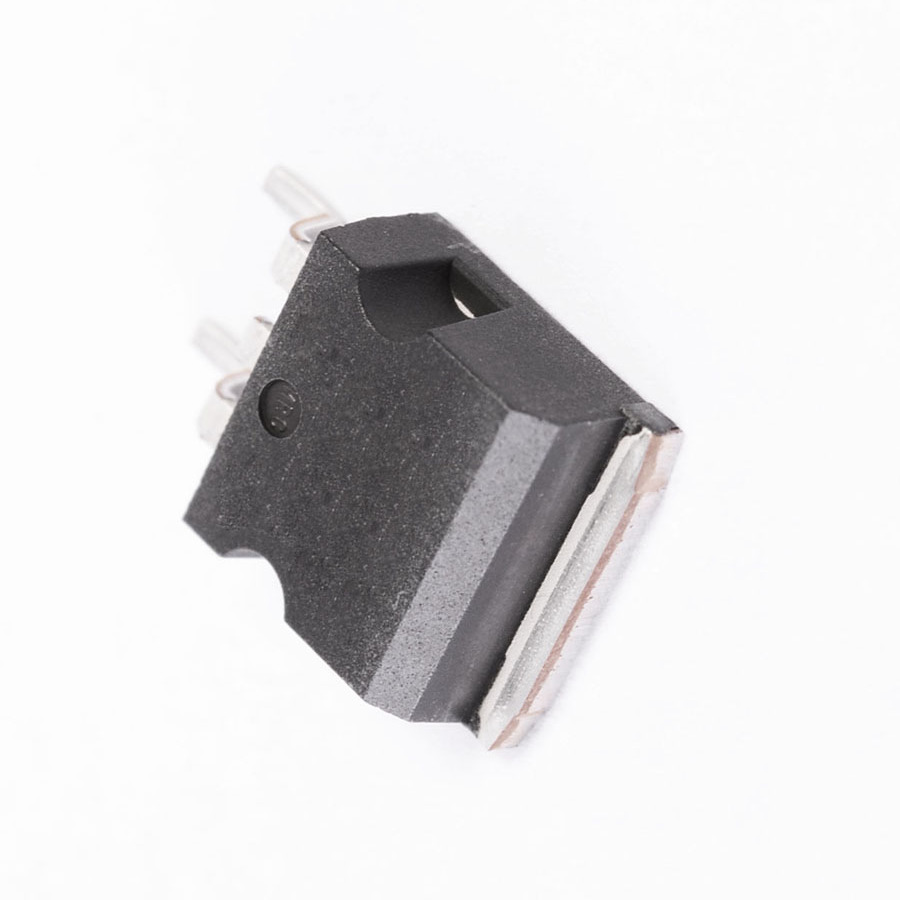

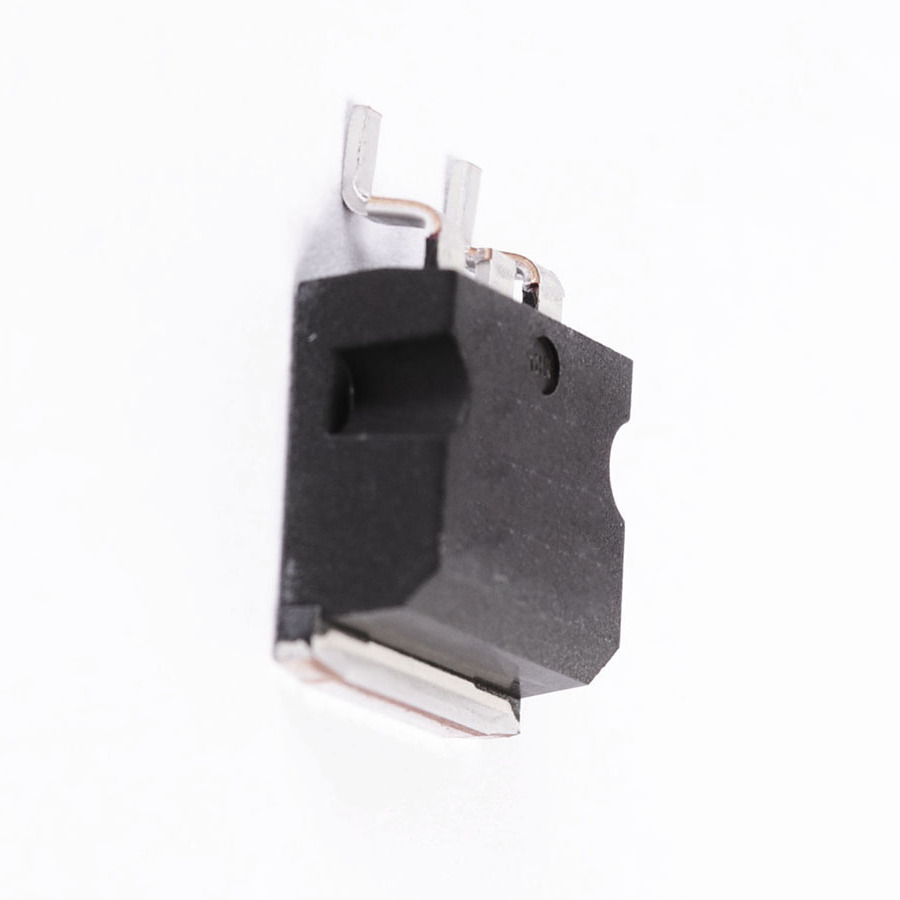

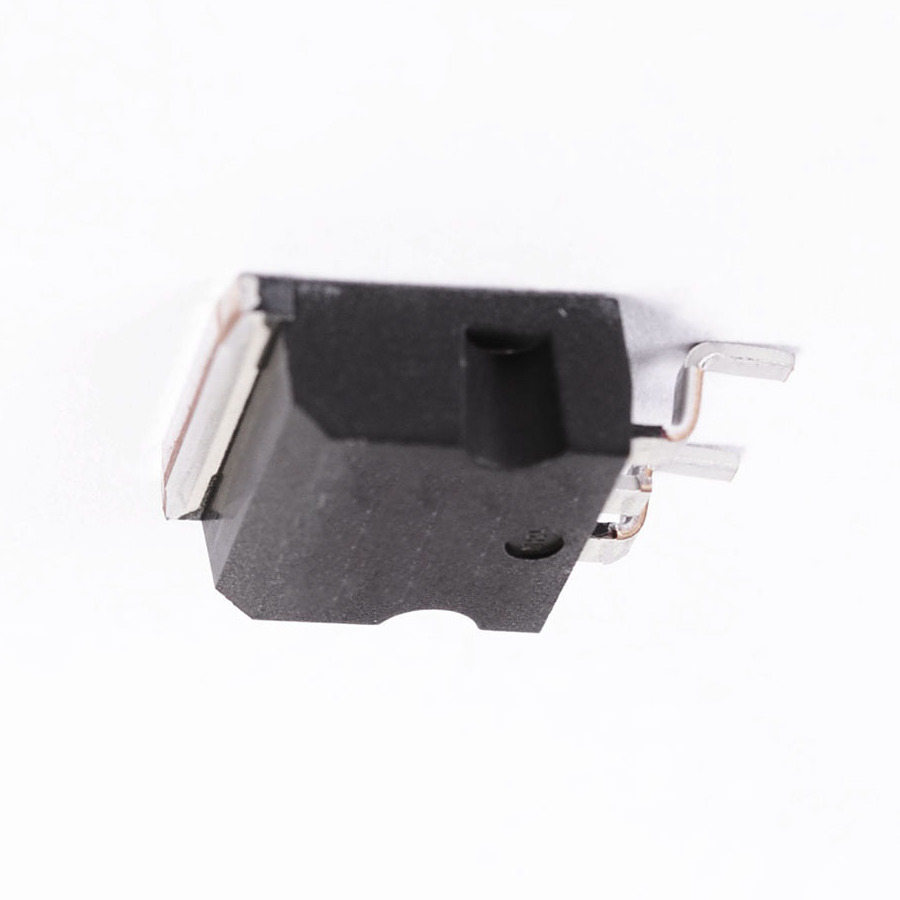

View detailed images (12)

2SD2414

SKU: 2SD2414

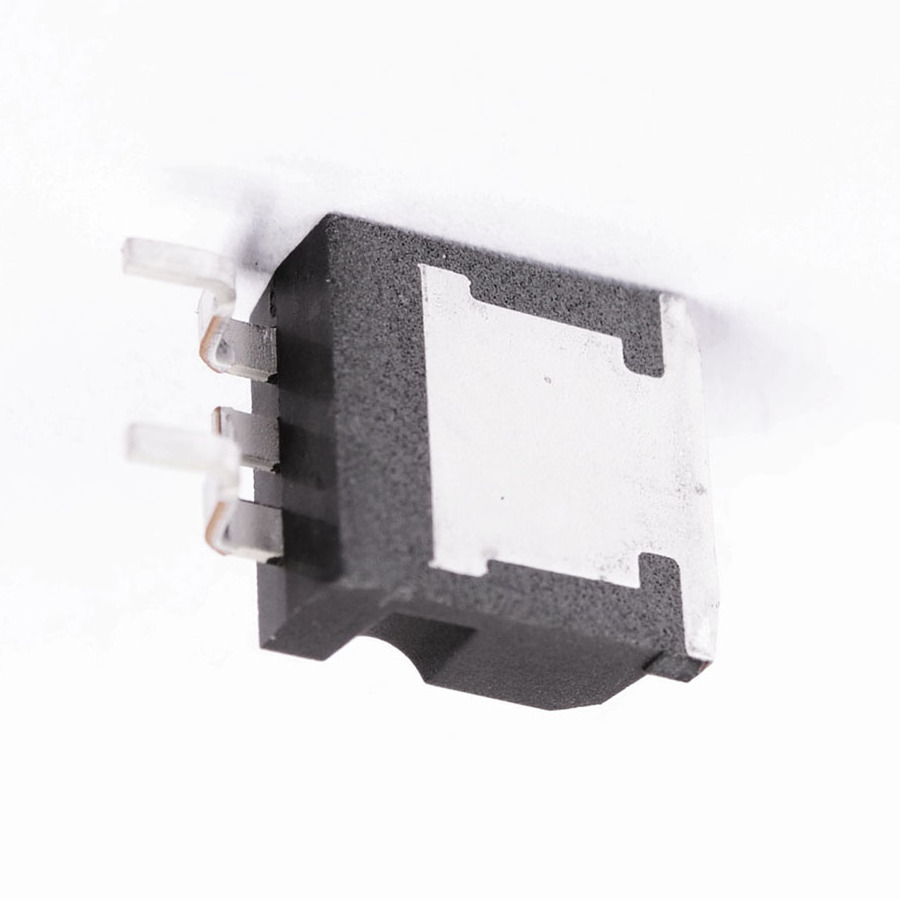

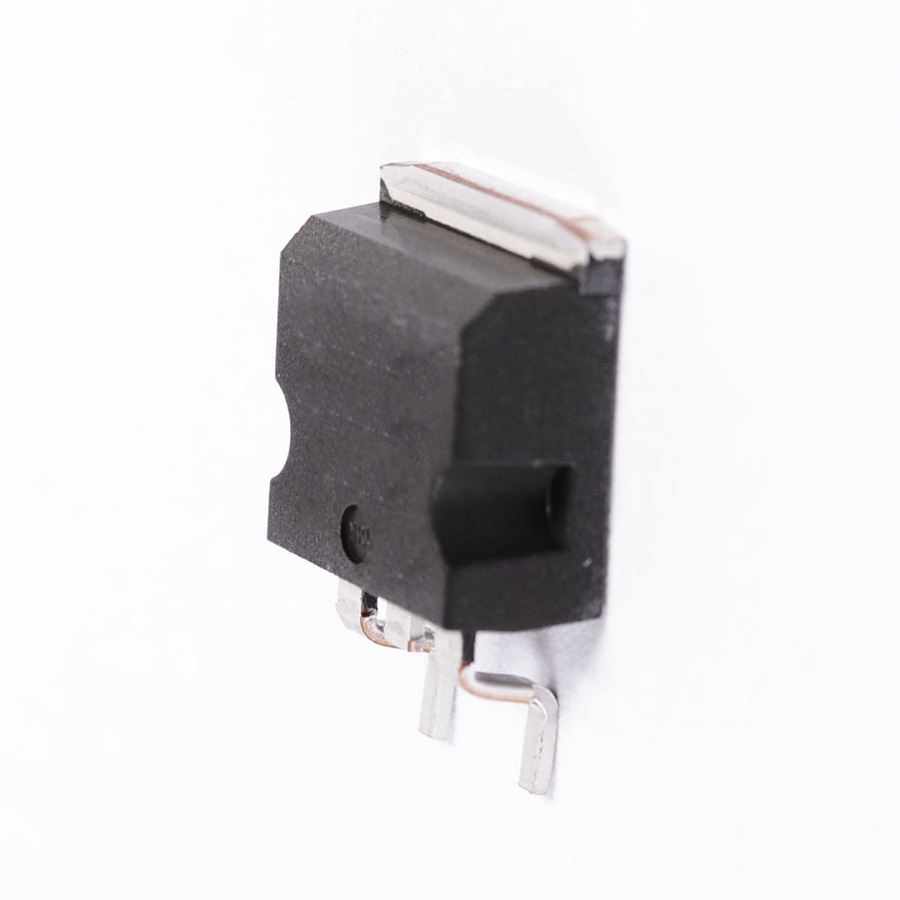

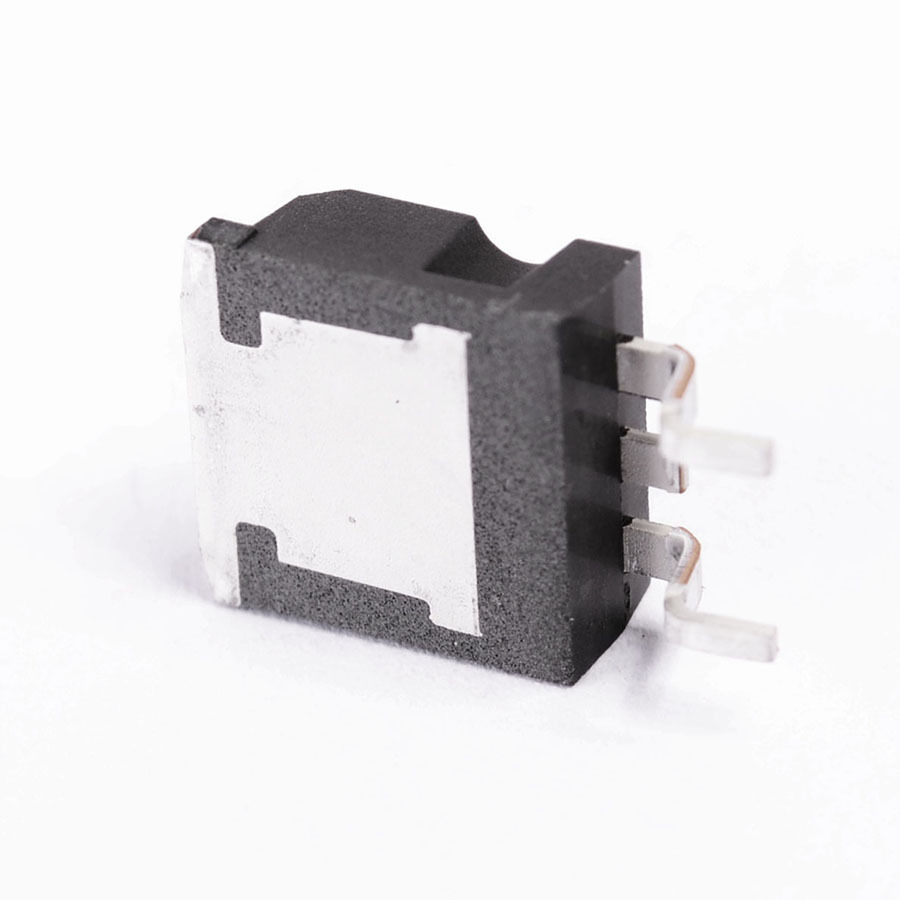

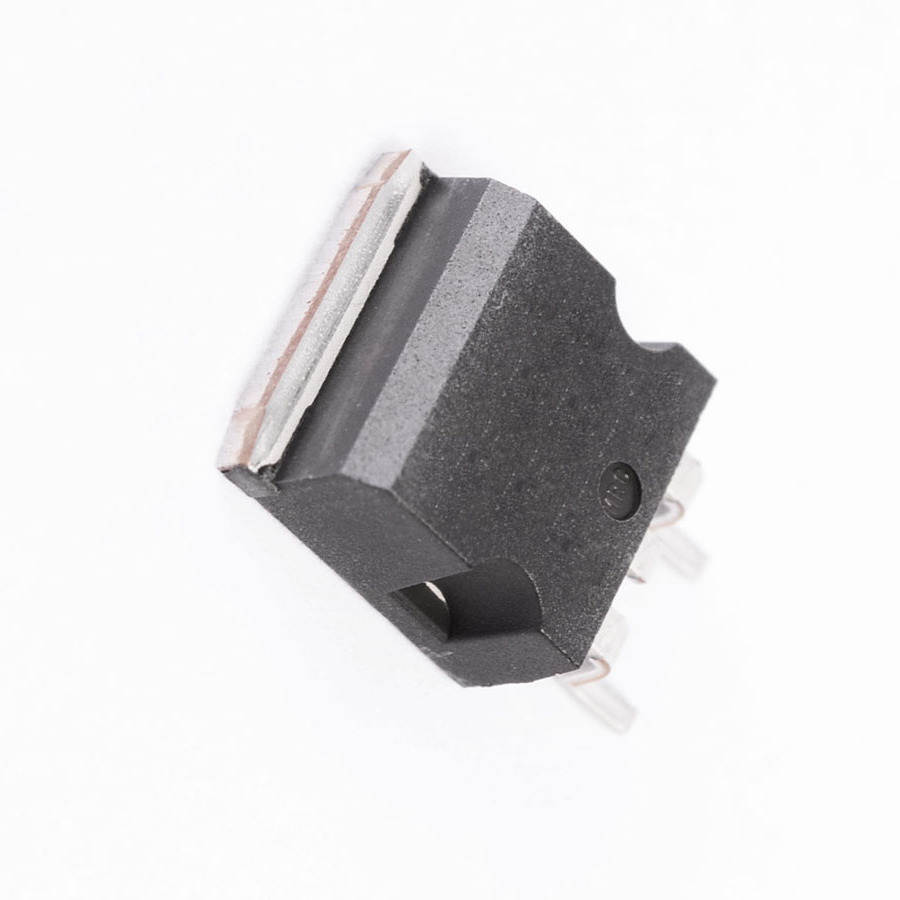

2SD2414 Transistor Silicon NPN CASE: TO263 MAKE: Toshiba
Datasheet
2SD2414 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO263
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 200 pF
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SMD Transistor Code D2414
SKU 345964
