2SD243
View detailed images (12)

2SD243

SKU: 2SD243

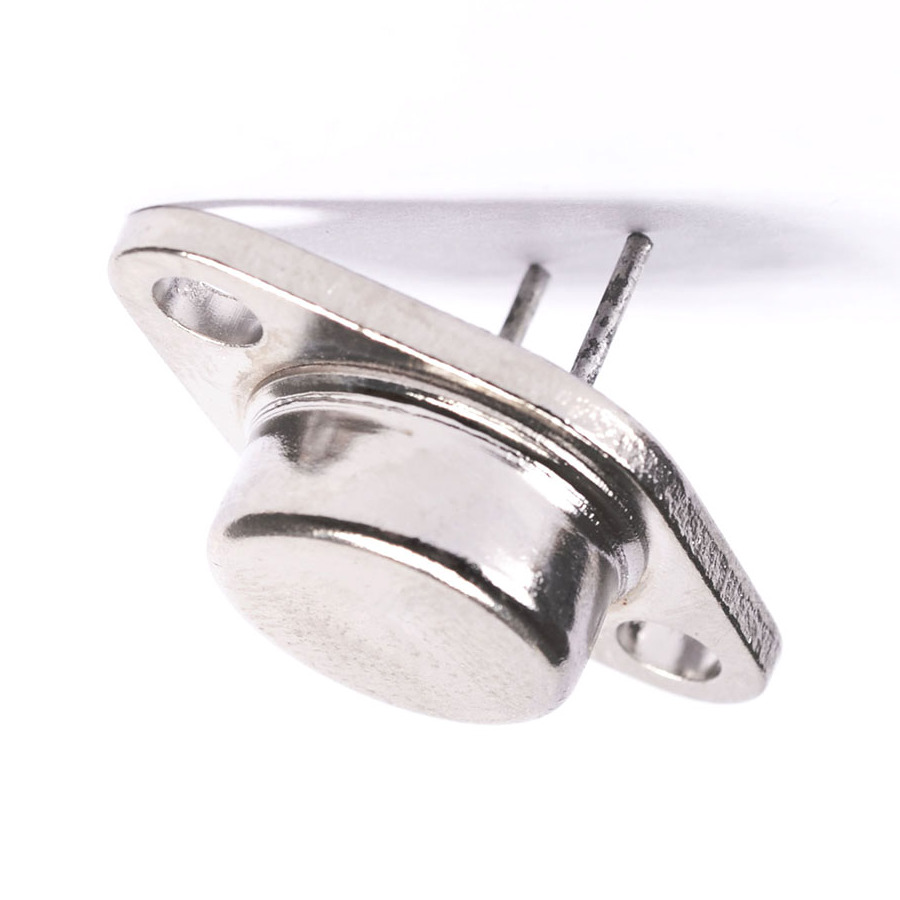

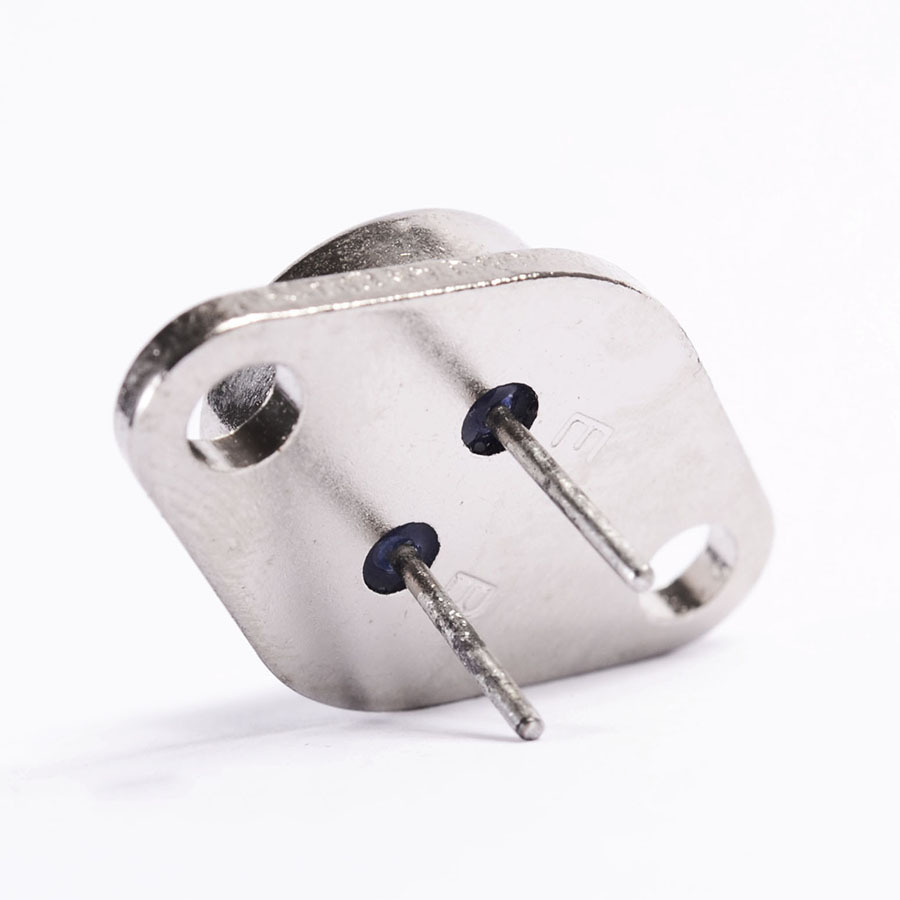

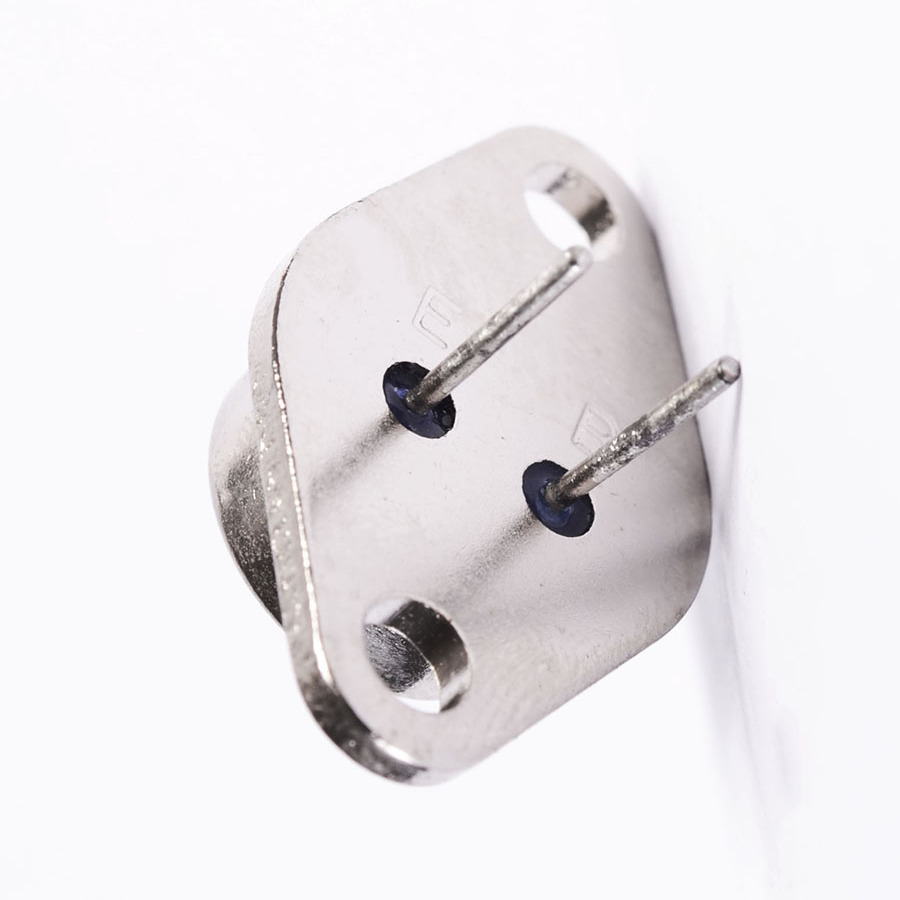

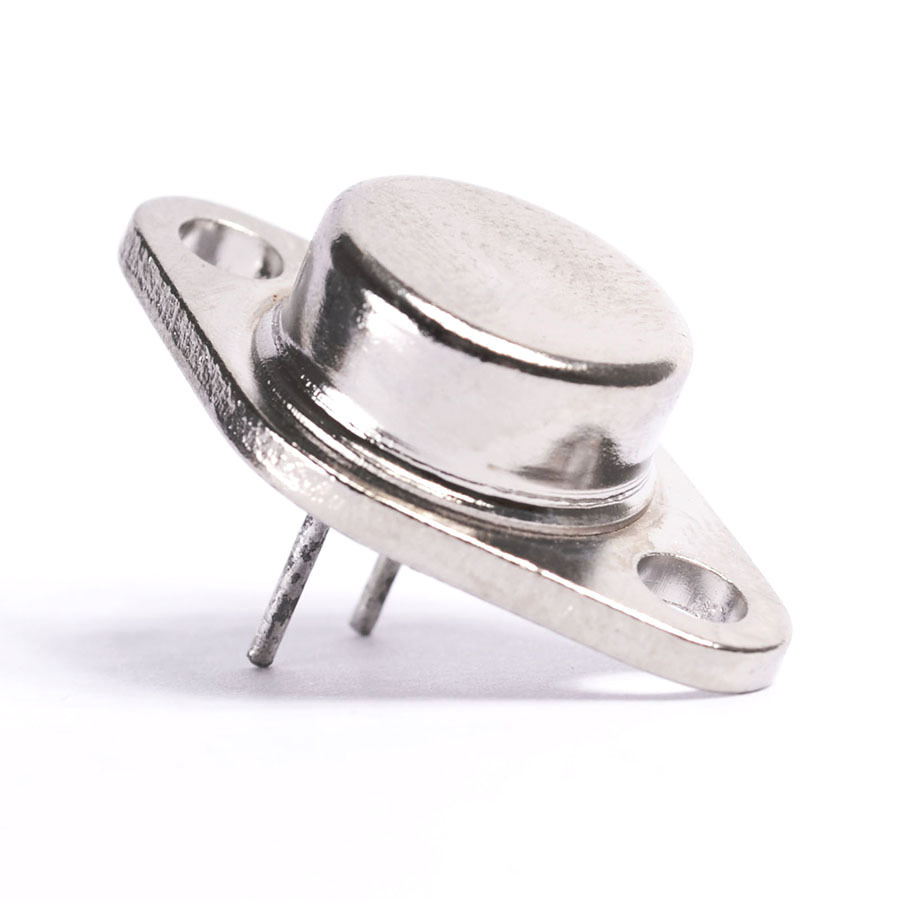

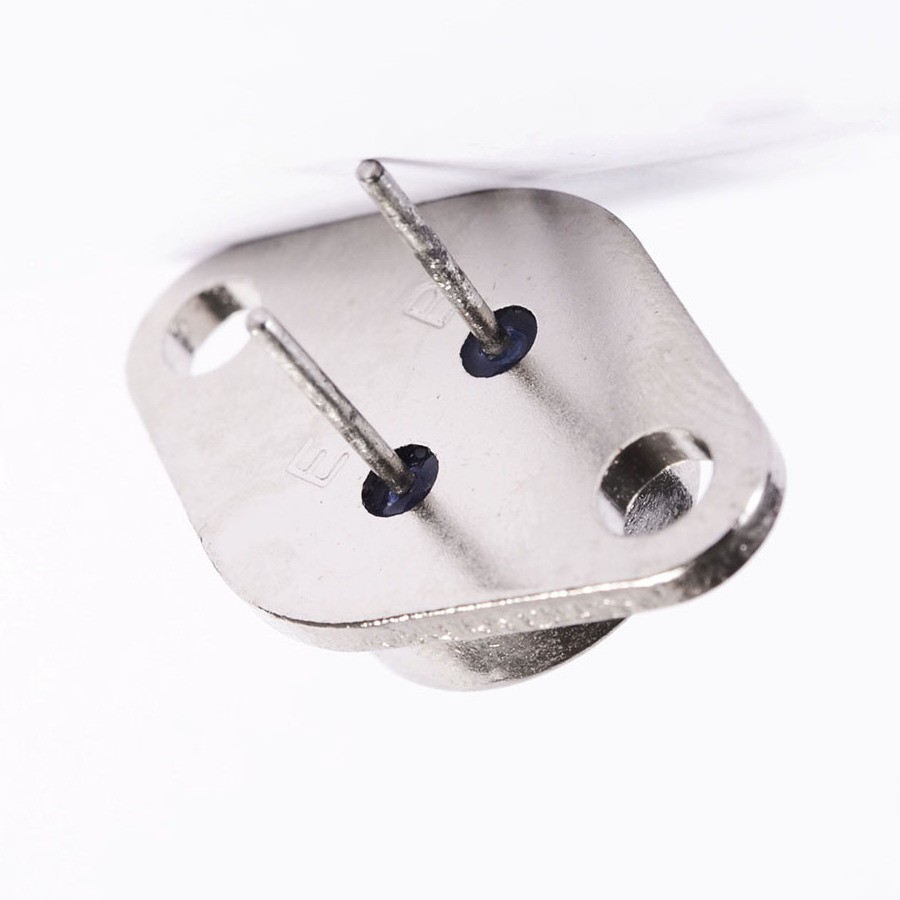

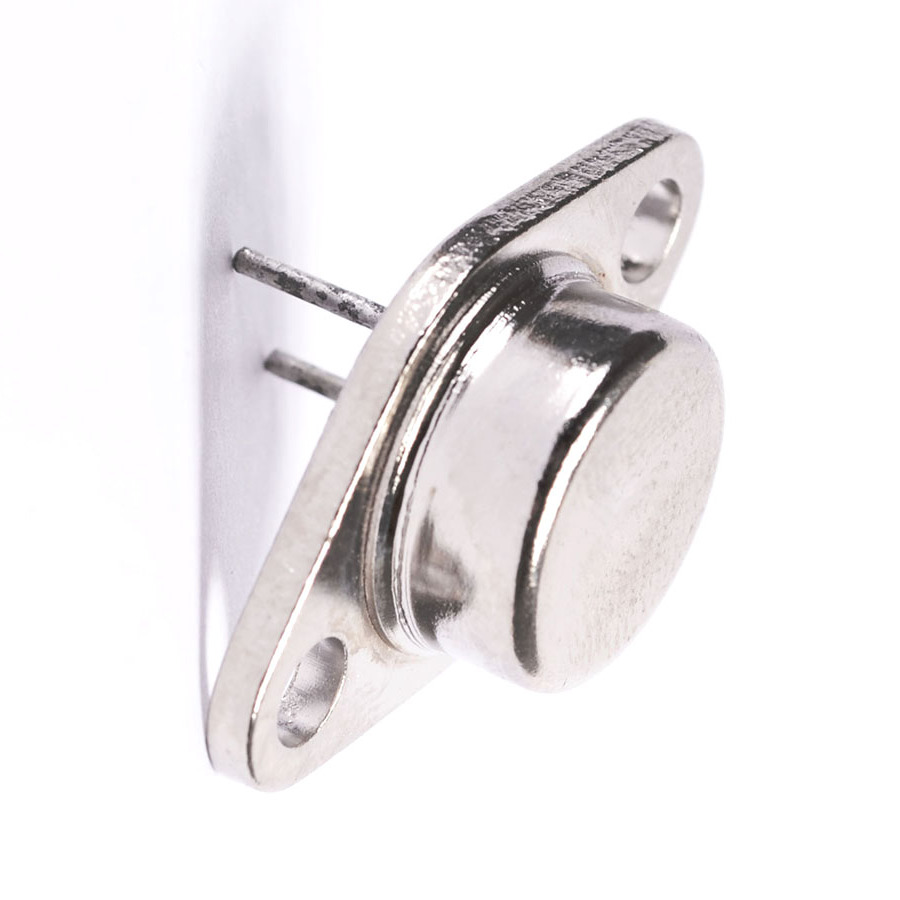

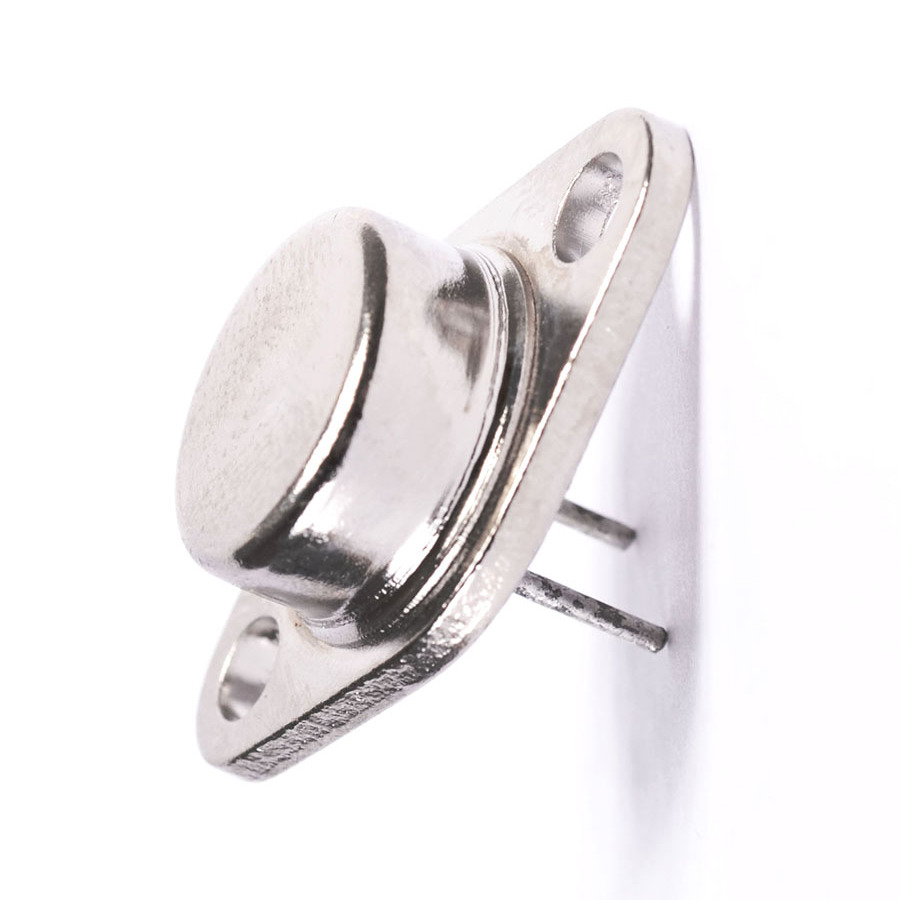

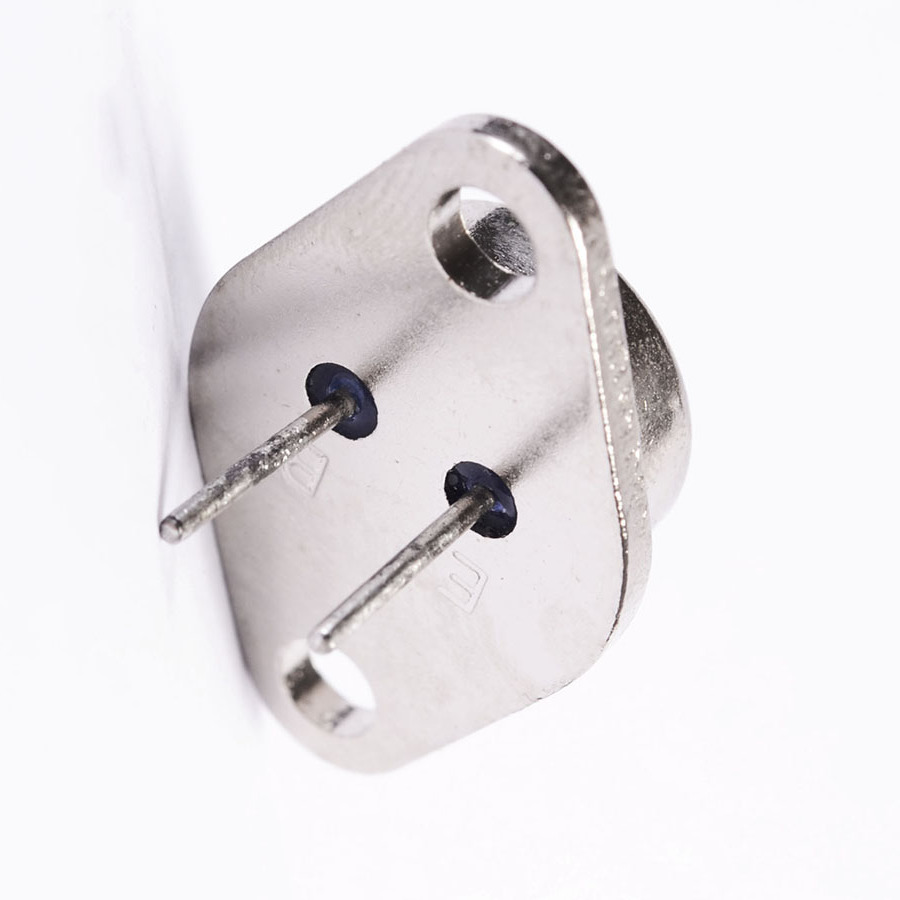

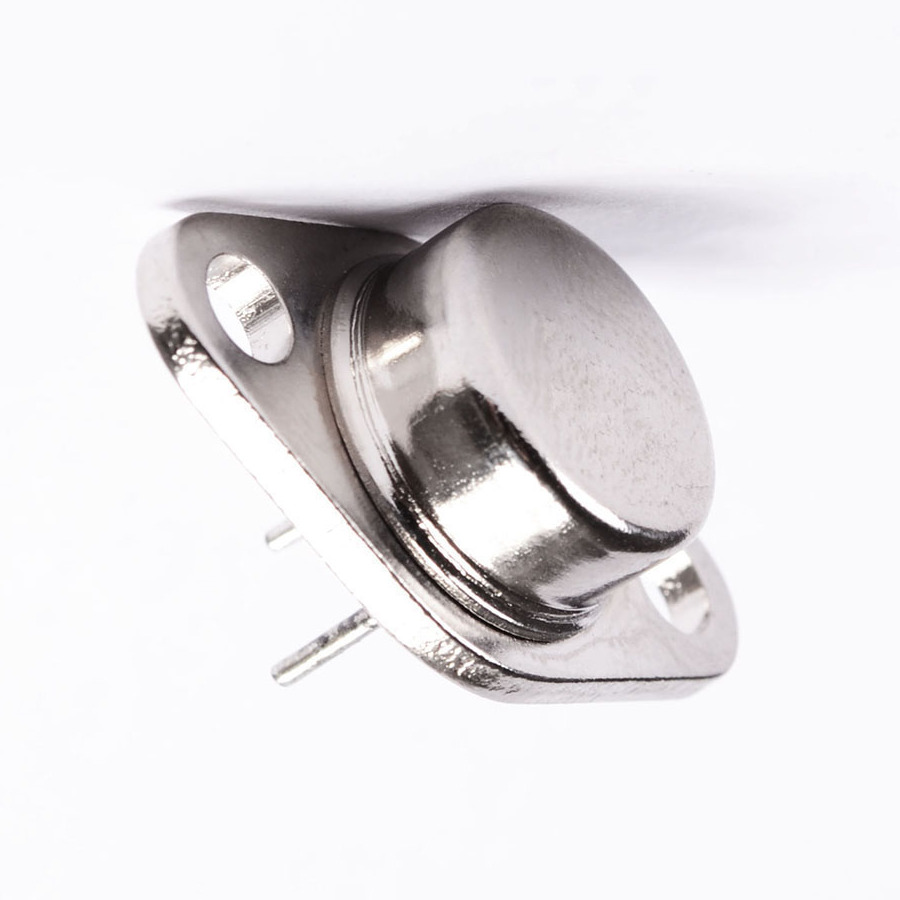

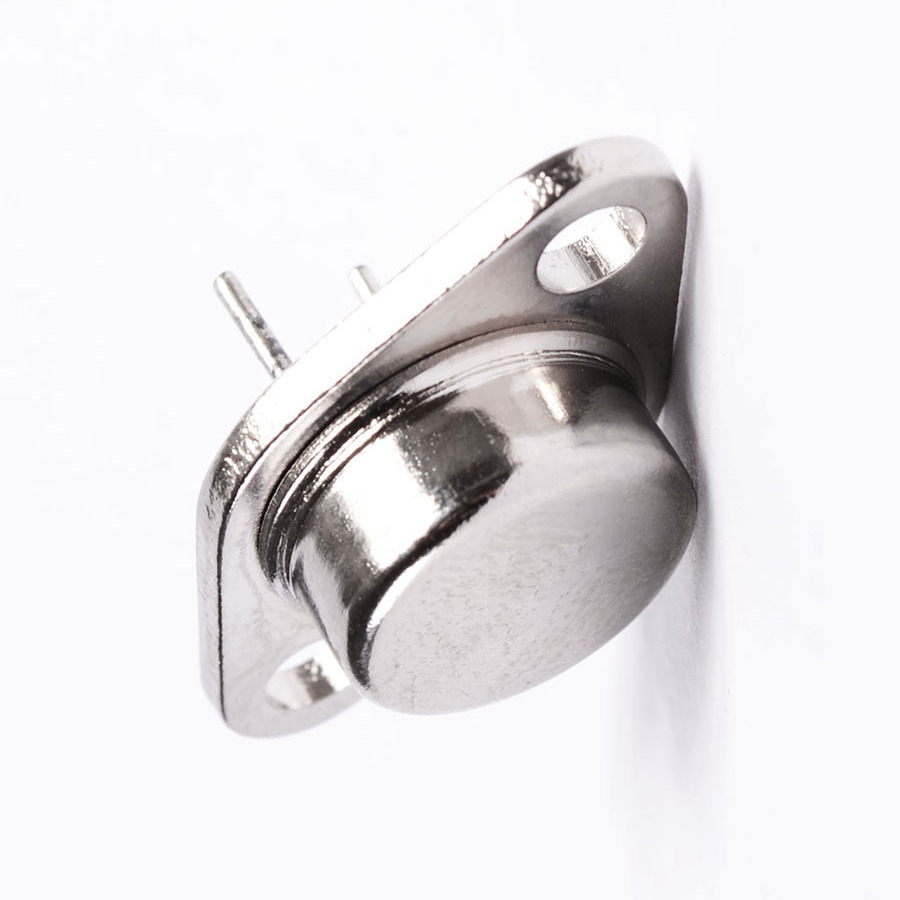

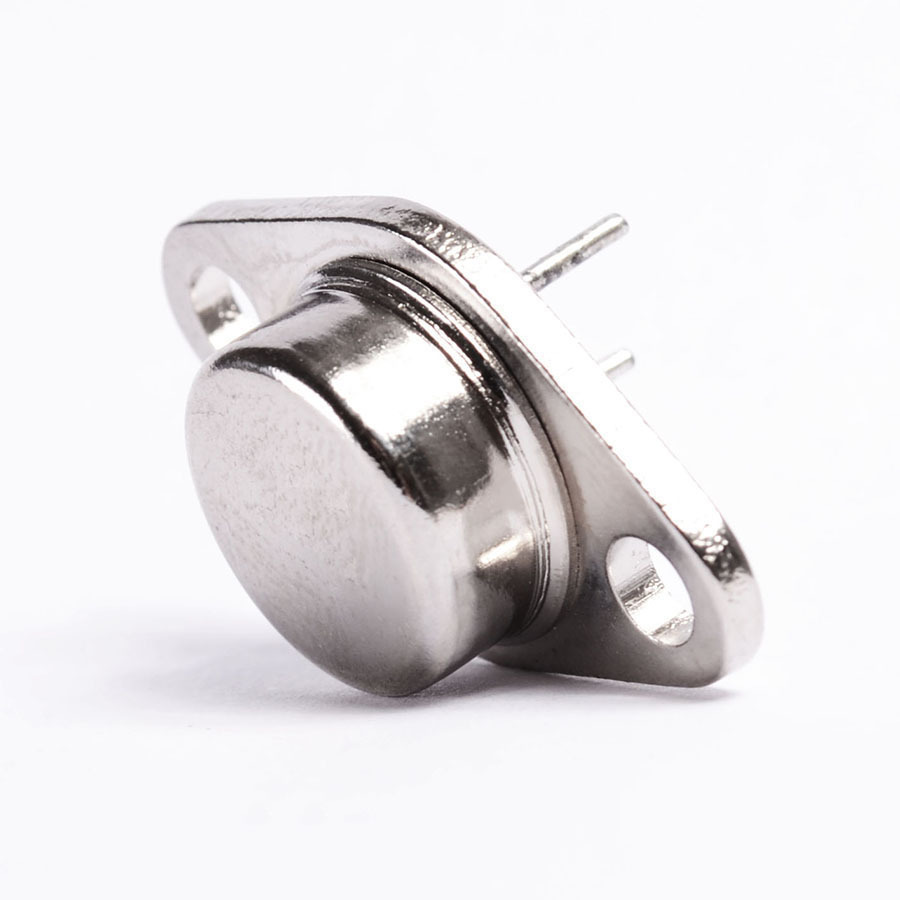

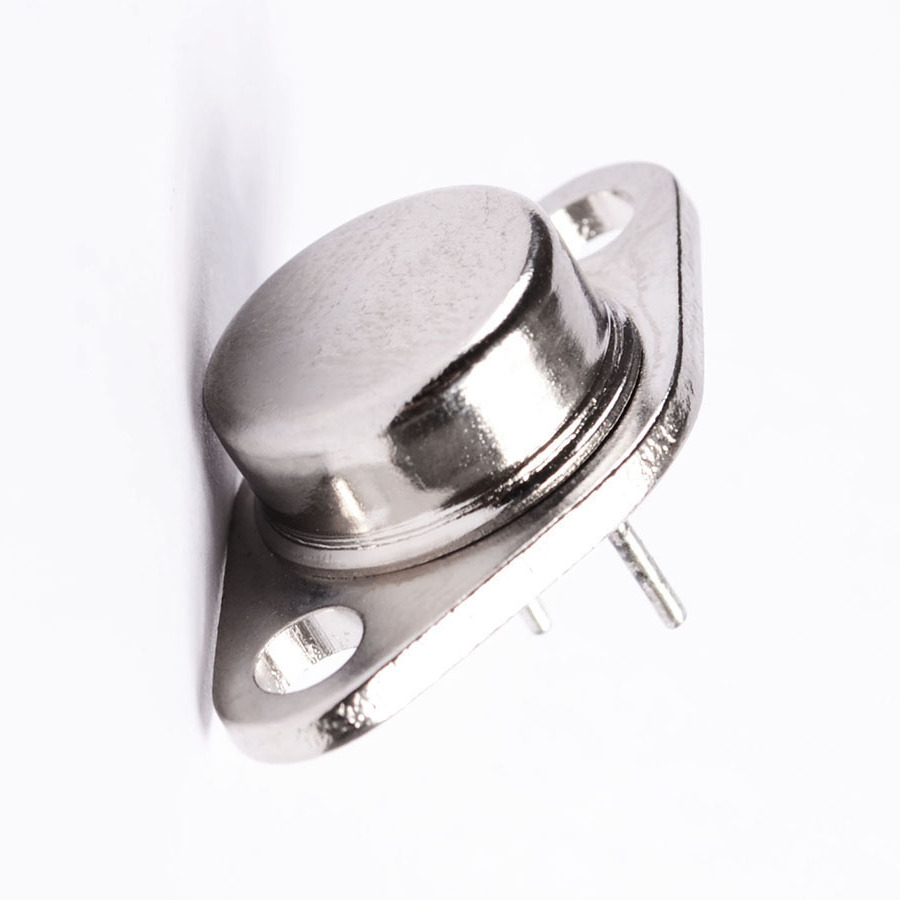

2SD243 Transistor Silicon NPN CASE: SOT9 MAKE: Sanken
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 18 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Sanken
Polarity NPN
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 110 V
Maximum Collector-Emitter Voltage |Vce| 90 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 85764
