2SD2498
View detailed images (12)

2SD2498

SKU: 2SD2498

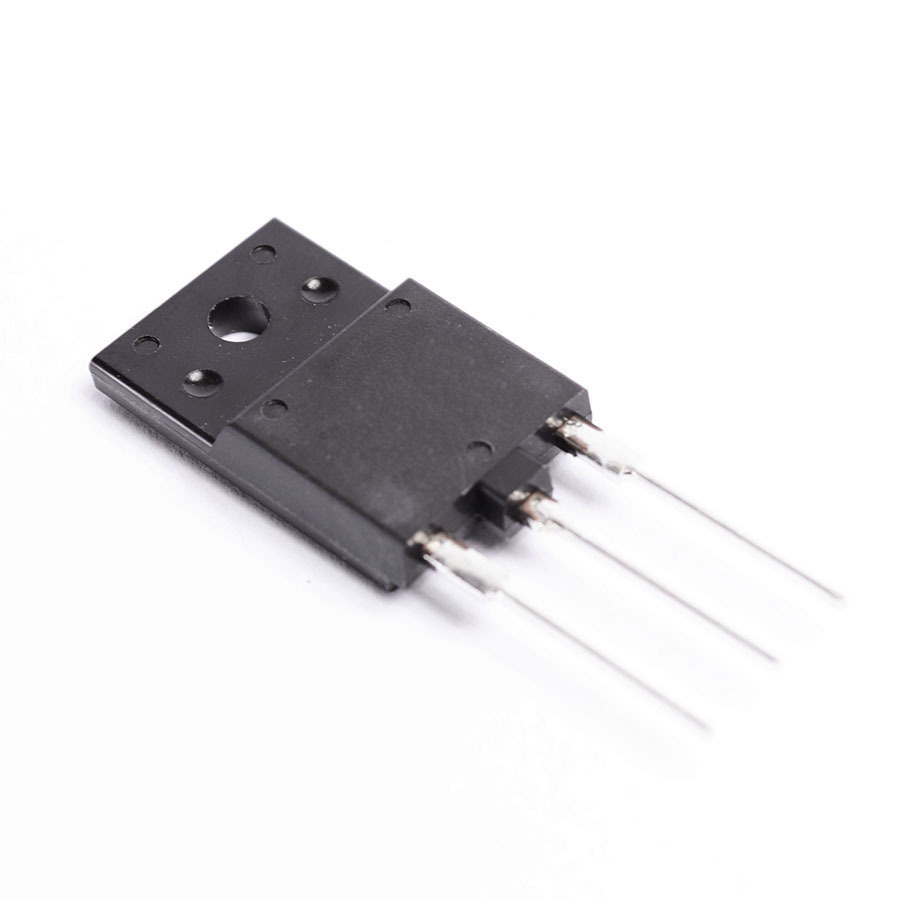

2SD2498 Transistor Silicon NPN CASE: TO3PF MAKE: Toshiba
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD2498 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO3PF
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 50 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 600 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 6 A
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 81546
