2SD2561
View detailed images (13)

2SD2561

SKU: 2SD2561

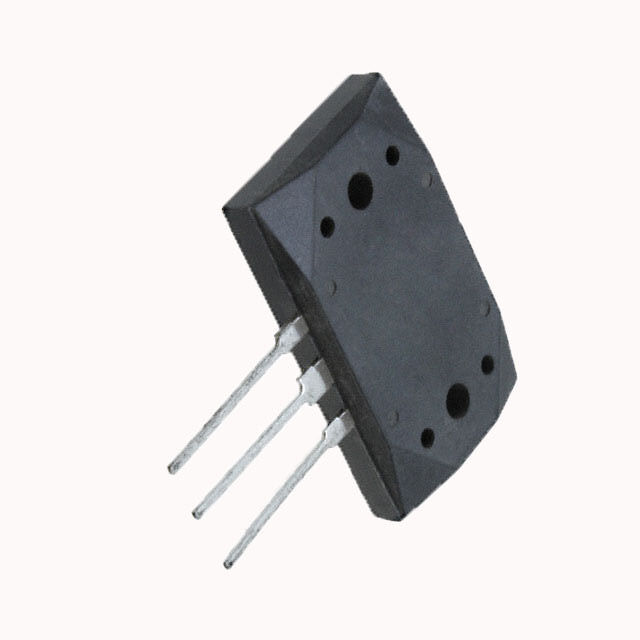

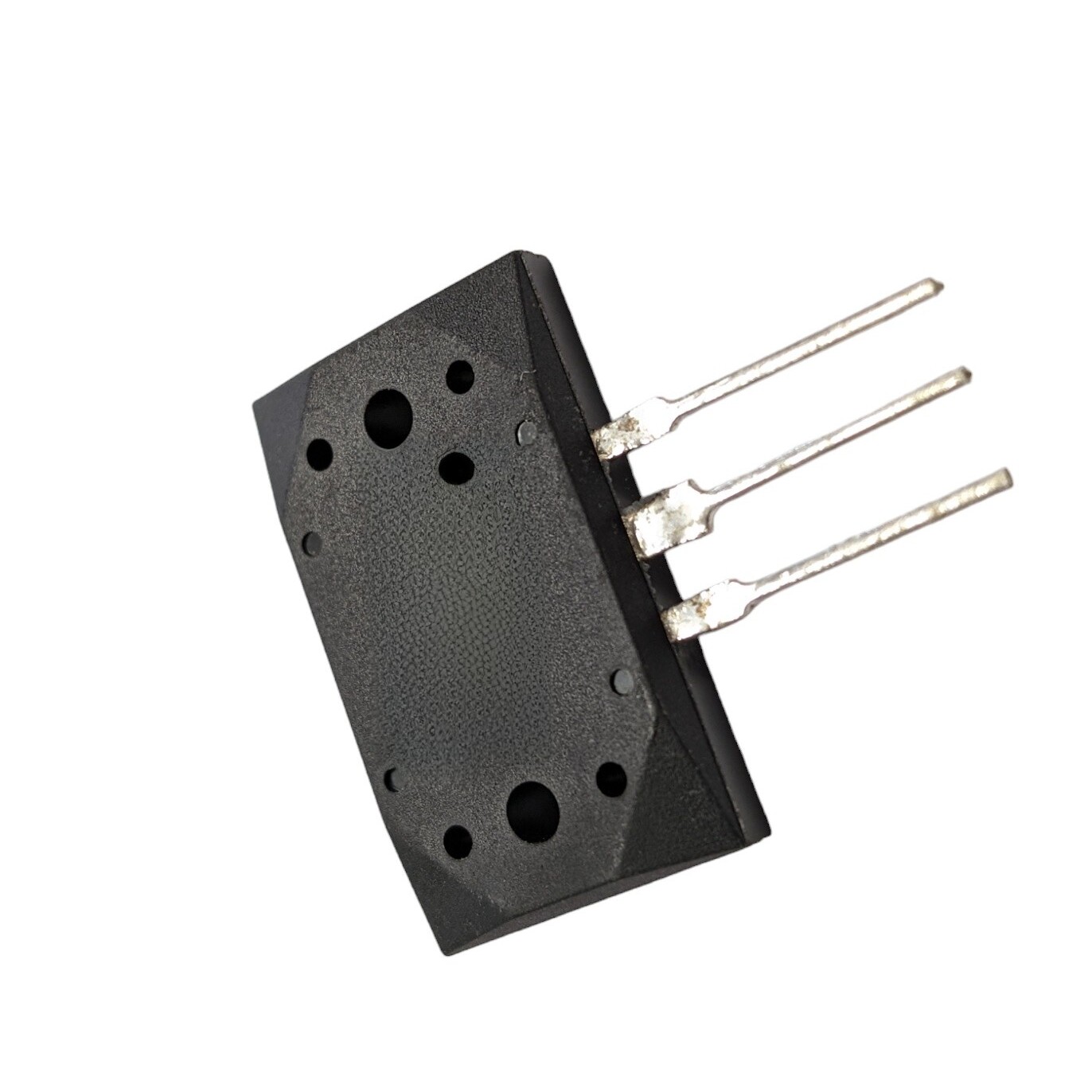

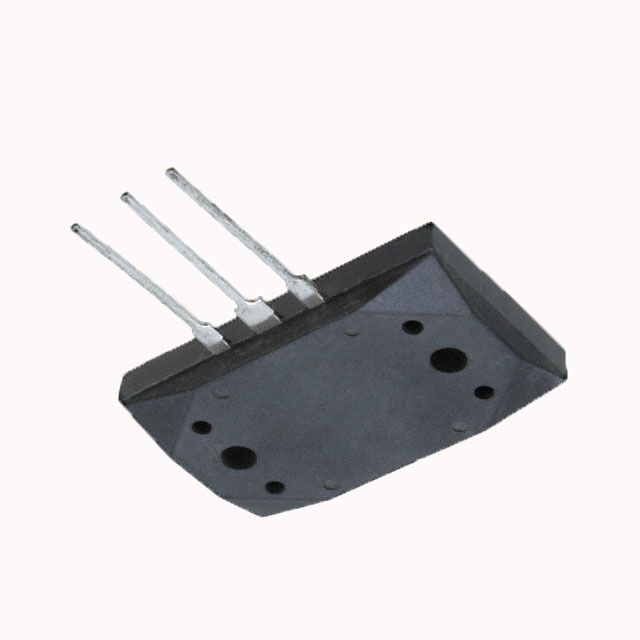

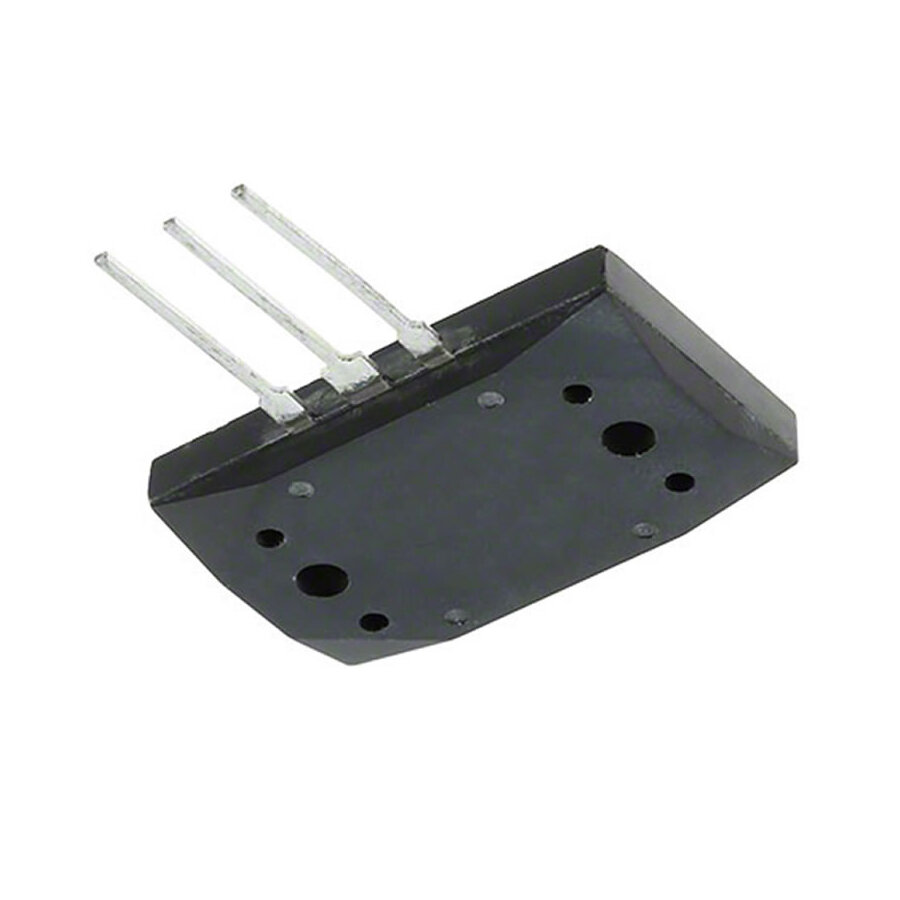

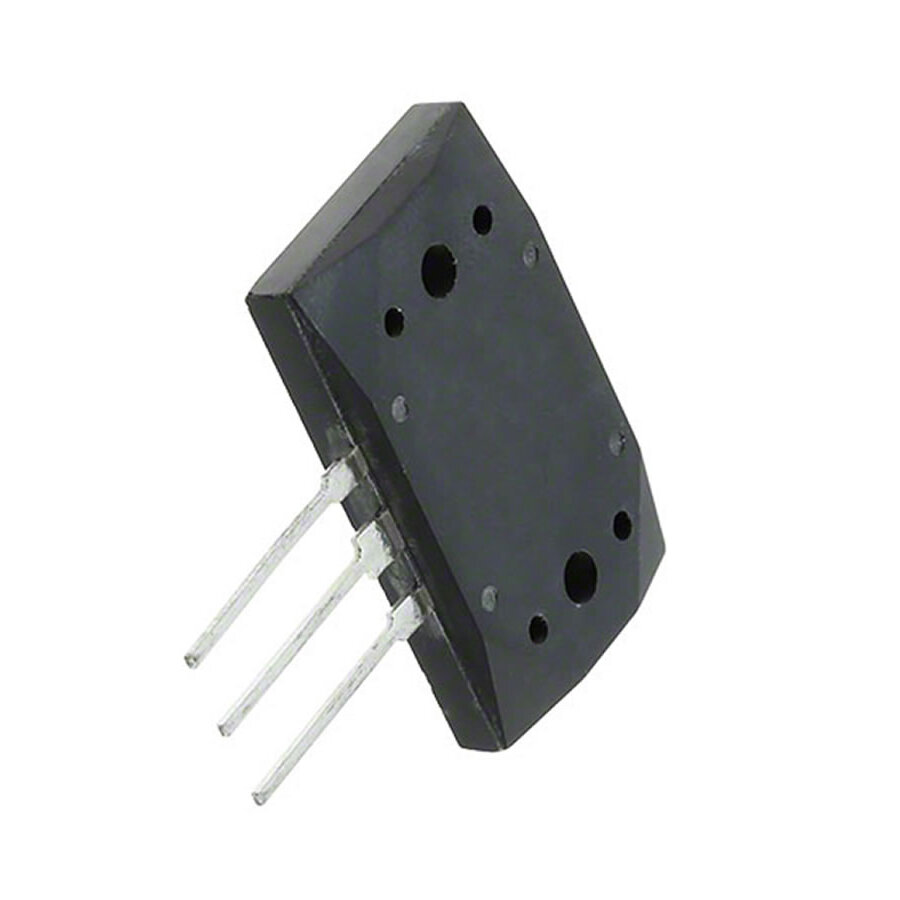

2SD2561 Transistor Silicon NPN CASE: MT200 MAKE: Sanken
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD2561 Datasheet
Product specifications
Type Transistor Silicon NPN
Case MT200
Manufacturer Sanken
Polarity NPN
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 150 V
Maximum Collector-Emitter Voltage |Vce| 150 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 17 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 70 MHz
Forward Current Transfer Ratio (hFE), MIN 5000
SKU 346017
