2SD271
View detailed images (12)

2SD271

SKU: 2SD271

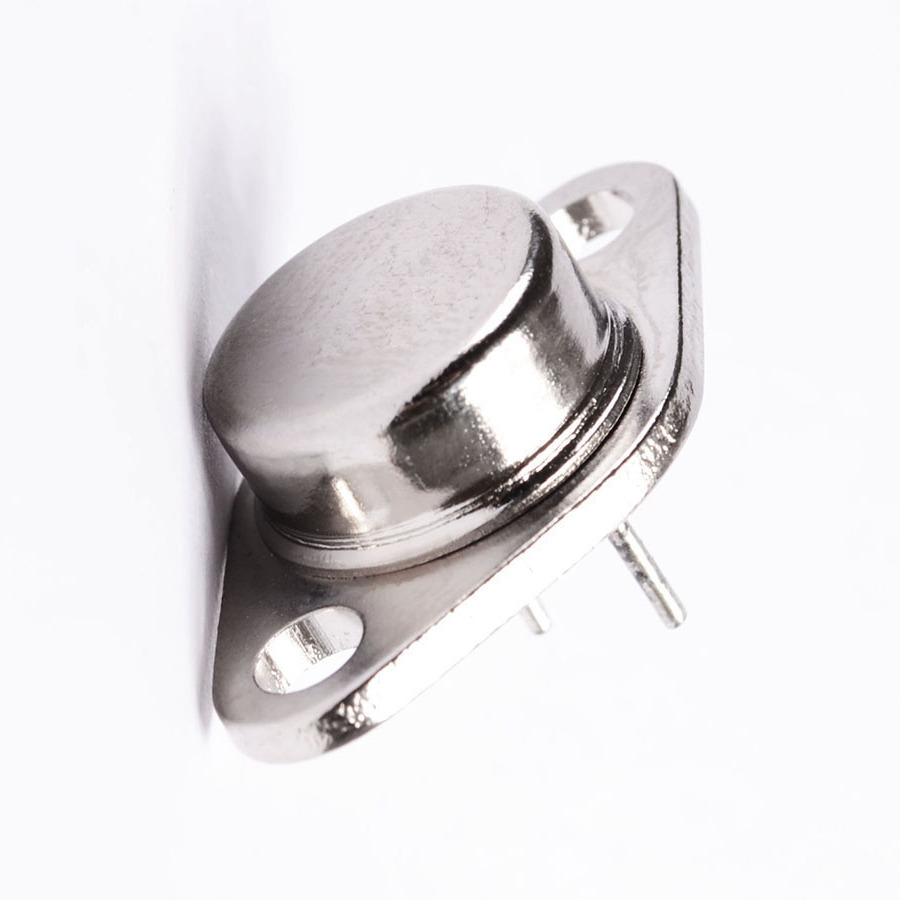

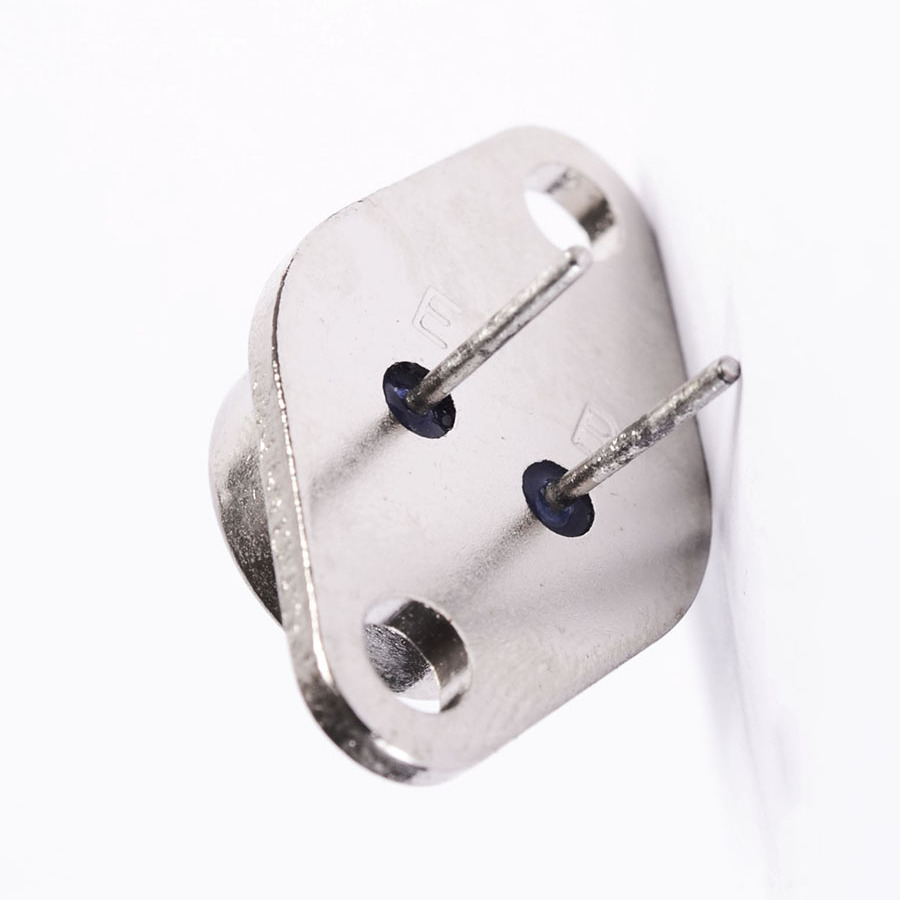

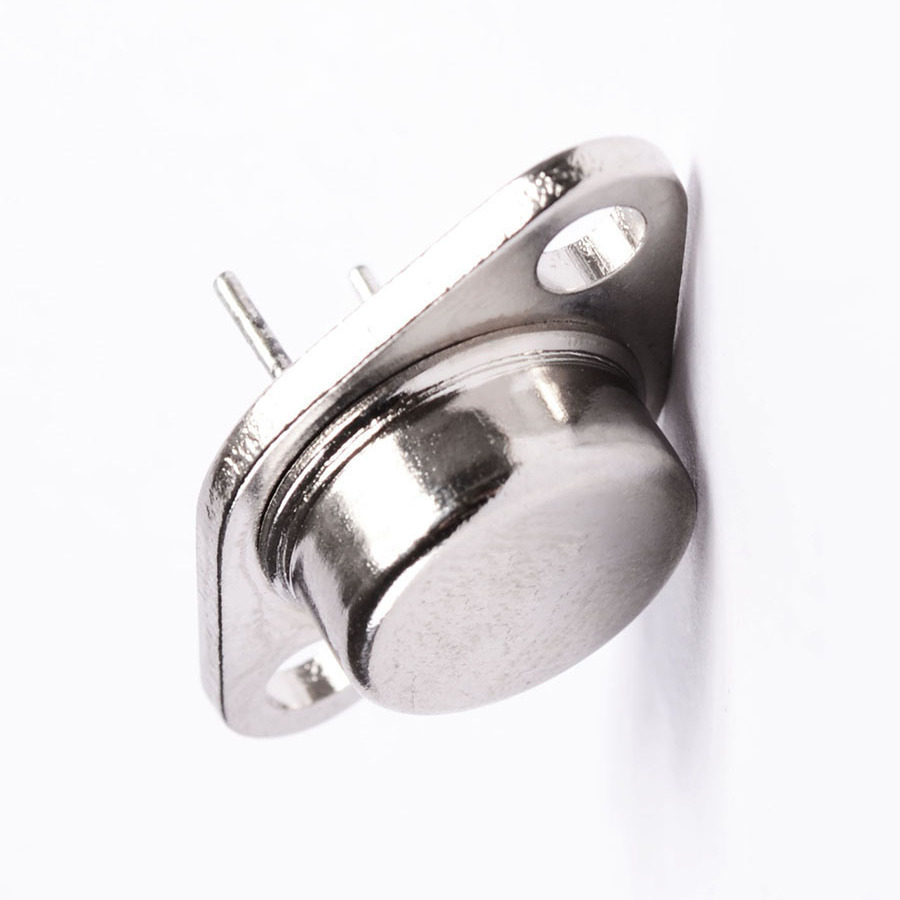

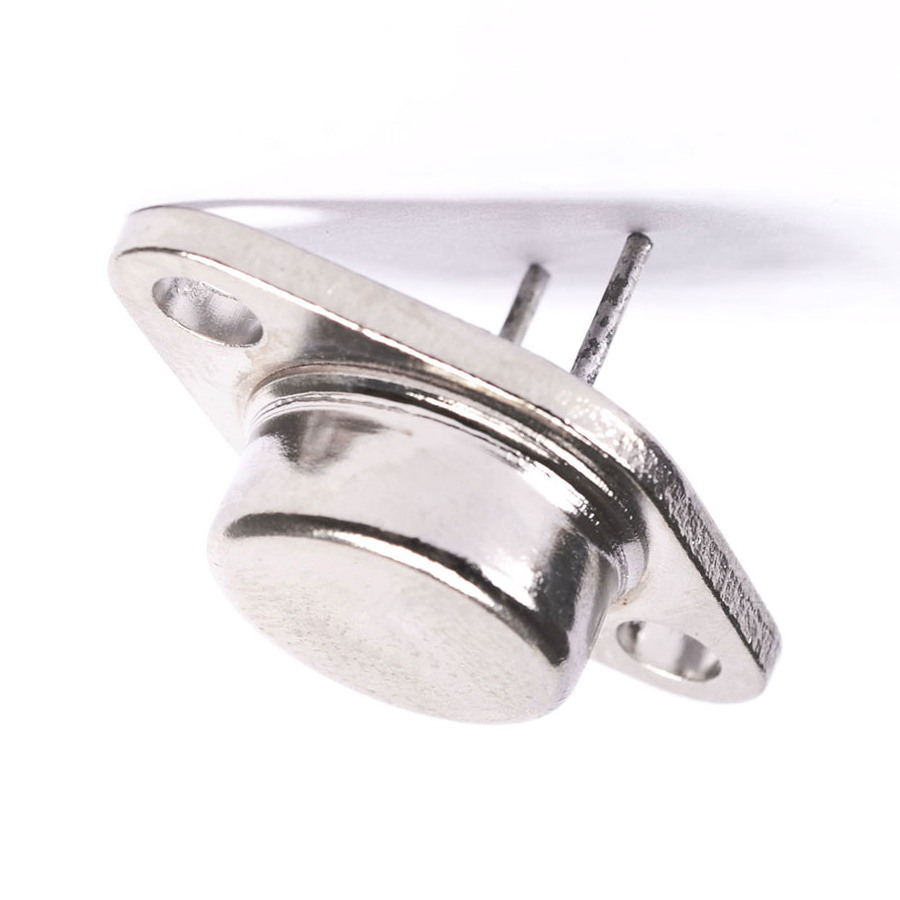

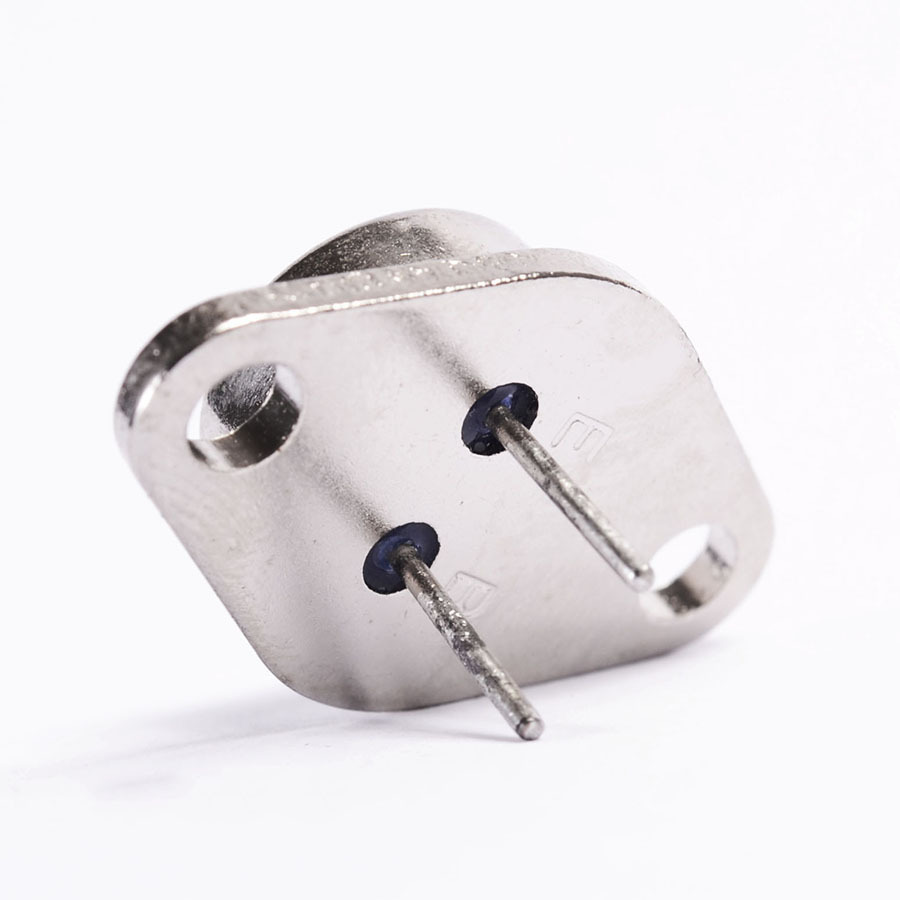

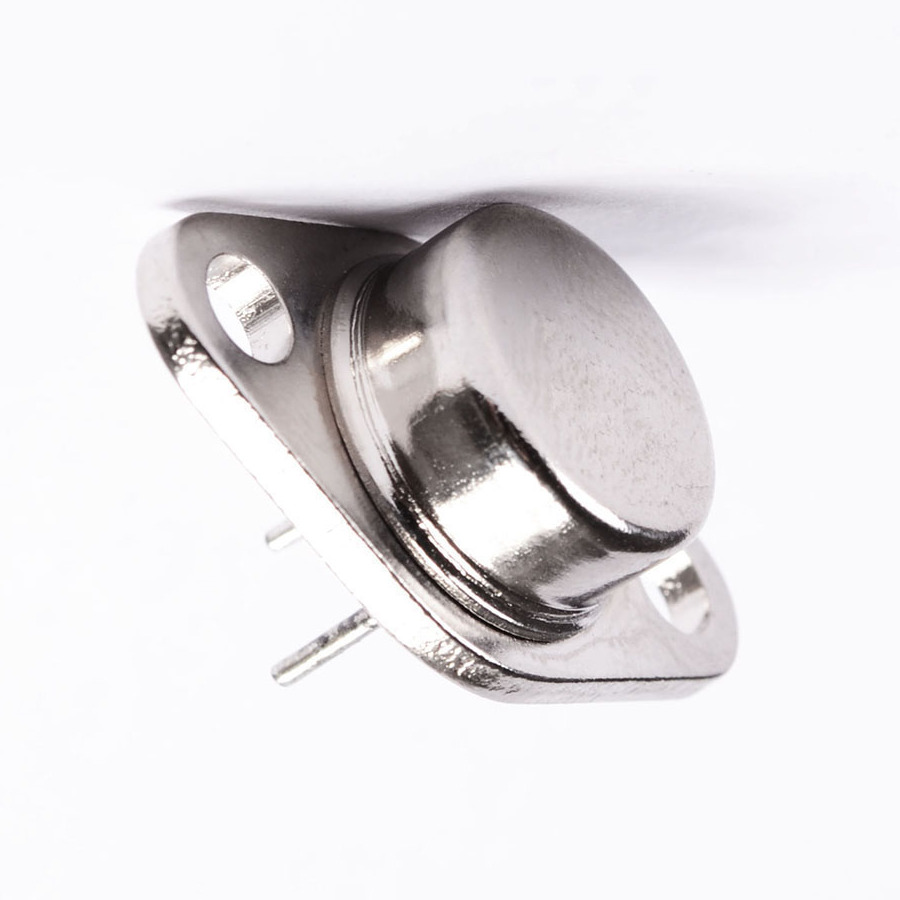

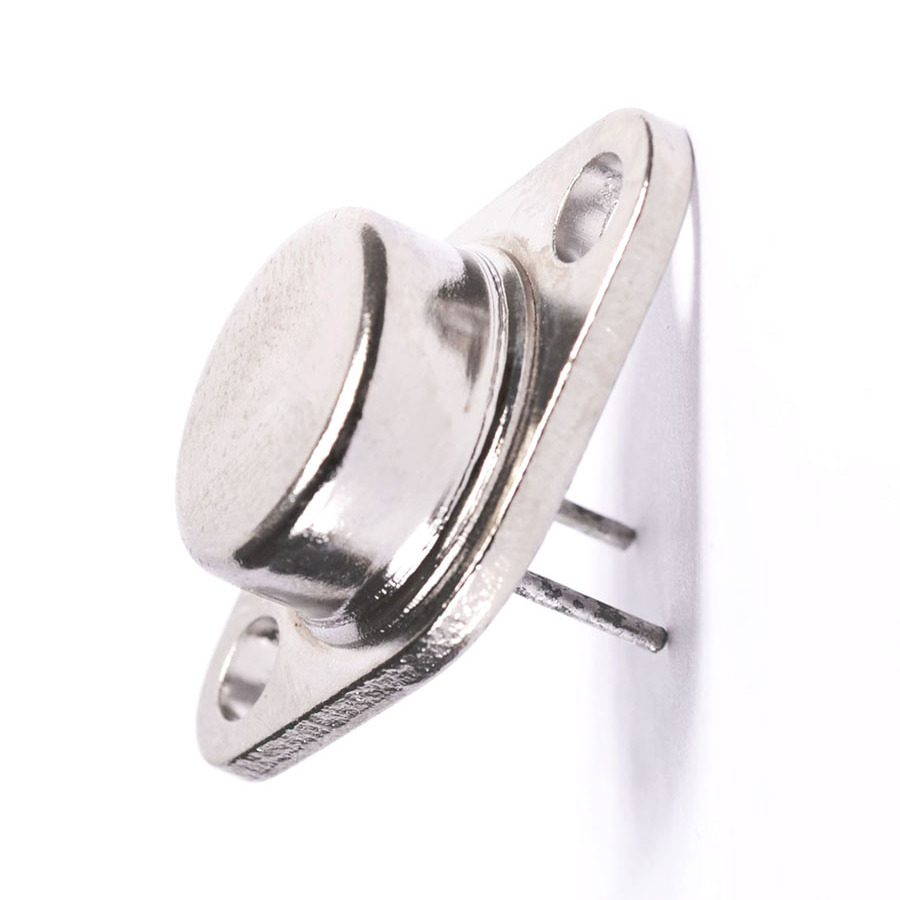

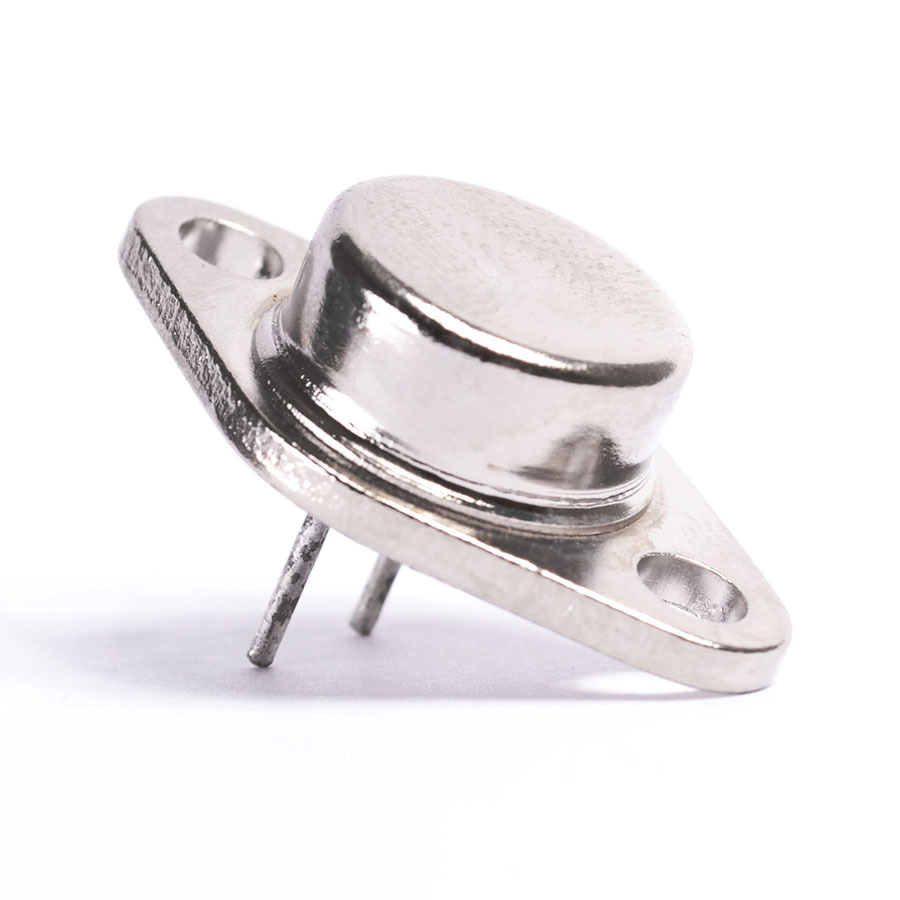

2SD271 Transistor Silicon NPN CASE: SOT9 MAKE: Origin Electric
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Origin Electric
Vbr CBO 800
Vbr CEO 400
Max. PD (W) 30
Max. hFE 30
Min hFE 15
Ic Max. (A) 2.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 2.0m
Polarity NPN
R(sat) (Û) 600m
Derate Above 25°C 250m
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 800 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 14
SKU 560447
