2SD284
View detailed images (12)

2SD284

SKU: 2SD284

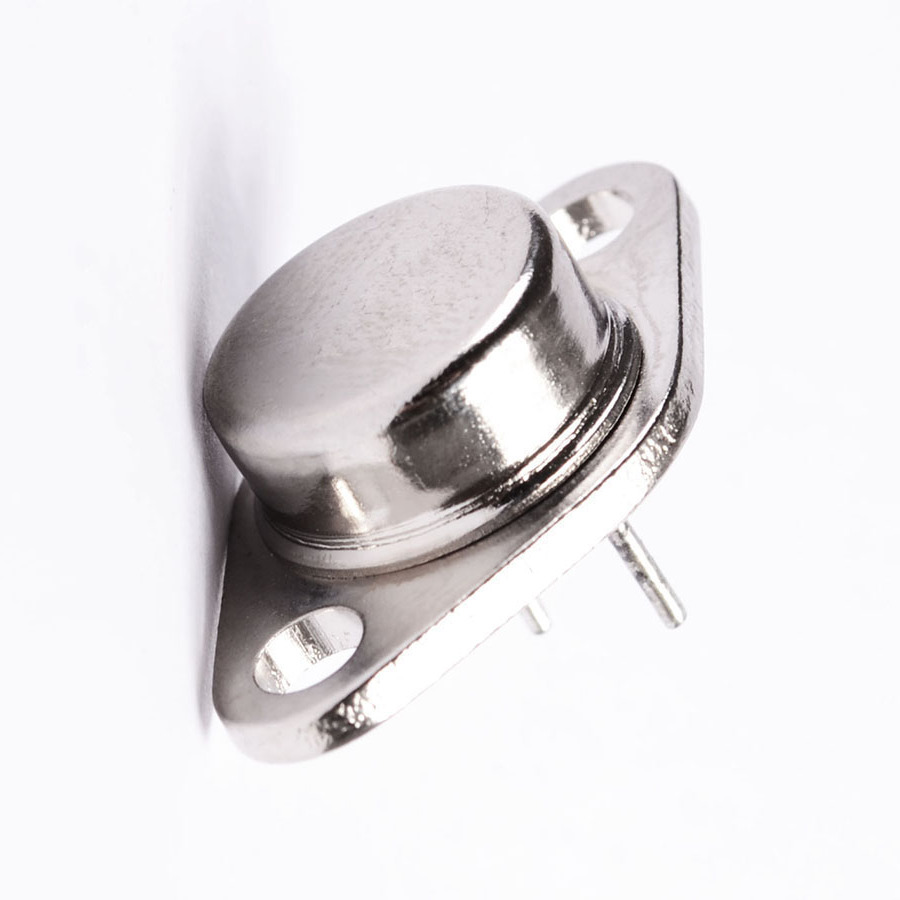

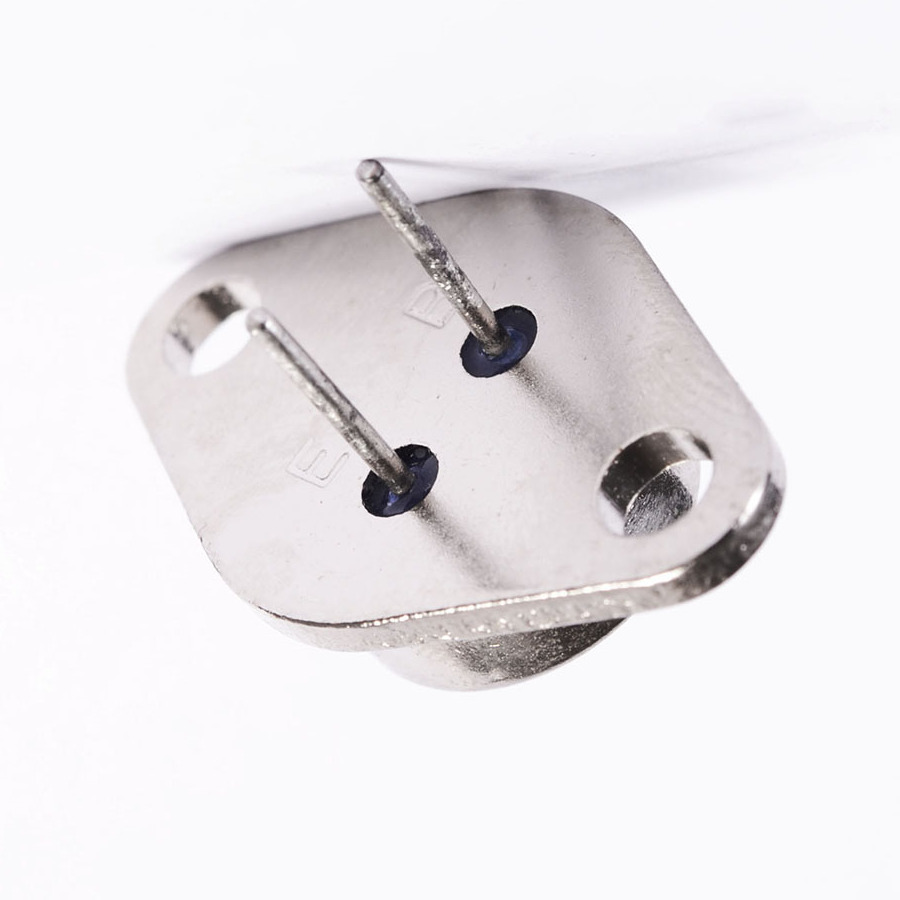

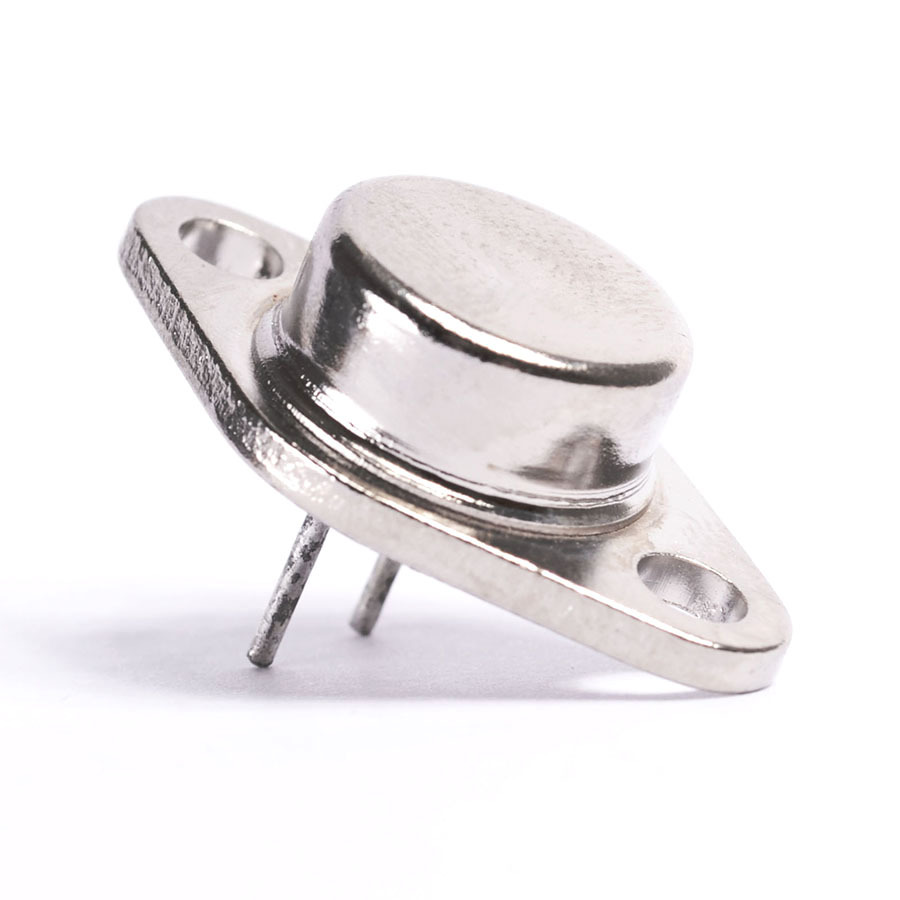

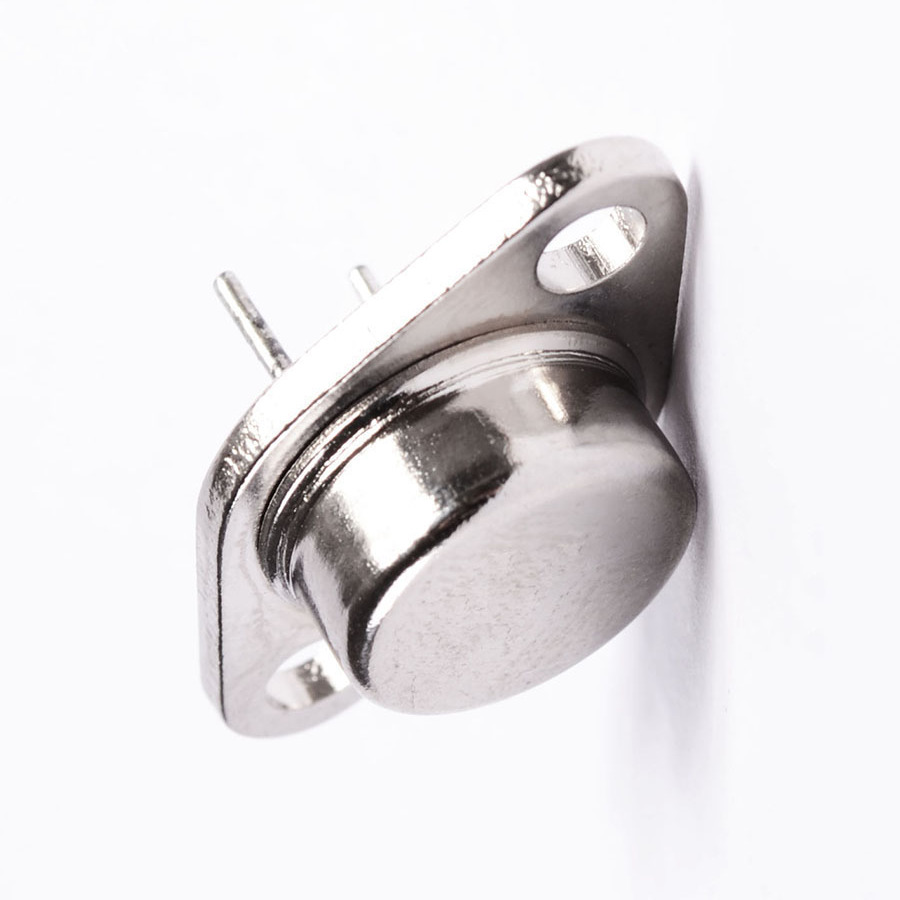

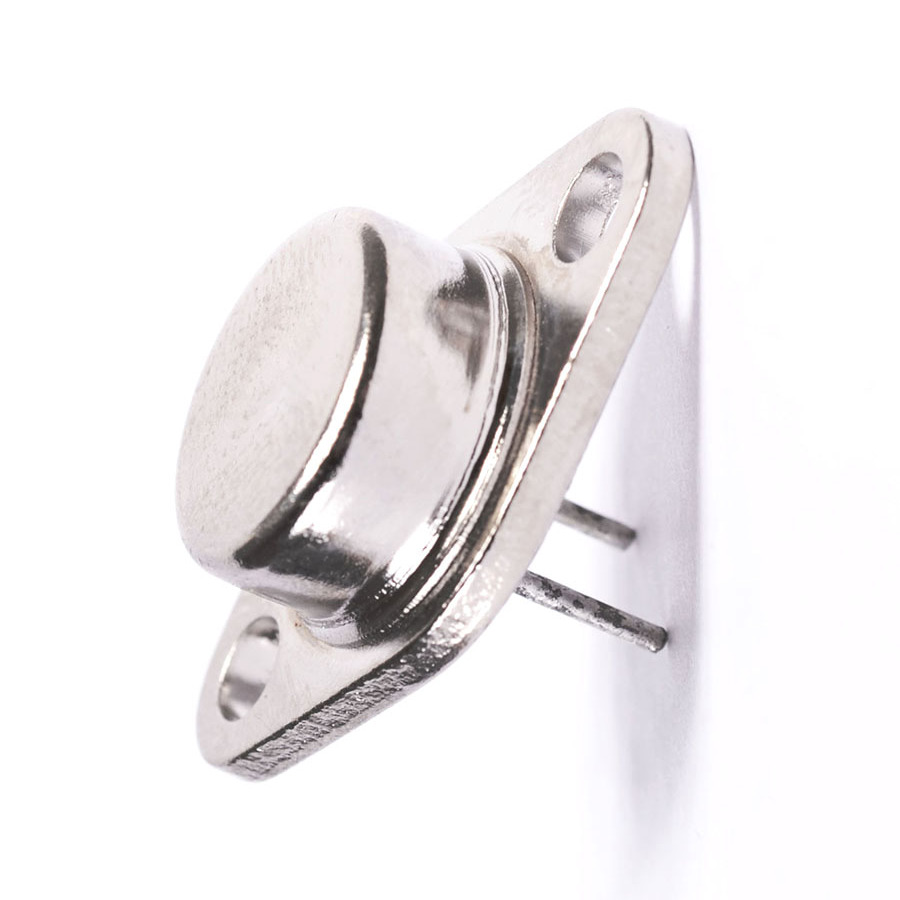

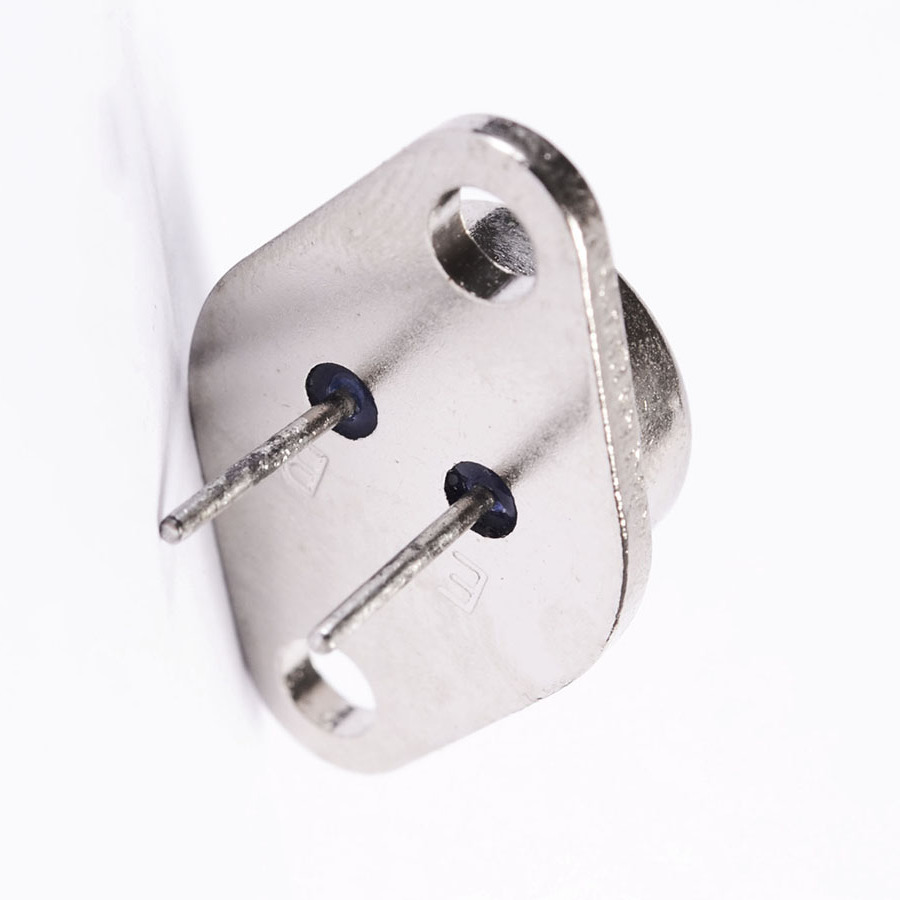

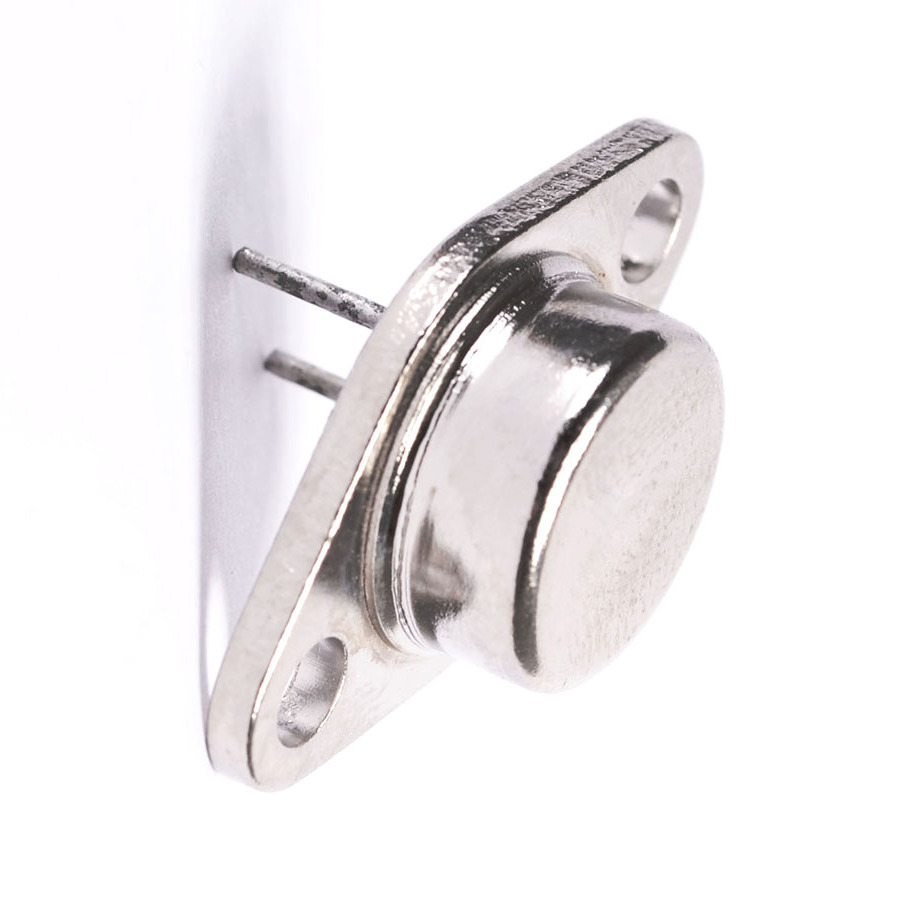

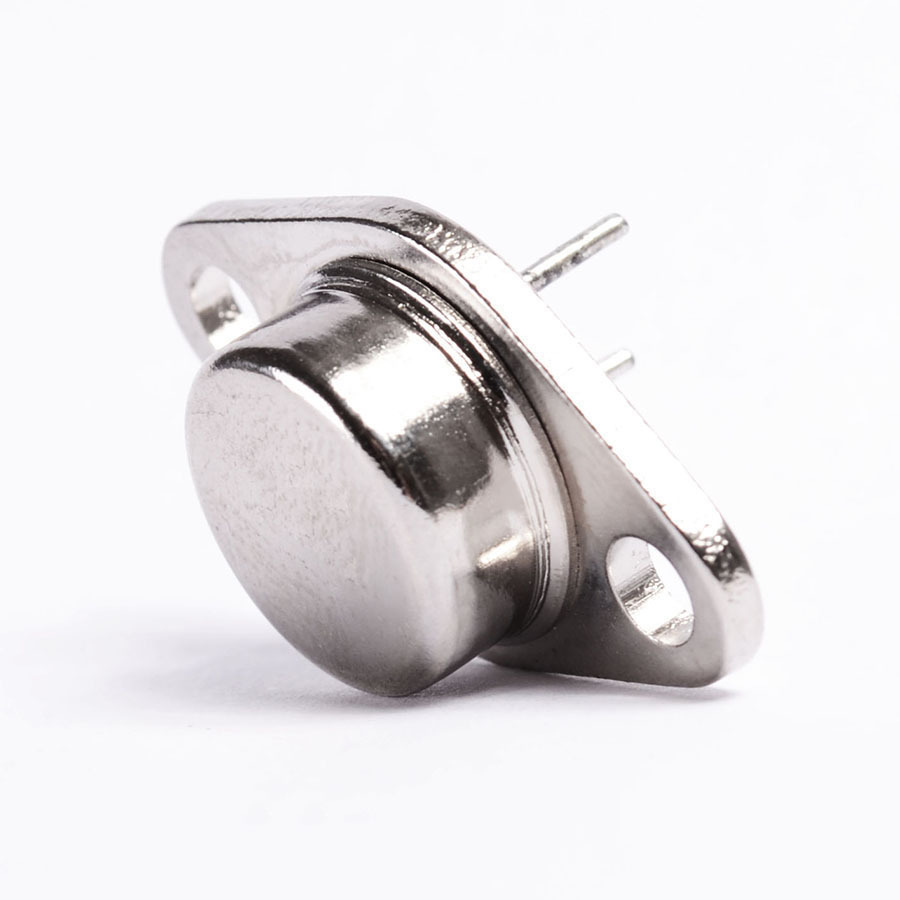

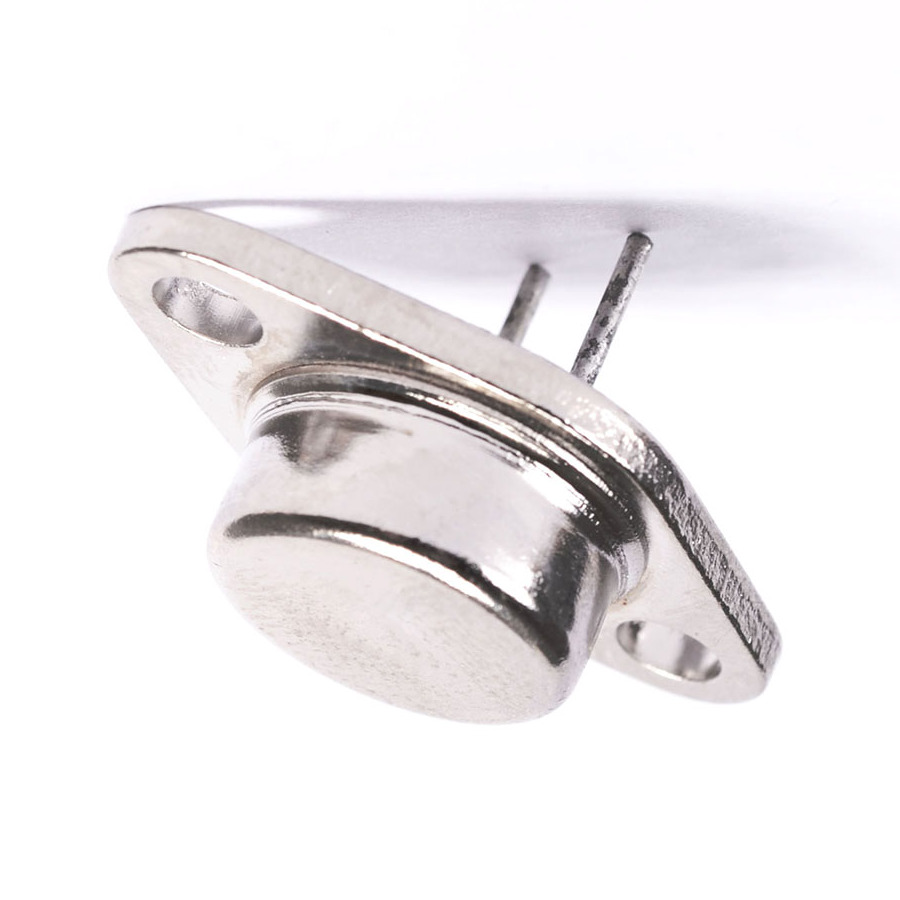

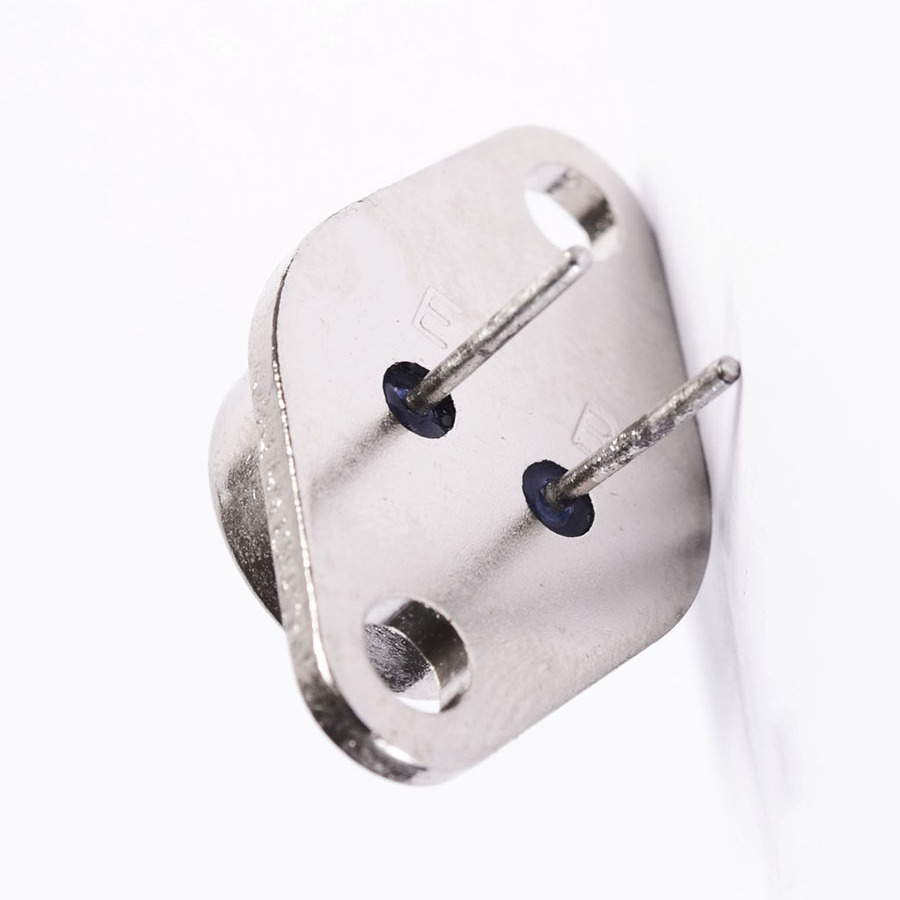

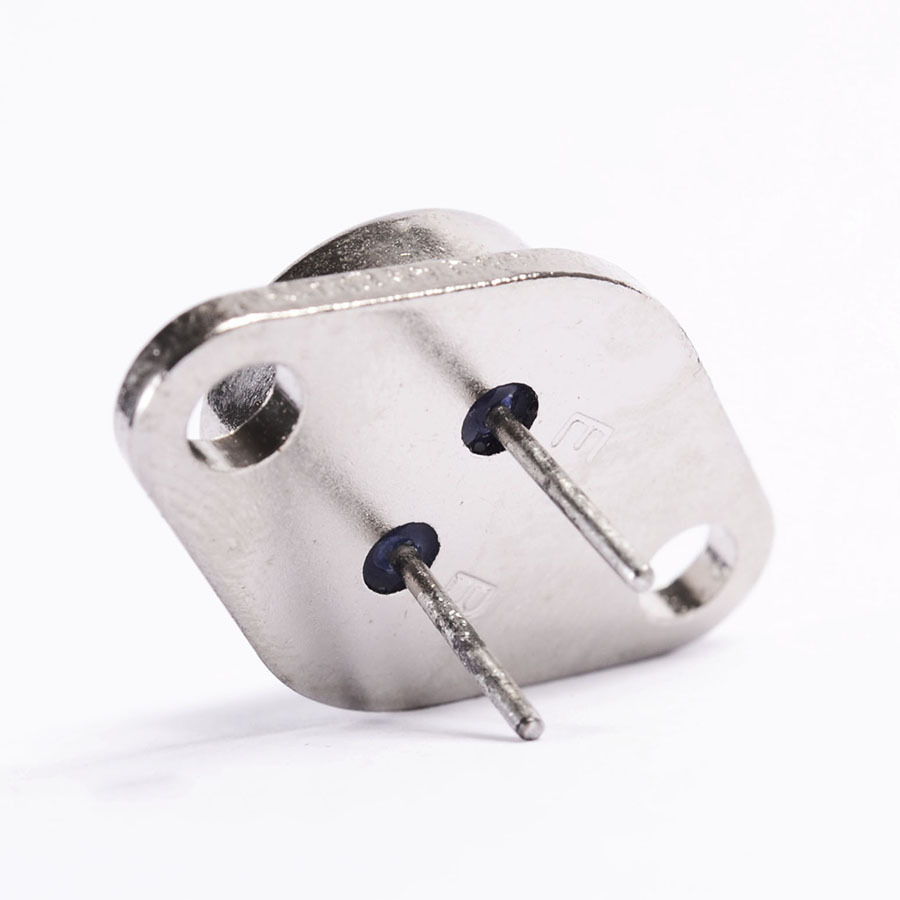

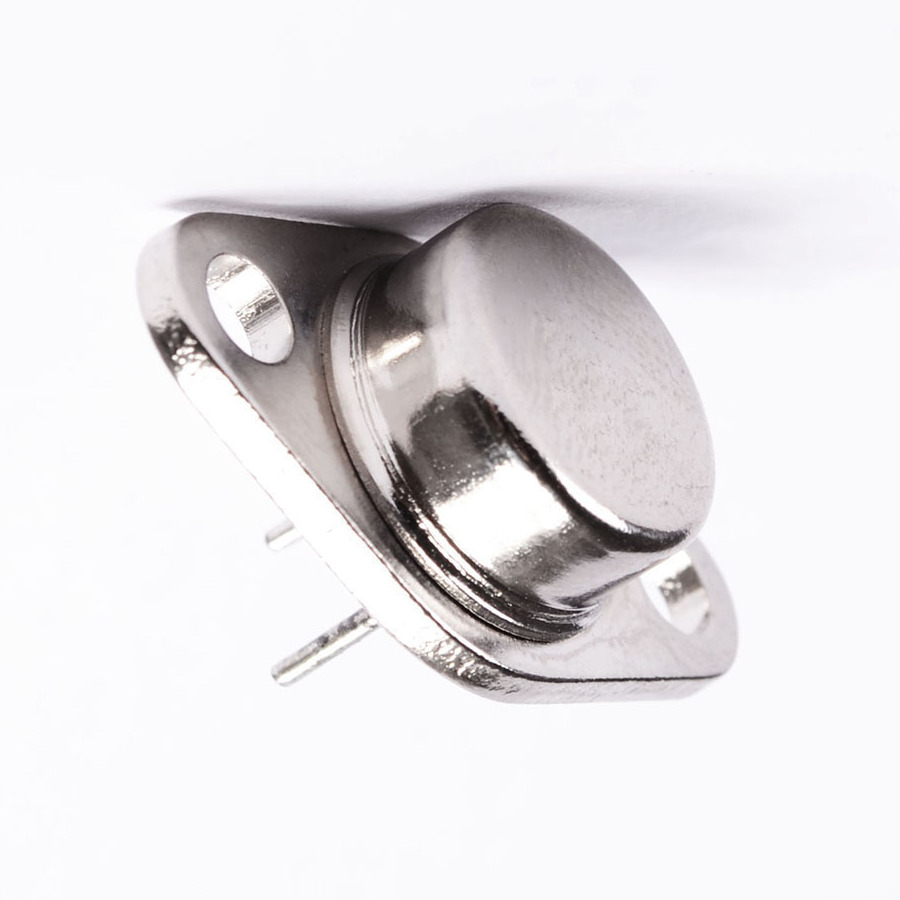

2SD284 Transistor Silicon NPN CASE: SOT9 MAKE: Sony
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Sony
Vbr CBO 120
Vbr CEO 40
Max. PD (W) 25
Max. hFE 80
Min hFE 30
Ic Max. (A) 5.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 200u
Polarity NPN
R(sat) (Û) 200m
Derate Above 25°C 200m
Trans. Freq (Hz) Min. 20M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 20
SKU 556385
