2SD314
View detailed images (12)

2SD314

SKU: 2SD314

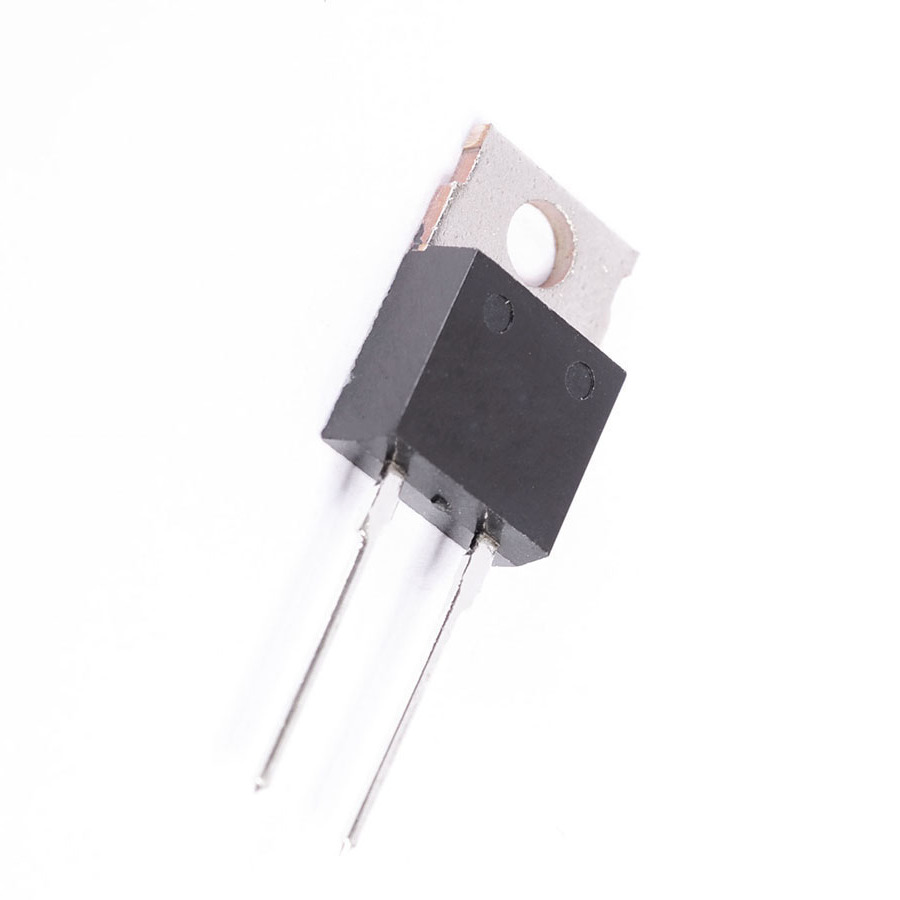

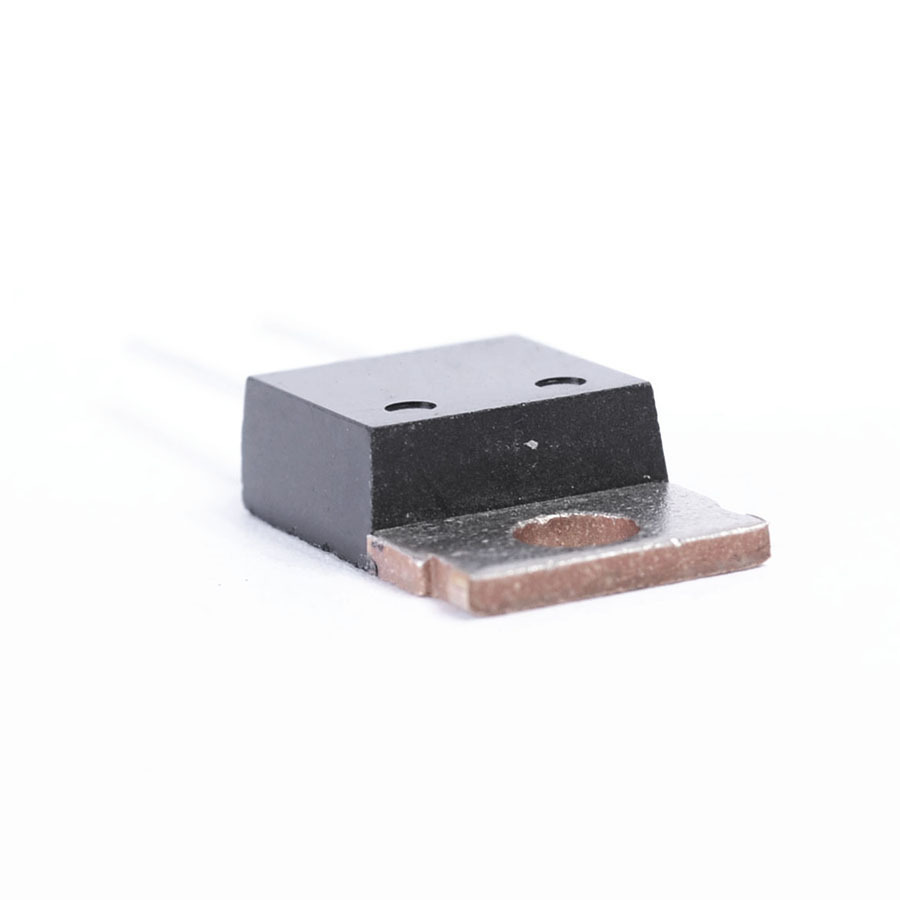

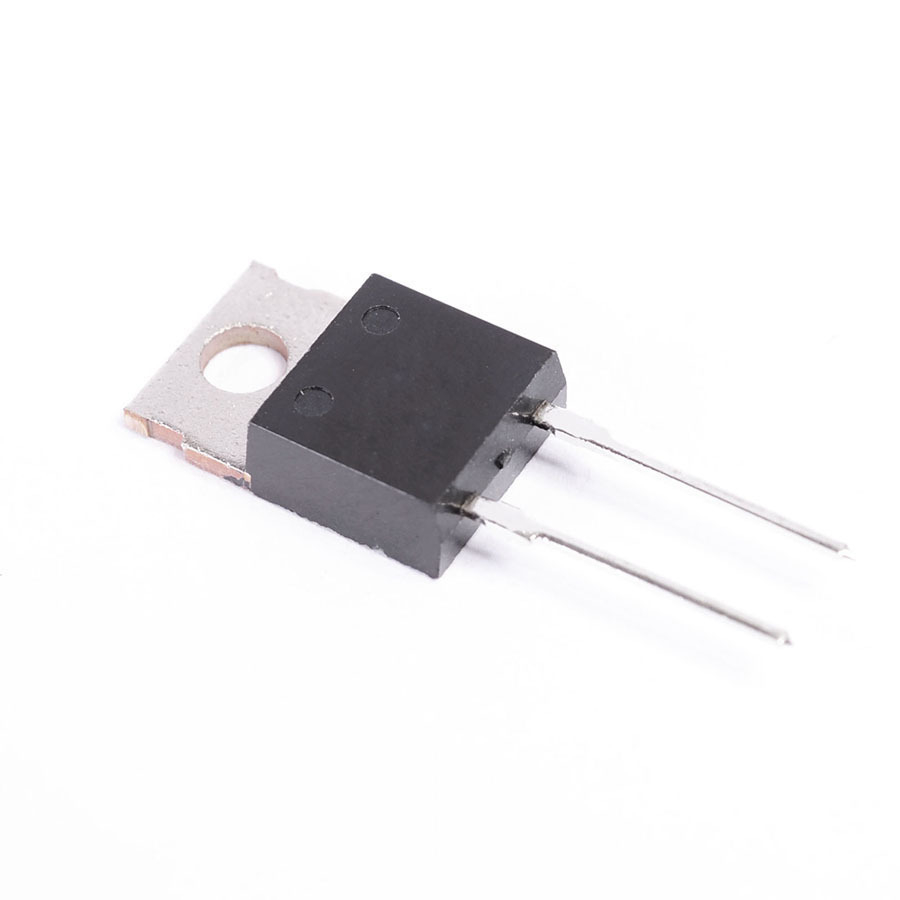

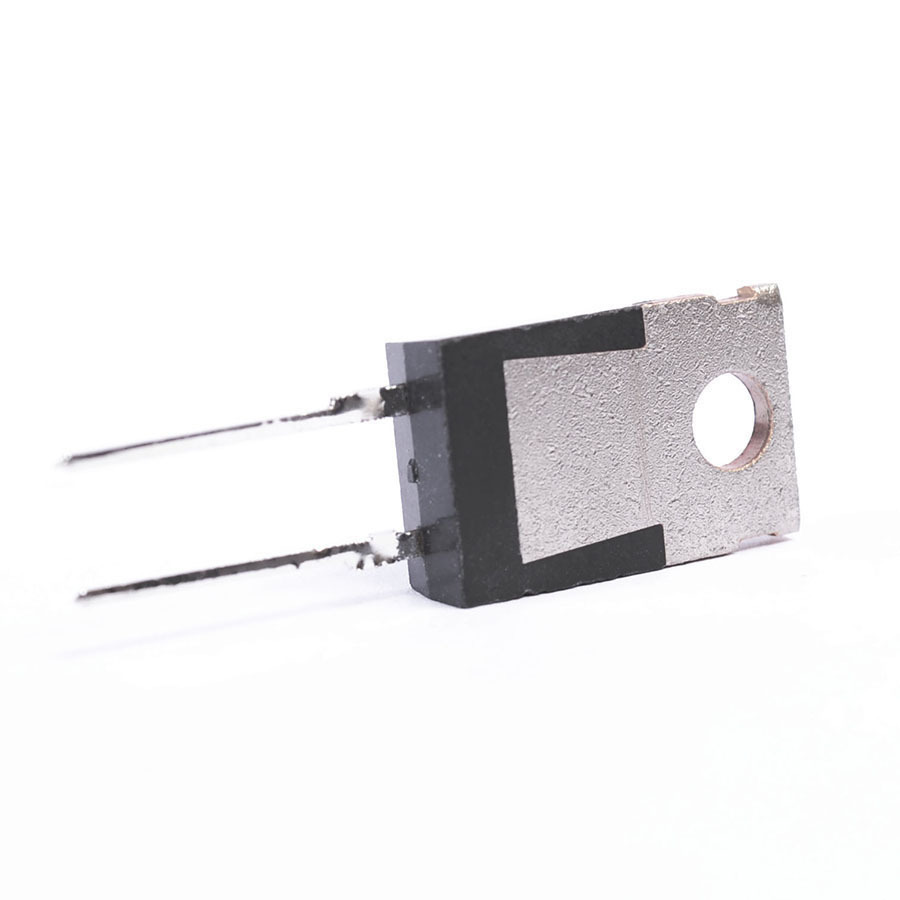

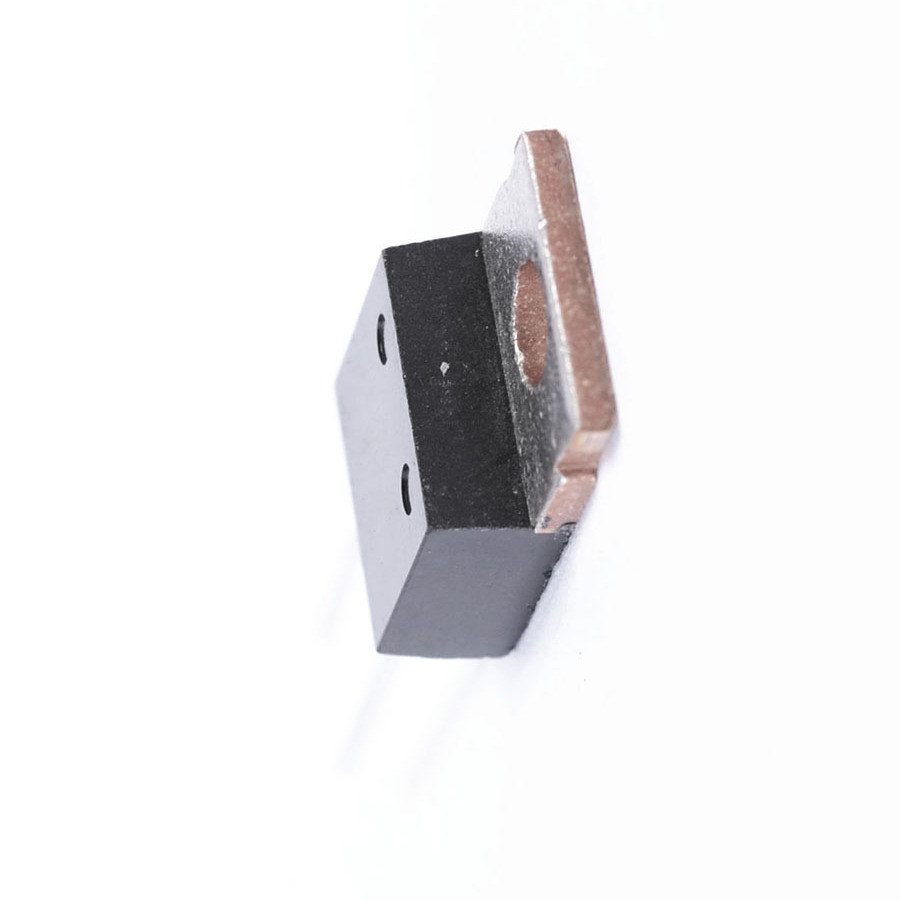

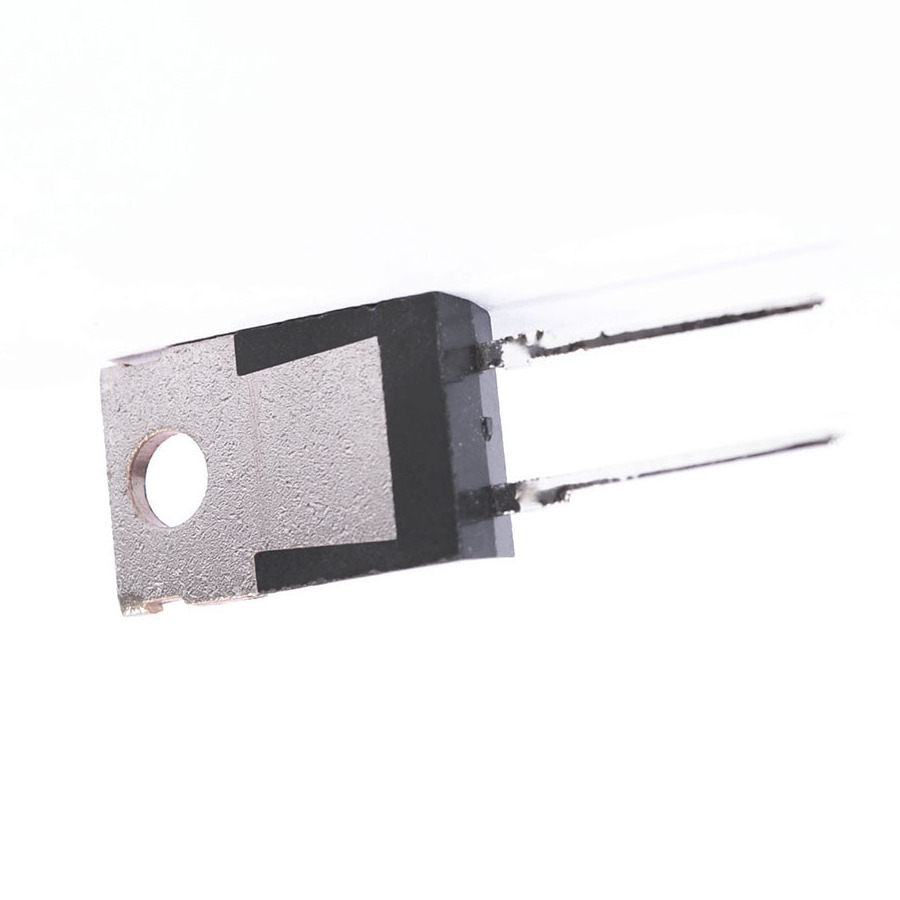

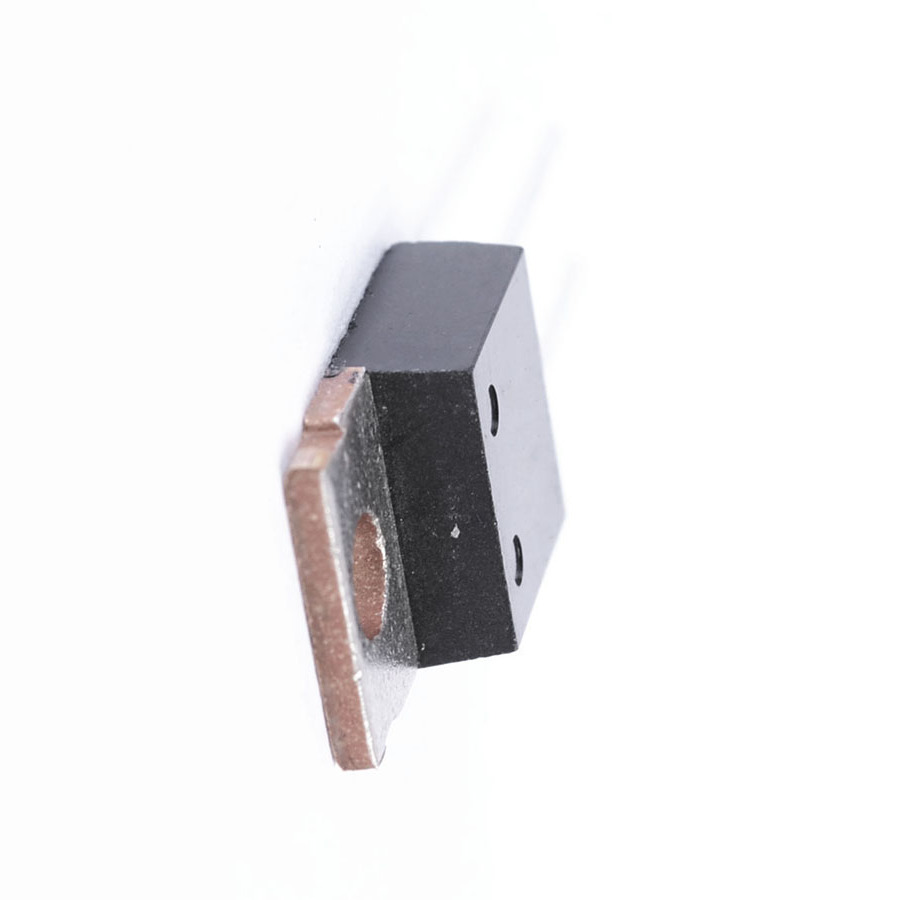

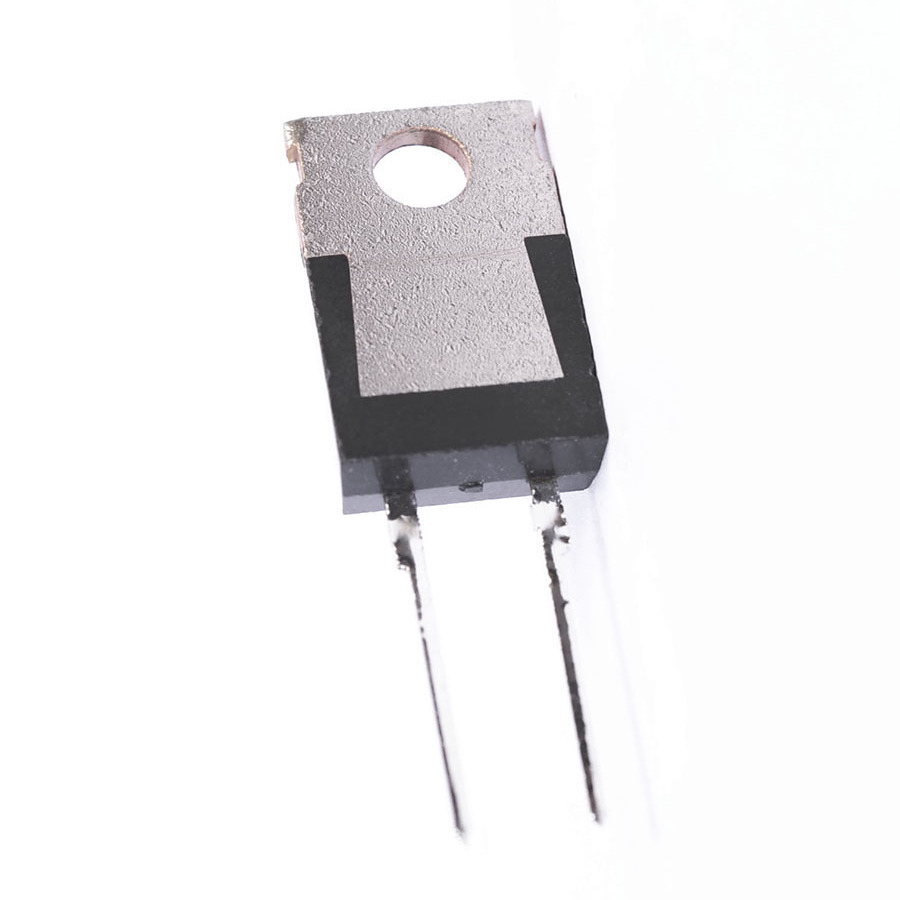

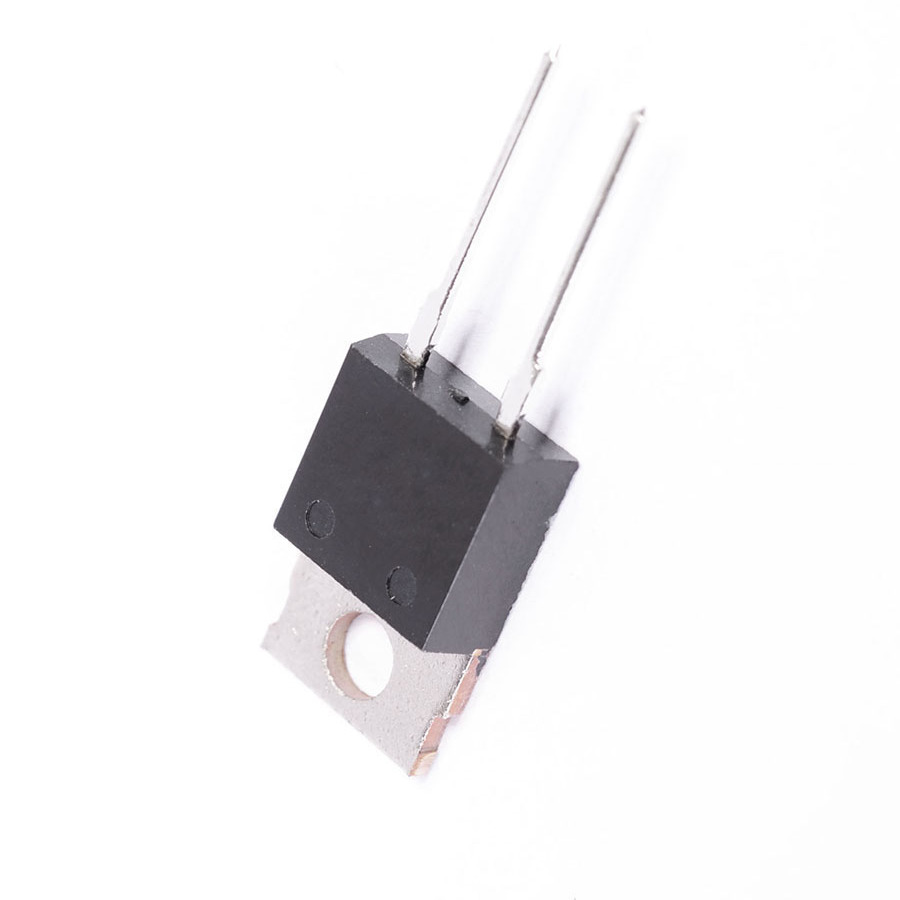

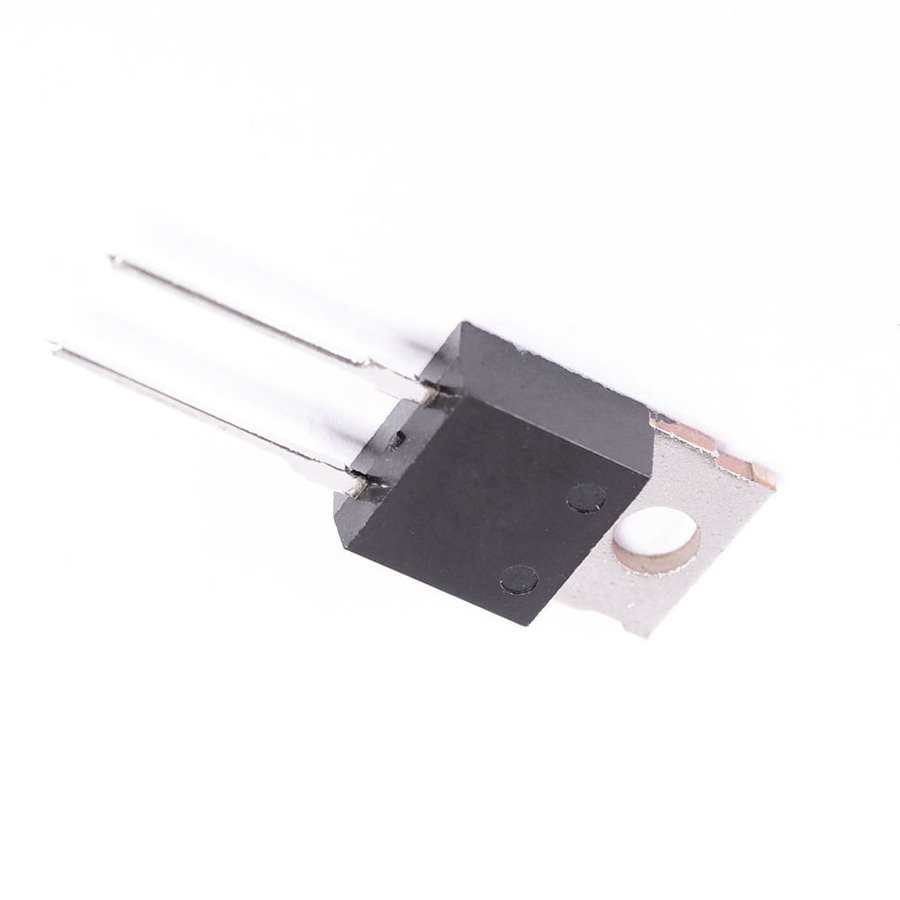

2SD314 Transistor Silicon NPN CASE: TO220AC MAKE: Generic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 13 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD314 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO220AC
Manufacturer SANYO
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 30
Max. hFE 320
Min hFE 40
Ic Max. (A) 3.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Trans. Freq (Hz) Min. 8.0M
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 130 pF
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 115431
