2SD49
View detailed images (12)

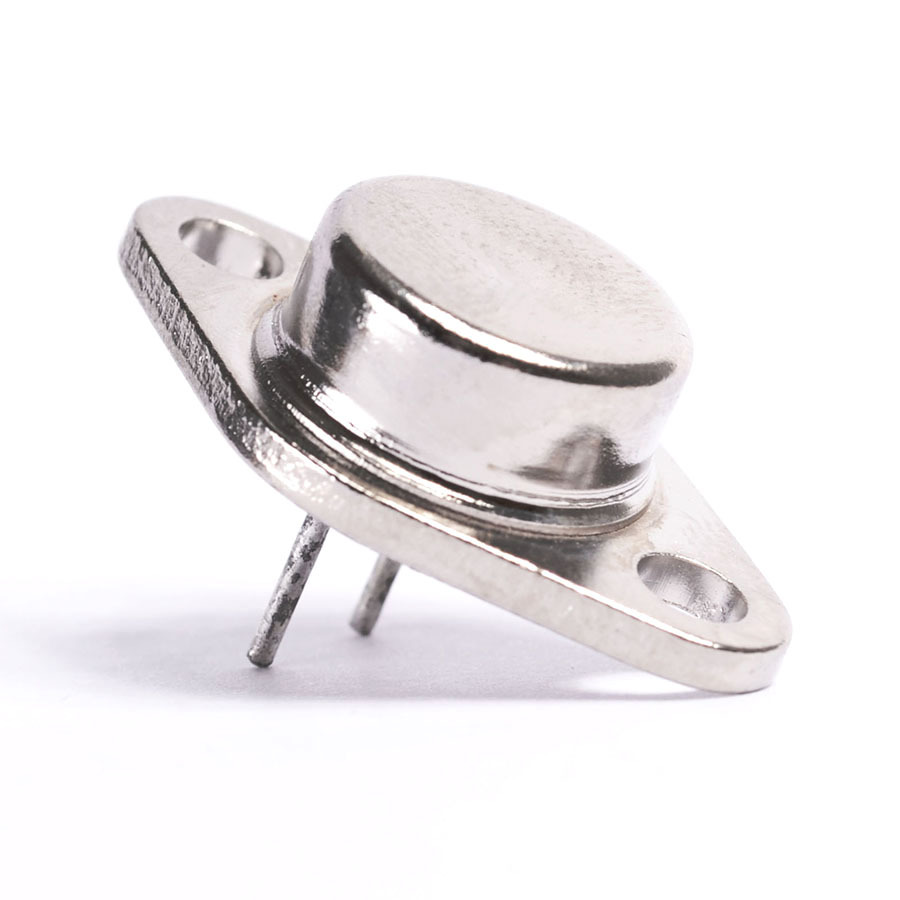

2SD49

SKU: 2SD49

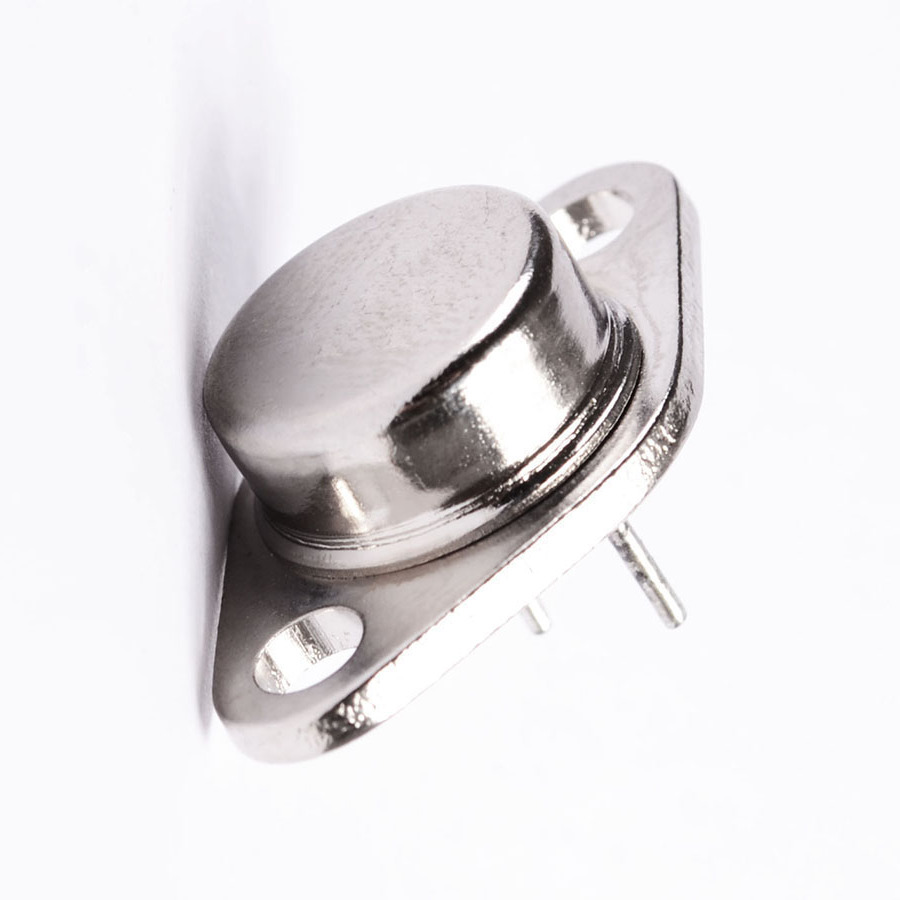

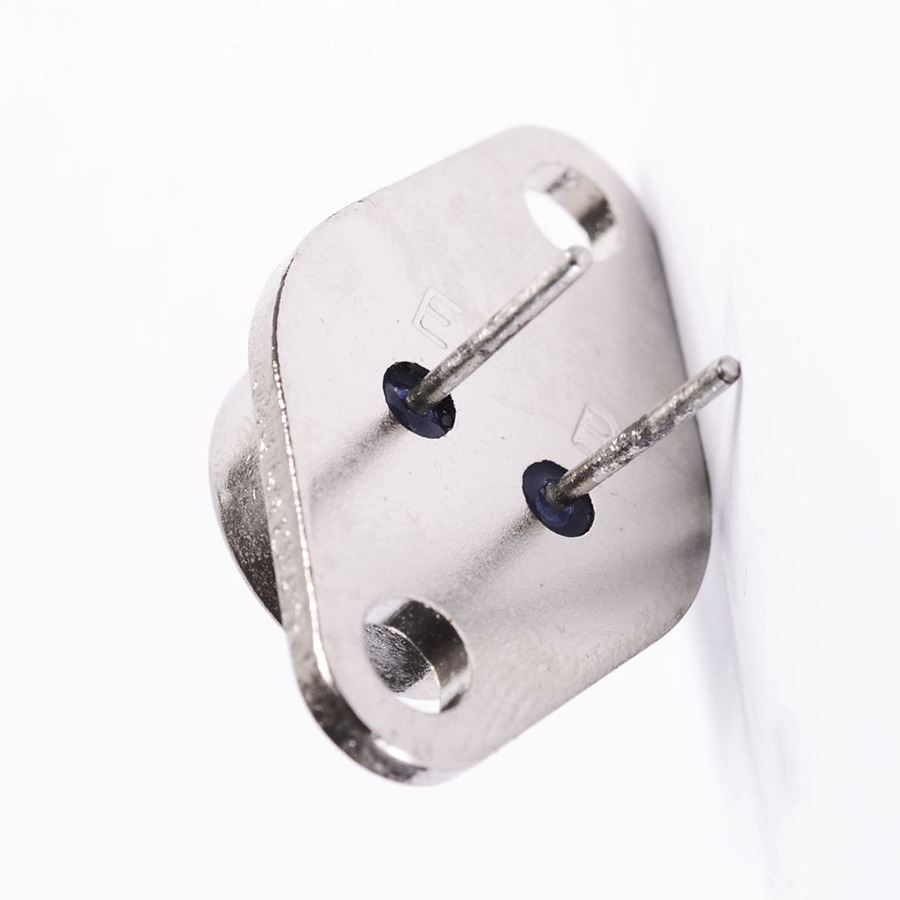

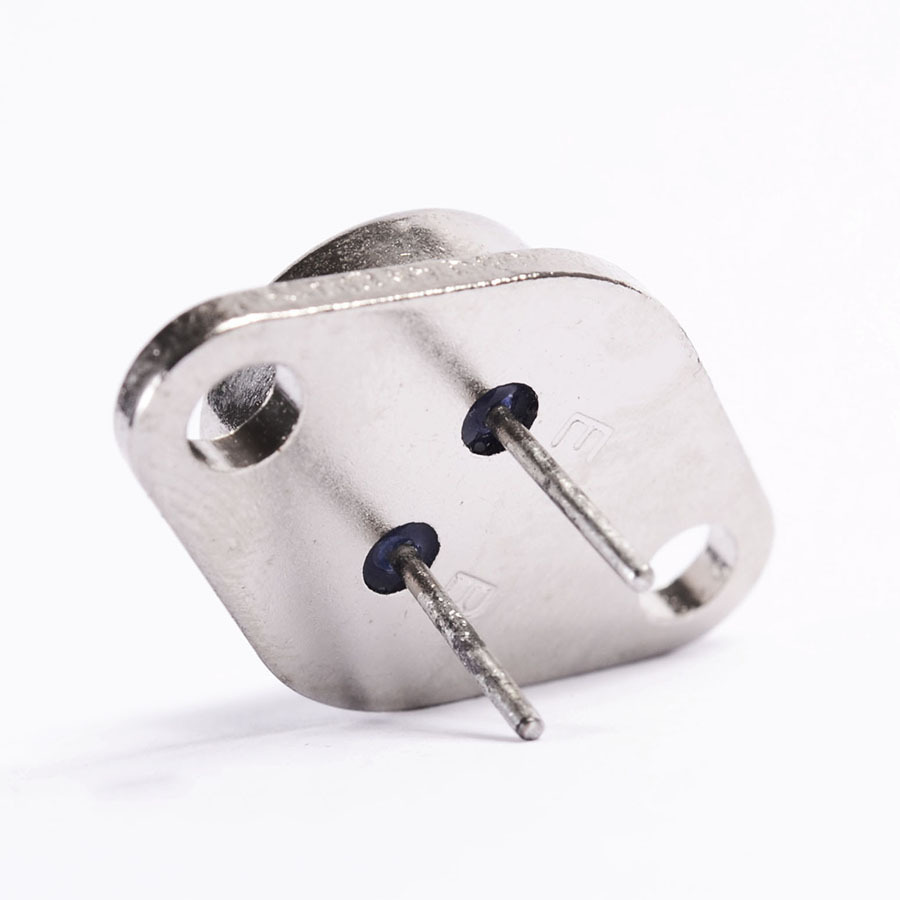

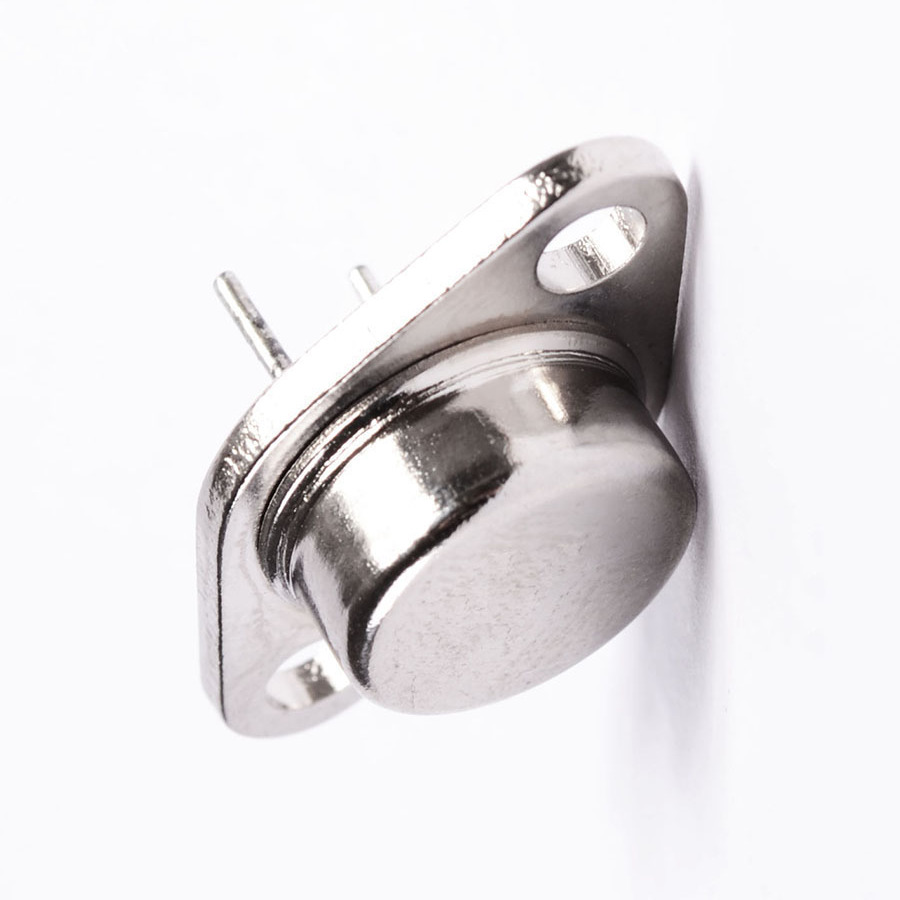

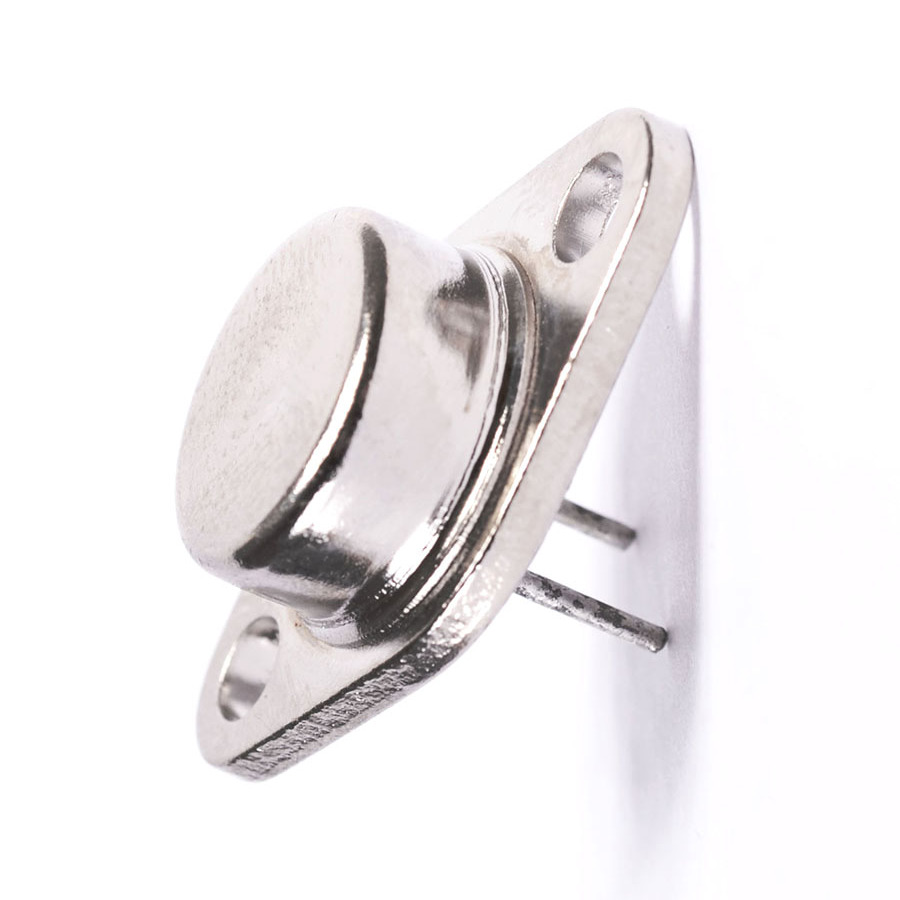

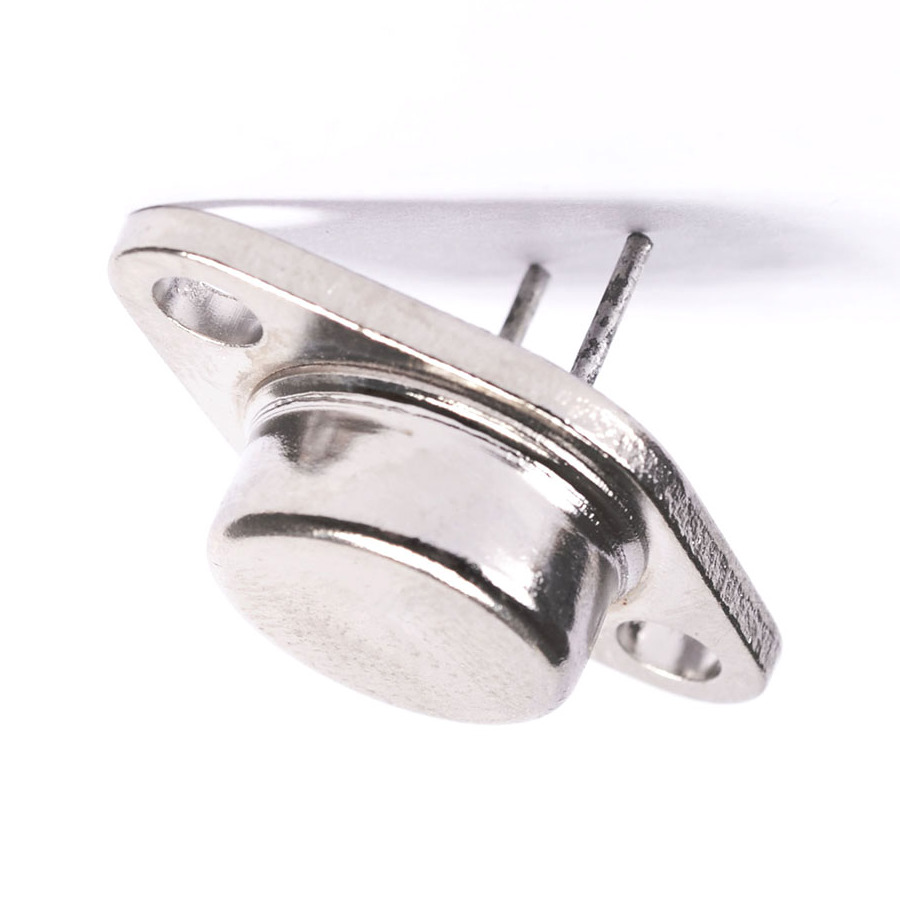

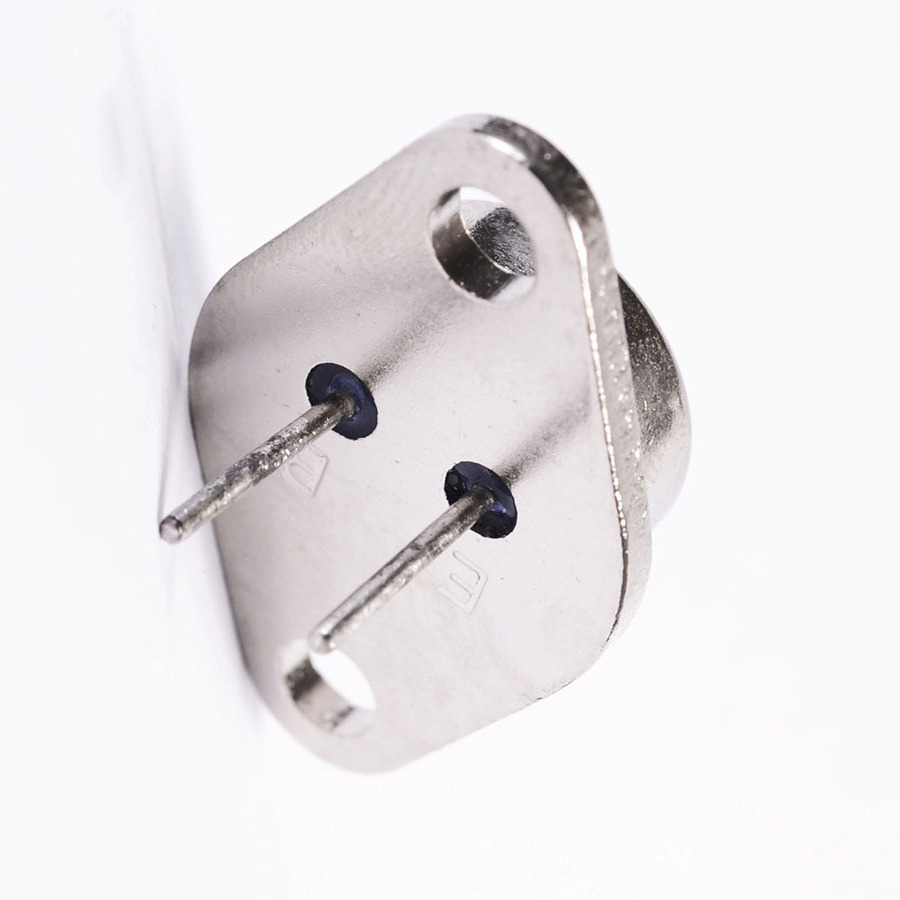

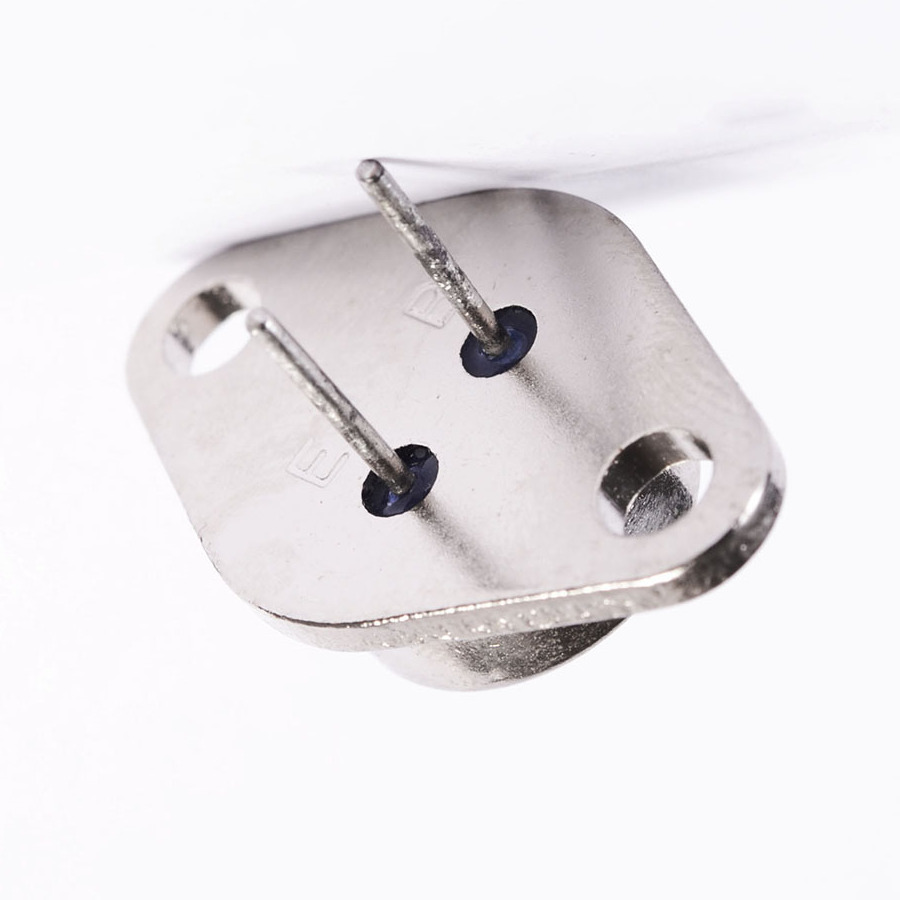

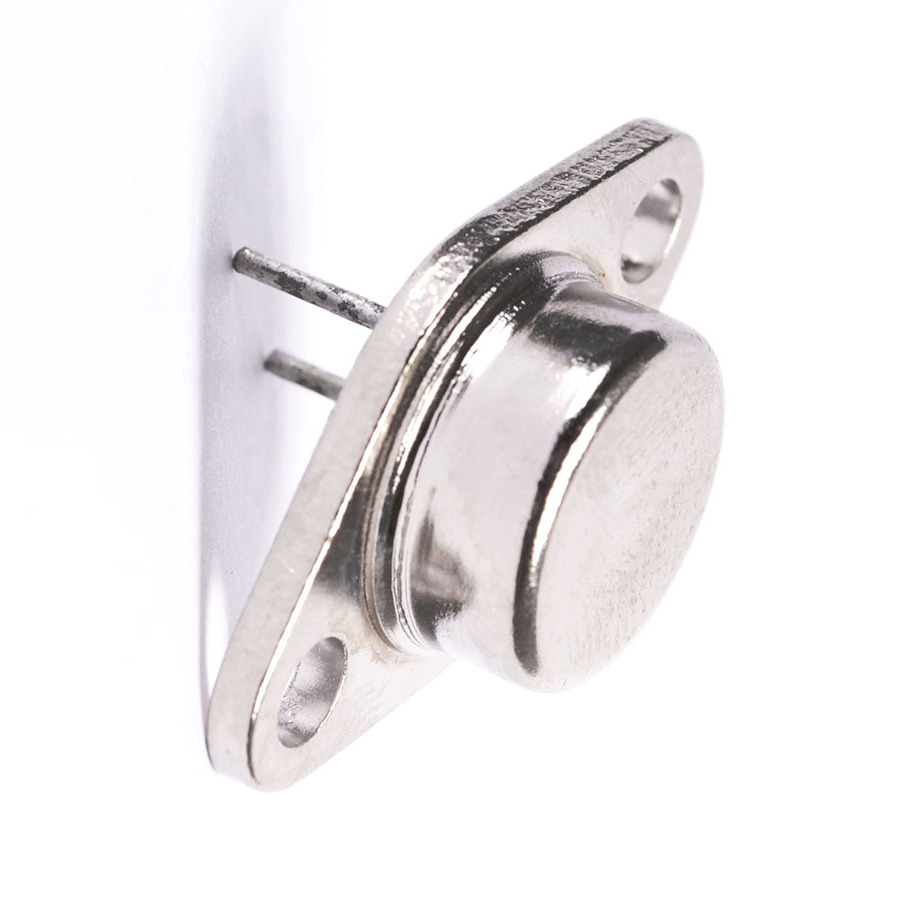

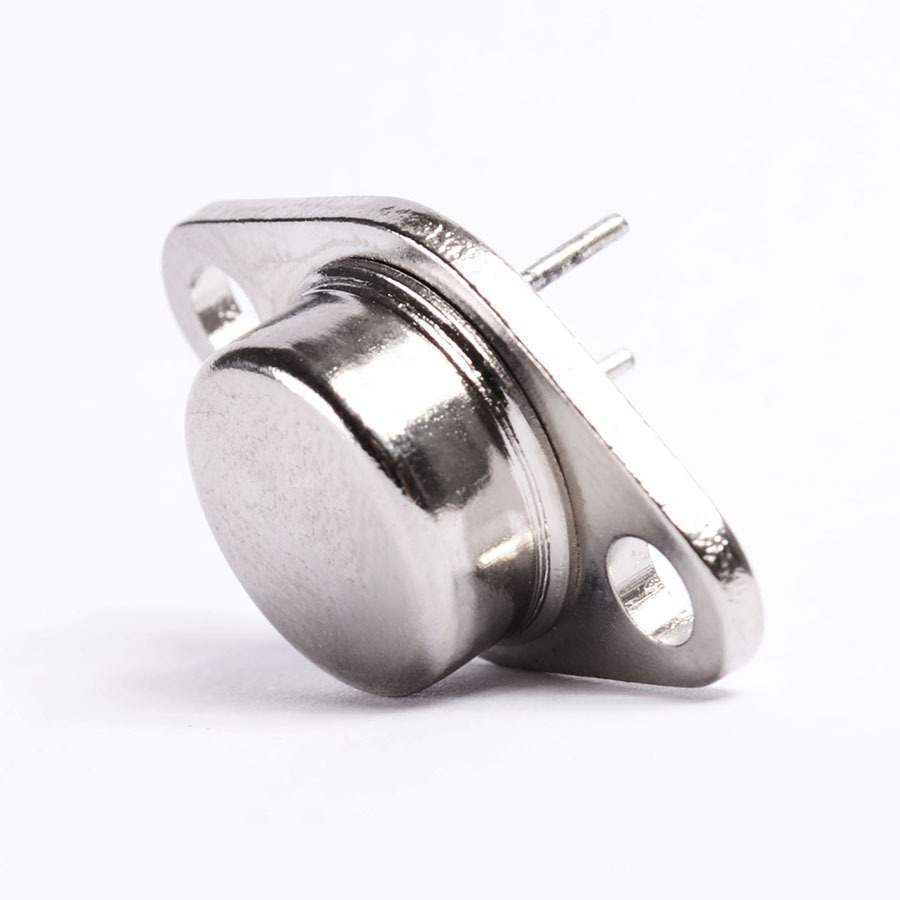

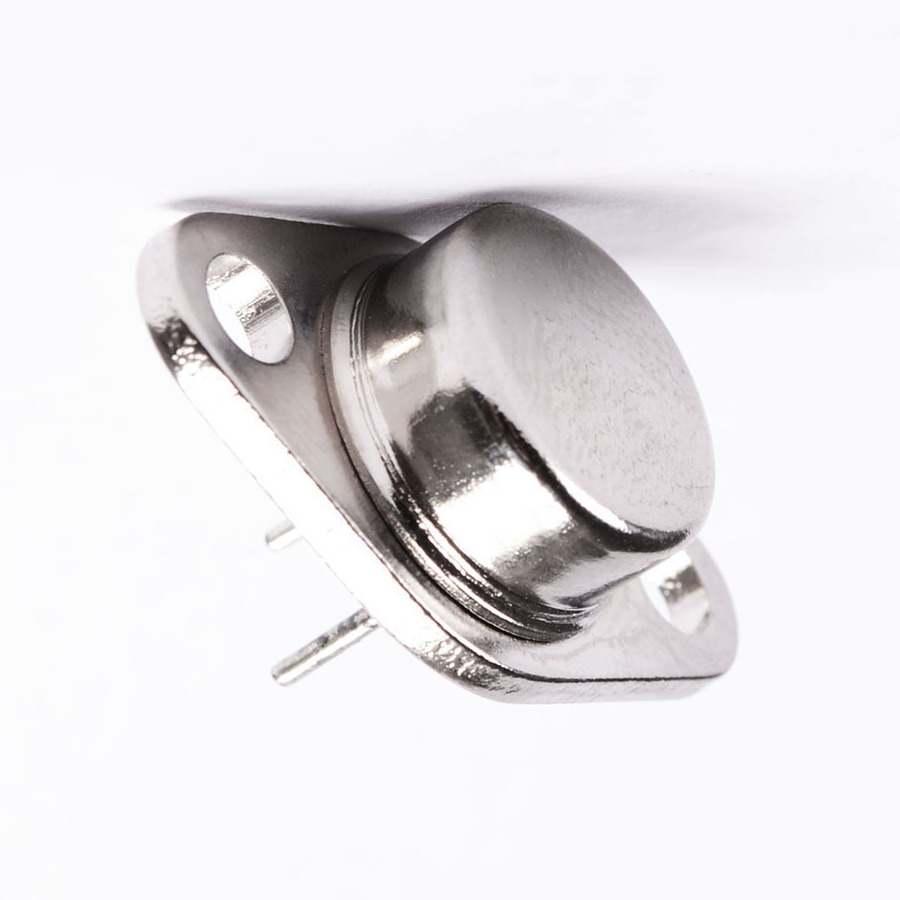

2SD49 Transistor Silicon NPN CASE: SOT9 MAKE: Sony
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Sony
Vbr CBO 100
Vbr CEO 60
Max. PD (W) 18
Max. hFE 100
Min hFE 25
Ic Max. (A) 3.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 20u
Polarity NPN
R(sat) (Û) 600m-
Trans. Freq (Hz) Min. 2.0M
Oper. Temp (°C) Max. 140
@VCE (V) 3.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 18 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 25
