2SD56
View detailed images (12)

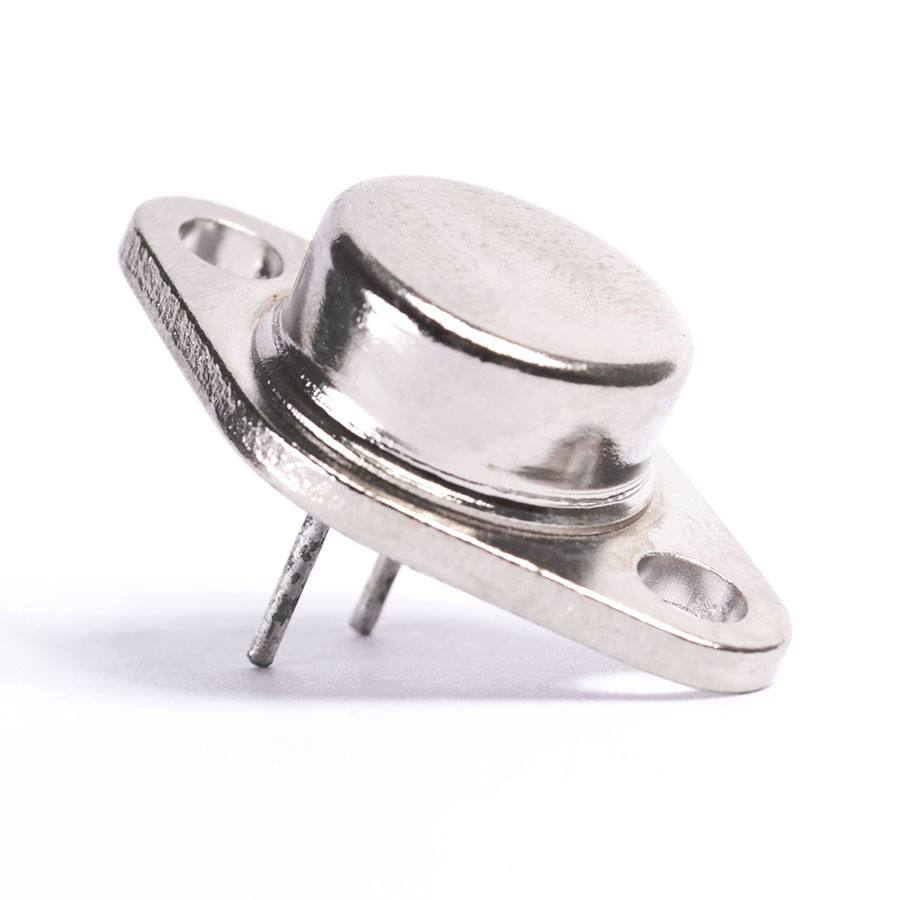

2SD56

SKU: 2SD56

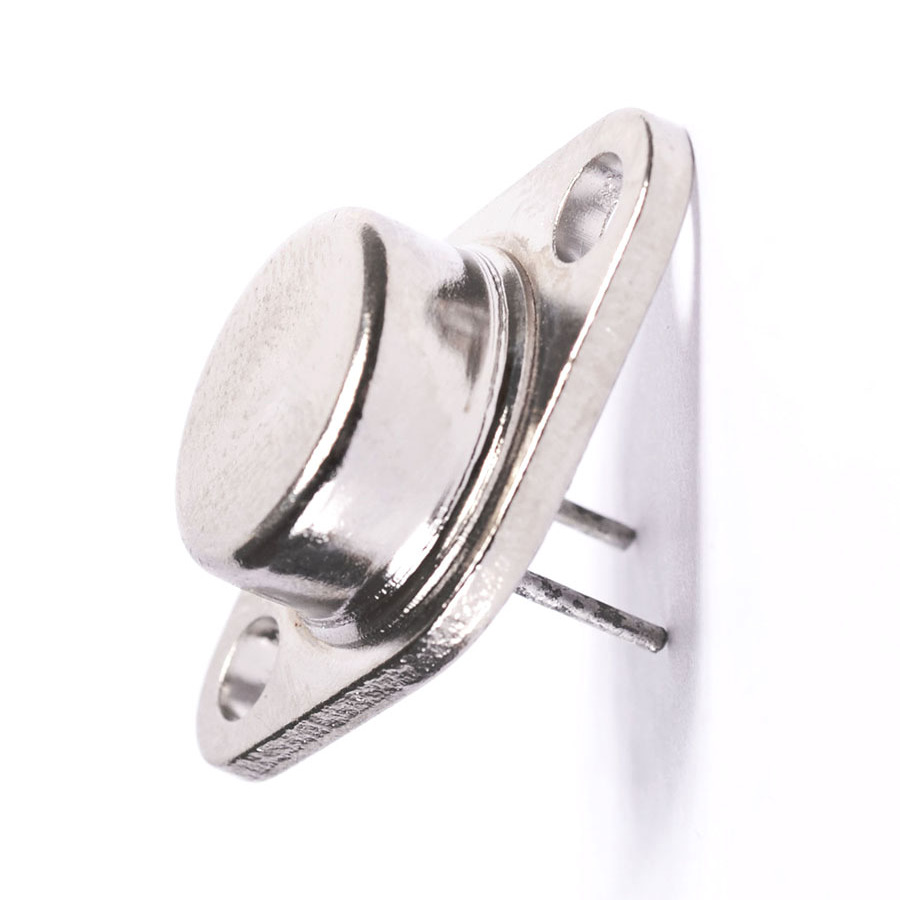

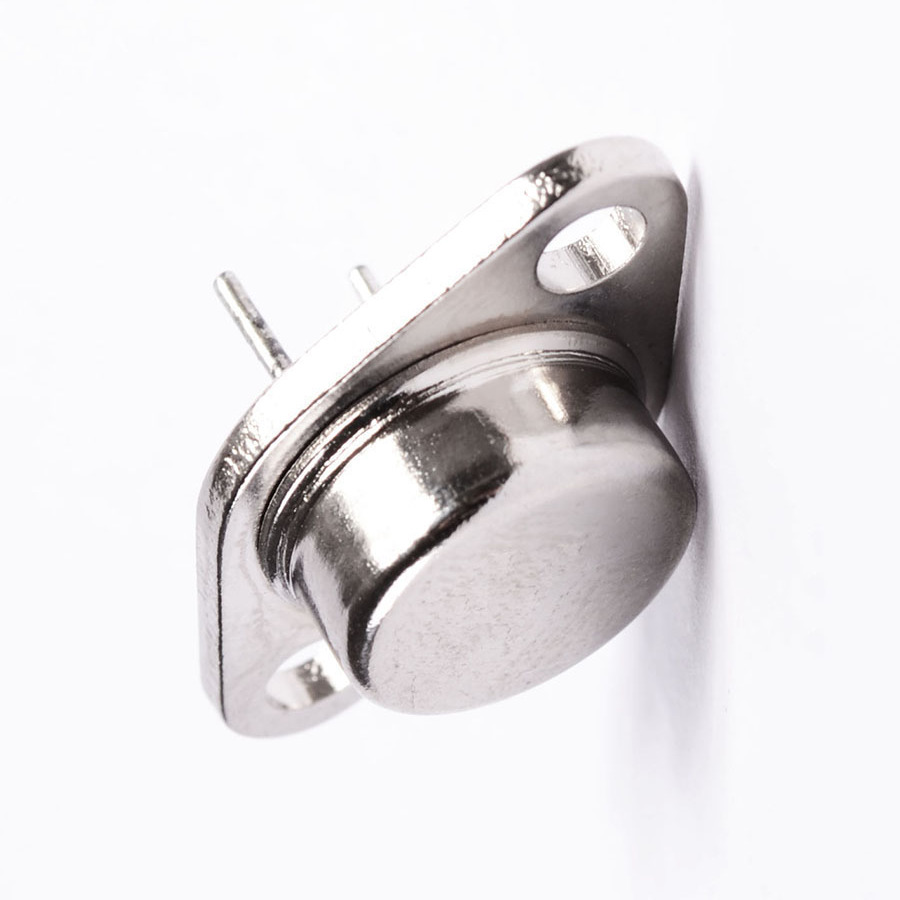

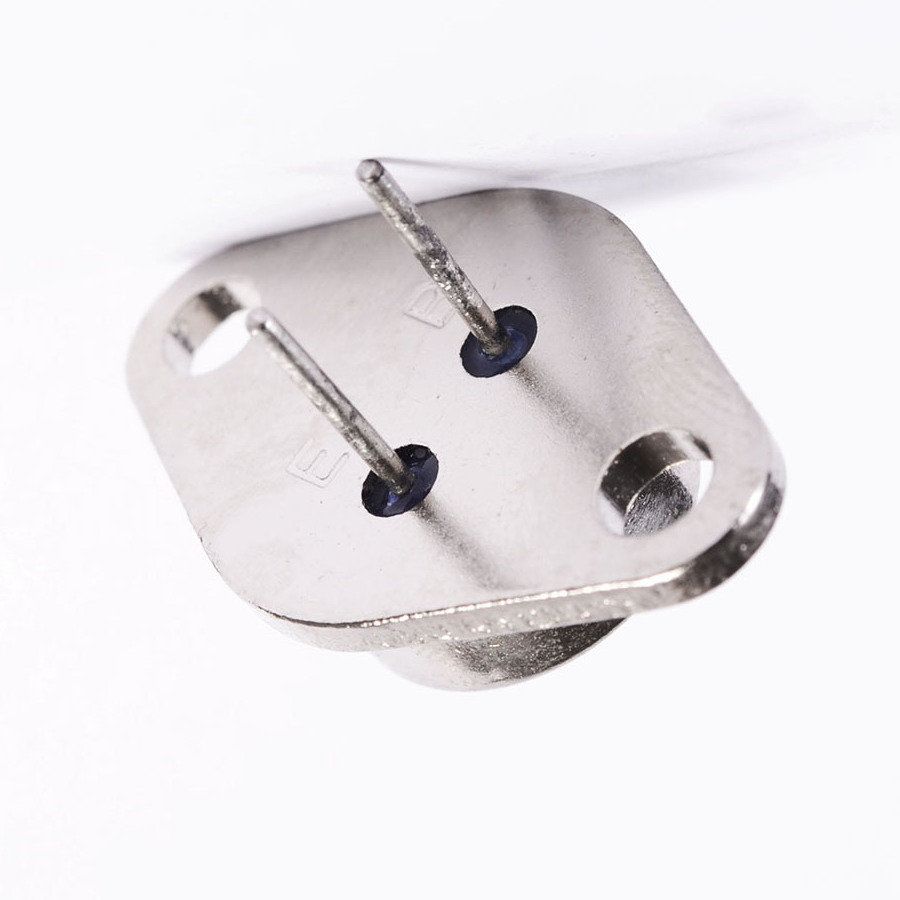

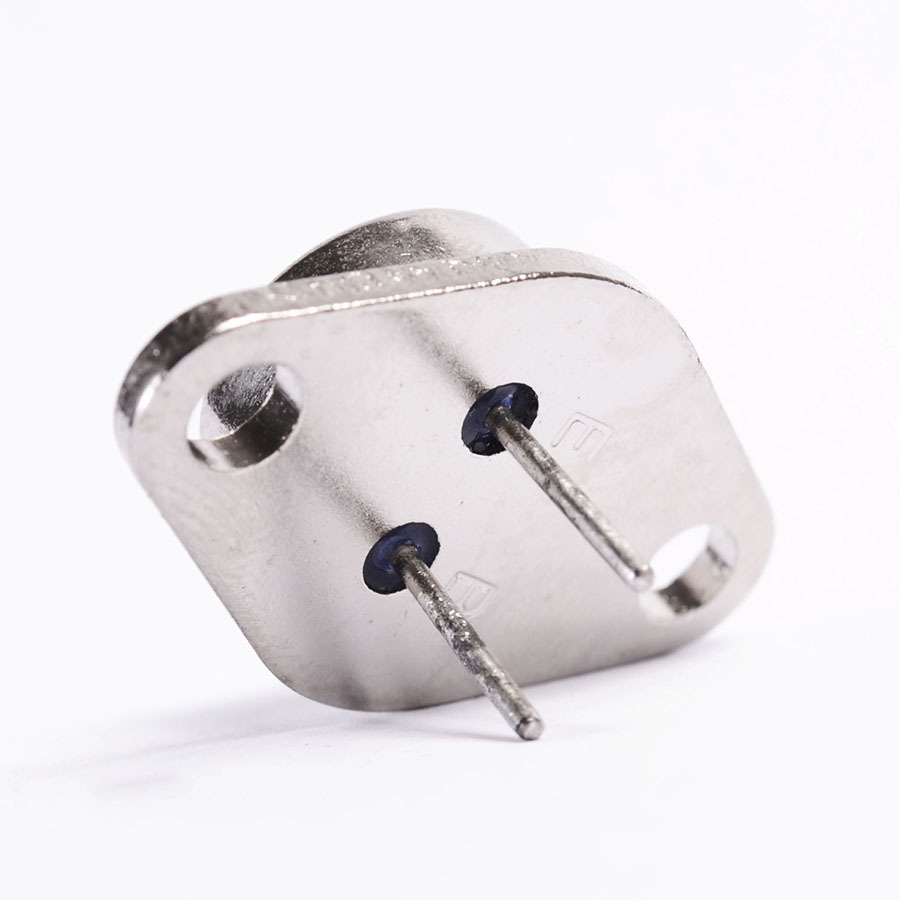

2SD56 Transistor Silicon NPN CASE: SOT9 MAKE: Sony
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer Sony
Vbr CBO 220
Vbr CEO 80
Max. PD (W) 30
Max. hFE 150
Min hFE 15
Ic Max. (A) 3.0
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Oper. Temp (°C) Max. 140
@VCE (V) 1.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 220 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 18 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 125 °C
Forward Current Transfer Ratio (hFE), MIN 15
SKU 579161
