2SD571
View detailed images (4)

2SD571

SKU: 2SD571

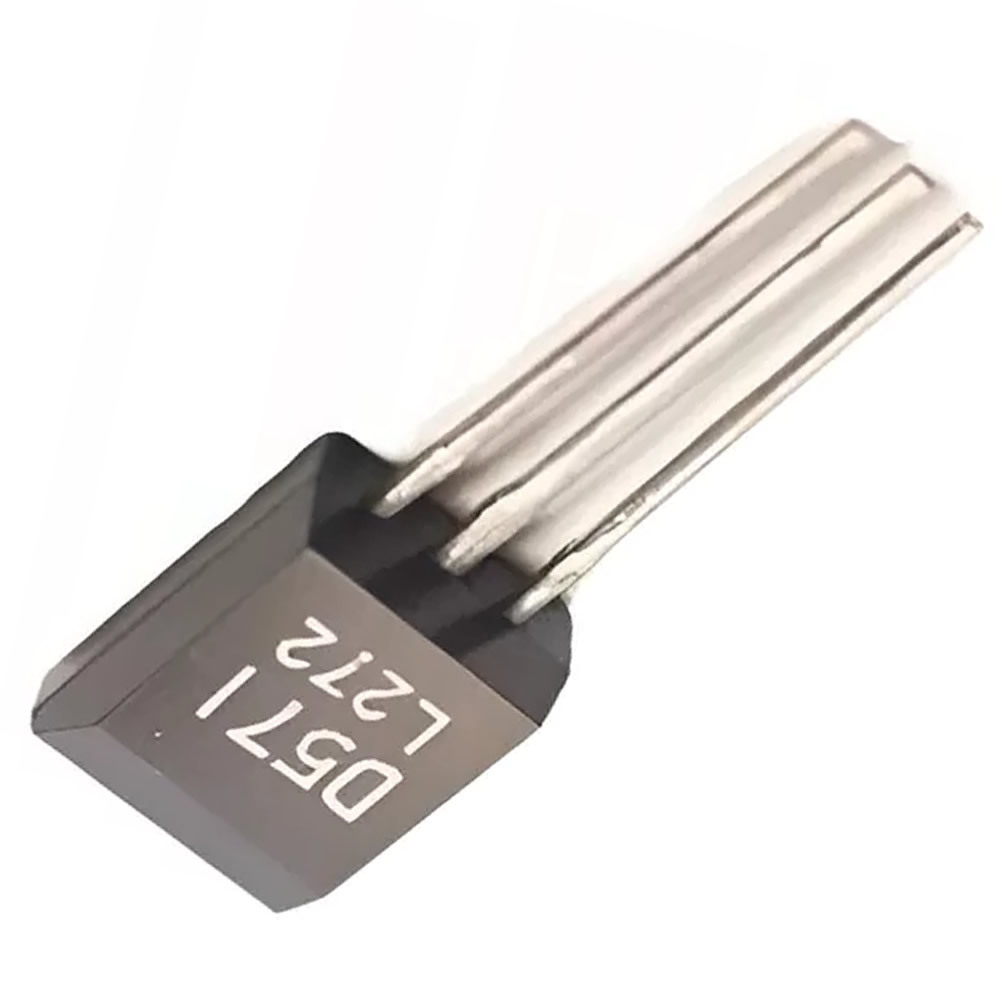

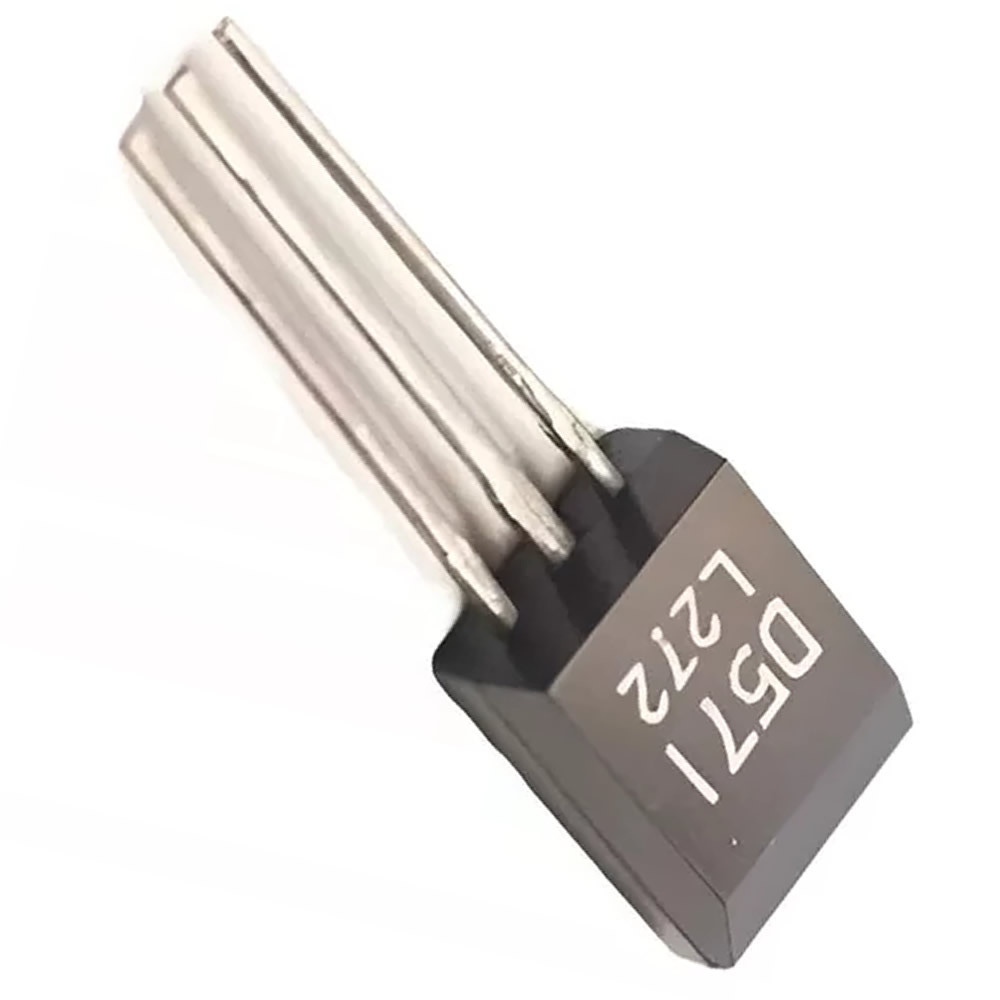

2SD571 Transistor Silicon NPN CASE: TO92G MAKE: NEC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 22 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD571 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92G
Manufacturer NEC
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 800m
C(ob) (F) 13p
Derate (Amb) (W/°C) 6.4m
hfe 90
Ic Max. (A) 700m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 110M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 150
@Ic (A) 100m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.8 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Collector Current |Ic max| 0.7 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 55 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 86766
