2SD638

2SD638

SKU: 2SD638

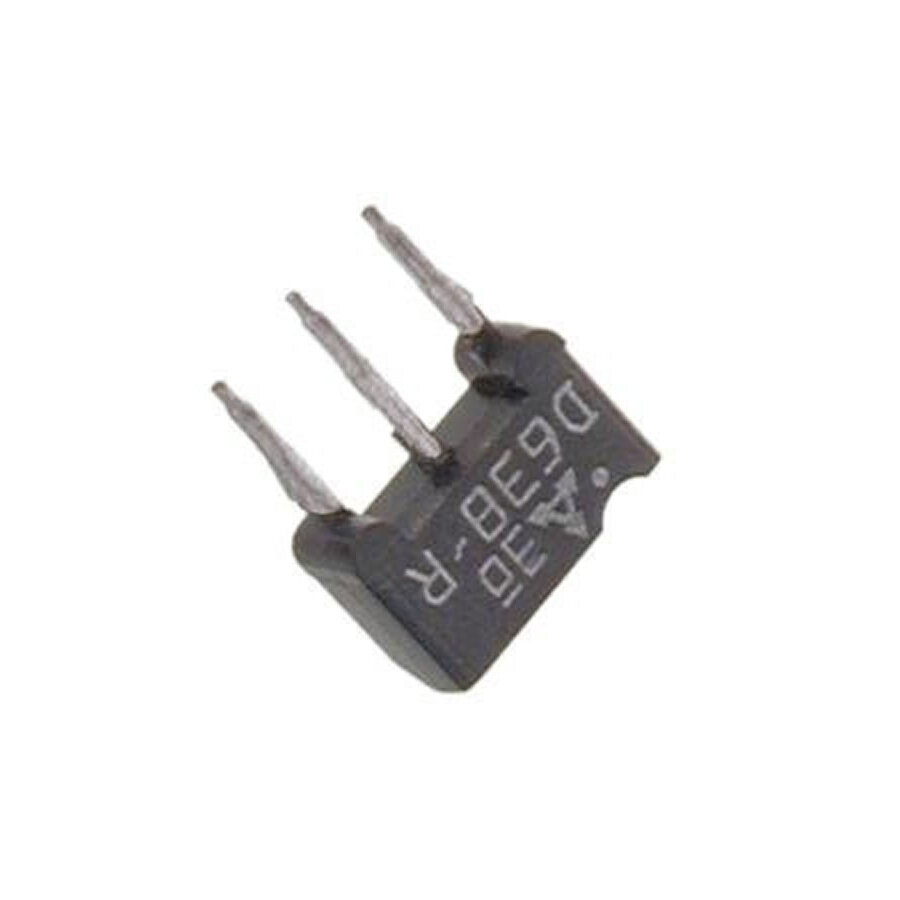

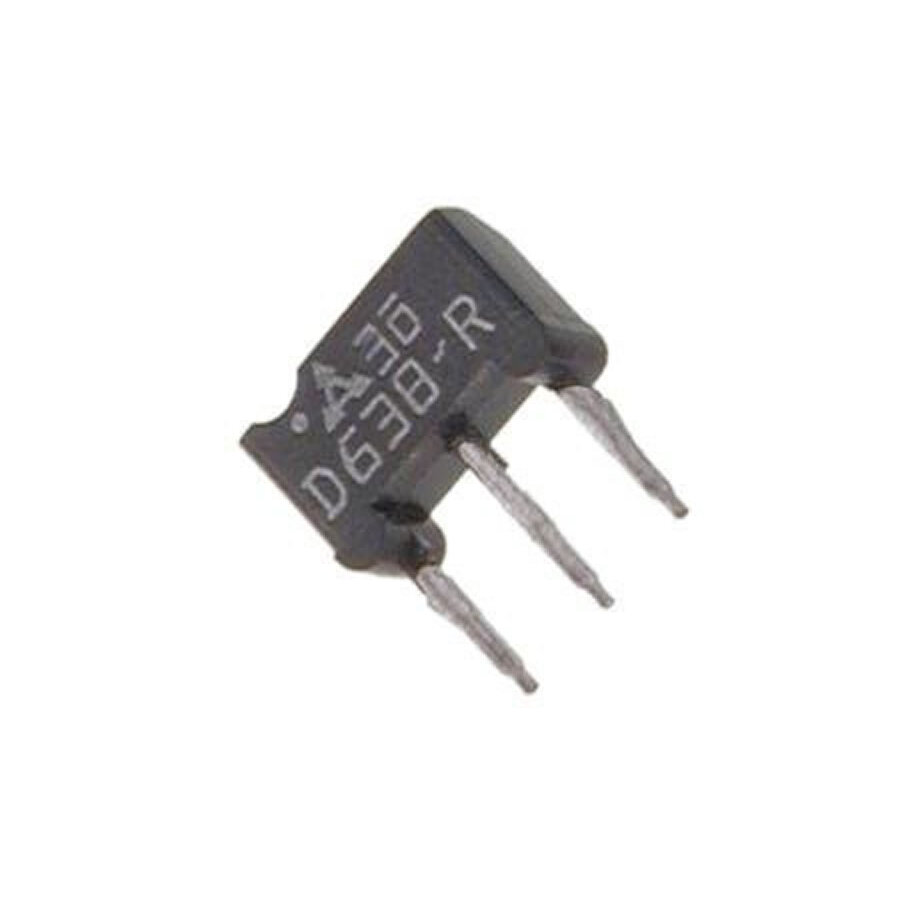

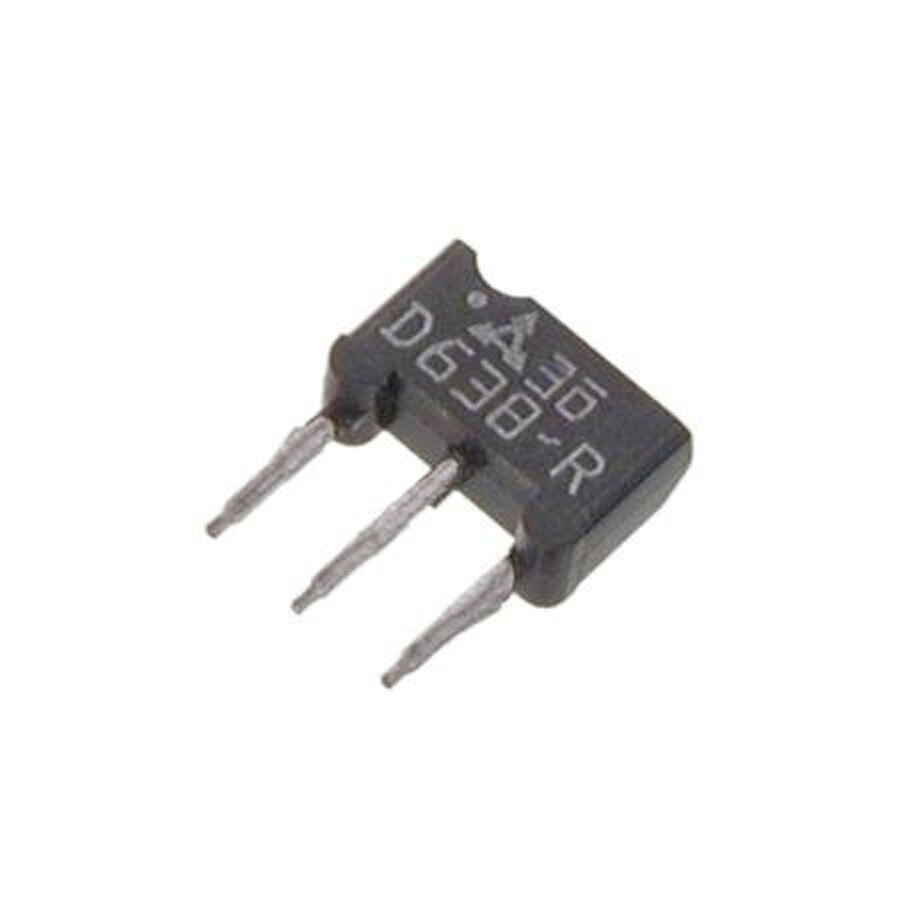

2SD638 is a silicon NPN transistor for medium-power general amplification, supplied in a SOT33 (Panasonic M-A1) package. Key ratings include VCBO 30 V, VCEO 25 V, VEBO 7 V, IC 0.5 A (peak 1 A), collector dissipation 600 mW and fT 200 MHz.
Price:
£9.59 Inc. VAT (£7.99 Ex. VAT)
£9.59 Inc. VAT (£7.99 Ex. VAT)
Qty
  • Last 125 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
2SD638 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT33
Manufacturer Panasonic
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 600m
C(ob) (F) 6.0p
Derate (Amb) (W/°C) 5.4m
hfe 60
Ic Max. (A) 1.0
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
@VCE (test) (V) 10
Oper. Temp (°C) Max. 135
@Ic (A) 10m
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.6 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 135 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 81331
