2SD745
View detailed images (13)

2SD745

SKU: 2SD745

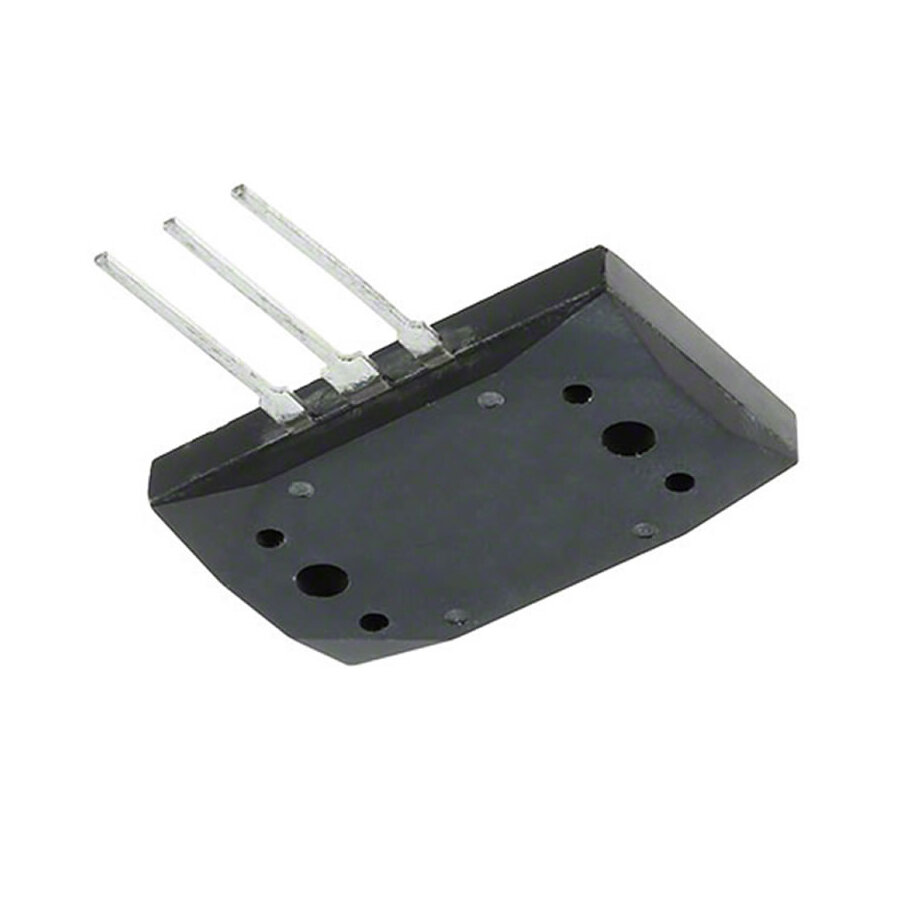

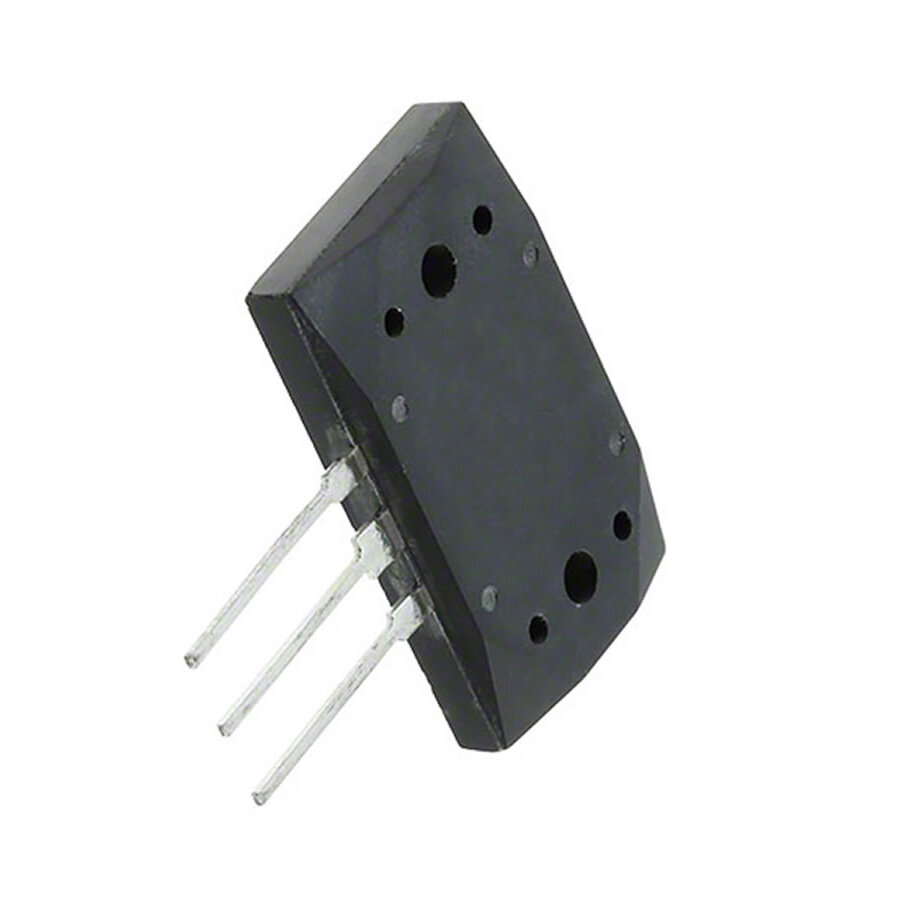

2SD745 Transistor - Case: XM20 Make: NEC
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • 4 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD745 Datasheet
Product specifications
Type Transistor Silicon NPN
Case MT200
Manufacturer NEC
Vbr CBO 140
Vbr CEO 140
Max. PD (W) 120
Max. hFE 200
Min hFE 40
Ic Max. (A) 10
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Derate Above 25°C .96
Trans. Freq (Hz) Min. 15M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 4-33
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 120 W
Maximum Collector-Base Voltage |Vcb| 140 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 270 pF
Transition Frequency (ft): 7.5 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 82344
