2SD745B
View detailed images (13)

2SD745B

SKU: 2SD745B

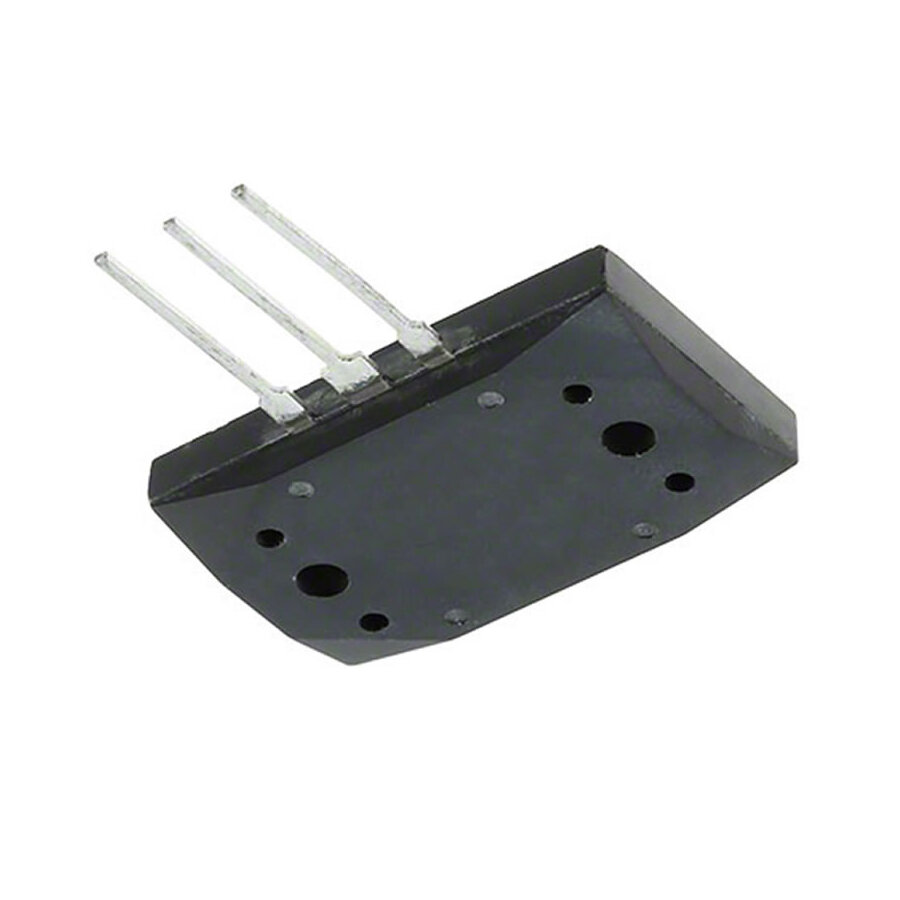

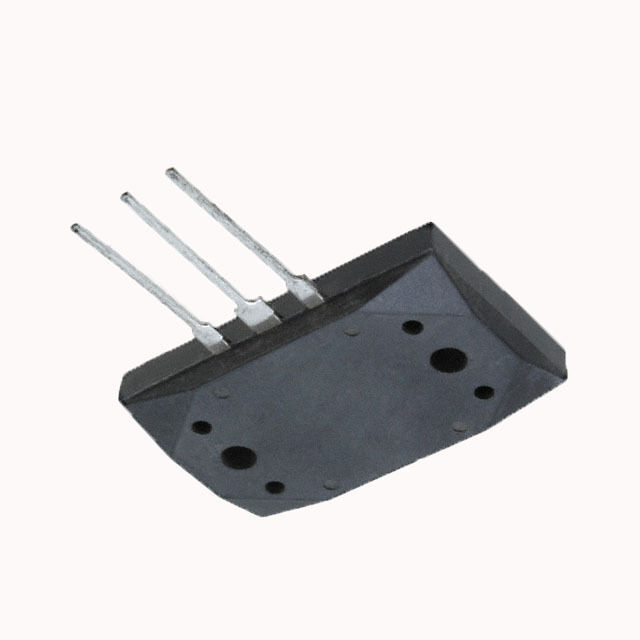

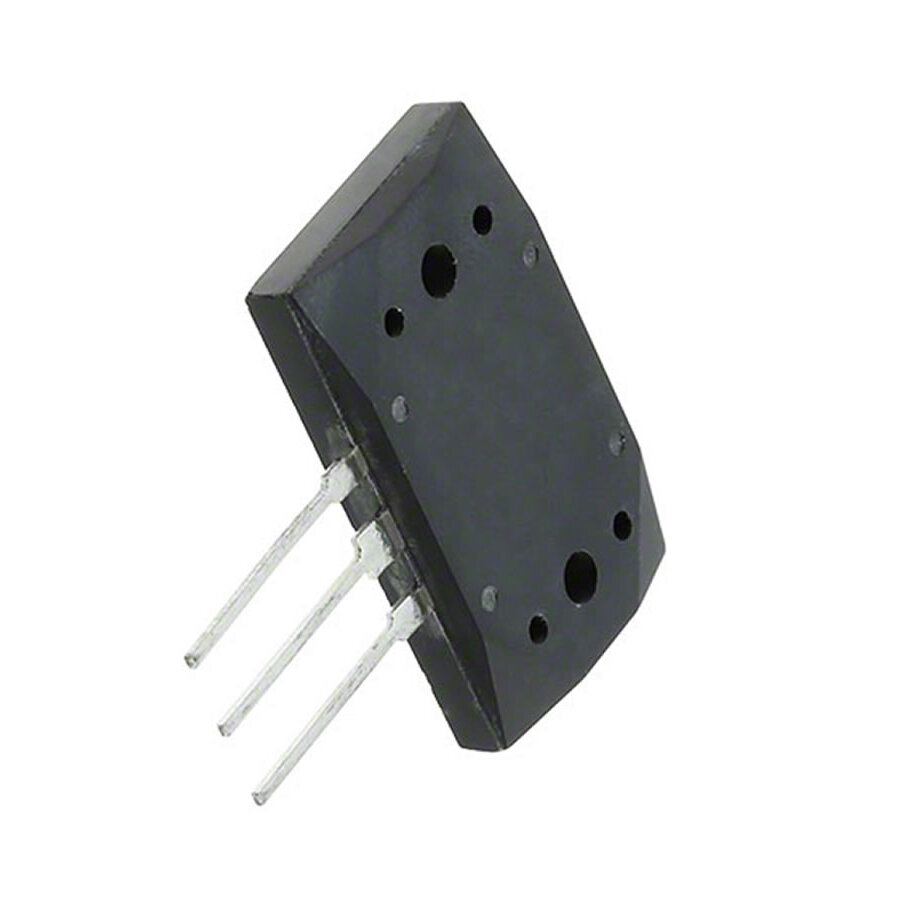

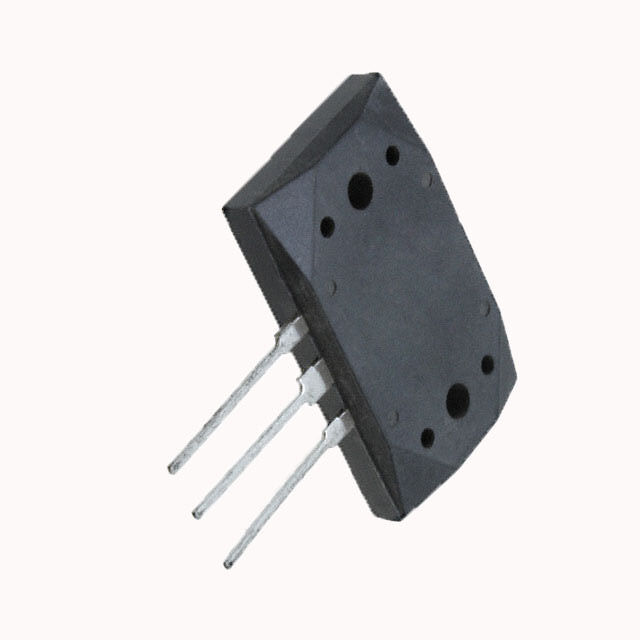

2SD745B Transistor Silicon NPN CASE: MT200 MAKE: Generic
Datasheet
2SD745B Datasheet
Product specifications
Type Transistor Silicon NPN
Case MT200
Manufacturer Unknow
Vbr CBO 160
Vbr CEO 160
Max. PD (W) 120
Max. hFE 200
Min hFE 40
Ic Max. (A) 10
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Derate Above 25°C .96
Trans. Freq (Hz) Min. 15M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 4-33
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 120 W
Maximum Collector-Base Voltage |Vcb| 180 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 270 pF
Transition Frequency (ft): 7.5 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 346112
