2SD746
View detailed images (13)

2SD746

SKU: 2SD746

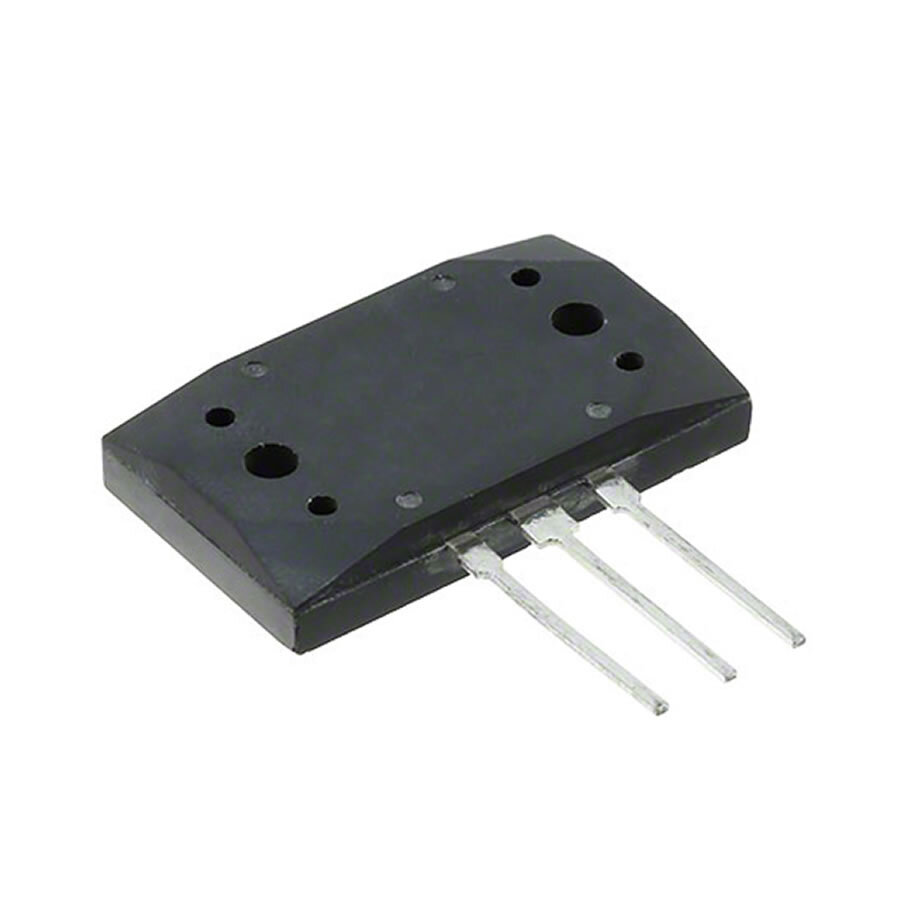

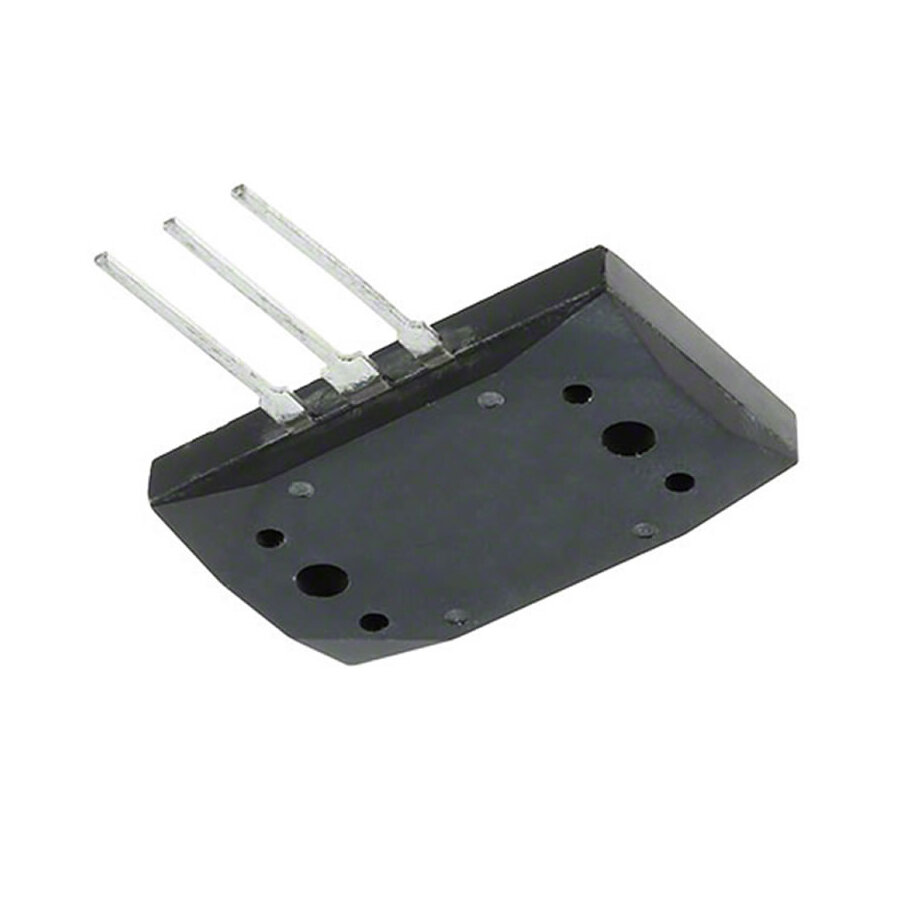

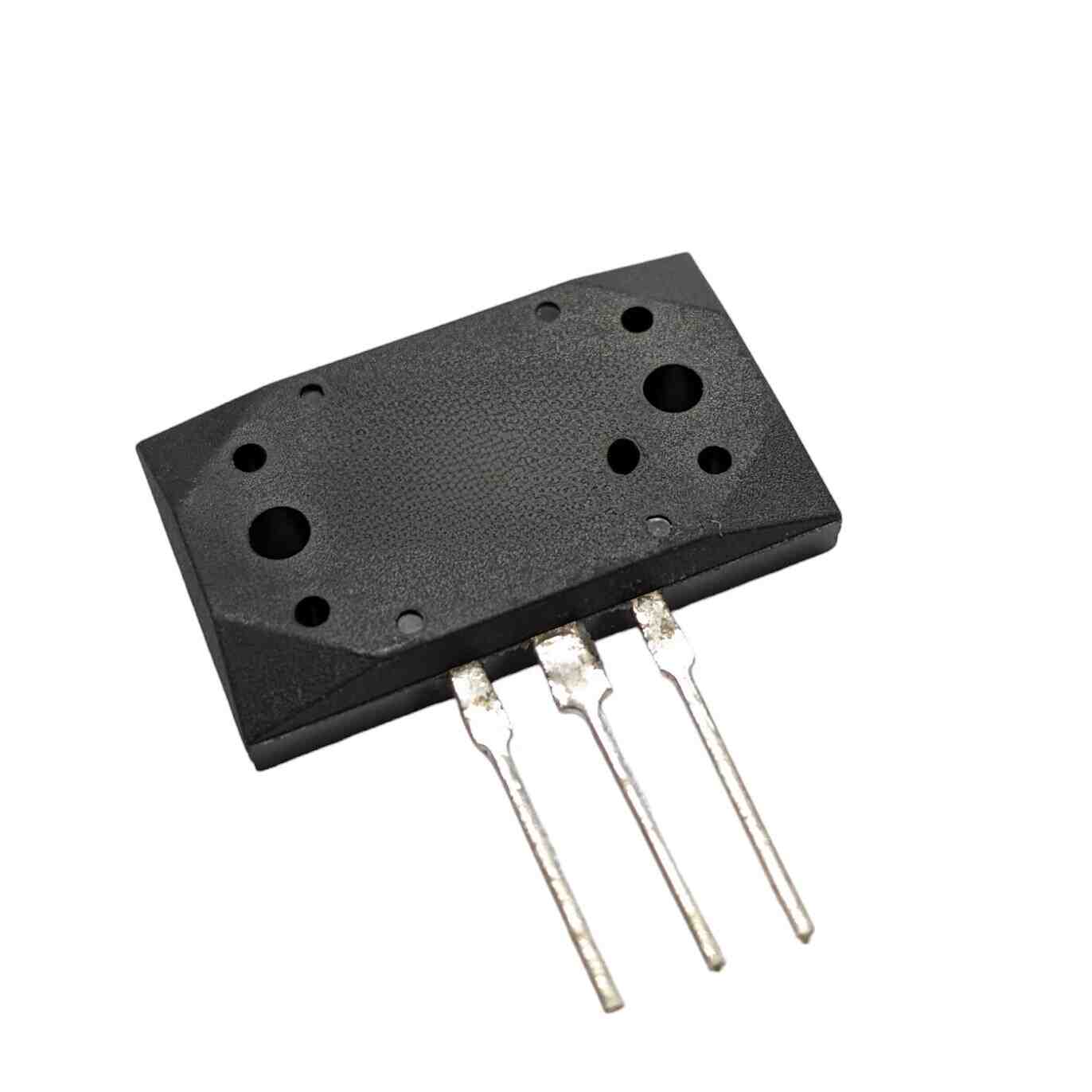

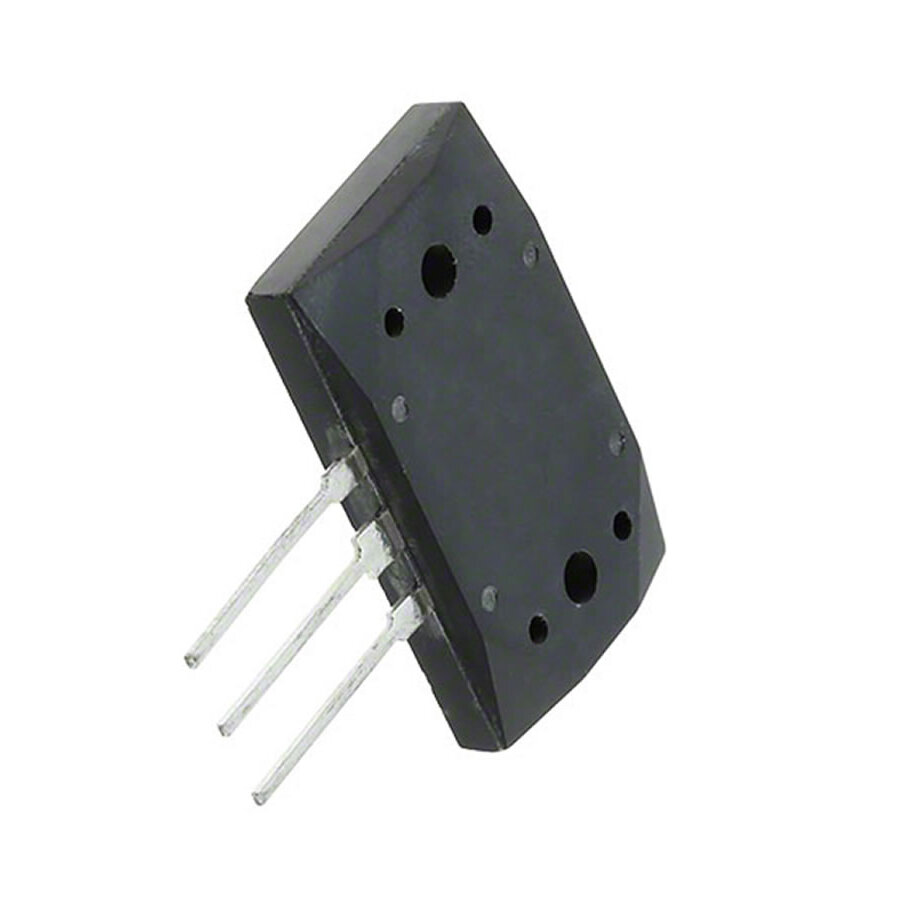

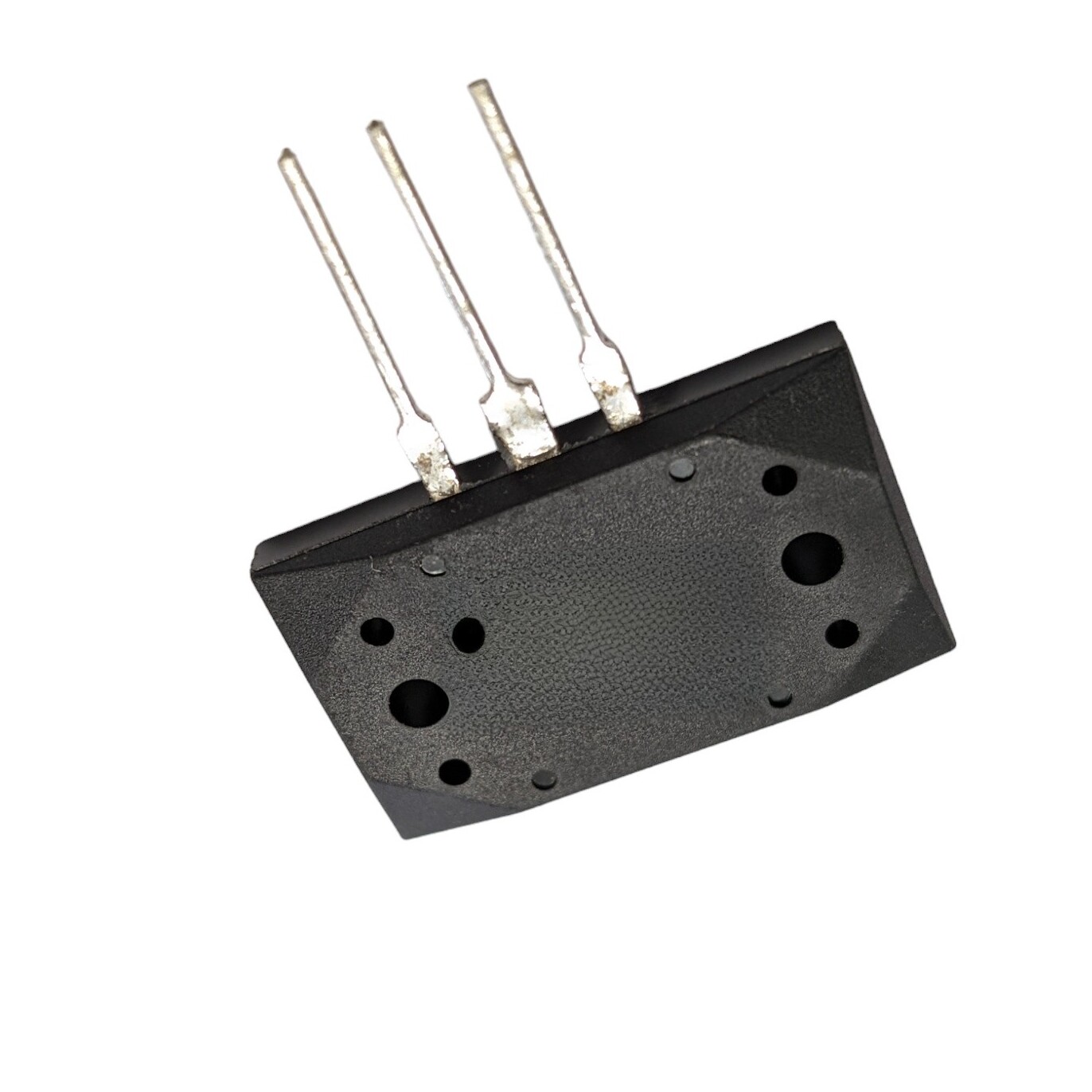

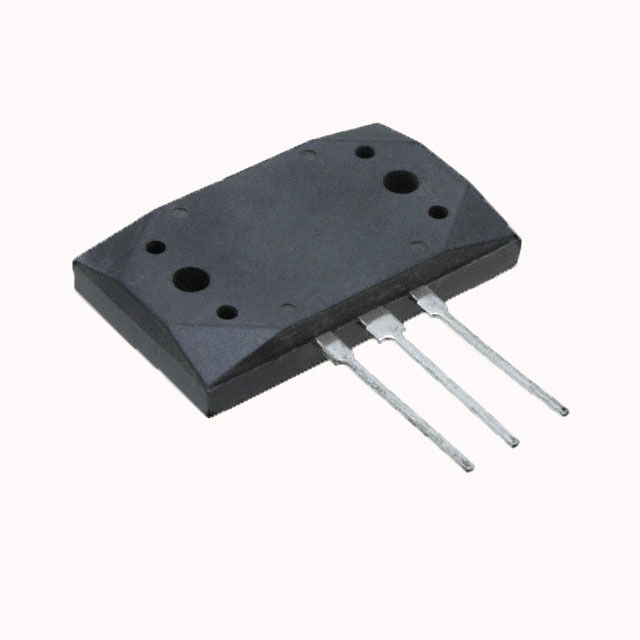

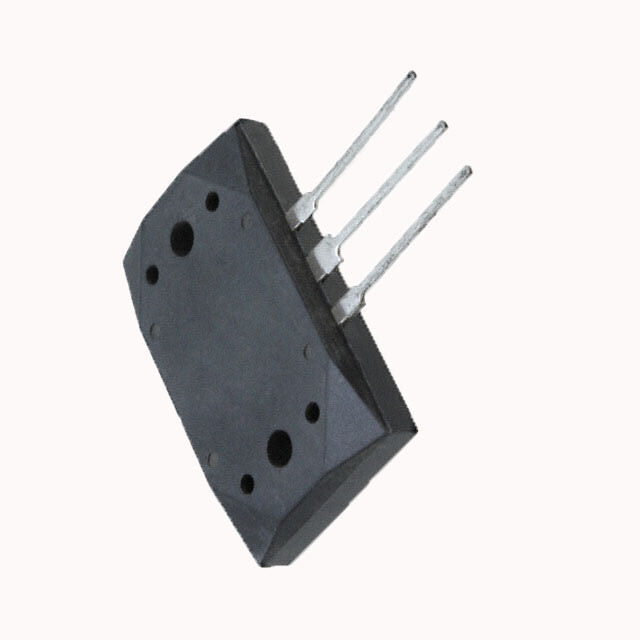

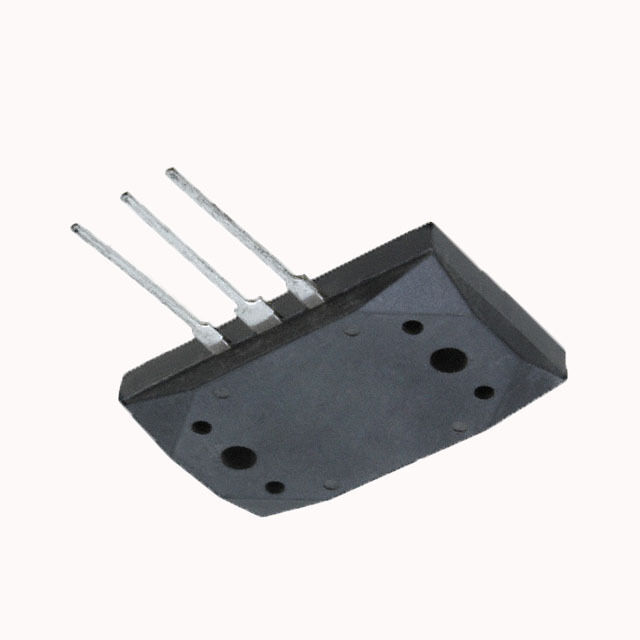

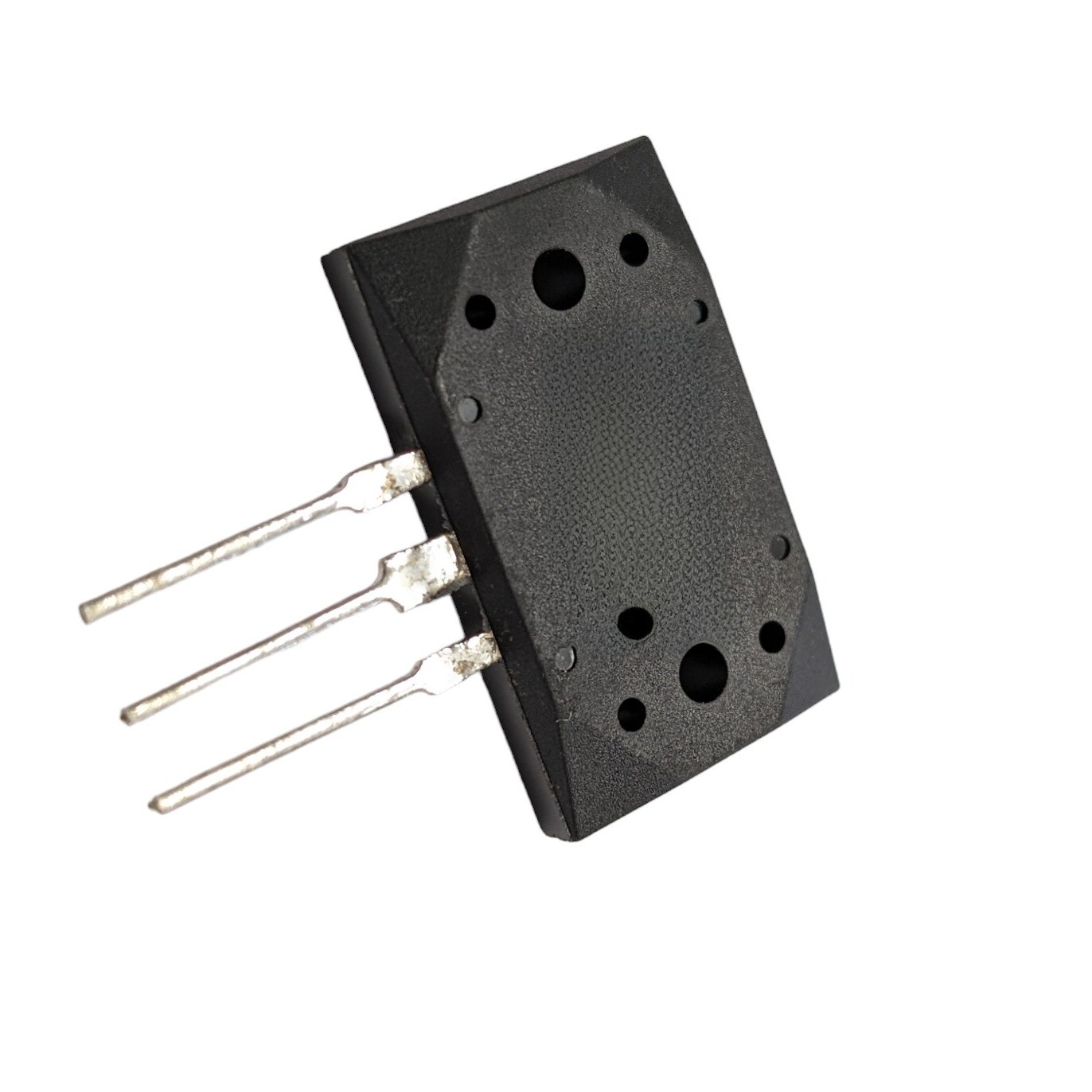

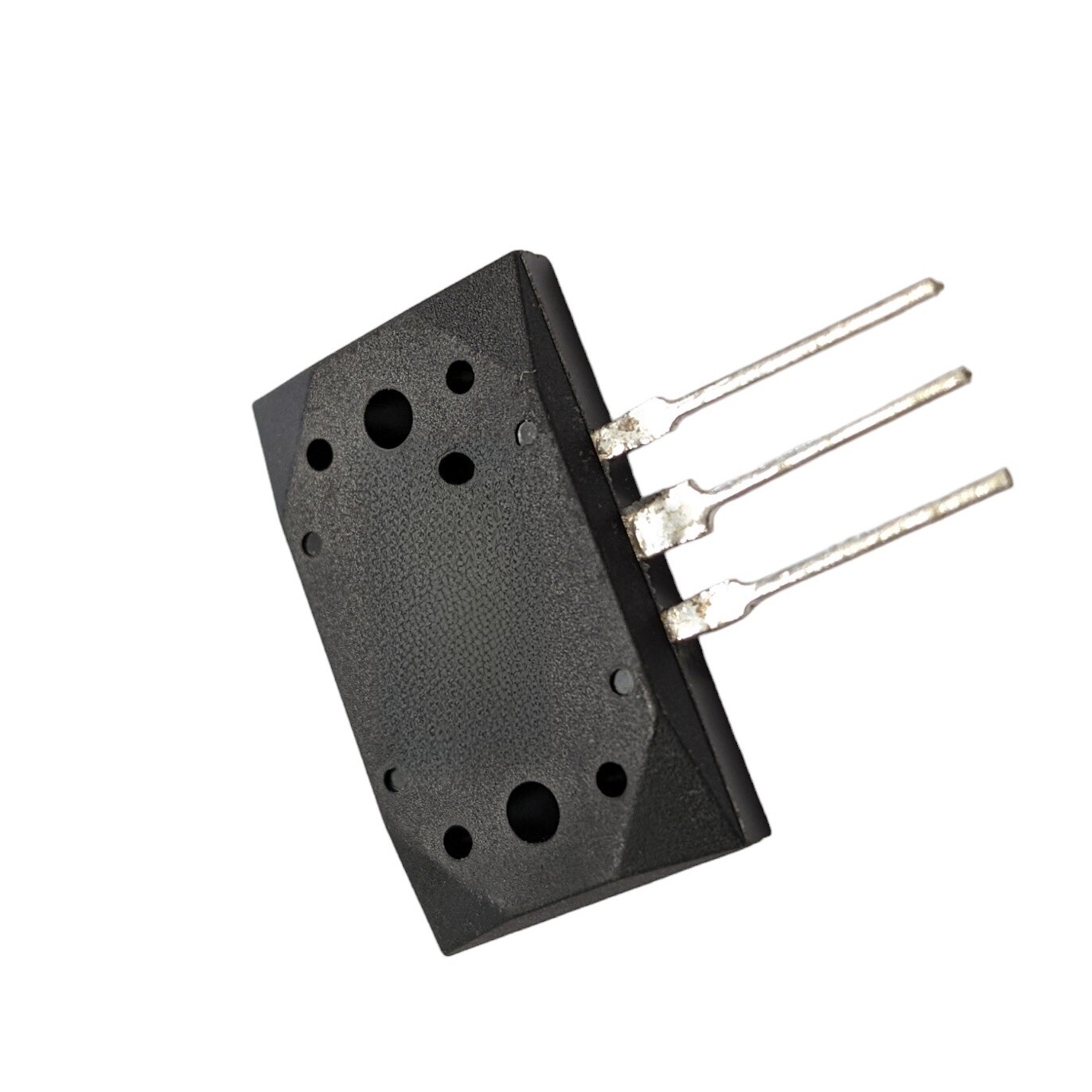

2SD746 Transistor - CASE: MT200 MAKE: NEC
+ VAT 20% for UK purchases
Datasheet
2SD746 Datasheet
Product specifications
Case MT200
Type Transistor Silicon NPN
Manufacturer NEC
Vbr CBO 180
Vbr CEO 180
Max. PD (W) 200
Max. hFE 200
Min hFE 40
Ic Max. (A) 10
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Derate Above 25°C 1.6
Trans. Freq (Hz) Min. 15M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 4-42
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 120 W
Maximum Collector-Base Voltage |Vcb| 180 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 270 pF
Transition Frequency (ft): 7.5 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 82379
