2SD773

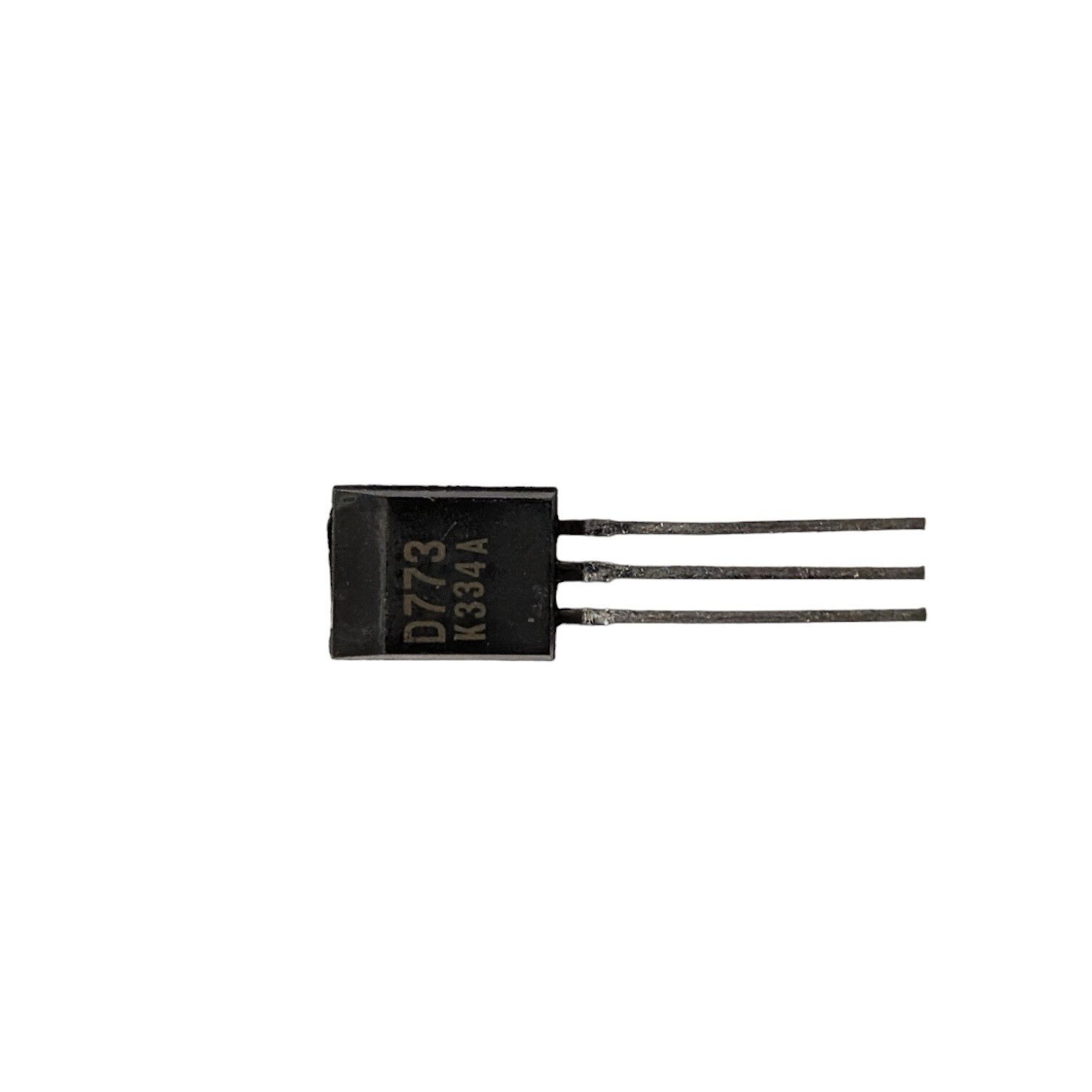

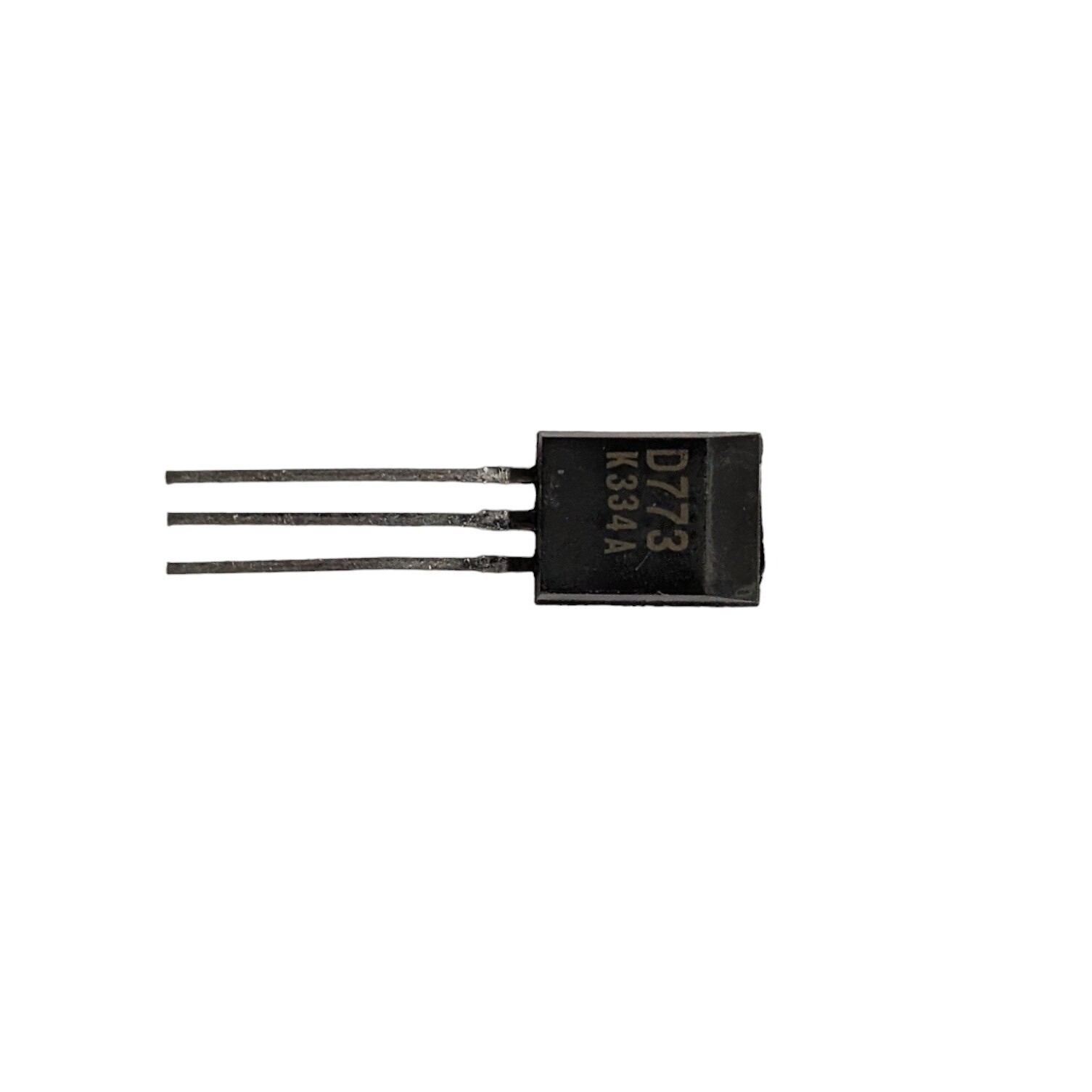

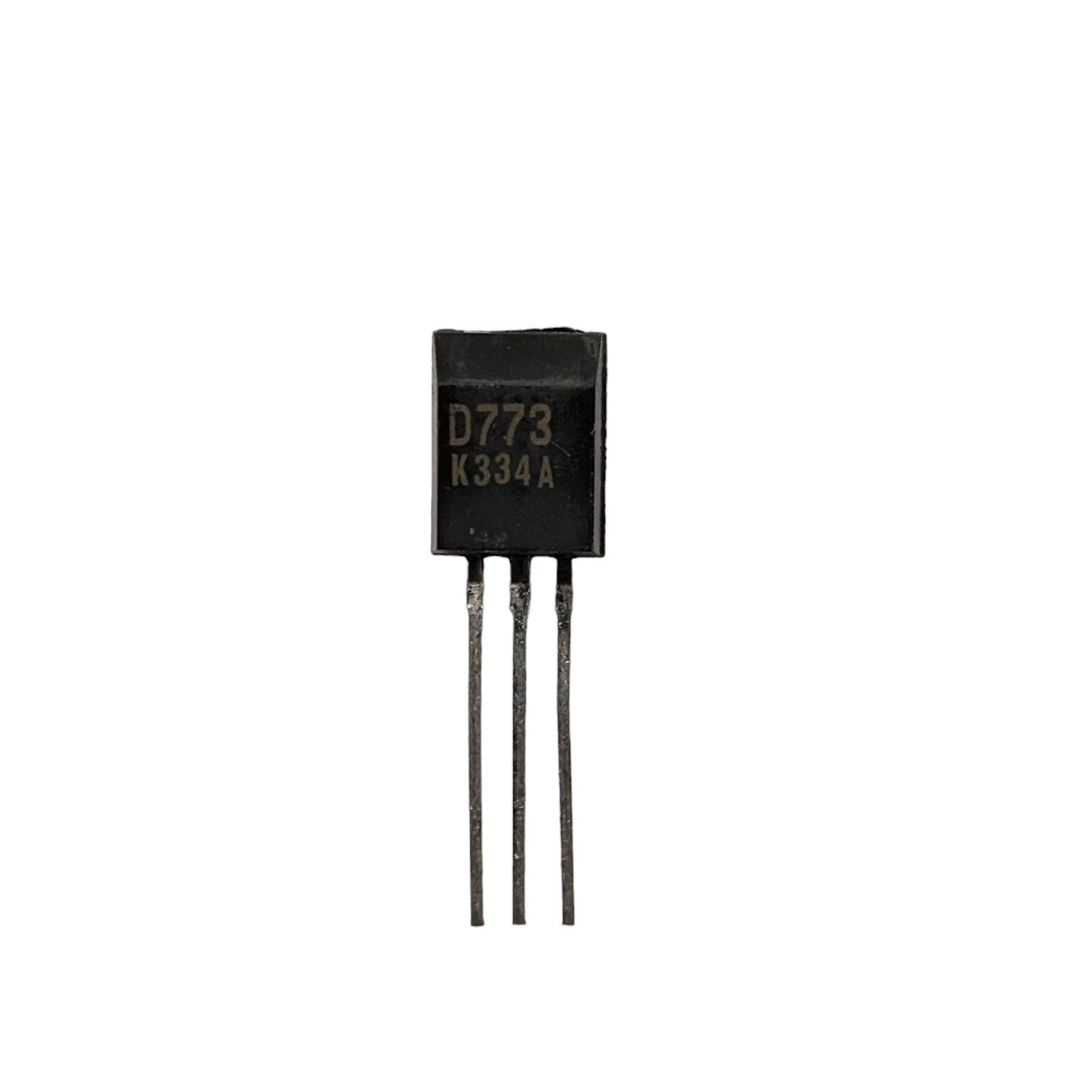

View detailed images (4)

2SD773

SKU: 2SD773
2SD773 Transistor Silicon NPN - CASE: TO126 MAKE: NEC
Price: £3.99
+ VAT 20% for UK purchases
£3.99
Qty
+ VAT 20% for UK purchases
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD773 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO126
Manufacturer NEC
Vbr CBO 20
Vbr CEO 16
Max. PD (W) 1.0
Min hFE 135
Ic Max. (A) 2.0
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Derate Above 25°C 8.0m
Trans. Freq (Hz) Min. 110M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 16 pF
Transition Frequency (ft): 110 MHz
Forward Current Transfer Ratio (hFE), MIN 250
SKU 116128
