2SD77AH
View detailed images (13)

2SD77AH

SKU: 2SD77AH

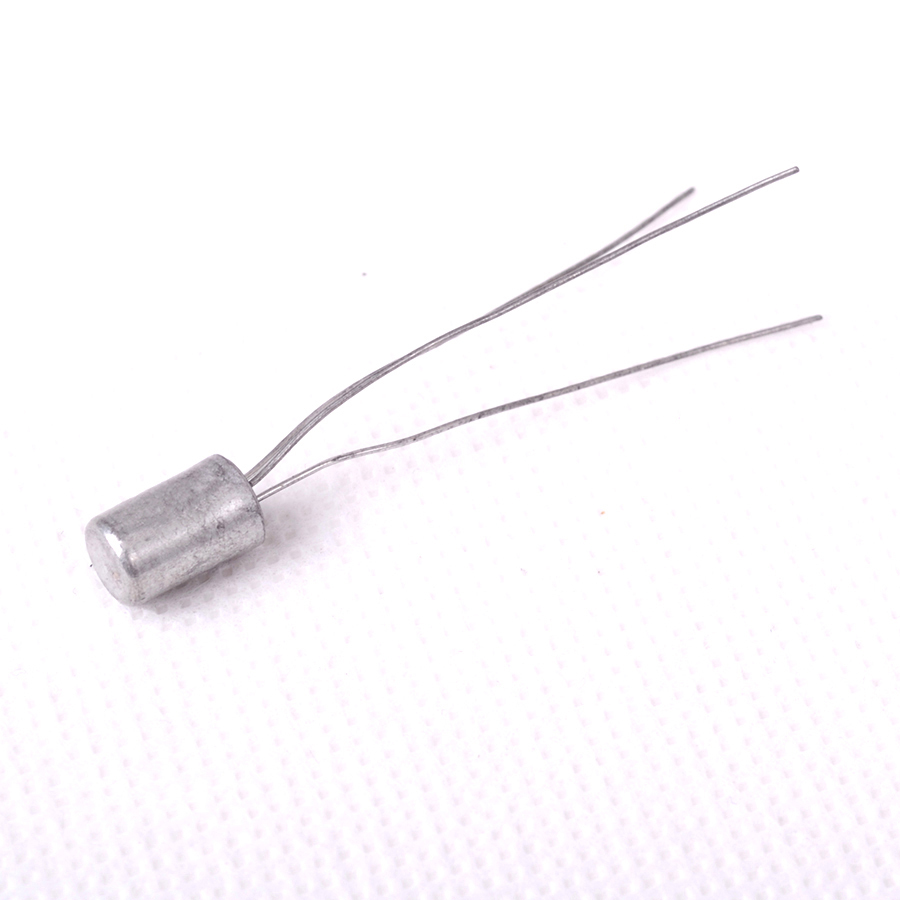

2SD77AH Transistor Germanium NPN CASE: TO1 MAKE: Hitachi
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
Product specifications
Equivalent 2SD77A
Type Transistor Germanium NPN
Case TO1
Manufacturer Hitachi
Vbr CBO 45
Vbr CEO 30
Max. PD (W) 150m
C(ob) (F) 5.0p
hfe 60
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 1.2m
Polarity NPN
Trans. Freq (Hz) Min. 3.5M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 100
@Ic (A) 50m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 12 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 10 pF
Transition Frequency (ft): 1.8 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 543172
