2SD824A
View detailed images (13)

2SD824A

SKU: 2SD824A

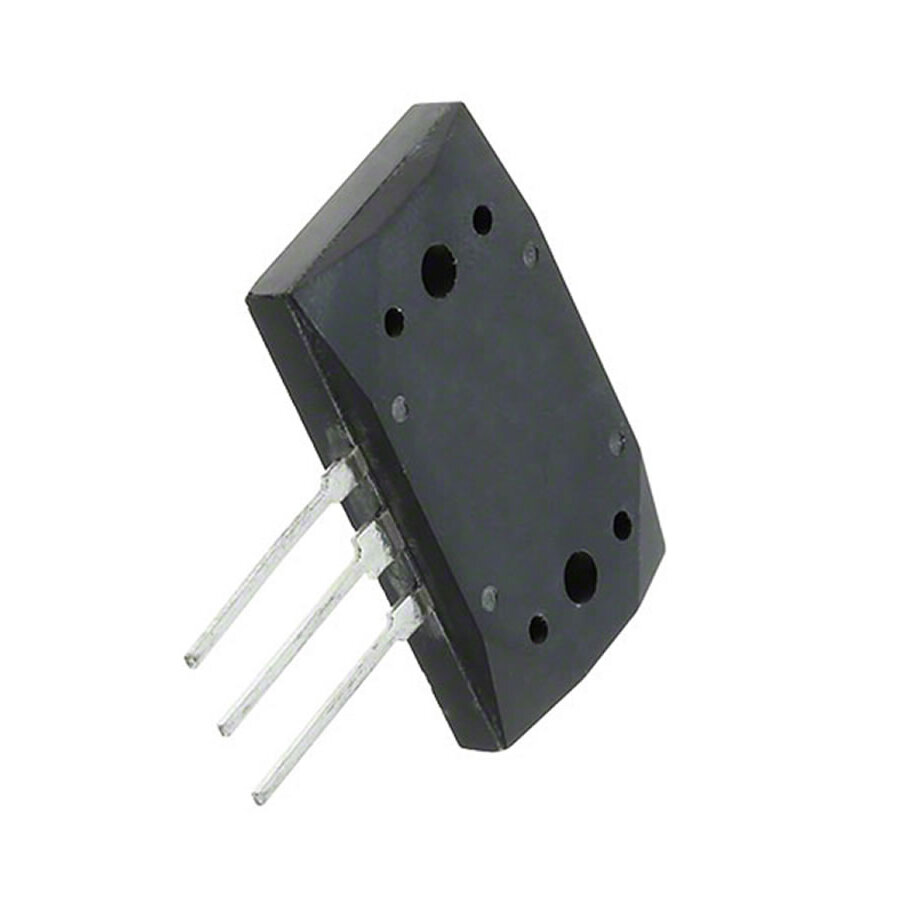

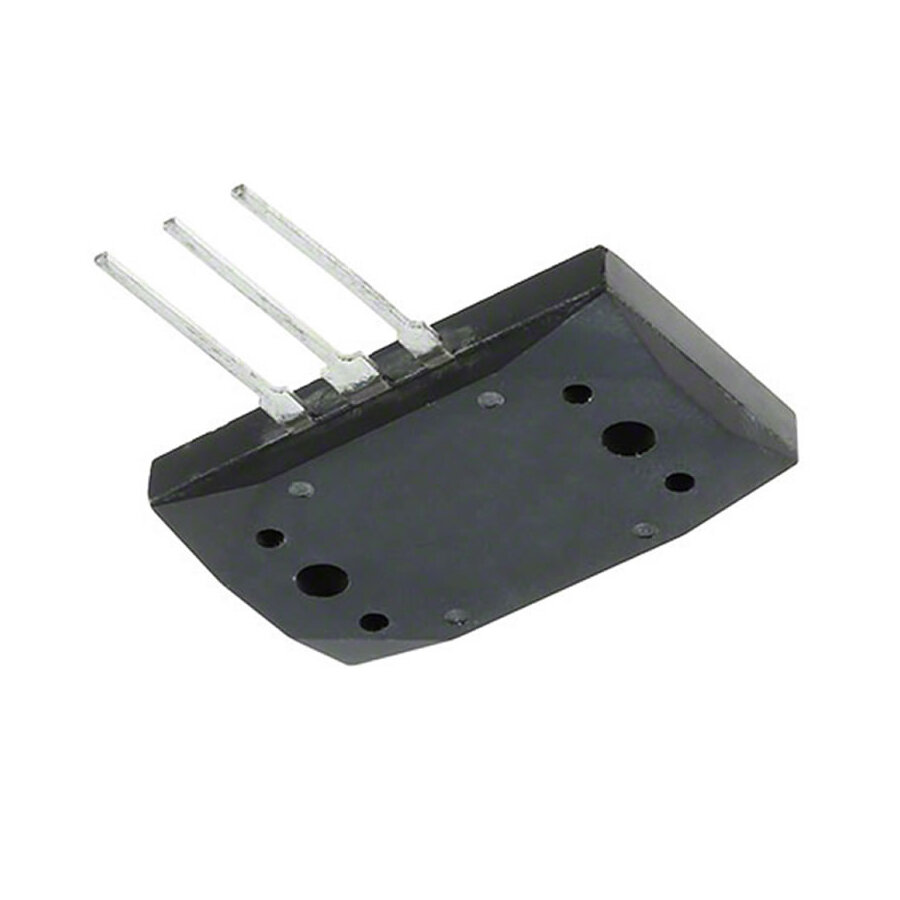

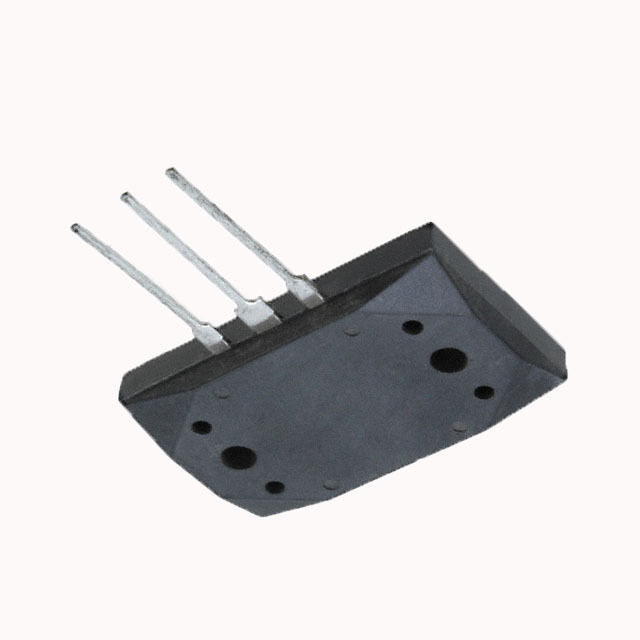

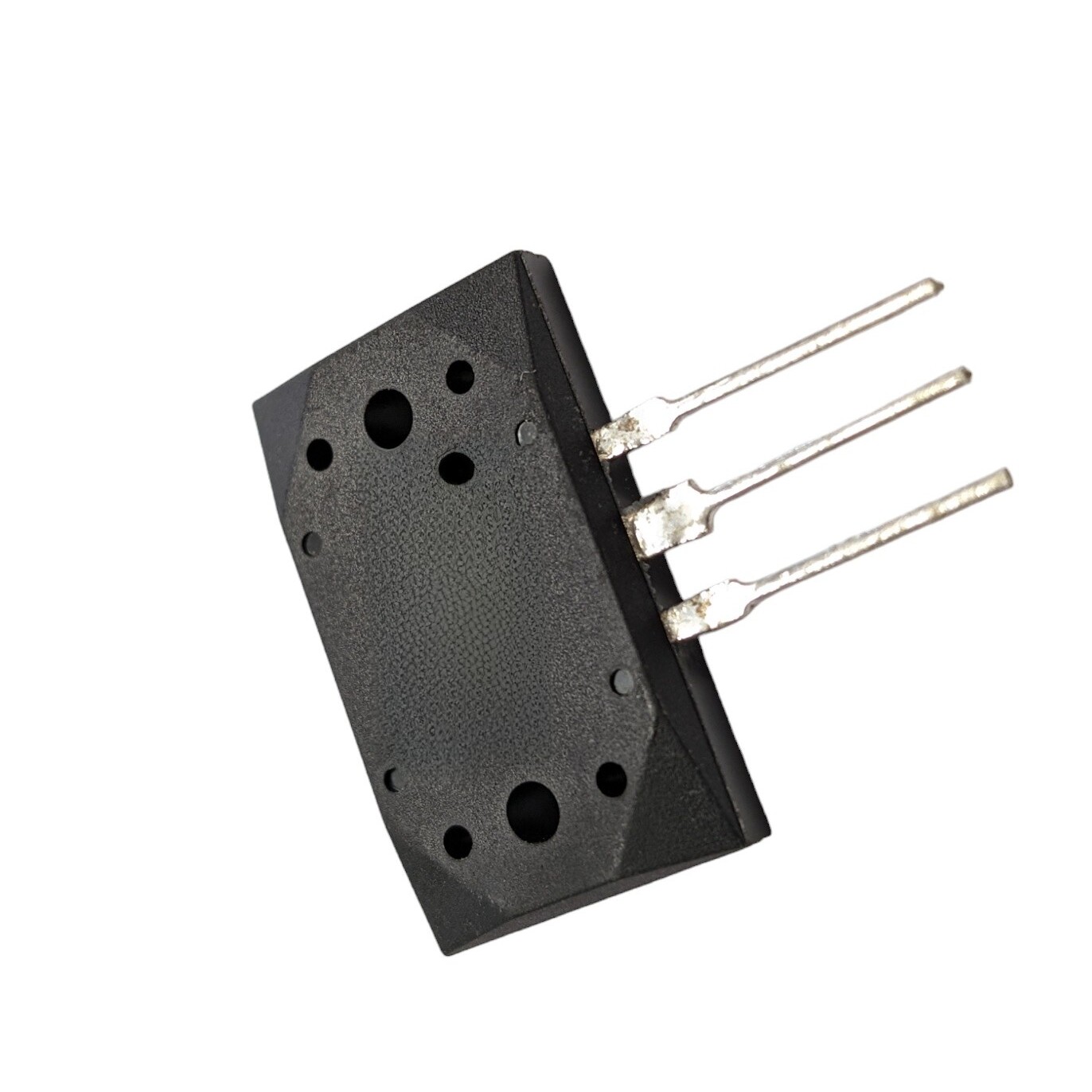

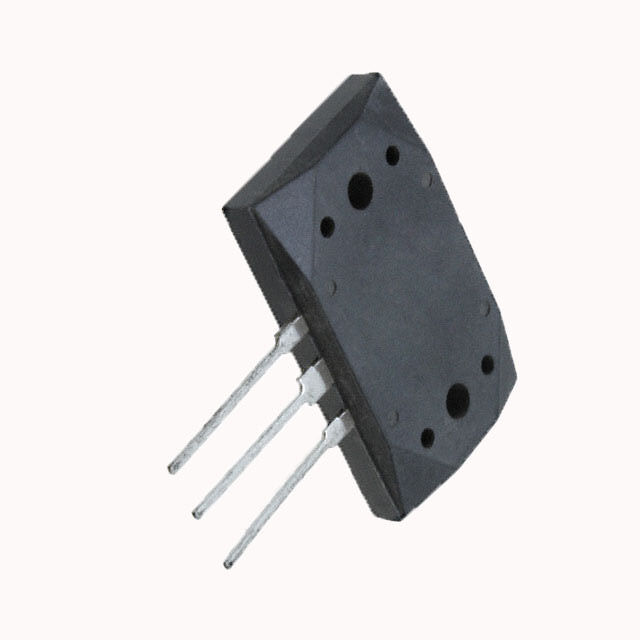

2SD824A Transistor Silicon NPN CASE: MT200 MAKE: Hitachi
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Equivalent 2SD824
Type Transistor Silicon NPN
Case MT200
Manufacturer Hitachi
Polarity NPN
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SKU 313403
