2SD825
View detailed images (13)

2SD825

SKU: 2SD825

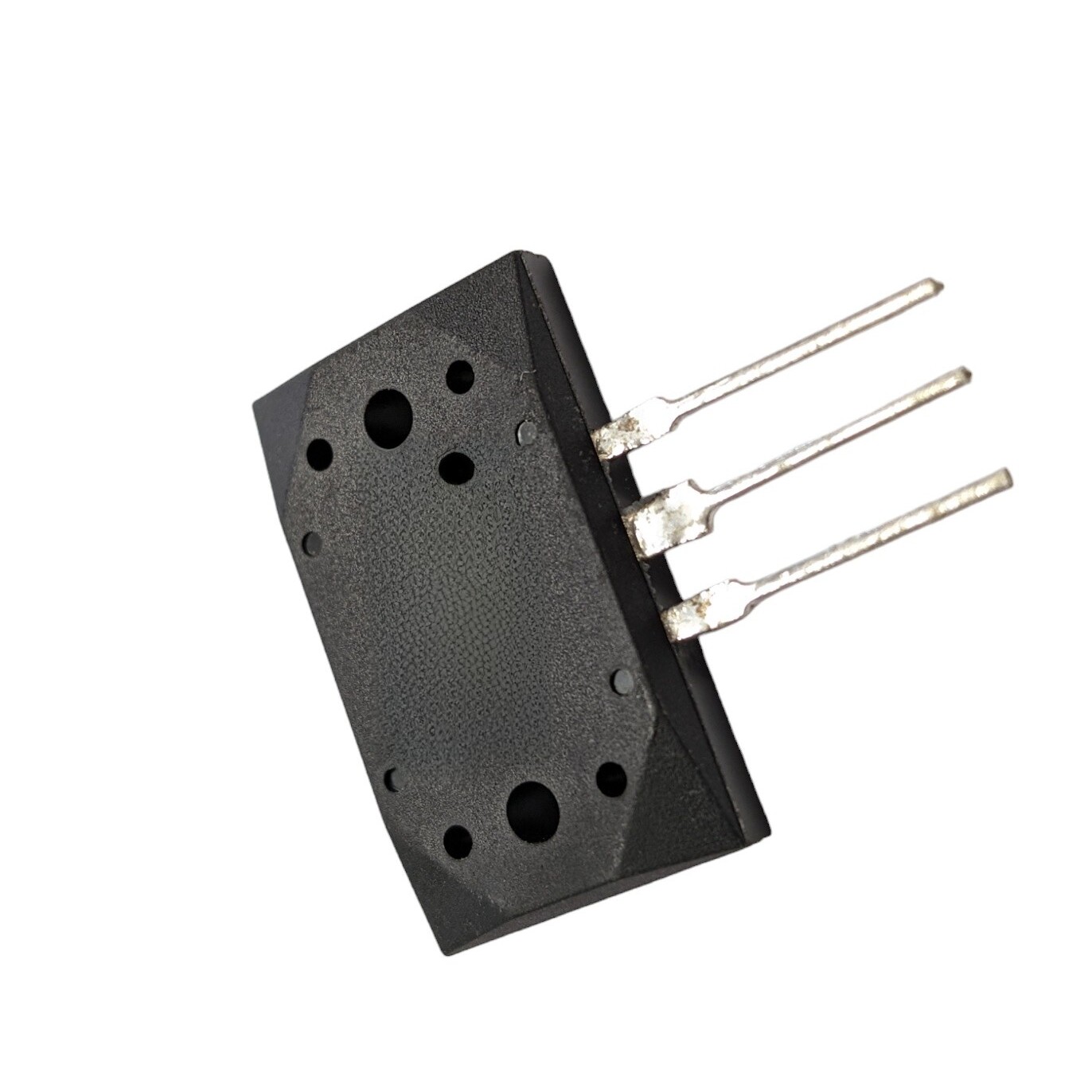

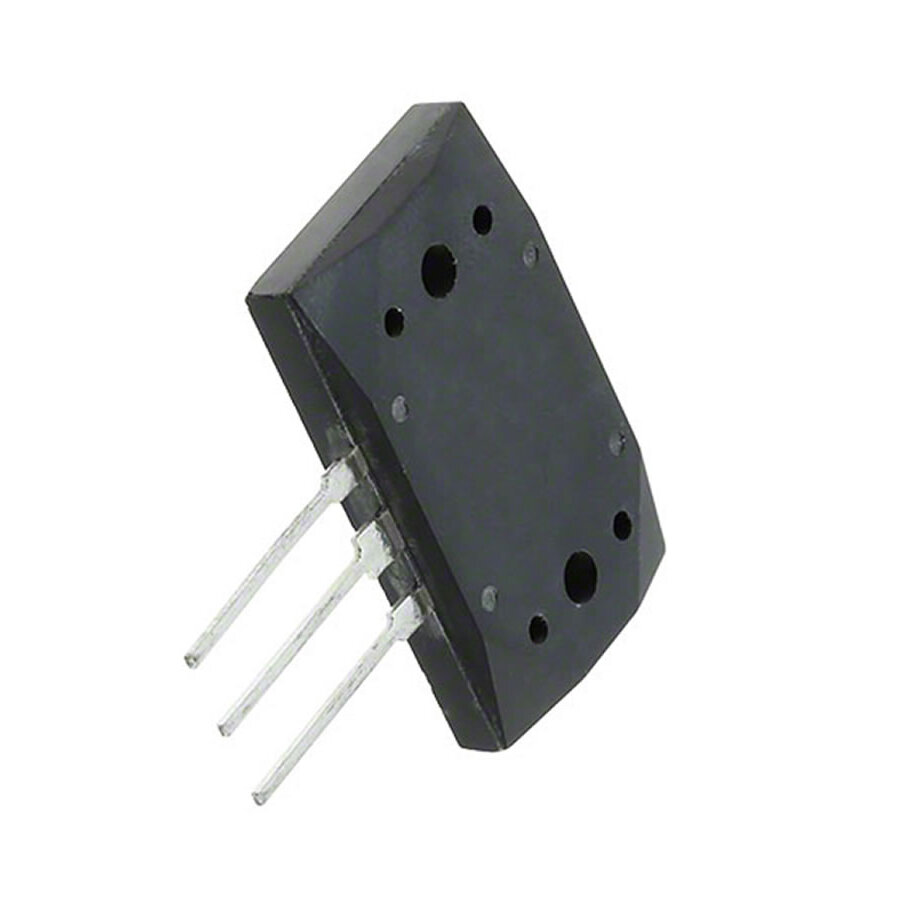

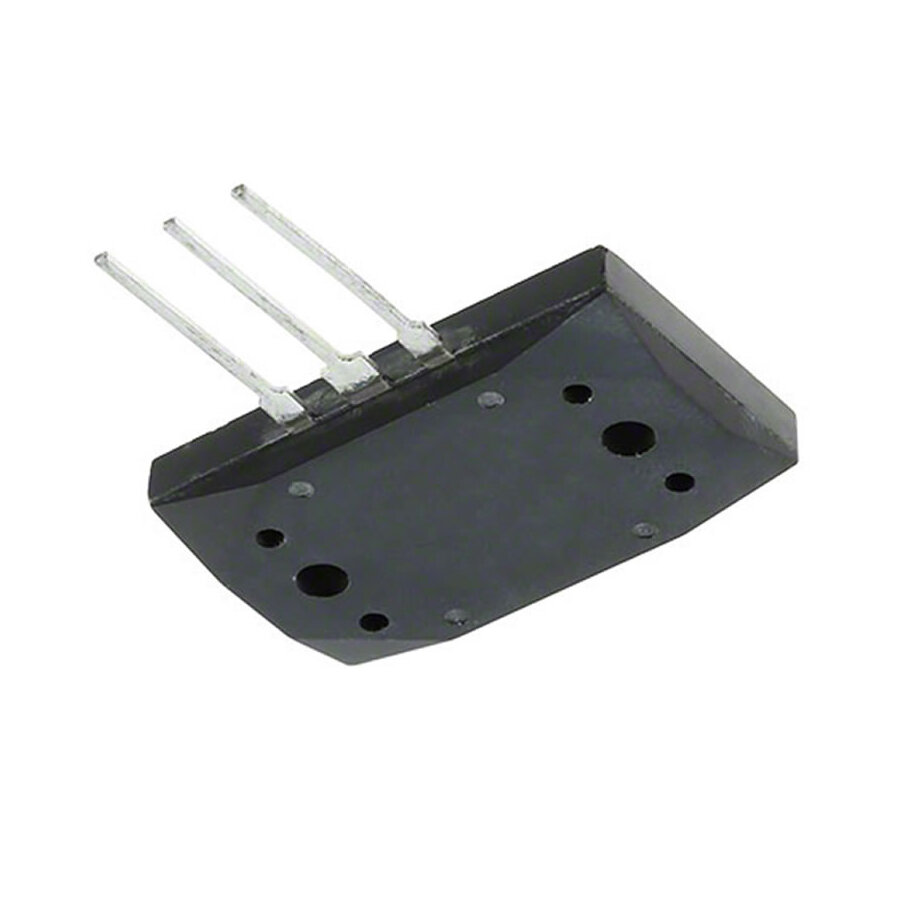

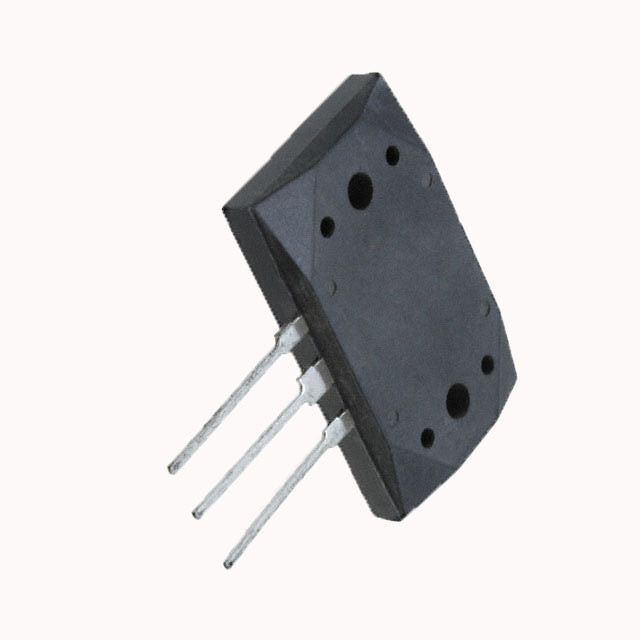

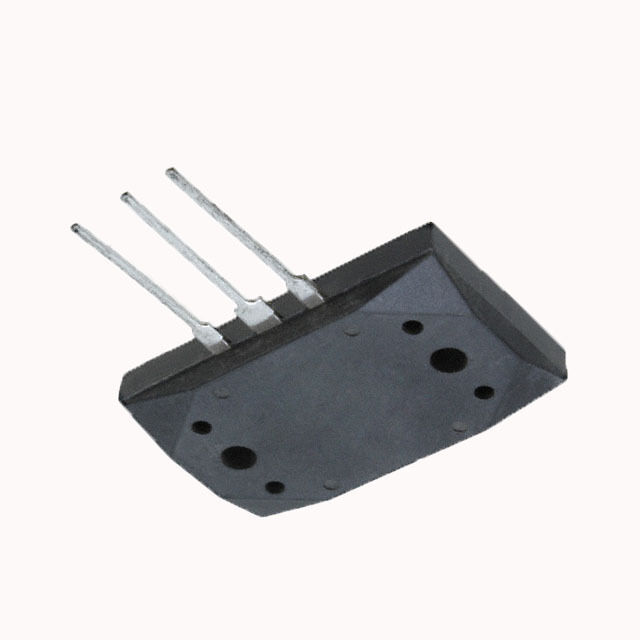

2SD825 Transistor Silicon NPN CASE: MT200 MAKE: Hitachi
Product specifications
Type Transistor Silicon NPN
Case MT200
Manufacturer Hitachi
Polarity NPN
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SKU 760063
