2SD846
View detailed images (13)

2SD846

SKU: 2SD846

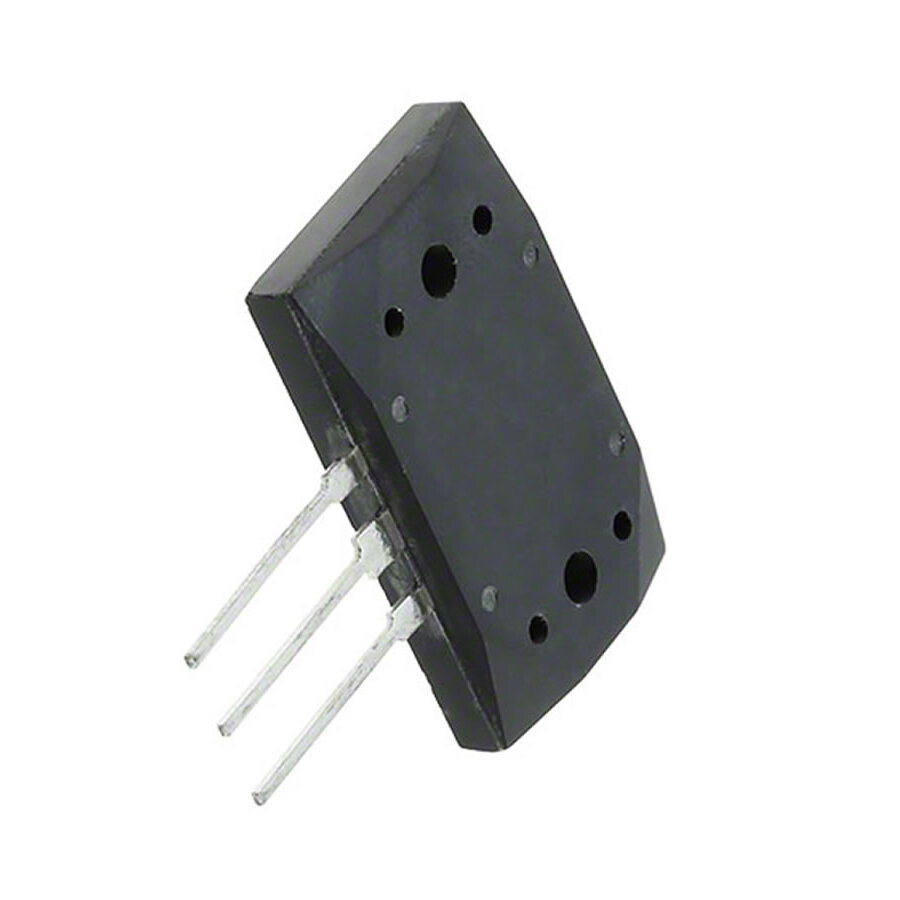

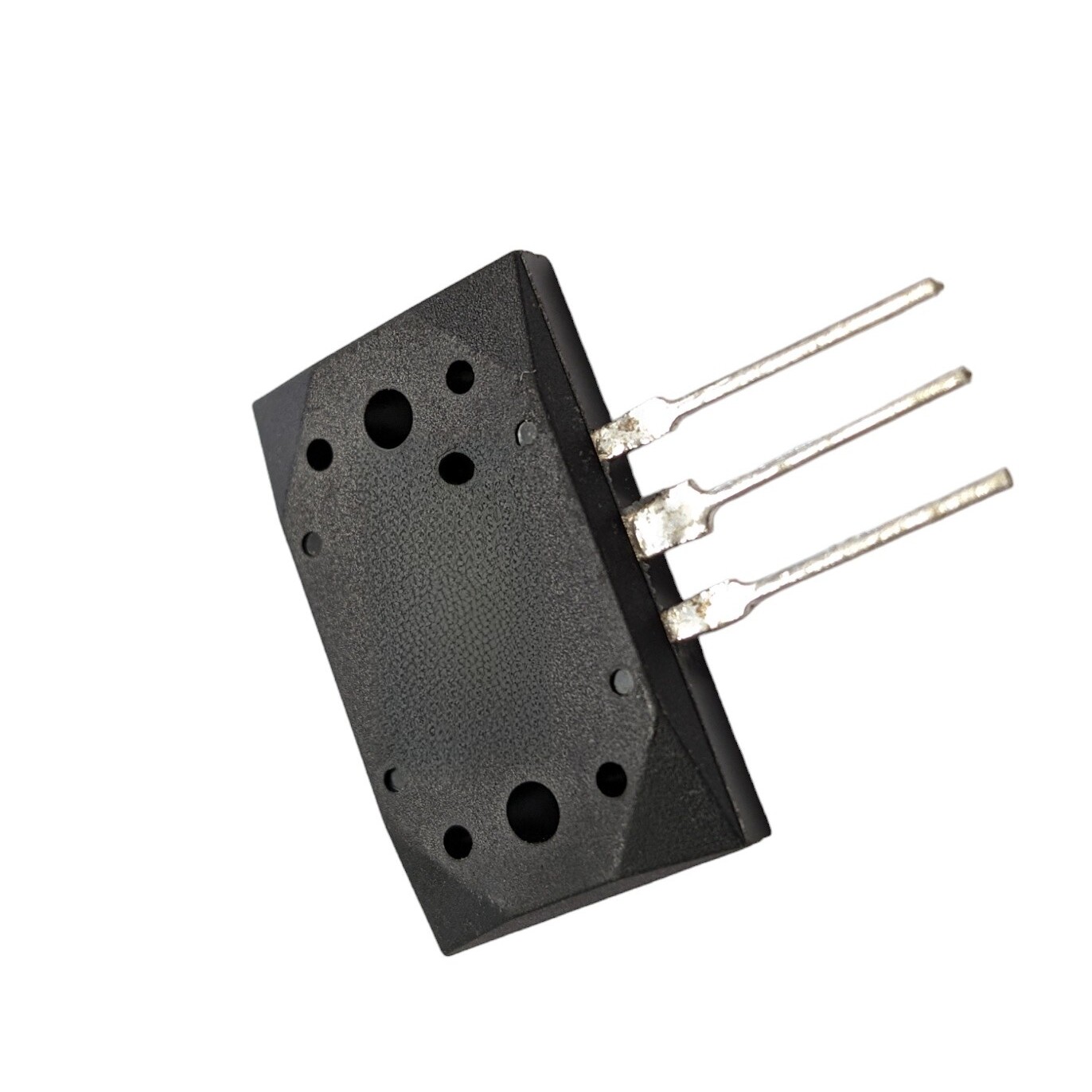

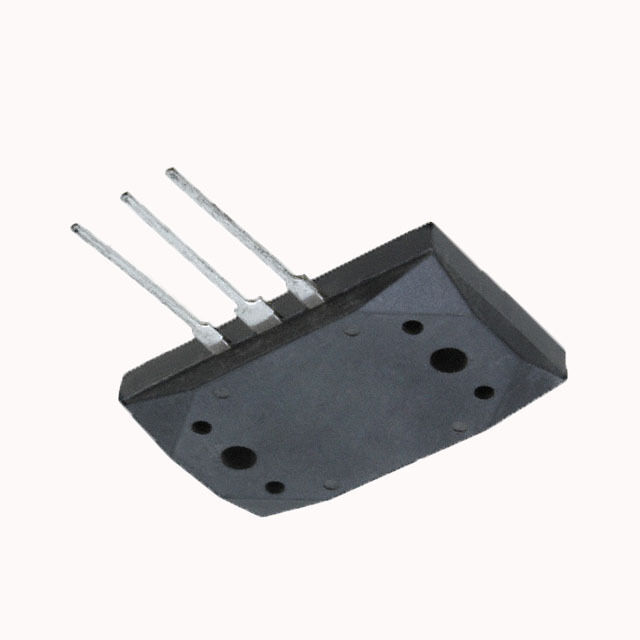

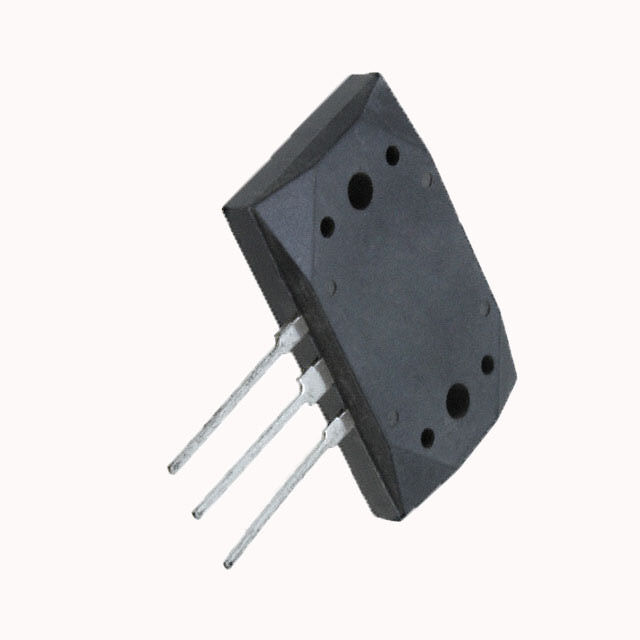

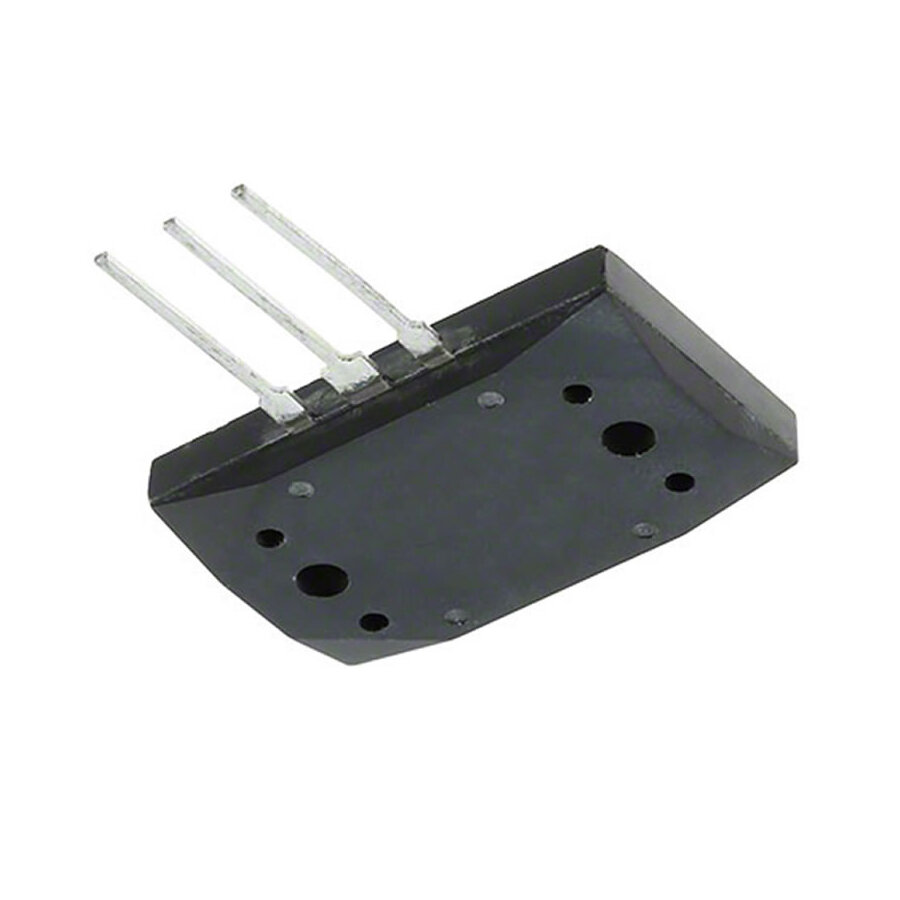

2SD846 Transistor Silicon NPN CASE: MT200 MAKE: Toshiba
Product specifications
Type Transistor Silicon NPN
Case MT200
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 200 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 200 pF
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN 55
SKU 760053
