Home / Semiconductors / 2SK1263
2SK1263
View detailed images (4)

2SK1263

SKU: 2SK1263

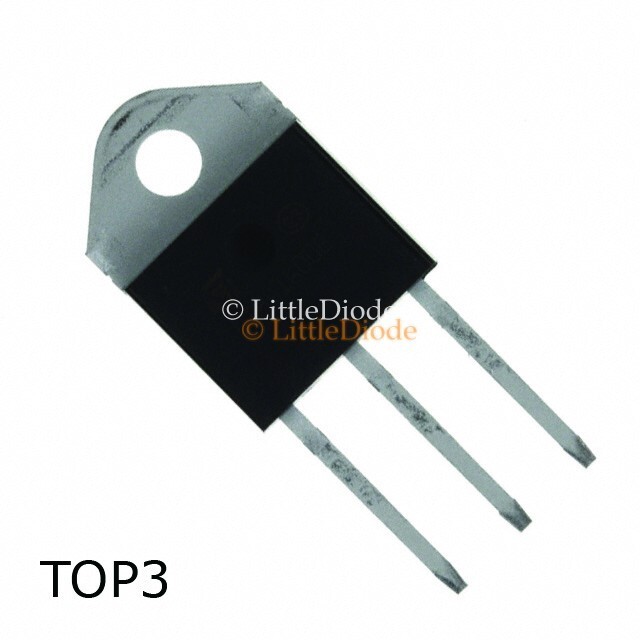

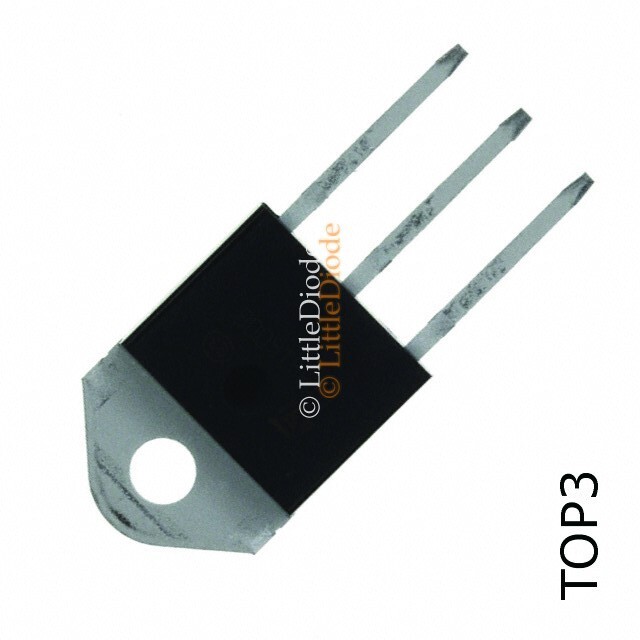

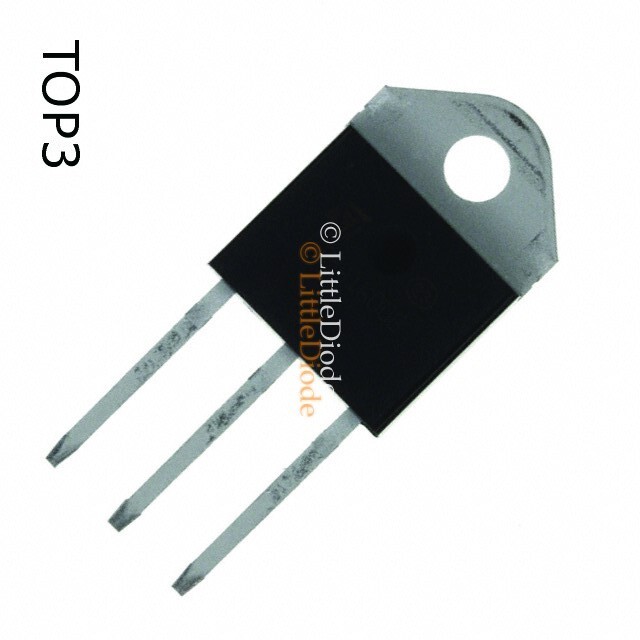

2SK1263 SemiConductor CASE: TOP3 MAKE: Matsushita Electronics
Datasheet
2SK1263 Datasheet
Product specifications
Type SemiConductor
Case TOP3
Manufacturer Matsushita Electronics
Vbr DSS 100
Vbr GSS 20
Max. PD (W) 100
Ciss Max. (F) 3.3n-
Derate (Amb) (W/°C) 800m
t(f) Max. (S) 195n-
gfs Max. 25-
gfs Min 12
Id Max. (A) 40
Idss Max. (A) 10u
I(d) for G(fs) 20
Tr Max. (s) 195n-
R(ds) On (Û) 75m=
Vp Max. 2.5
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-54
Surface Mounted Yes/No NO
SKU 759392
