2SK654Z
View detailed images (5)

2SK654Z

SKU: 2SK654Z

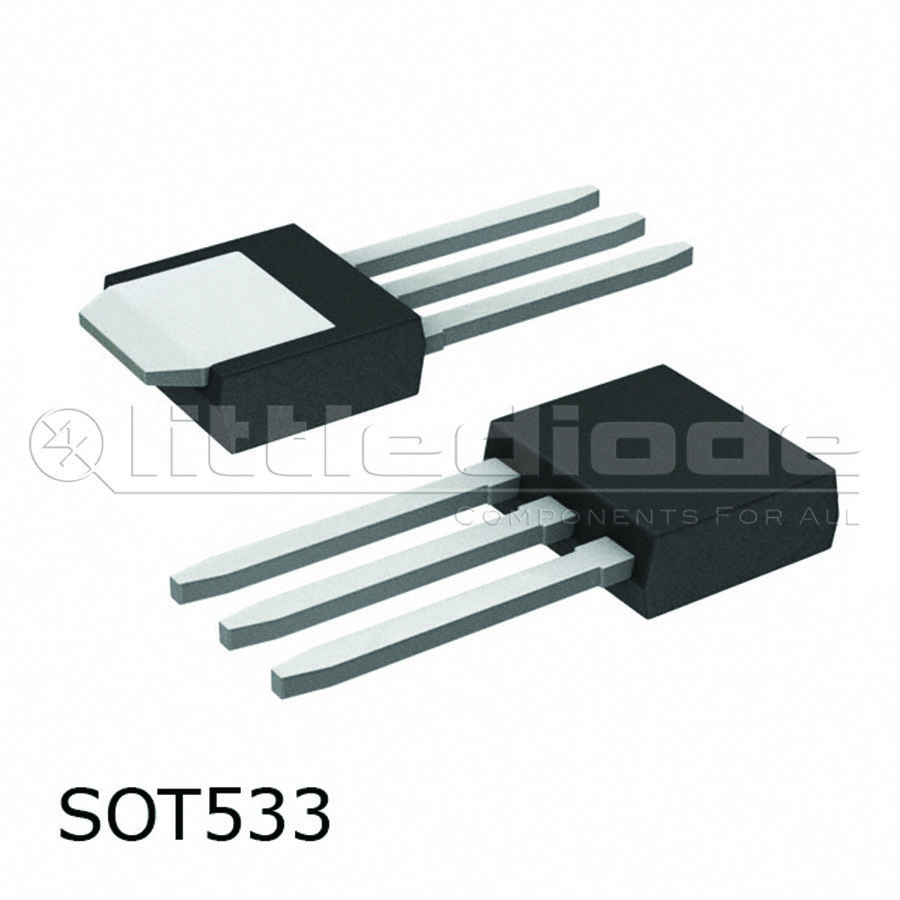

2SK654Z Transistor CASE: SOT533 MAKE: NEC
Product specifications
Type Transistor
Case SOT533
Manufacturer NEC
Vbr DSS 100
Vbr GSS 15
Max. PD (W) 10
Ciss Max. (F) 120p-
t(f) Max. (S) 5.0n-
gfs Min 0.5
Id Max. (A) 1.0
Idss Max. (A) 10u
I(d) for G(fs) 500m
Tr Max. (s) 10n-
R(ds) On (Û) 4.0=
Vp Max. 3.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-81
Surface Mounted Yes/No YES
SKU 557312
