2SK738Z
View detailed images (5)

2SK738Z

SKU: 2SK738Z

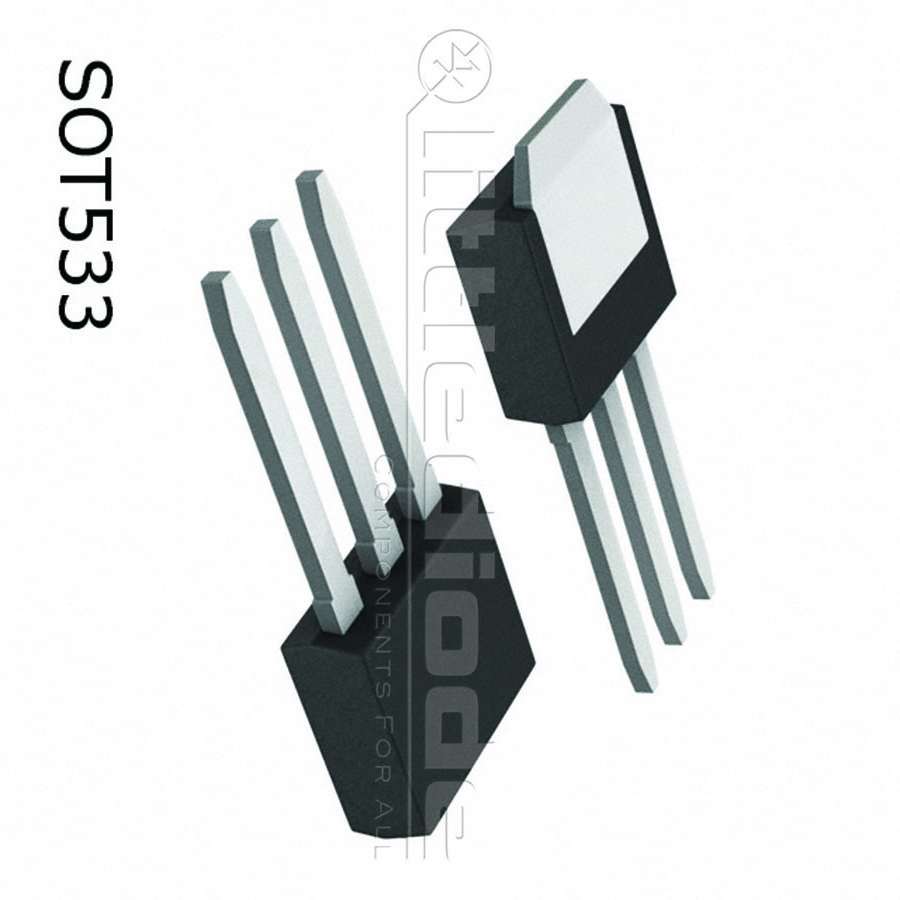

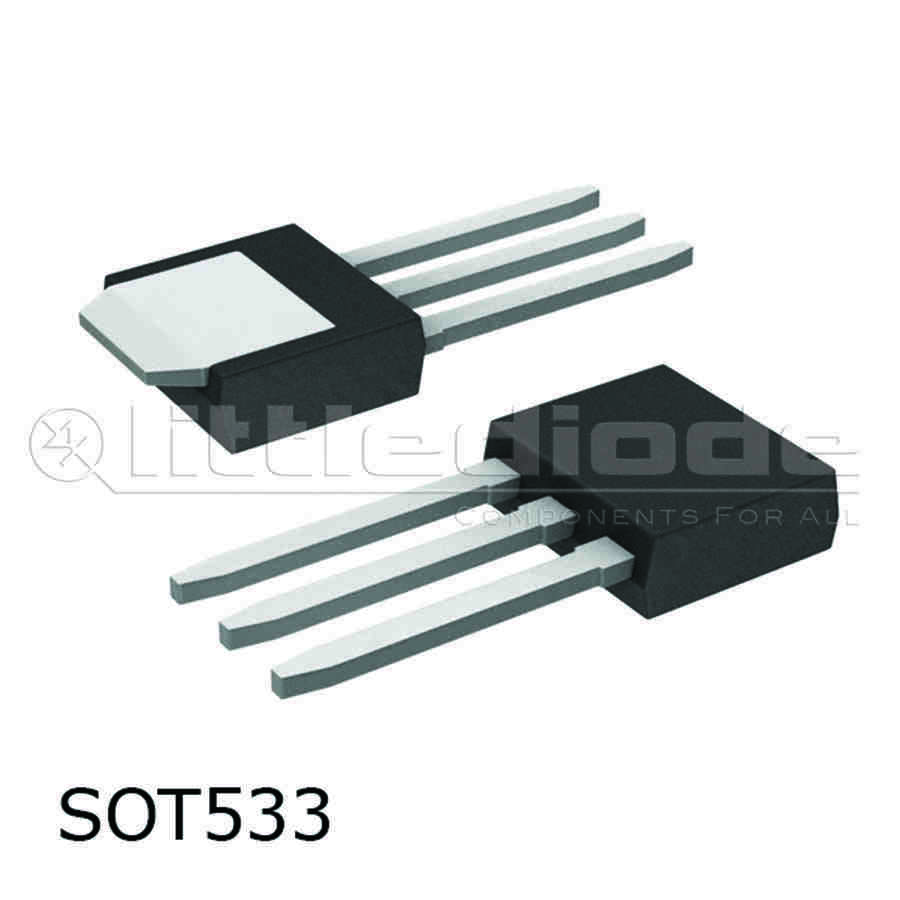

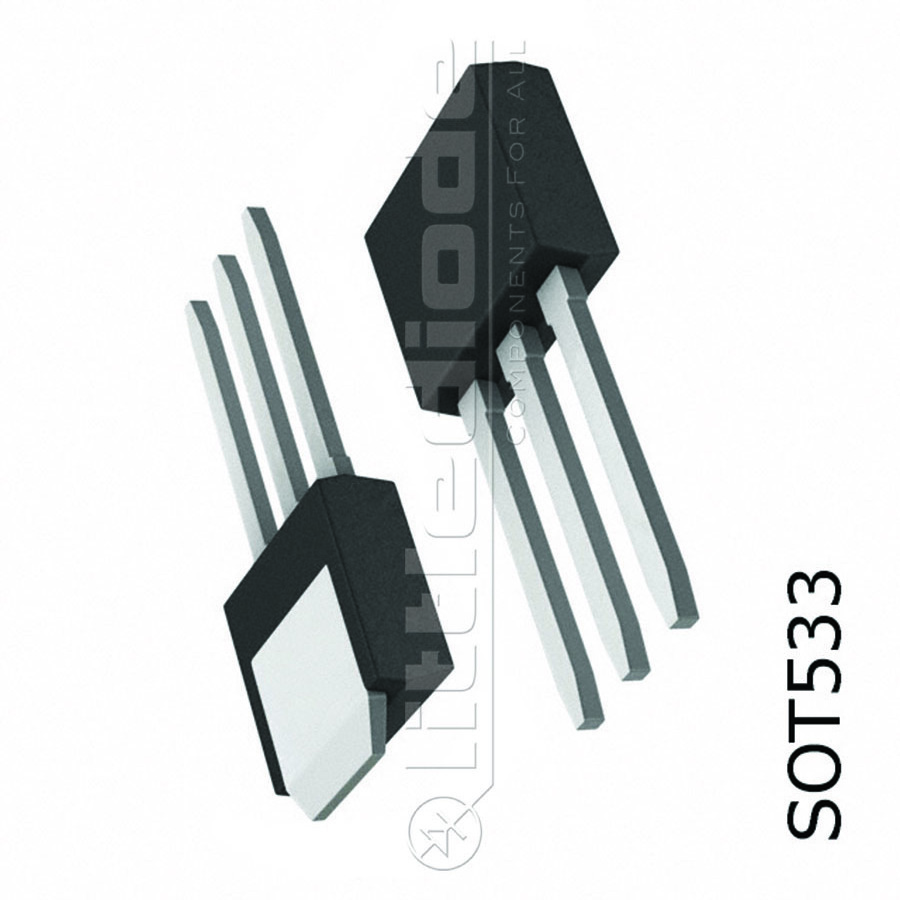

2SK738Z Transistor CASE: SOT533 MAKE: NEC
Product specifications
Type Transistor
Case SOT533
Manufacturer NEC
Vbr DSS 30
Vbr GSS 20
Max. PD (W) 20
Ciss Max. (F) 550p-
t(f) Max. (S) 20n-
gfs Min 1.0
Id Max. (A) 2.0
Idss Max. (A) 10u
I(d) for G(fs) 1.0
Tr Max. (s) 20n-
R(ds) On (Û) 0.25=
Vp Max. 2.5
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-81
Surface Mounted Yes/No YES
SKU 557313
