2SK801Z
View detailed images (5)

2SK801Z

SKU: 2SK801Z

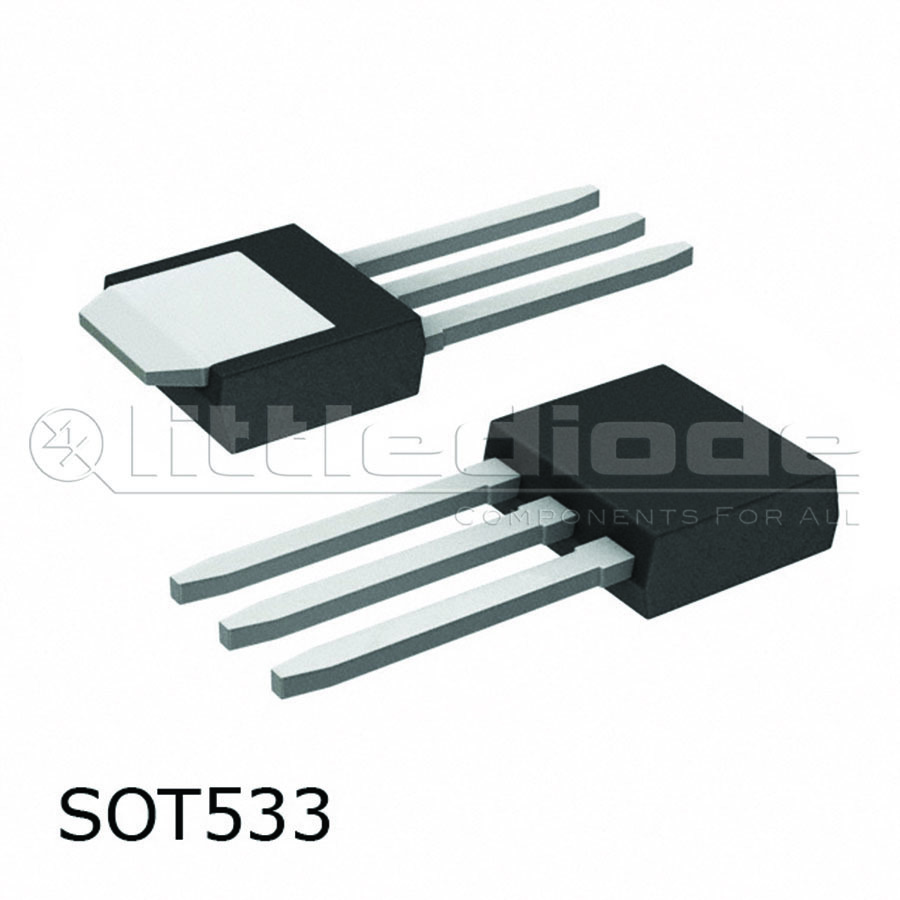

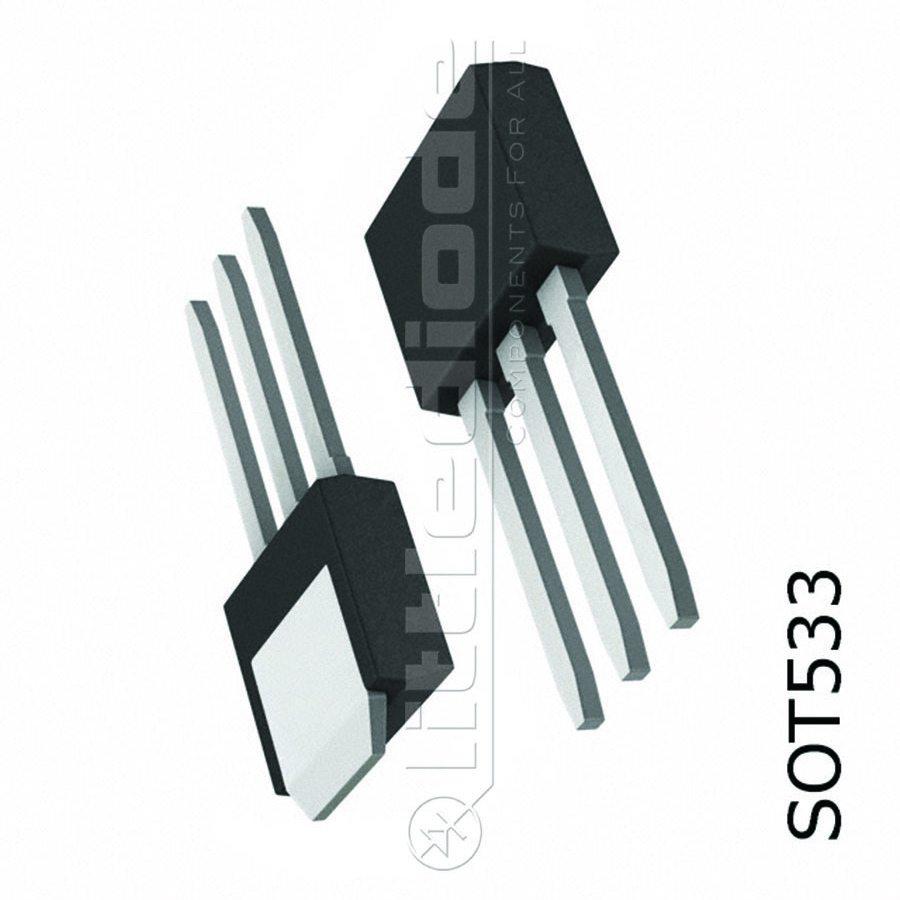

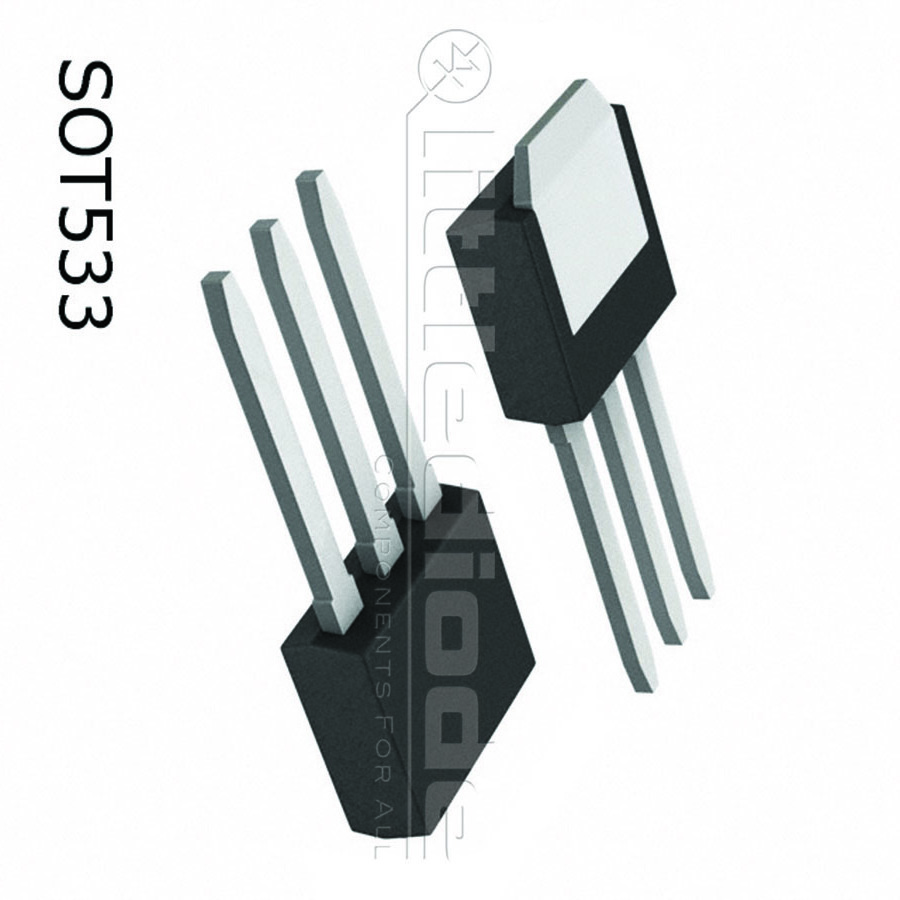

2SK801Z Transistor CASE: SOT533 MAKE: NEC
Product specifications
Type Transistor
Case SOT533
Manufacturer NEC
Vbr DSS 30
Vbr GSS 20
Max. PD (W) 600m
Ciss Max. (F) 250p-
t(f) Max. (S) 250n-
gfs Min 1.0
Id Max. (A) 2.0
Idss Max. (A) 10u
I(d) for G(fs) 1.0
Tr Max. (s) 90n-
R(ds) On (Û) 500m
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-81
Surface Mounted Yes/No YES
SKU 557314
