2STA1943

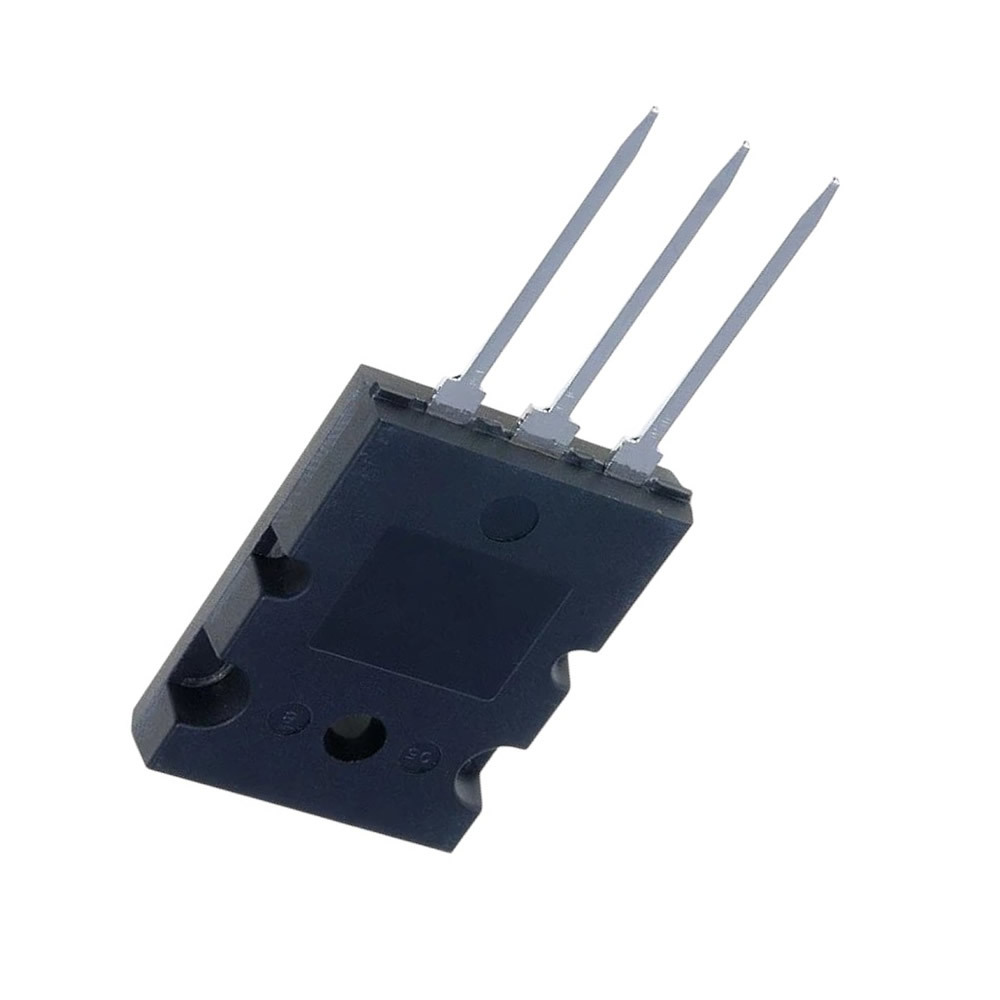

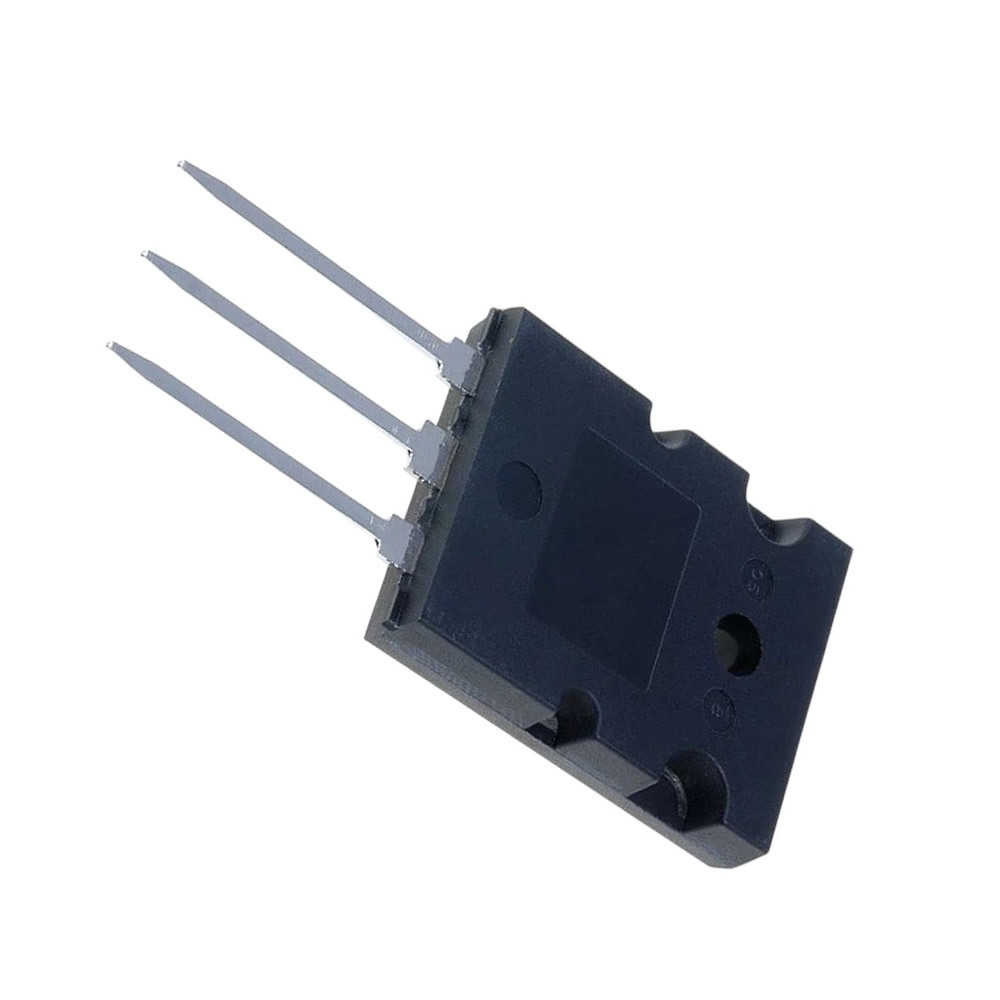

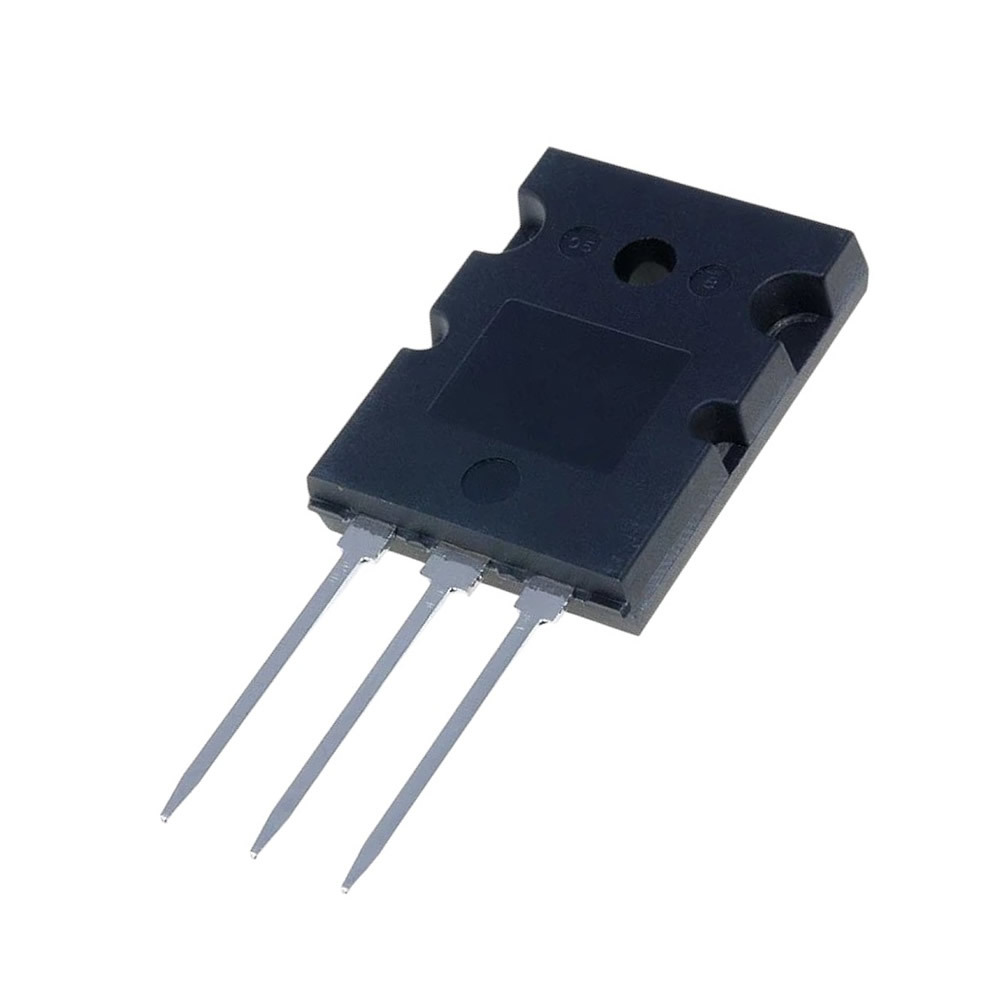

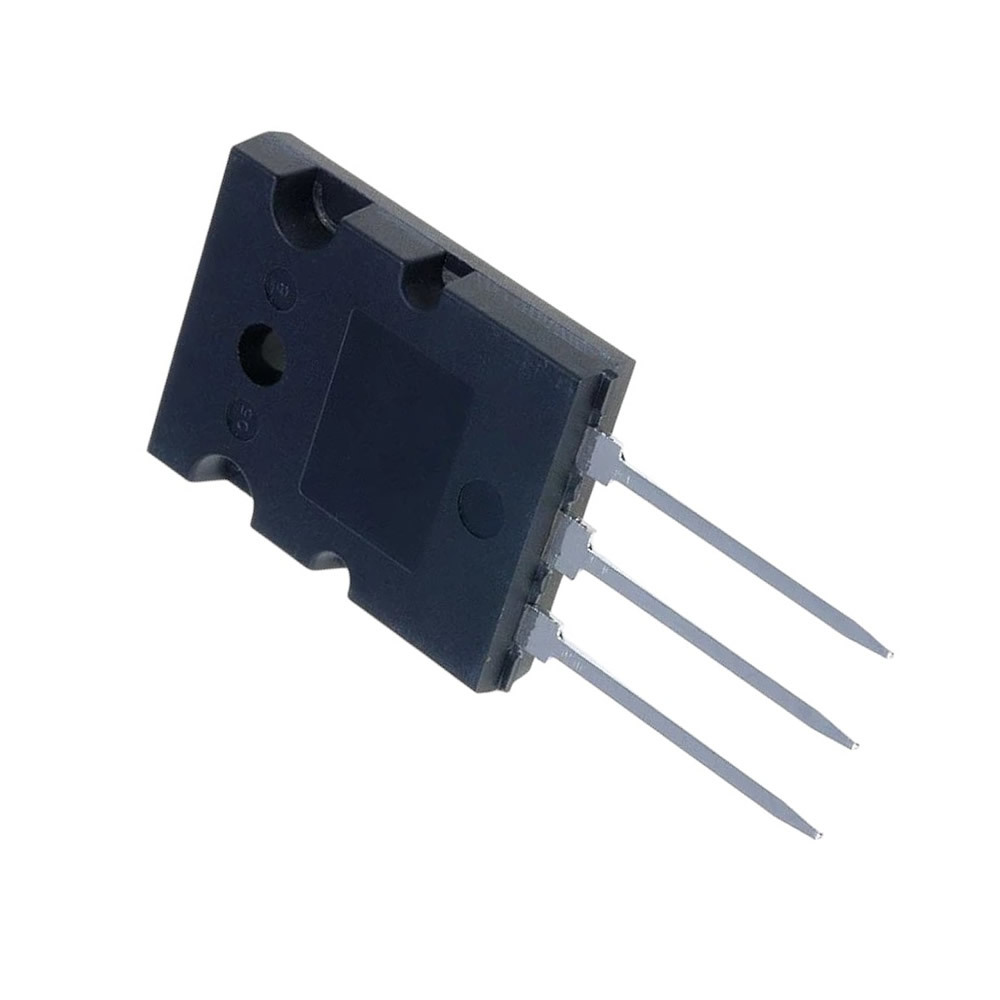

View detailed images (4)

2STA1943

SKU: 2STA1943
2STA1943 Transistor Silicon PNP CASE: TO264 MAKE: ST Microelectronics - STM
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2STA1943 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO264
Manufacturer ST Microelectronics - STM
Polarity PNP
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 230 V
Maximum Collector-Emitter Voltage |Vce| 230 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 225 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 521199
