3120

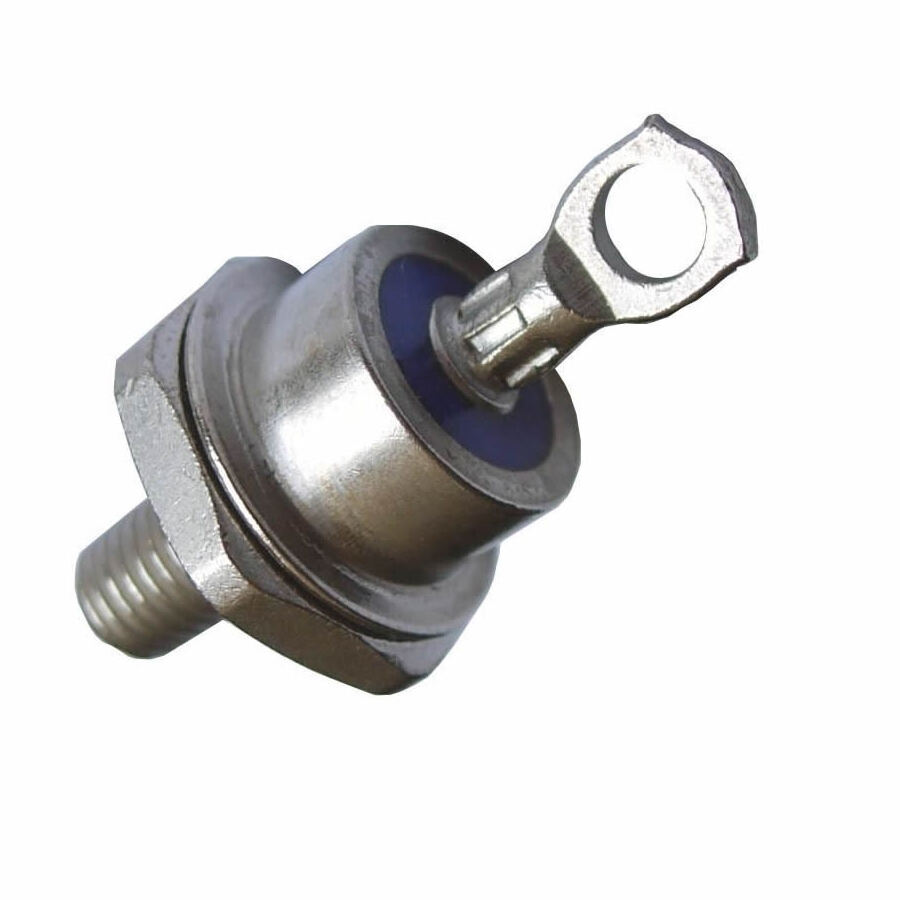

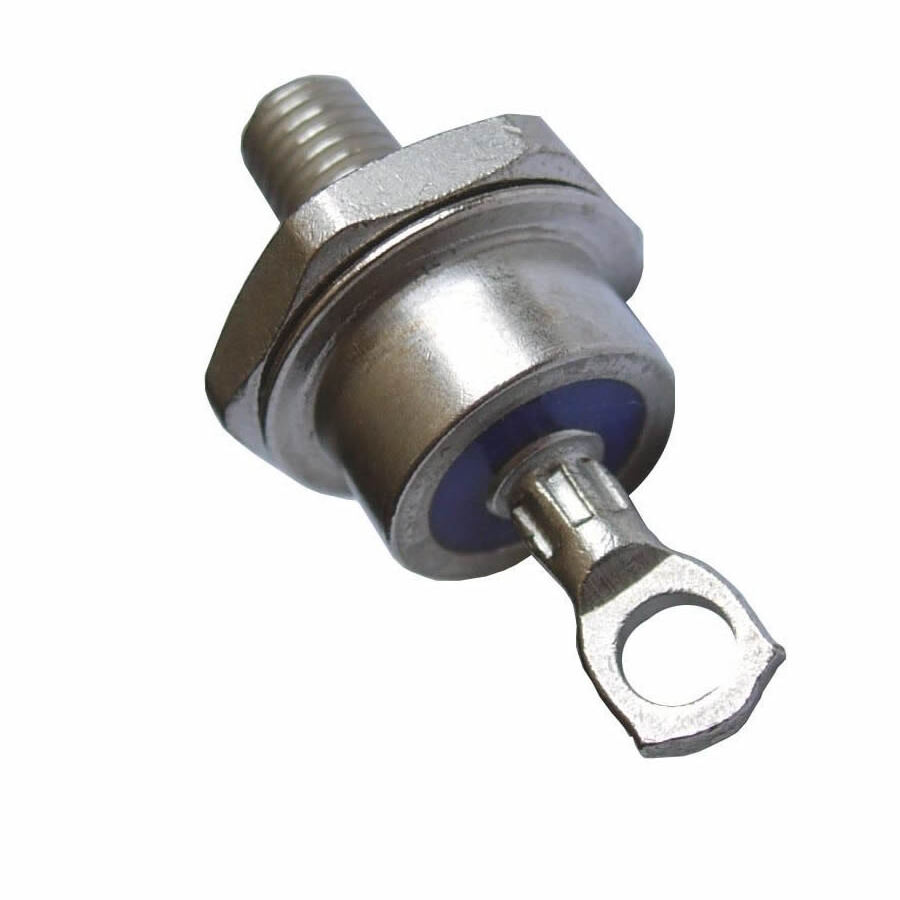

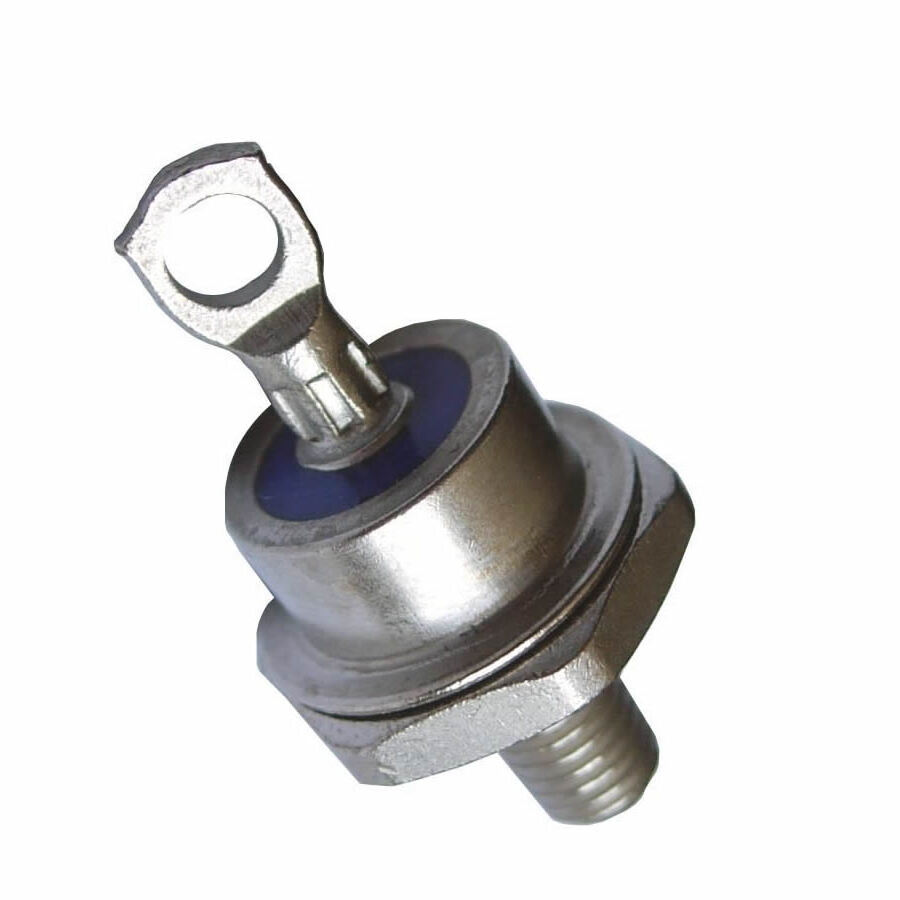

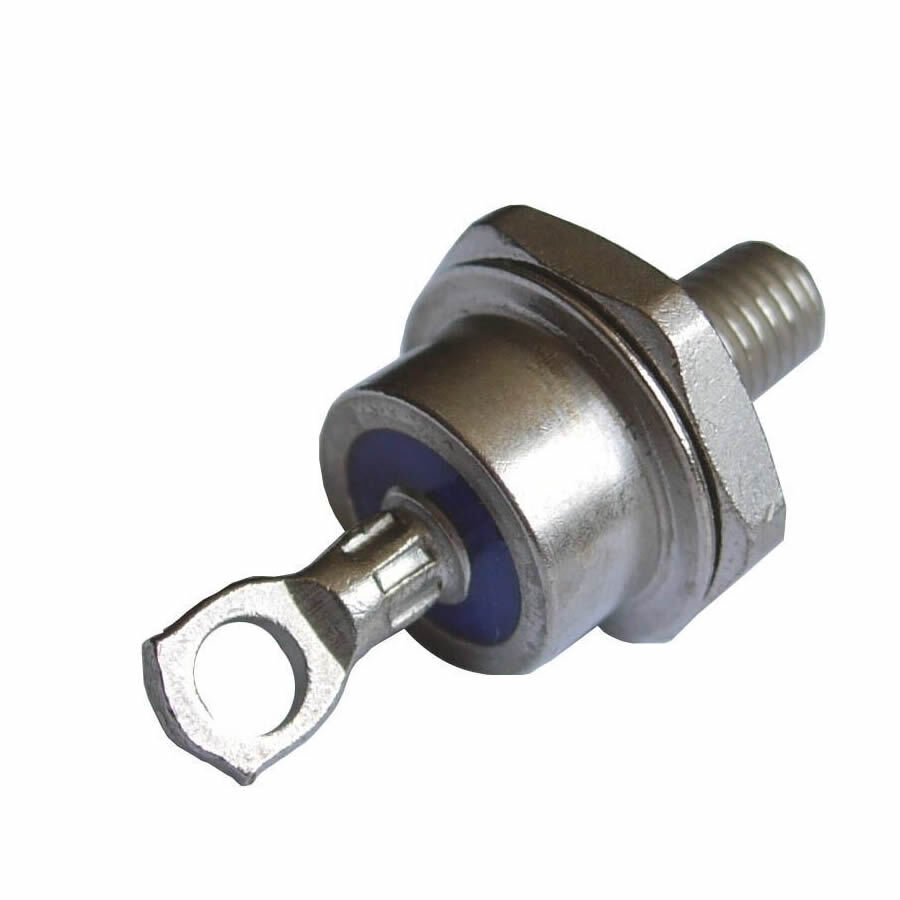

View detailed images (4)

3120

SKU: 3120
3120 Semiconductor CASE: DO5 MAKE: COO
Product specifications
Type Semiconductor
Case DO5
Manufacturer COO
t(conv) (S) 15u
FSR Error (LSB/%) 3.0
Vin Range (Vp-p) 10
@Temp. (test) (°C) 25
Ir @ Diff. Temp (A) 1.0m
Outp Arith. Code BDM
VRRM 200
Nom. Neg Supp 15
Nom. Pos. Supp 15
1-Cycle Surge Current (A) 200
Tech. Hybrid Semiconductor
@Temp (test) (°C) 150#
@Temp. (test) for Vf) 25
Vf Max. .60
I(out) (If AVG) Max. 30
@Volts (test) (V) 200
@If (test) 34
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 150
Volt or Cur. Mode Voltage
Logic Level Family TTL
Pinout Equivalence Number 32-92
No. of Pins 32
Surface Mounted Yes/No NO
SKU 867619
