3DD1724
View detailed images (4)

3DD1724

SKU: 3DD1724

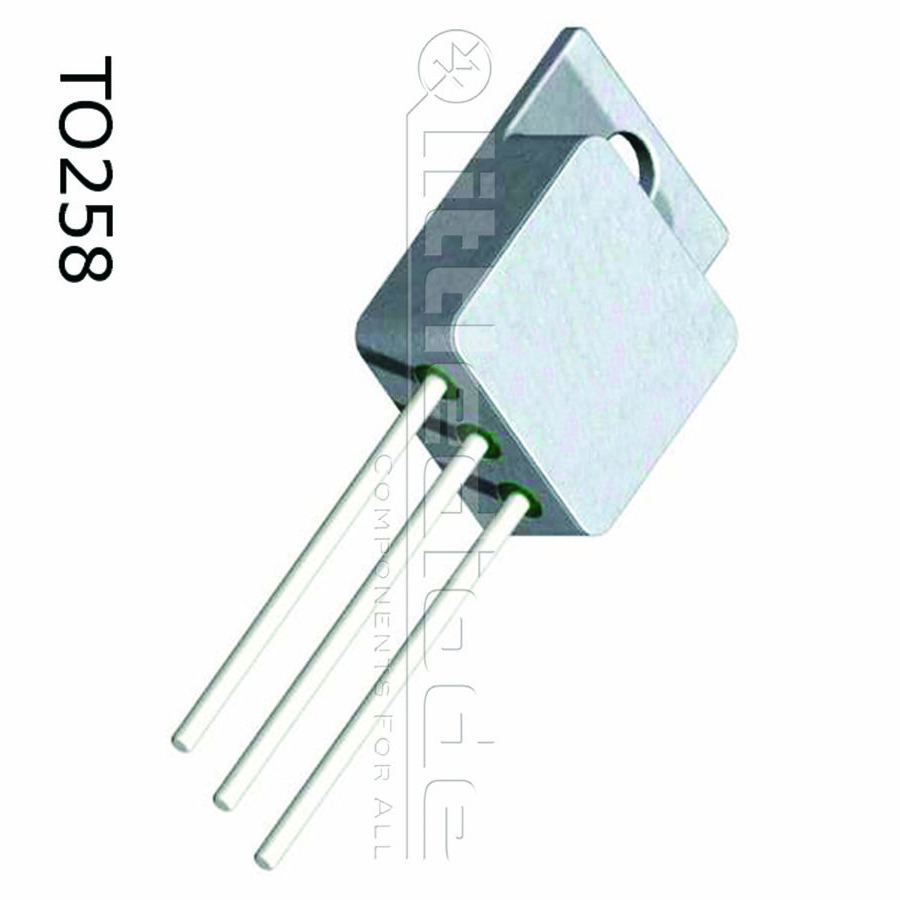

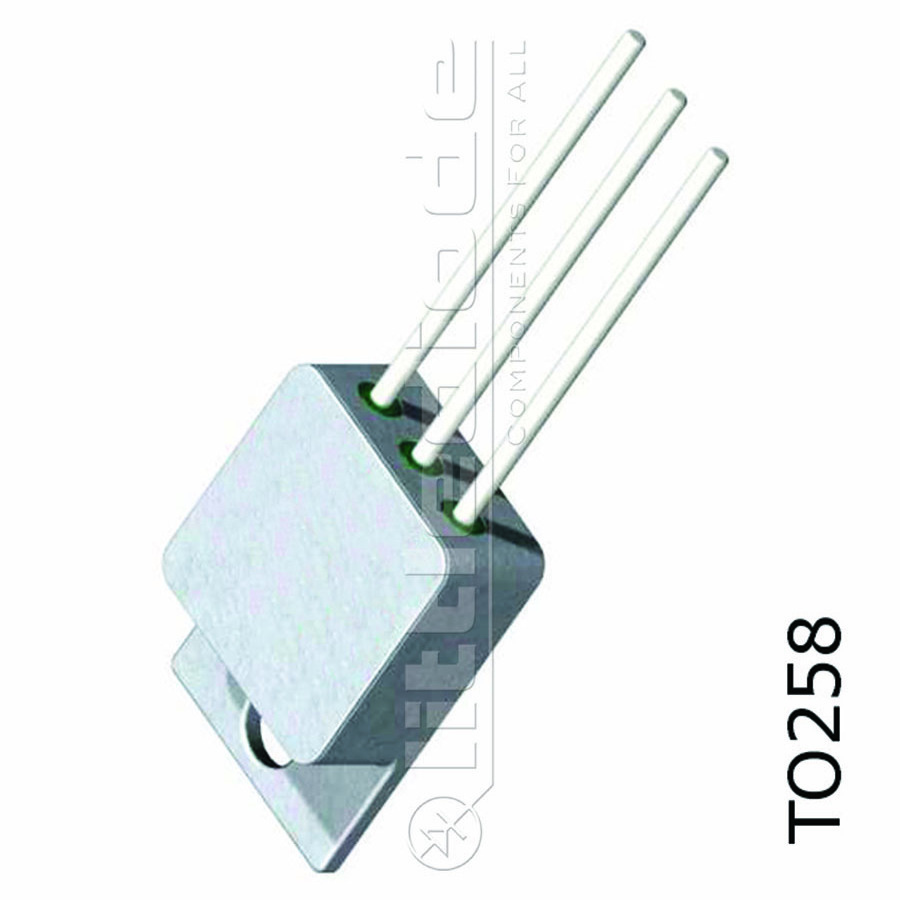

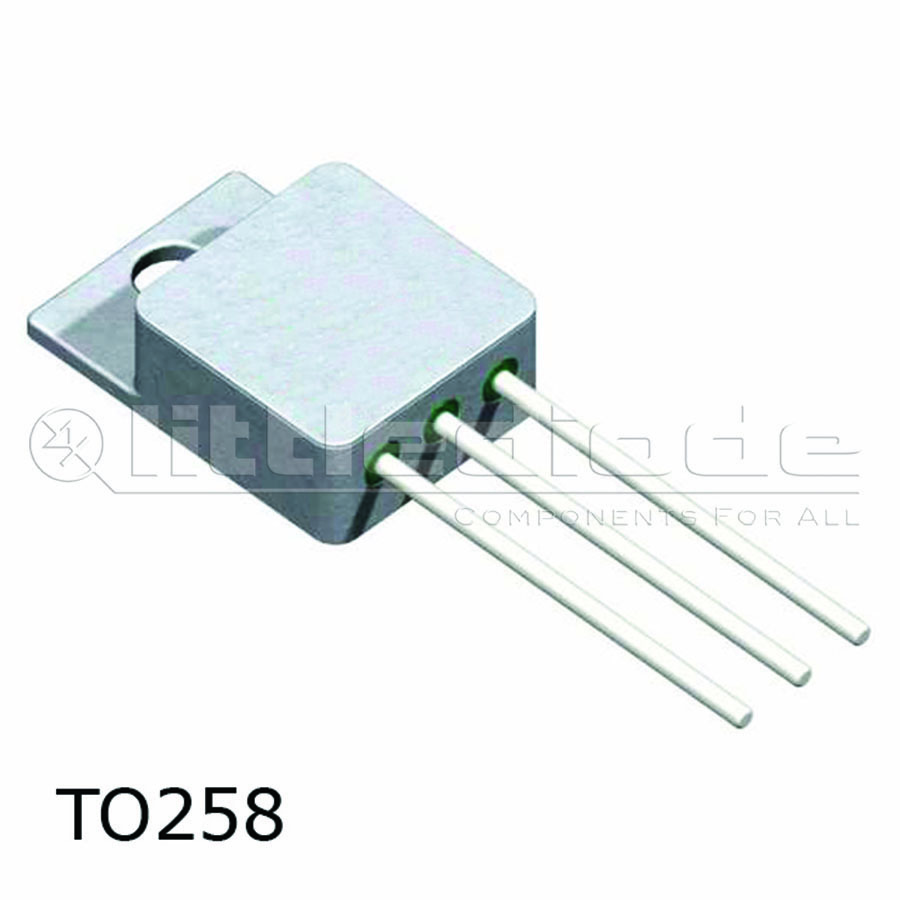

3DD1724 Transistor Silicon NPN CASE: TO258 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO258
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 15
SKU 1424270
