3F60

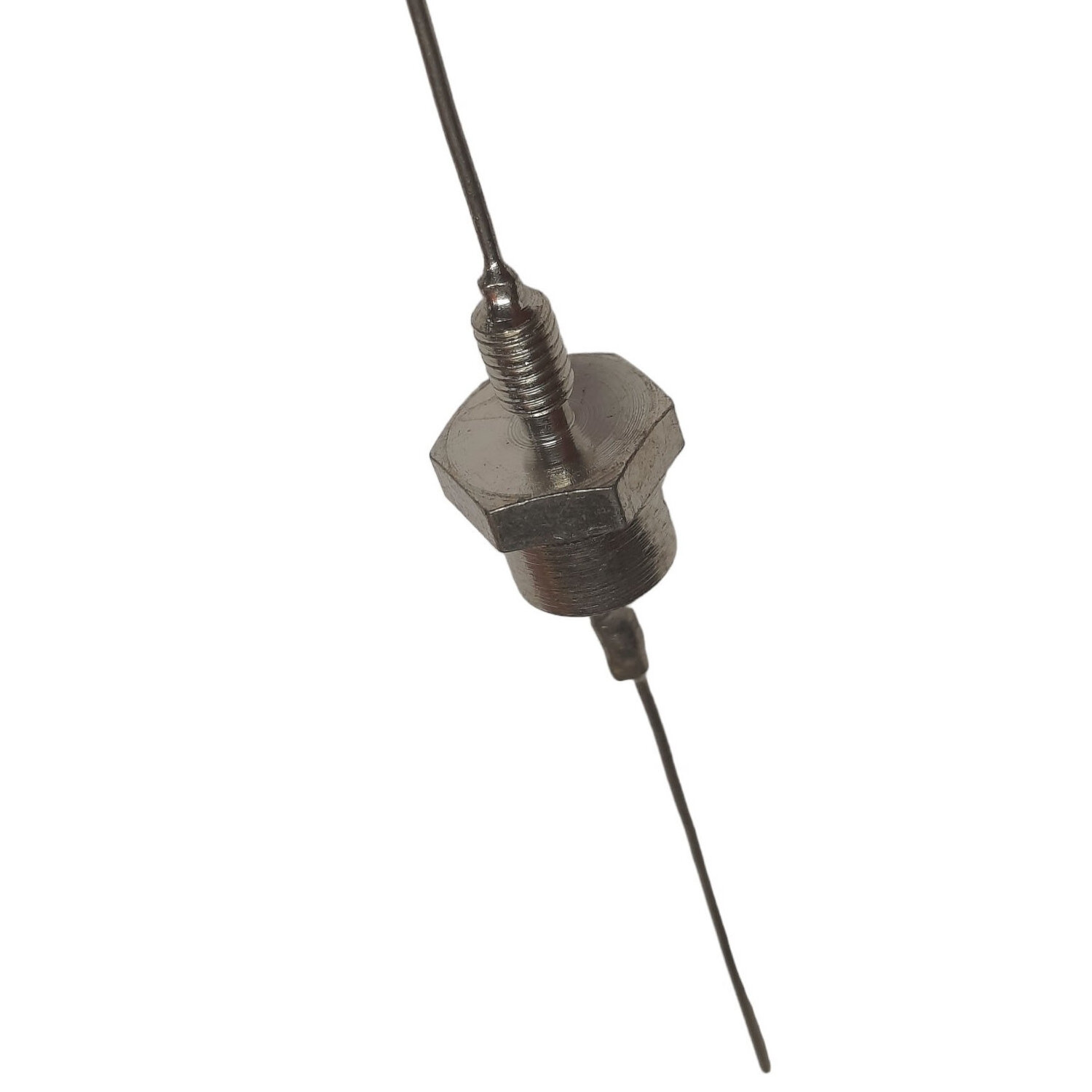

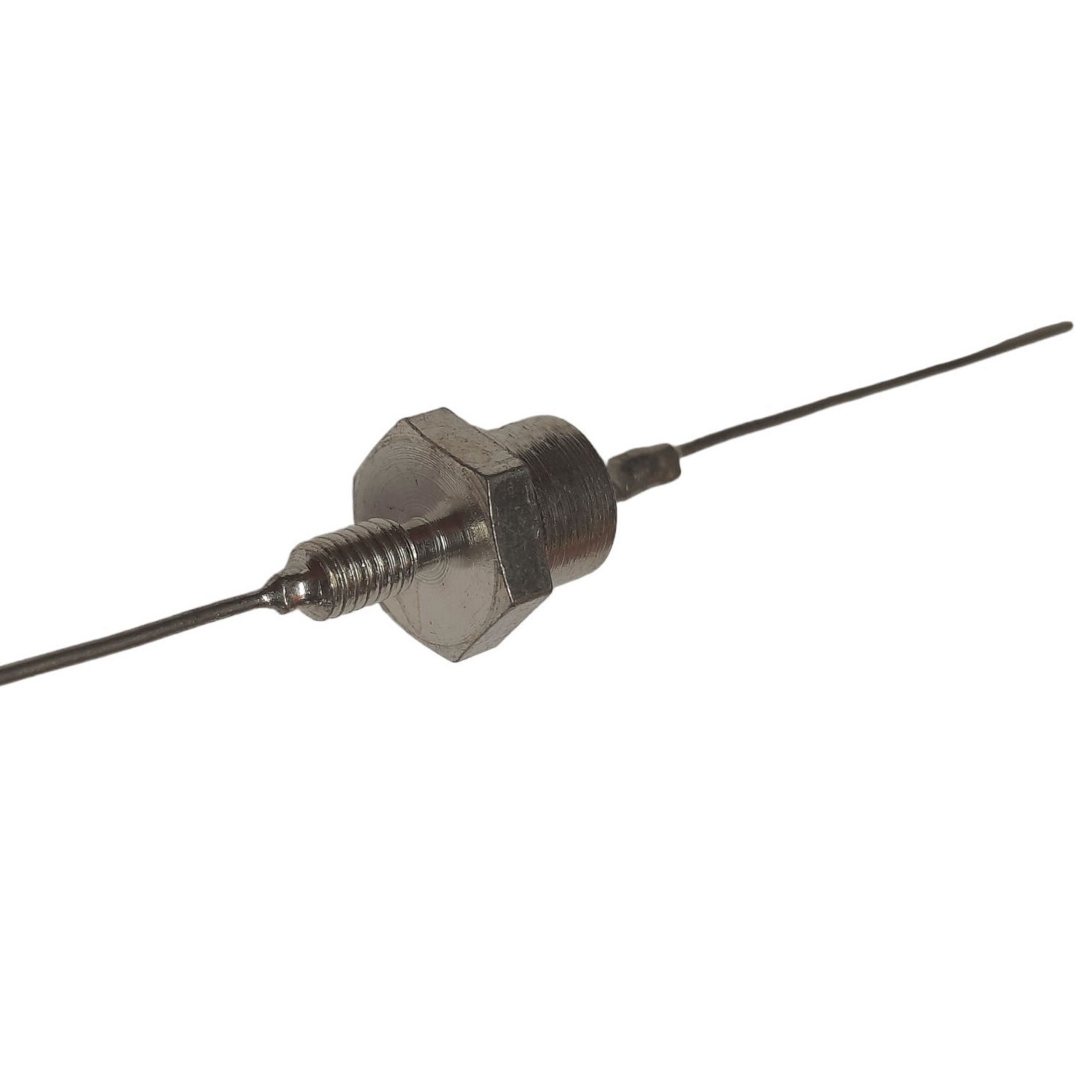

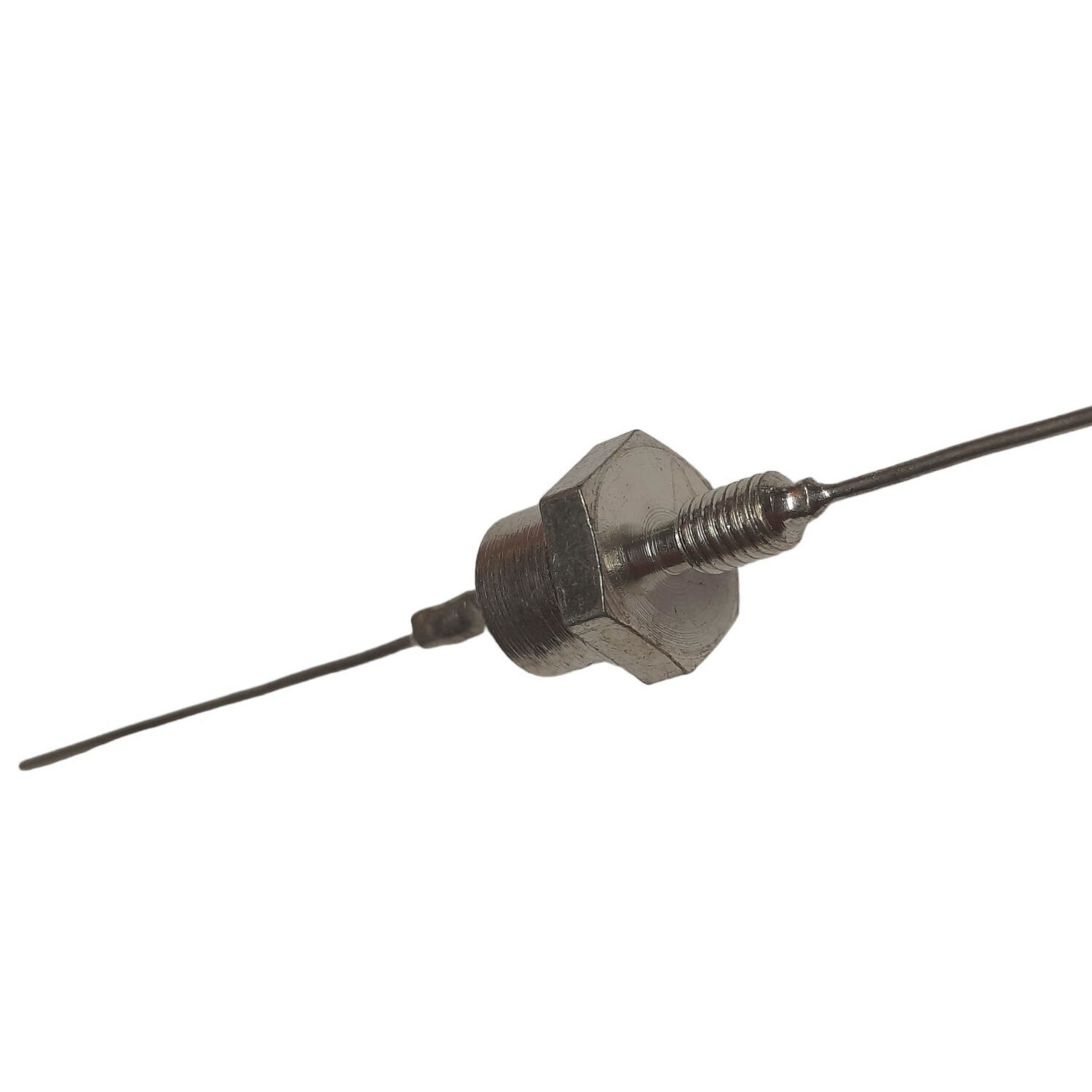

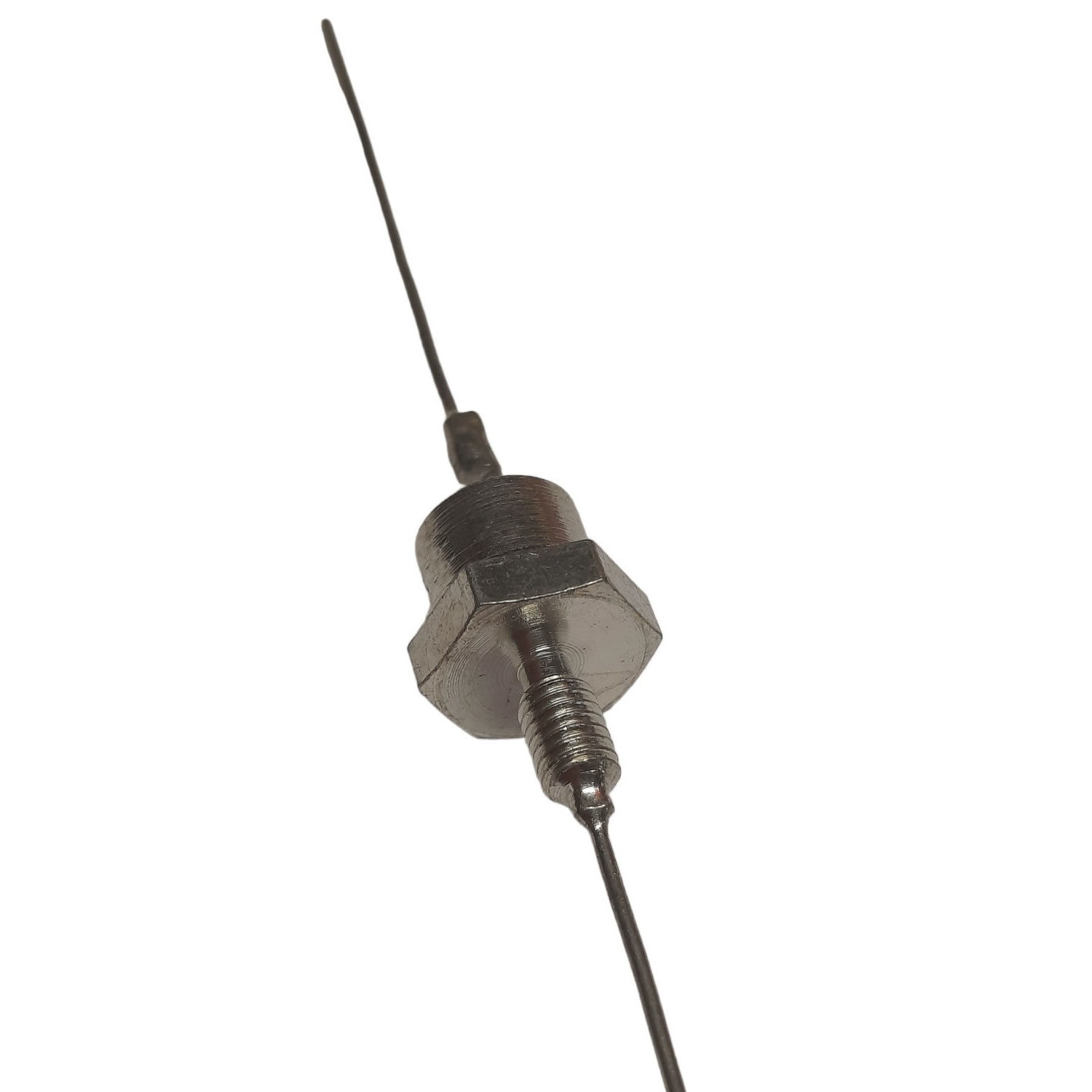

View detailed images (4)

3F60

SKU: 3F60
3F60 Semiconductor CASE: DO4 MAKE: International Rectifier - IR
Product specifications
Type Semiconductor
Case DO4
Manufacturer International Rectifier - IR
Firing Char-Igt Max. 2.0m
Firing Char-Vgt Max. 1.5
I(h) Max. (A) 10m
@Temp. (test) (°C) 140#
Id(off) Max. (A) .01m
Ir @ Diff. Temp (A) 300u
@It (test) (A) .50
It(stat) Max. (A) .35
VRRM 600
Supp Curr. I(TSM) 5.0
1-Cycle Surge Current (A) 40
t(switch) Off Typ. Time (S) 10u
t(switch) Off Typ. Time (S) .40u
@Temp (test) (°C) 140#
@Temp. (test) for Vf) 25#
V(drm) Max. 60
Vf Max. 1.2
V(T) Max. 1.5
I(out) (If AVG) Max. 3.0
@Volts (test) (V) 600
@If (test) 3.0
@Temp. (test) (°C) 25
@Temp. (test) (°C) 100
Oper. Temp (°C) Max. 155
@It (A) .20
Surface Mounted Yes/No NO
SKU 863326
