40411

SKU: 40411

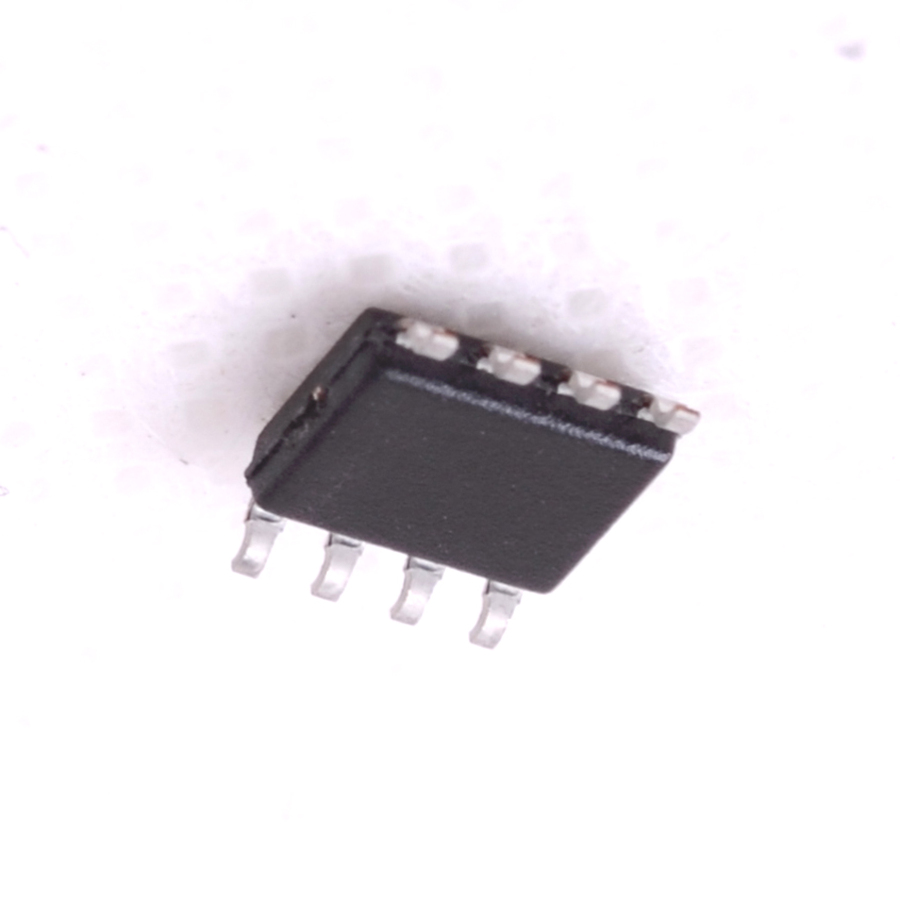

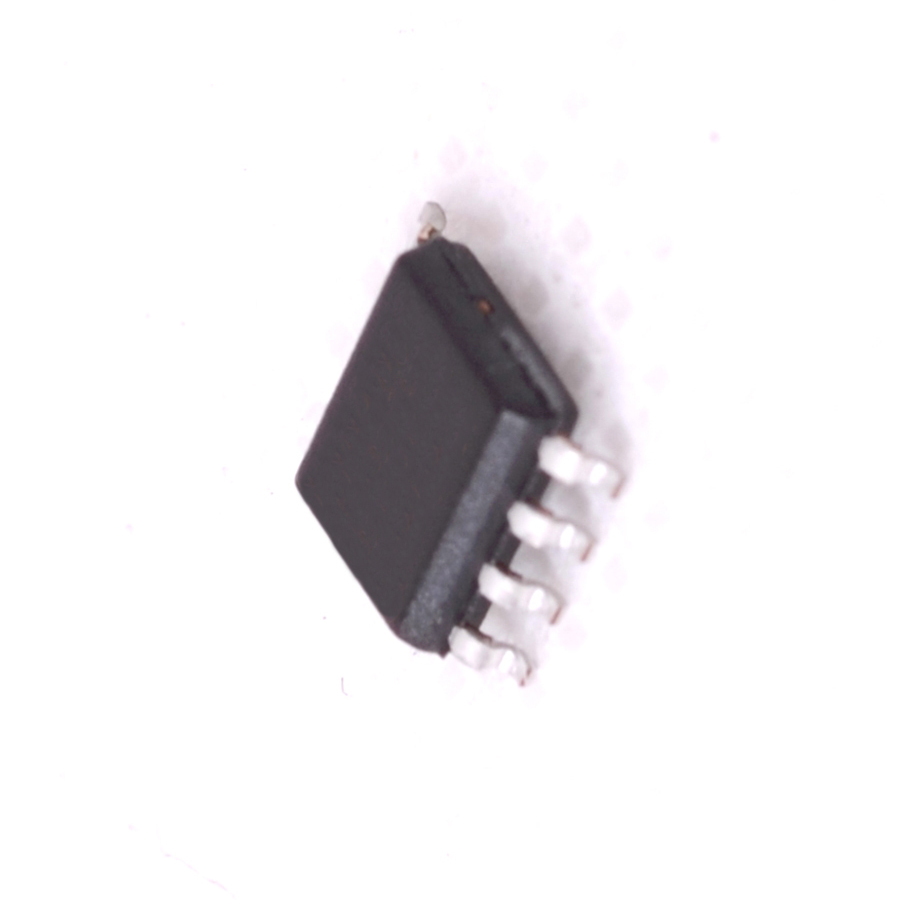

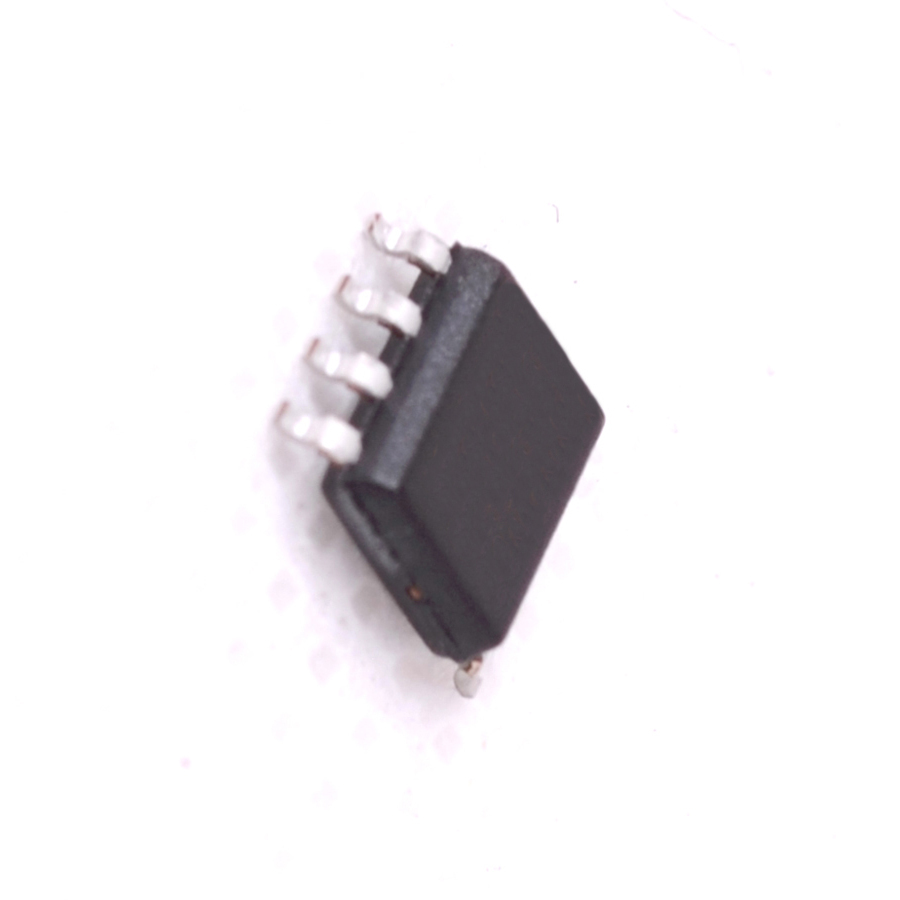

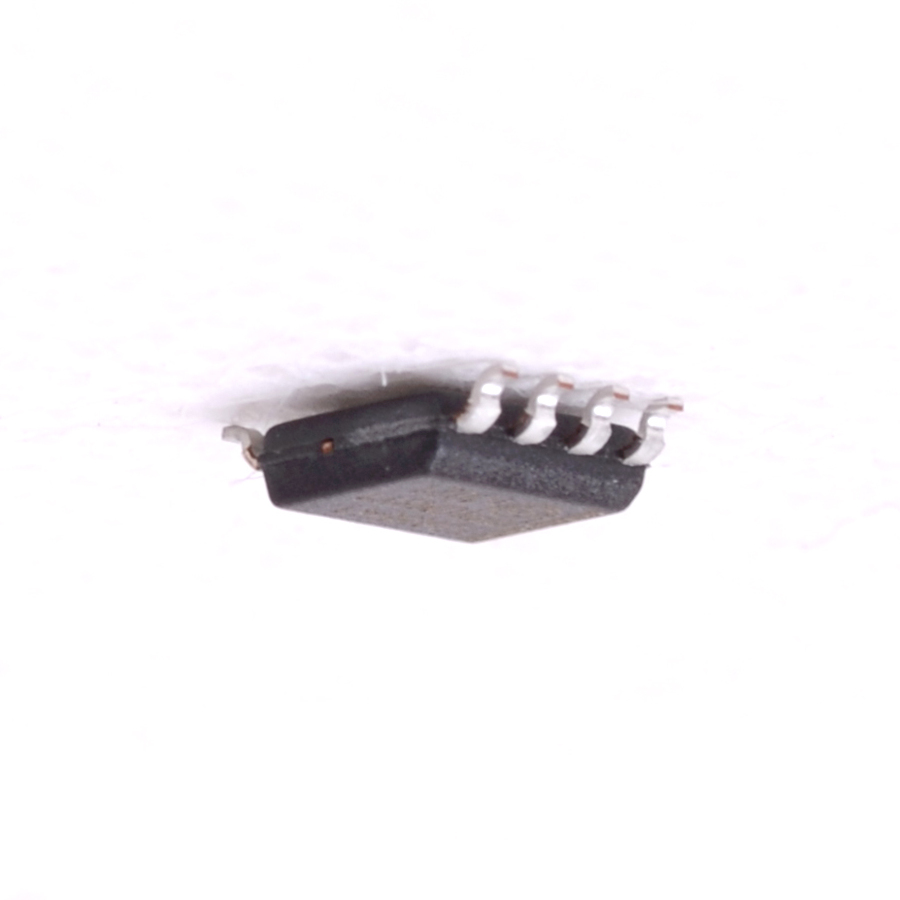

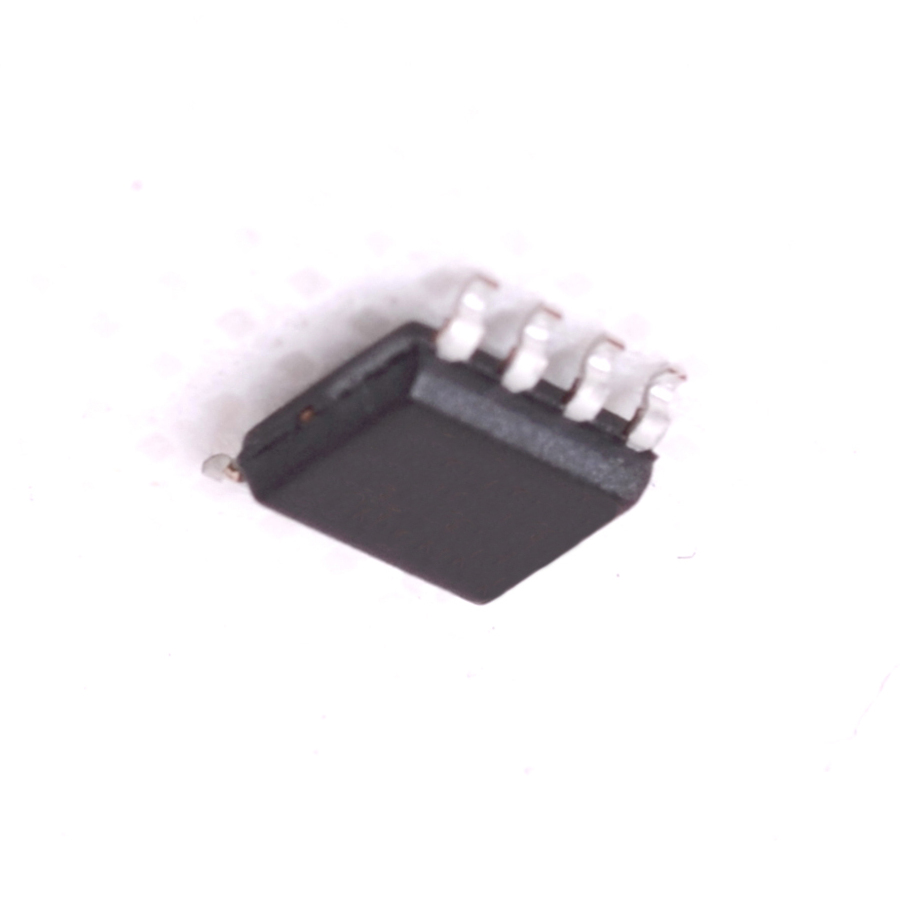

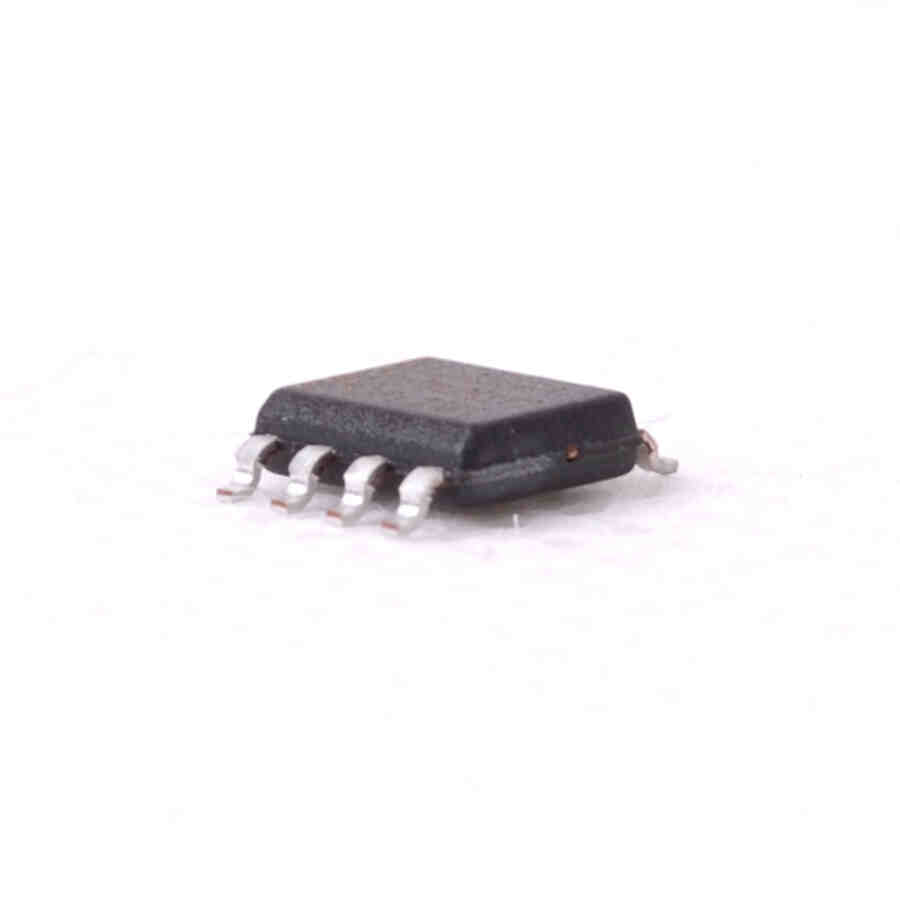

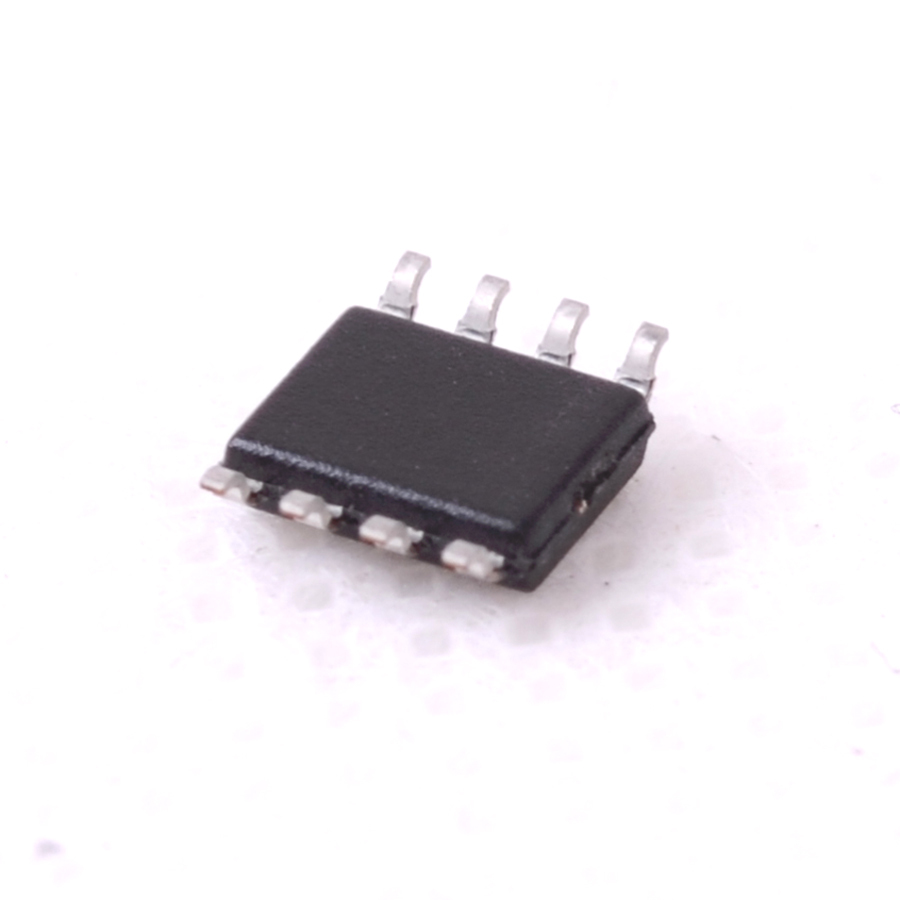

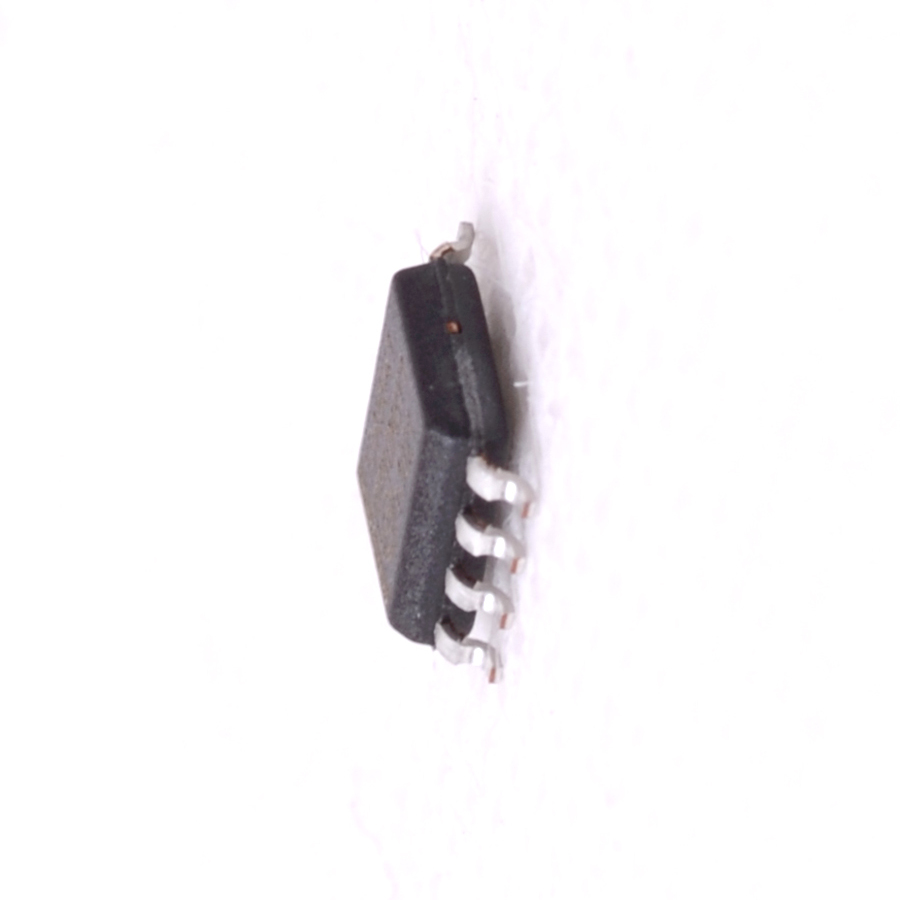

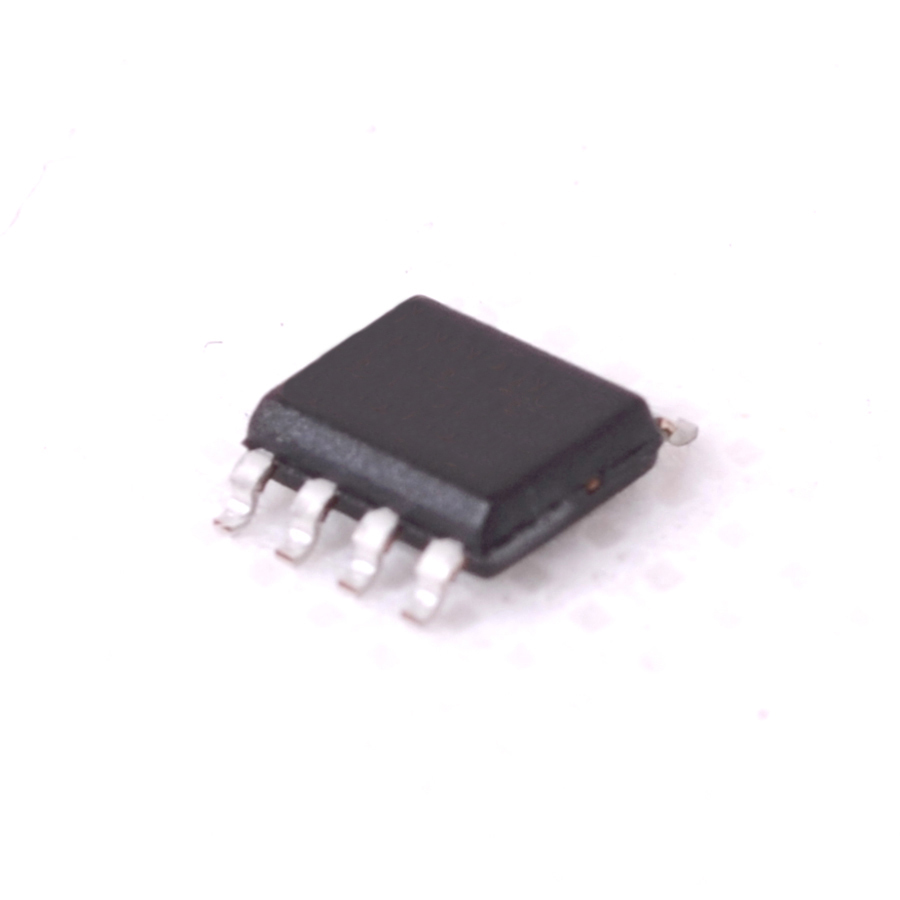

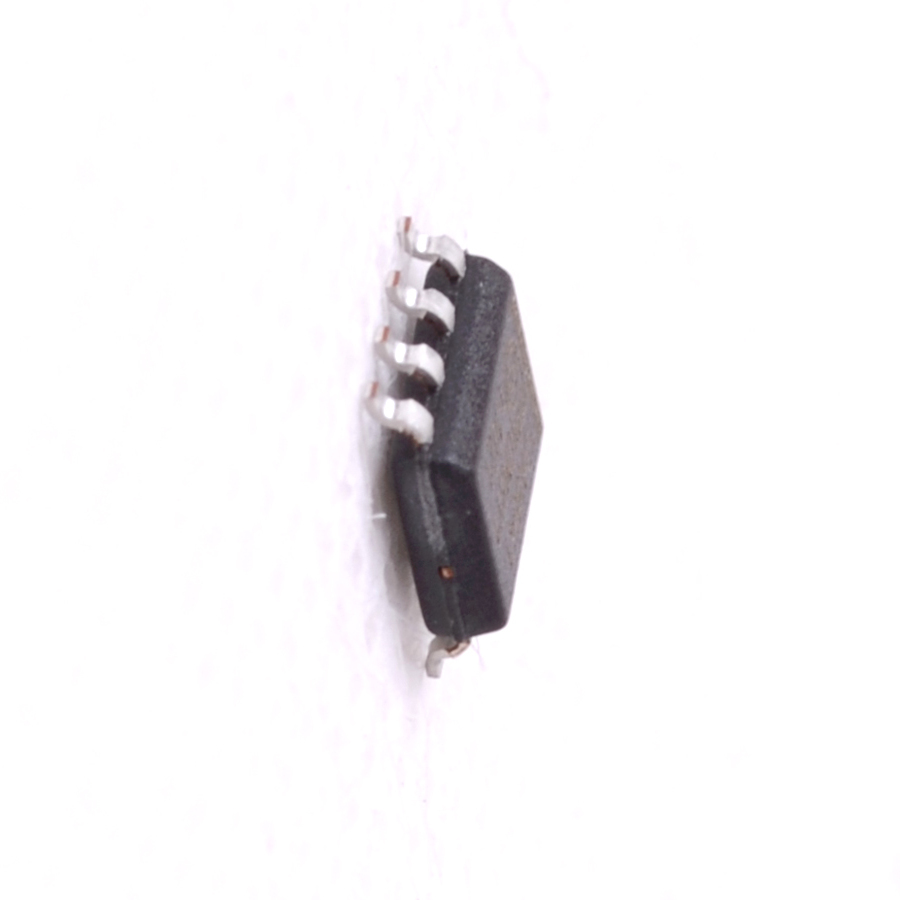

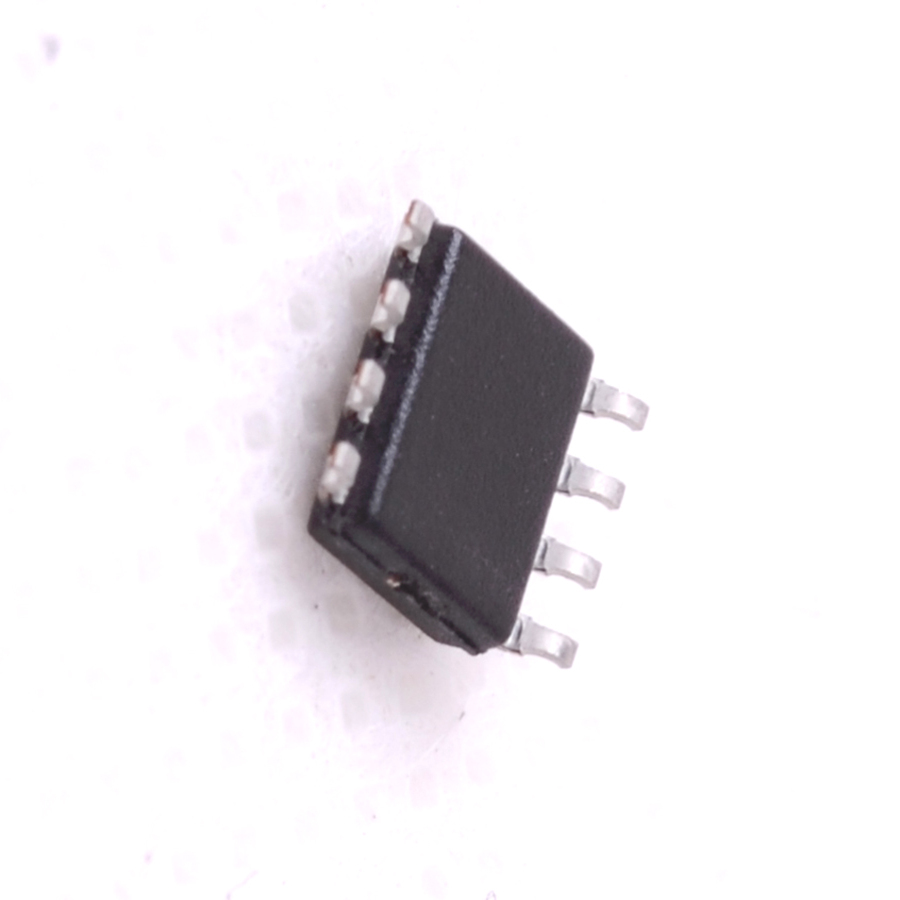

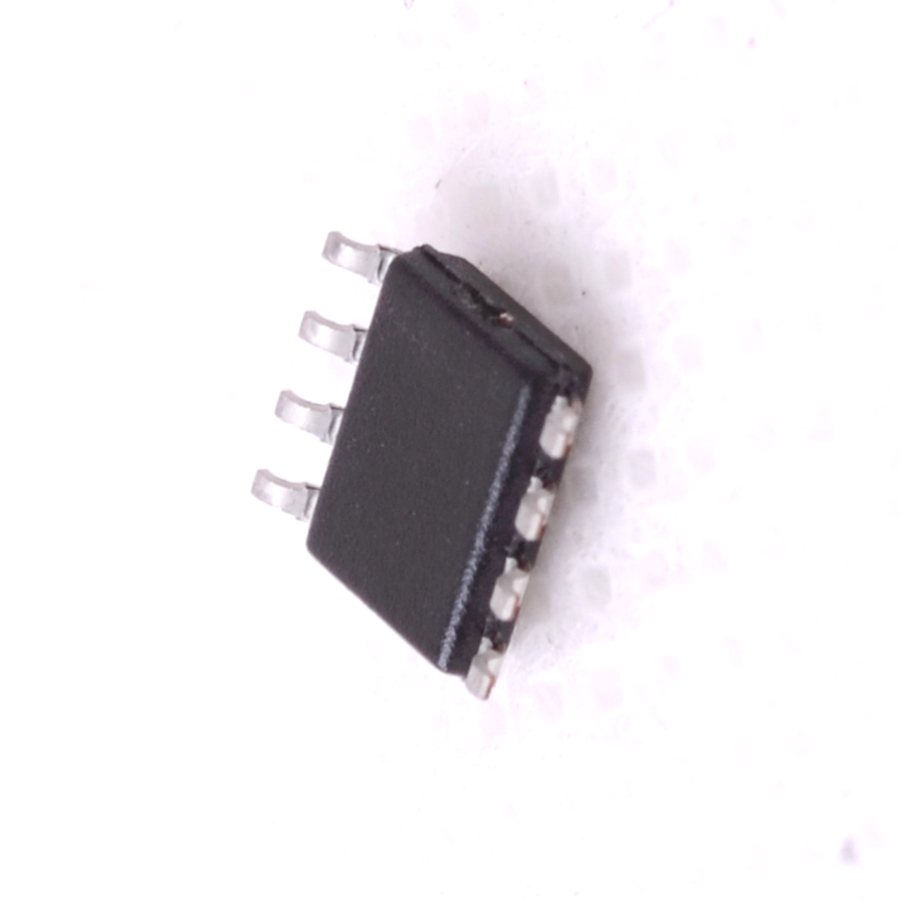

40411 Transistor Silicon NPN CASE: SOP8 MAKE: Renesas
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOP8
Manufacturer Renesas
Vbr CEO 90
Max. PD (W) 150
Max. hFE 100
Min hFE 35
Ic Max. (A) 30
@Ic (test) (A) 4.0
Icbo Max. @Vcb Max. (A) 500u+
Polarity NPN
R(sat) (Û) 200m
Derate Above 25°C 854m
Trans. Freq (Hz) Min. 800k
Oper. Temp (°C) Max. 175
@VCE (V) 4.0
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 90 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 30 A
Max. Operating Junction Temperature (Tj) 200 °C
Transition Frequency (ft): 0.4 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SKU 115004
